21-23 BRONCO SASQUATCH 2-3" STAGE 6 SUSPENSION SYSTEM CDXS

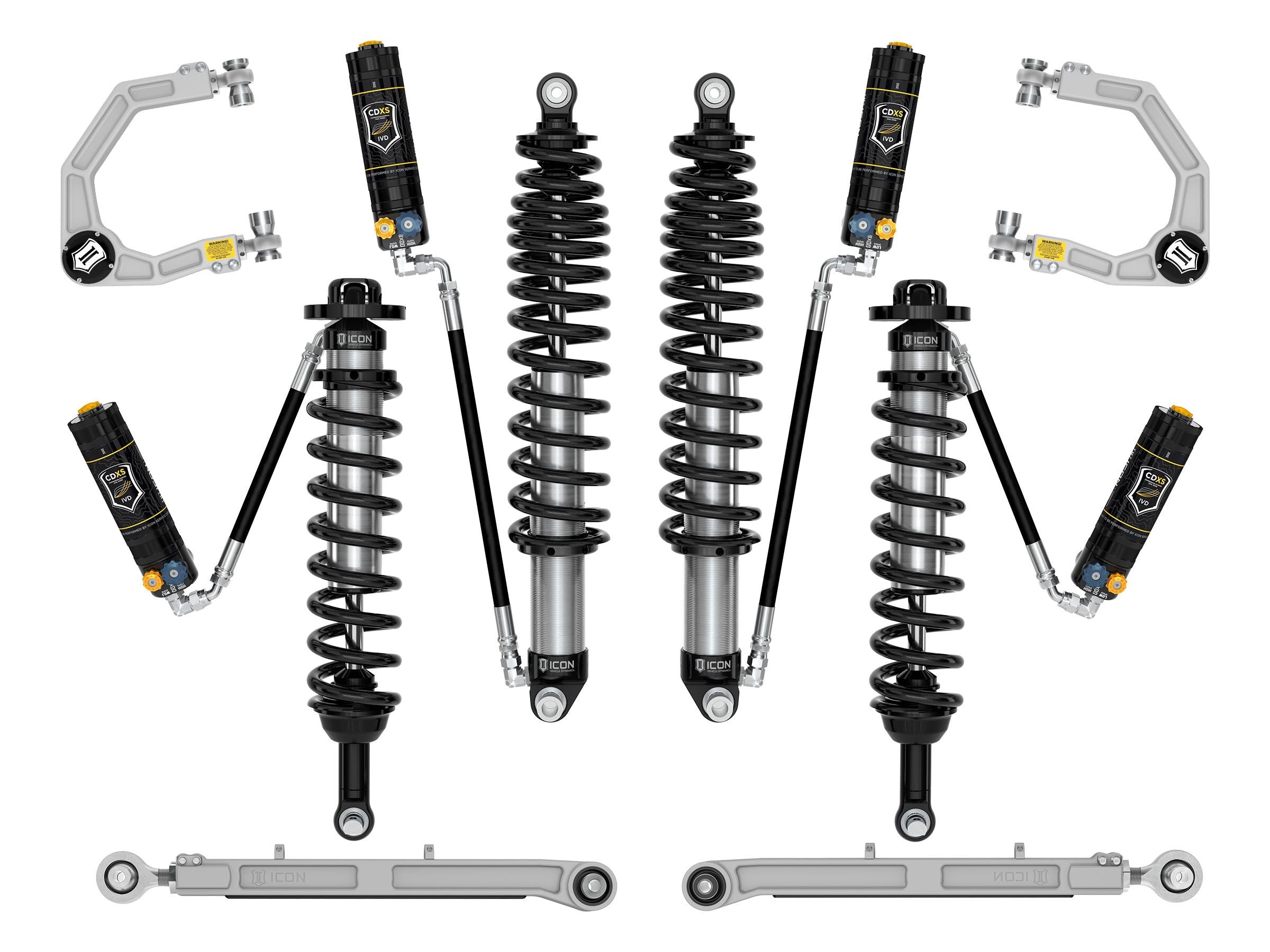

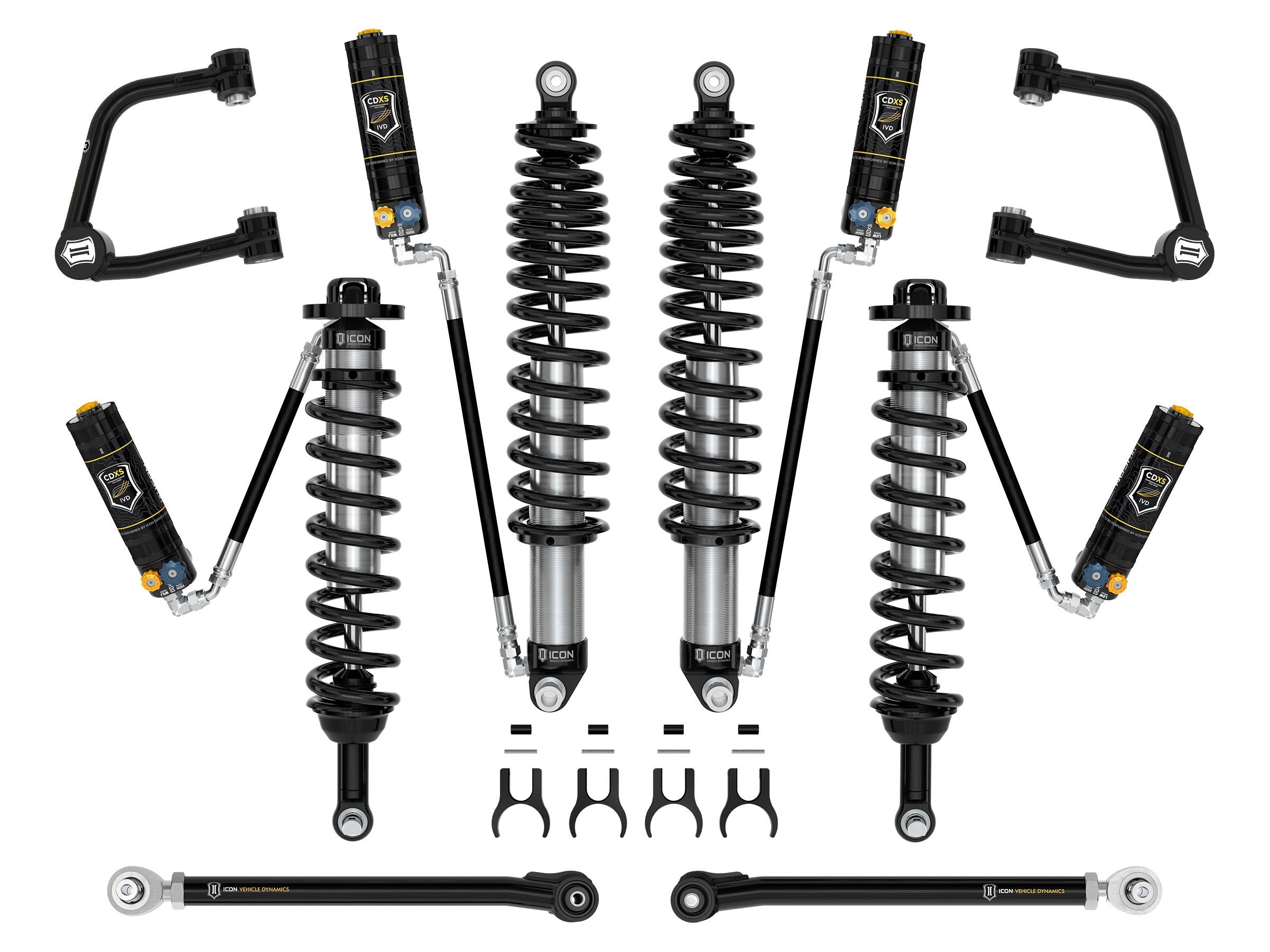

Billet or Tubular (UCA + Rear Links)
Spring Rate
21-23 BRONCO SASQUATCH 2-3" STAGE 6 SUSPENSION SYSTEM CDXS
Billet / Standard
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
overview
ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed coilovers and complete suspension system for 2021-Up Ford Bronco. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios.
With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios.
KEY FEATURES:
- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- Coilovers equipped with CDXS for independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
- Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
- Unique ICON engineered dual rate rear coil springs; "Heavy Rate" option provides increased spring rates for heavier equipped Broncos
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Tubular or Billet rear lower links improve rear end articulation and allow for pinion angle adjustment. Billet links feature on-vehicle adjustability
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
tech notes
- SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
- WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART# 611075 IN THE FRONT.
- WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART# 611074 FOR THE REAR.
- RECOMMENDED CRASH BARS PART# 42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES.
- WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED.
- REAR RESERVOIR BRACKETS MAY INTERFERE WITH SOME AFTERMARKET STEP OR ROCK SLIDER MOUNTS. MODIFICATIONS MAY BE REQUIRED.
- TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded. For near stock weight Broncos, consider part number 48610.
- TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock.
- TECH NOTE: Not compatible with Bronco Raptor
SYSTEMS INCLUDE:
- 48700X: 21-23 BRONCO FRONT 2.5 VS RR CDXS COILOVER KIT
- 48400DJ: 21-23 BRONCO TUBULAR UCA DJ PRO KIT
or 48500DJ: 21-23 BRONCO BILLET UCA DJ PRO KIT -
44000T: 21-23 BRONCO TUBULAR REAR LOWER LINK KIT
or 44000: 21-23 BRONCO BILLET REAR LOWER LINK KIT - 611073: 21-23 BRONCO HOSE ROUTE KIT REAR LINK 1.75"
-
48710X: 21-23 BRONCO REAR 2.5 VS RR CDXS COILOVER KIT
or 48711X: 21-23 BRONCO REAR 2.5 VS RR CDXS COILOVER KIT HEAVY RATE SPRING
