2025 Ram RHO SDHQ Built Complete Switch Pros Mounting Kits

This SDHQ Built product (SP9100 KEYPAD MOUNT) is currently out of stock. However, it is already in production here at SDHQ in Gilbert, AZ. Our expected completion date for this run is +/- 10 WEEKS FROM 5/4/2026. Any order placed will have a unit allocated to ship immediately as production finishes. We appreciate your patience and look forward to getting you your American-made SDHQ-quality parts as soon as possible!

secure and easy-to-reach

Our SDHQ Built Switch-Pros Keypad Conversion Mount for the 2025 Ram RHO allows you to convert the sunglass holder into a mount for the keypad component of the Switch-Pros SP-9100 or RCR-Force-12 in a secure and easy-to-reach location, allowing you to control your off-road lighting and accessories with ease.

This SDHQ Built keypad mount is 3D printed giving this keypad mount a direct from the factory level of fitment and quality. *Switch-Pros Not Included*

interior mount KEY FEATURES:

• 3D CAD Designed for a precise fit and finish.
• Fits both non-upfitters and upfitters overhead consoles
• Fits: 2025 Ram RHO
• Fitments allows for 9100 and RCR12
• Direct replacement of overhead sunglass holder.
• Drilling ¾” hole required to route switch pro wire

🔧 INSTALL INSTRUCTIONS 🔧

Under Hood Power Module Mount Key Features:

• 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
• Mounts to existing factory mounting points in the 2025 RAM RHO
• Simple and clean solution for mounting the Switch-Pro Power Module.
• Mounts close to battery for ease of wiring.
• Utilizes Switch Pro Hardware for mounting the Power Module.
• Laser cut from 1/8" Aluminum
• Anodized Black.

🔧 INSTALL INSTRUCTIONS 🔧

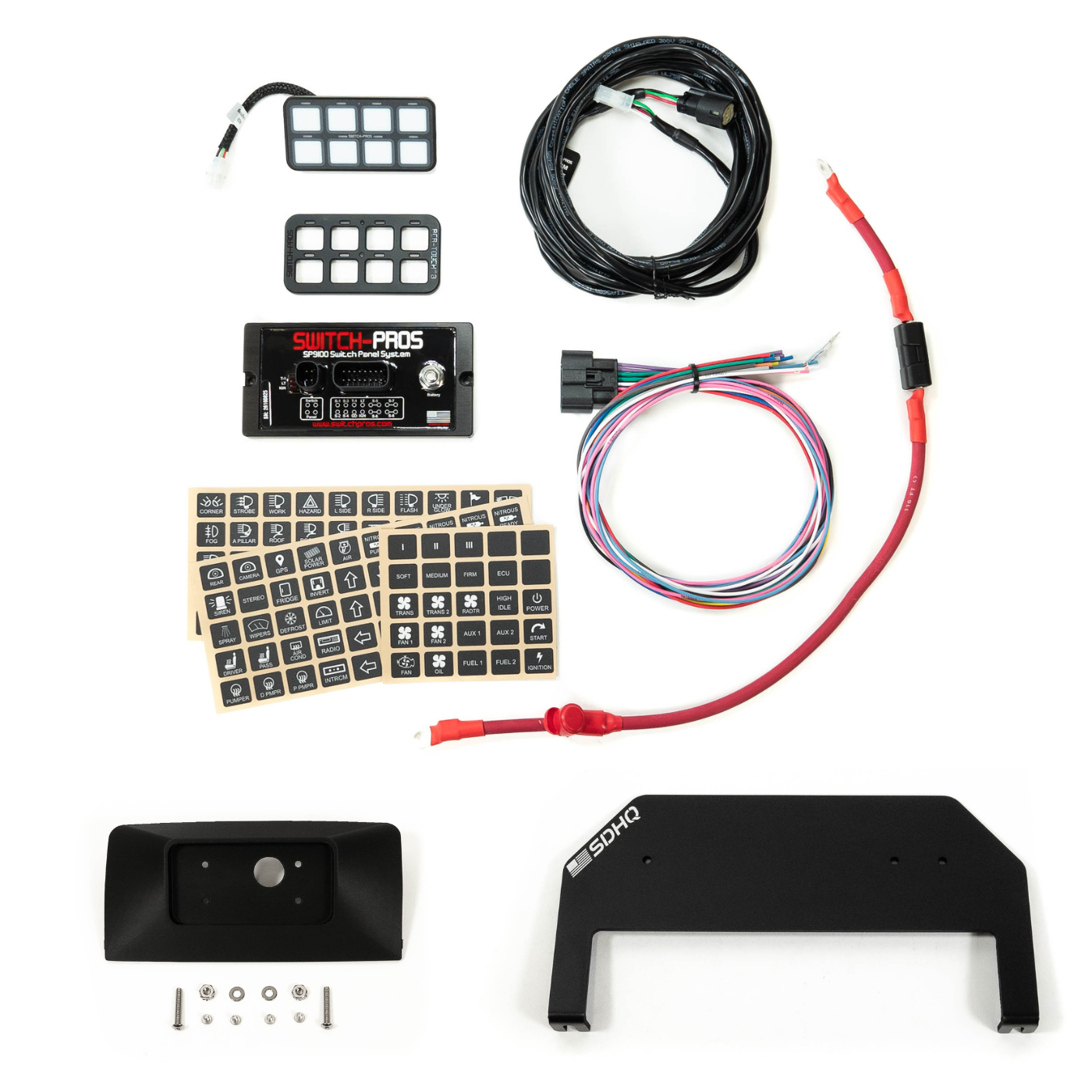

Switch Pros SP9100 Features

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• LED Input Status Indicators for easy troubleshooting on power module

Specifications

• 125amp capacity with 8 outputs
• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H
• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module

What’s Included?

• Switch Panel and Power Module
• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse
• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 16-pin color coded output harness
• Detailed installation Guide

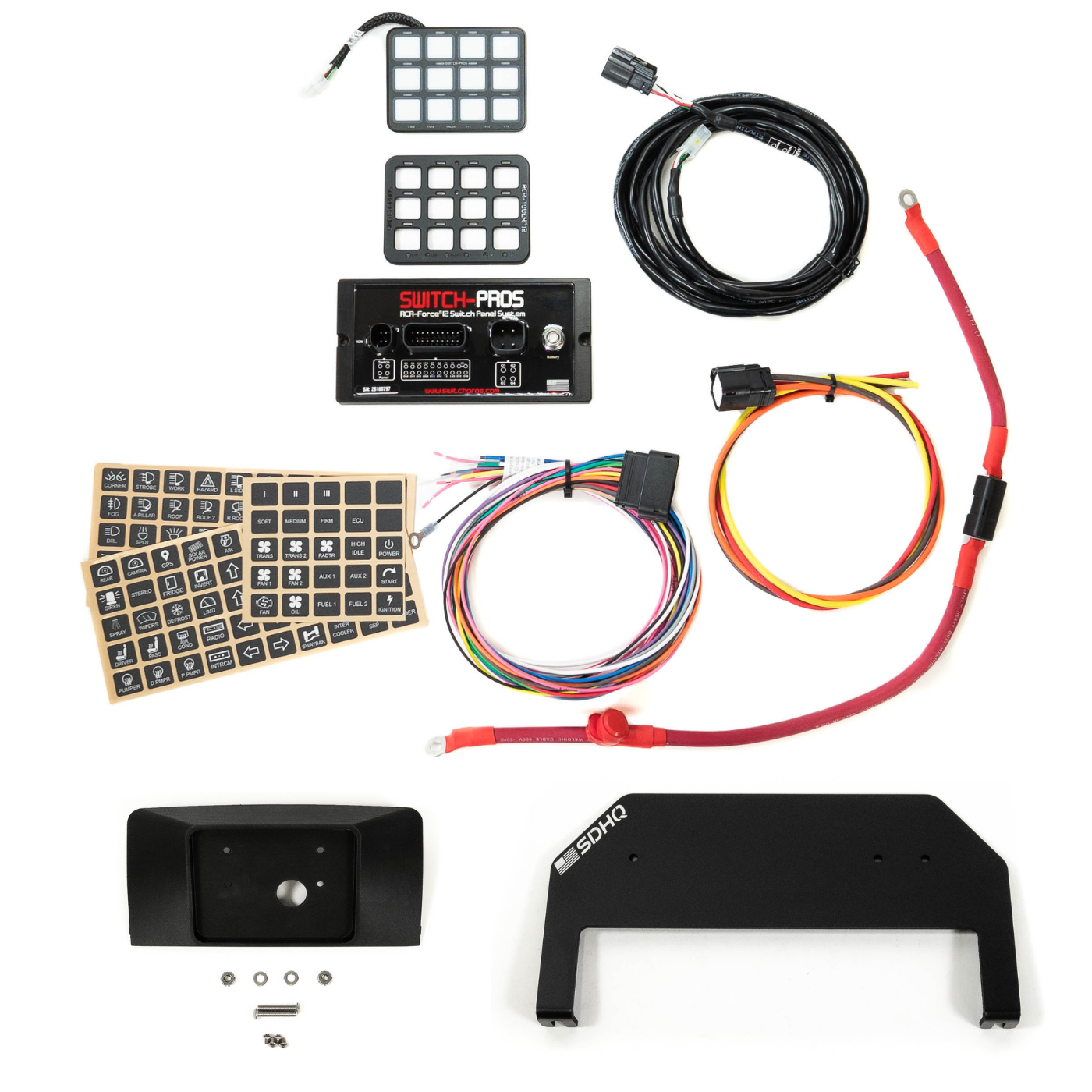

Switch Pros RCR Force 12 Features:

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• 6 Programmable LED Status indicators

Specifications

• 150amp capacity with 17 outputs
• 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
• 11 rated @ 15A, which can be combined for larger loads
• 1 Low Side driver switch, rated @ 2A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
• Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
• On-On-Off logic
• Touch Panel lockout
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Safety Lockout for specific switches
• Time Delay off
• No bulky relay box
• Up to 4 output wires can be assigned to 1 switch
• Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module
