Dirt King Fabrication

2019-2025 GM 1500 MT Trail Runner Kit

$2,547.00
SKU: DK-636P01C
Cab Size:

Cab Size
2WD Or 4WD:

2WD Or 4WD
Model:

Model

2019-2025 GM 1500 MT Trail Runner Kit

Single Cab / 2WD / Trail Boss/ZR2/AT4/AT4X

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

Transform your GM 1500 by eliminating front-end rake and achieving a leveled lift with the Dirt King MT Trail Runner Kit. This cost-effective solution includes Dirt King's 4130 Upper Control Arms, 2.0 IFP Front Coilovers, and 2.0 IFP Rear Shocks—all expertly tuned for superior comfort during everyday driving and on rugged trails. It's the perfect choice for those looking to enhance their vehicle's appearance and ride quality without the premium price tag of an extreme off-road package. For unmatched off-road control, adjustability, and high-speed desert capability, consider our MT PreRunner Kit.

*Requires ARC delete for models equipped with ARC (Adaptive Ride Control also know as MagneRide)

Specs:

Front Lift Height

  • Standard Models
    • Out of the Box: Provides 3" of lift (levels vehicle).

    • Max Recommended Setting: Up to 3.5" of lift.

  • Trail Boss / ZR2 / AT4 / AT4X Models:
    • Out of the Box: Provides 1.5" of lift.
    • Max Recommended Setting: 1.5" of lift (Do not exceed to maintain ride quality)

Rear Lift Height

  • Standard Models:
    • Out of the Box: Factory height is retained.
    • Maximum Recommended Lift Block: 1.5" (Lift blocks not included)
  • Trail Boss / ZR2 / AT4 / AT4X Models:
    • Included: Package includes 1.5" rear lift blocks to replace the factory 2" blocks.
    • Benefit: Levels the vehicle and optimizes ride quality.

Additional Specifications

  • Track Width: Stock
  • Maximum Backspacing: 4.75"
  • Minimum Rim Size: 17"
  • Shock Bodies: 2" hard-anodized 6061 aluminum
  • Shock Shafts: Induction-hardened 5/8"

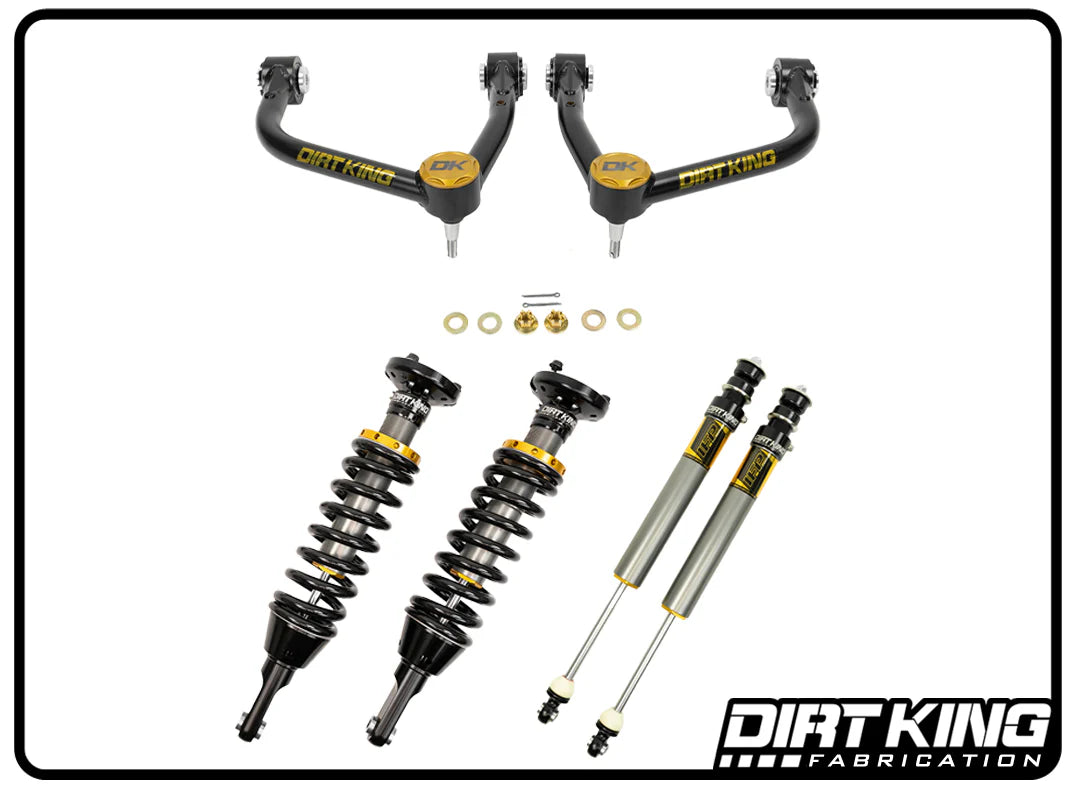

What's Included:
Features:
  •  Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
  • Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
  • Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
  • Durable Construction: The upper control arms are professionally MIG welded using 4130 chromoly tubing and finished with a black powder coat.
  • High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
  • Maintenance-Free Bushings: Probearing SilentSpin bushings offer a free-spinning inner sleeve without the need for grease.
  • Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.

  • Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.
