Dirt King Fabrication

2019-2025 GM 1500 2.0 IFP Coilovers

$1,199.00
SKU: DK-636785F
Cab Size:

Cab Size
2WD Or 4WD:

2WD Or 4WD
Model:

Model

2019-2025 GM 1500 2.0 IFP Coilovers

Single Cab / 2WD / Trail Boss/ZR2/AT4/AT4X

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

Improve your GM 1500's look and ride quality with the Dirt King 2.0 IFP Series coilovers. They come preset with 2.5" of lift to level your vehicle and include a spanner wrench for easy preload adjustments, especially useful when installing aftermarket bumpers or a winch. Although these shocks don't match the full performance of the Dirt King 2.5 DCA coilovers, they substantially outperform OE shocks by offering a smoother ride over rough terrains such as washboards and potholes. In addition they provide increased wheel travel to allow for higher articulation and improved damping on large dips.

Specs:

Front Lift Height

  • Standard Models:
    • Out of the Box: Provides 3" of lift (levels vehicle).
    • Max Recommended Setting: Up to 3.5" of lift.
  • Trail Boss / ZR2 / AT4 / AT4X Models:
    • Out of the Box: Provides 1.5" of lift.
    • Max Recommended Setting: 1.5" of lift (Do not exceed to maintain ride quality)

Additional Specifications

  • 2" hard-anodized 6061 aluminum bodies
  • Internal floating piston

  • Induction-hardened 5/8" shafts

*Note: Shocks must be paired with aftermarket UCAs.

What's Included:

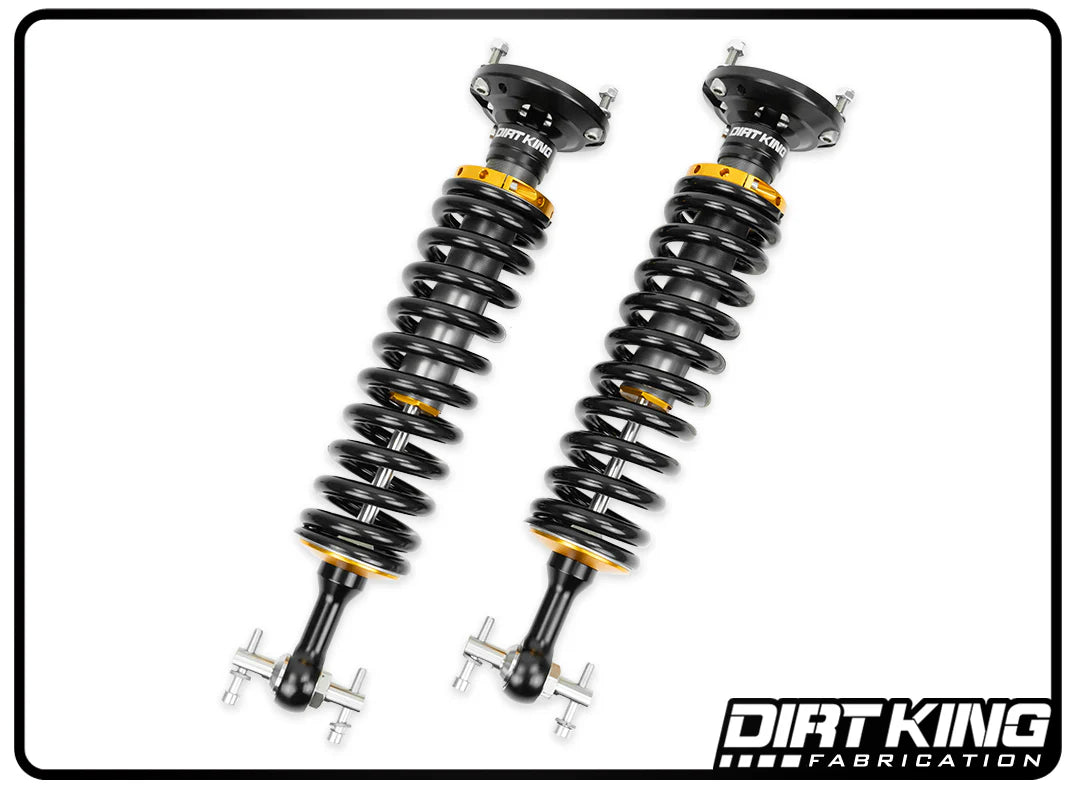

  • 2.0 Dirt King IFP Series coilovers
  • Spanner wrench
  • All necessary mounting hardware
  • Installation instructions
Features:
  • Increased suspension travel
  • Vehicle specific valving providing optimal ride comfort
  • Aluminum body for cooler operation and corrosion resistance
  • Direct bolt-on replacement that uses factory shock mounting location
  • Maxima custom oil blend. The proprietary light viscosity semi-synthetic oil blend is low friction and extremely resistant to high operating temperatures
  • Cold wound, high-tensile alloy steel coil springs that retain consistent rate and ride height
  • Completely rebuildable and serviceable. All tools and replacement parts can be purchased from Dirt King
