2011-2015 Chevy/GMC 2500/3500 + (2016 2500 Only) 6.6L Duramax, LML Monster Exhaust System
System Configuration
2011-2015 Chevy/GMC 2500/3500 + (2016 2500 Only) 6.6L Duramax, LML Monster Exhaust System
Chrome / Single Rear Wheel
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Description:

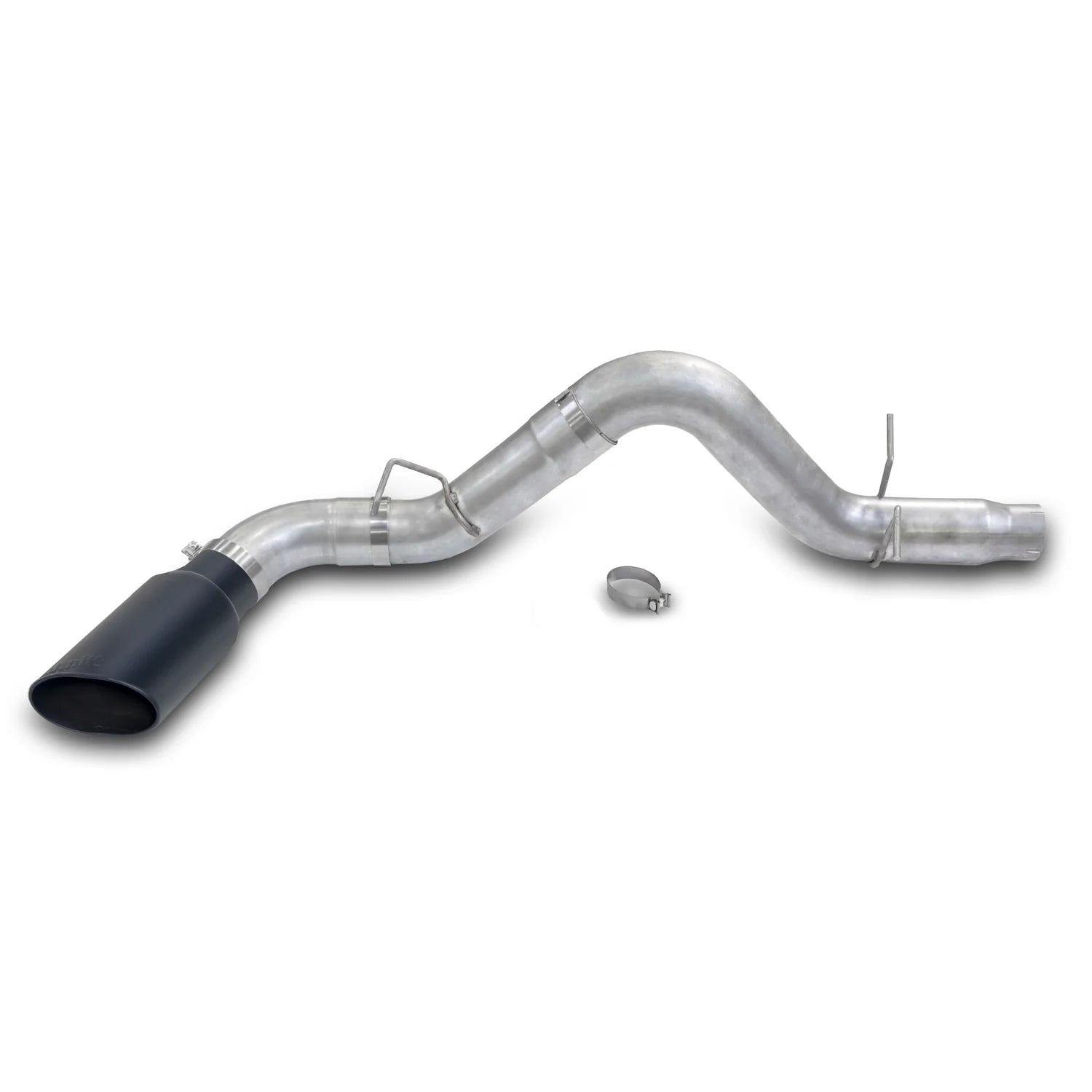

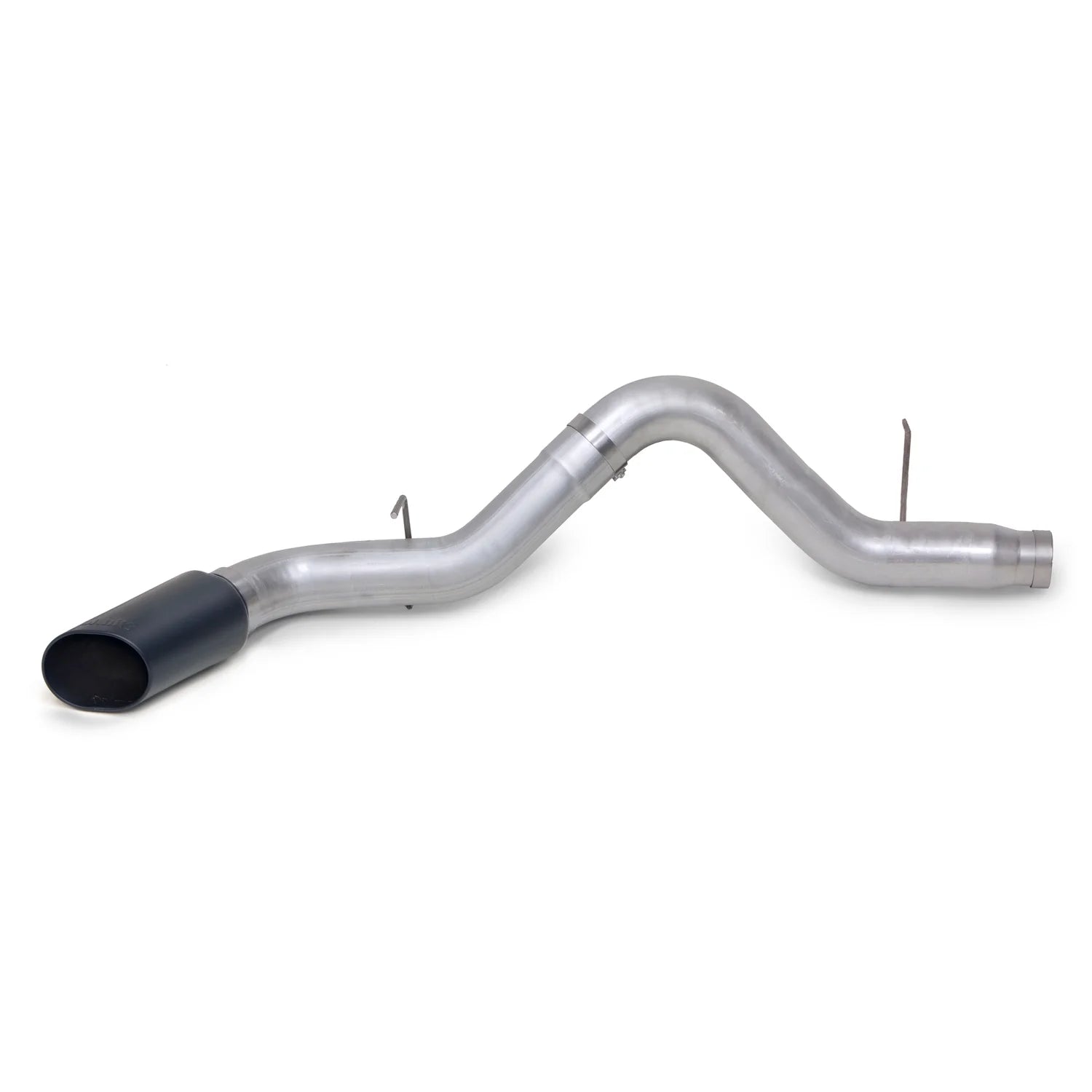

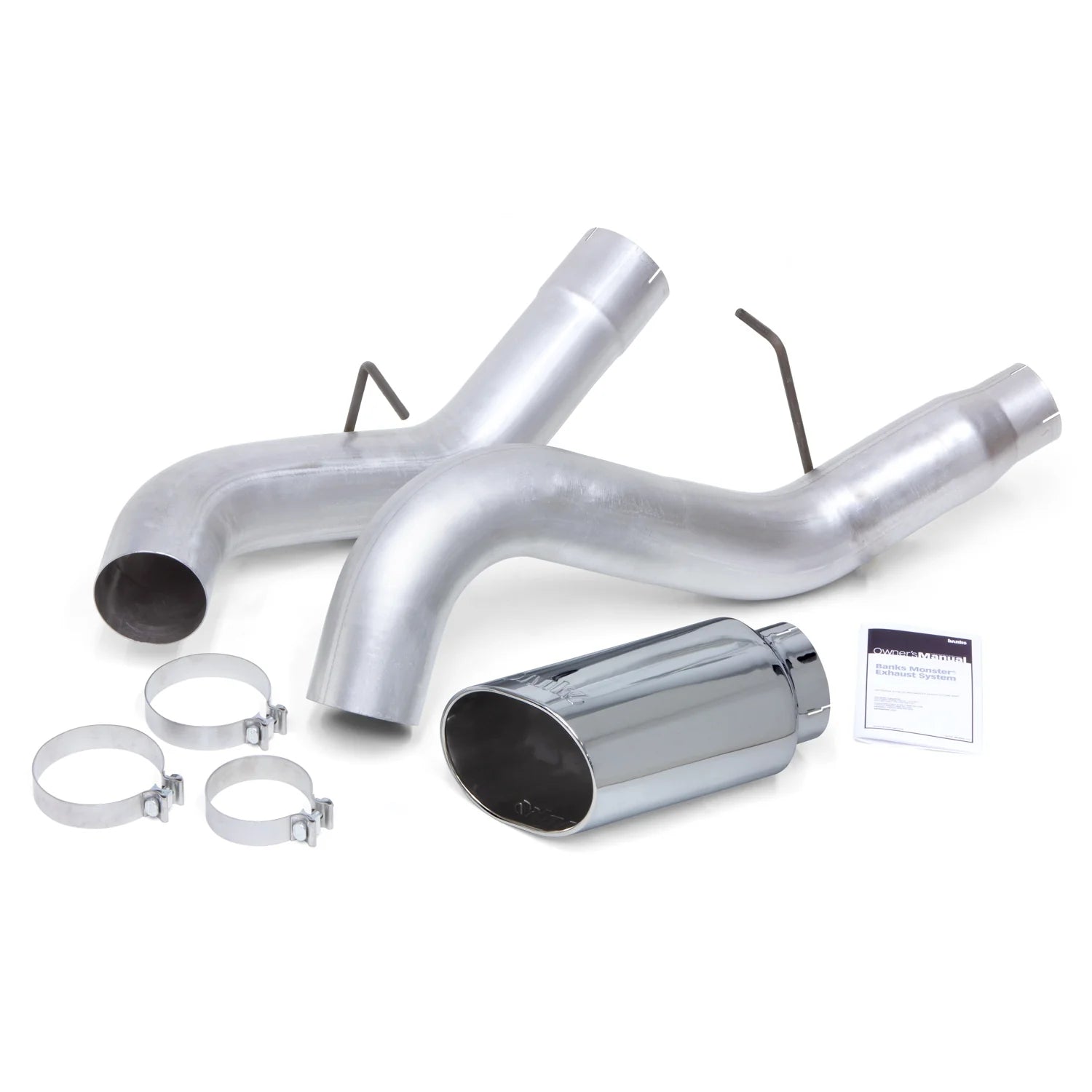

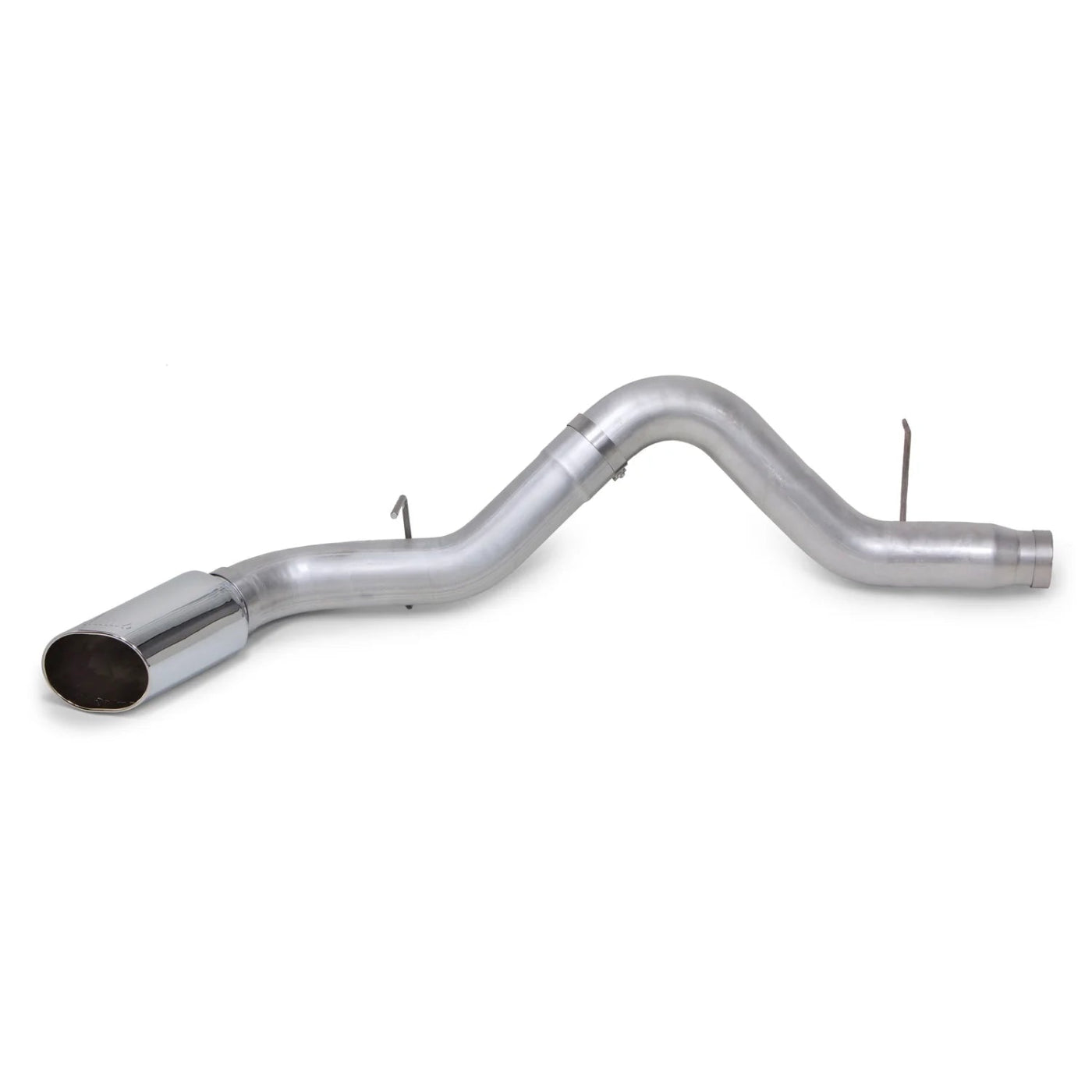

5-inch 409 stainless steel constant-diameter DPF-back system. Patented negative backpressure SideKick tip helps lower exhaust exit temps by 15%. Improves flow and cuts backpressure by 89% from the DPF and 9% at the turbine inlet, allowing the engine to produce more horsepower. Includes Huge Polished-Chrome or Cerakote Black Patented SideKick tip.
Fitment Note:
Note: For 2016 3500HD models only, you will need an additional NOX bung sold separately. This will need to be welded on and installed at your local muffler shop. The bung needed is available here PN: 52255
Key Features:
- 5" 409 stainless steel constant-diameter DPF-back exhaust system.
- 15% reduction in exhaust temperature 2 feet behind the tip during regen
- Huge patented 6.5" x 7.5" ob-round slash-cut exhaust tip
- Chrome-plated stainless tip will not turn brown with heat
- 89% less backpressure at the DPF than stock exhaust
- 9% less backpressure at the exhaust turbine
- Ob-Round Exhaust Tip Patent No. 5,581,111 S1
- Fits trucks with aftermarket airbags
see fitment notes section above
Specs:
The 5-inch Monster Exhaust designed specifically for the 2011-2016 GM 6.6L Duramax LML 2500/3500 HD pickup trucks. The DPF-back exhaust system features constant-diameter 5-inch mandrel-bent Aluminized Steel tubing and a massive patented tip which virtually eliminates backpressure after the DPF and prevents trailer meltdown.
Why It's Better:
Change Your Look

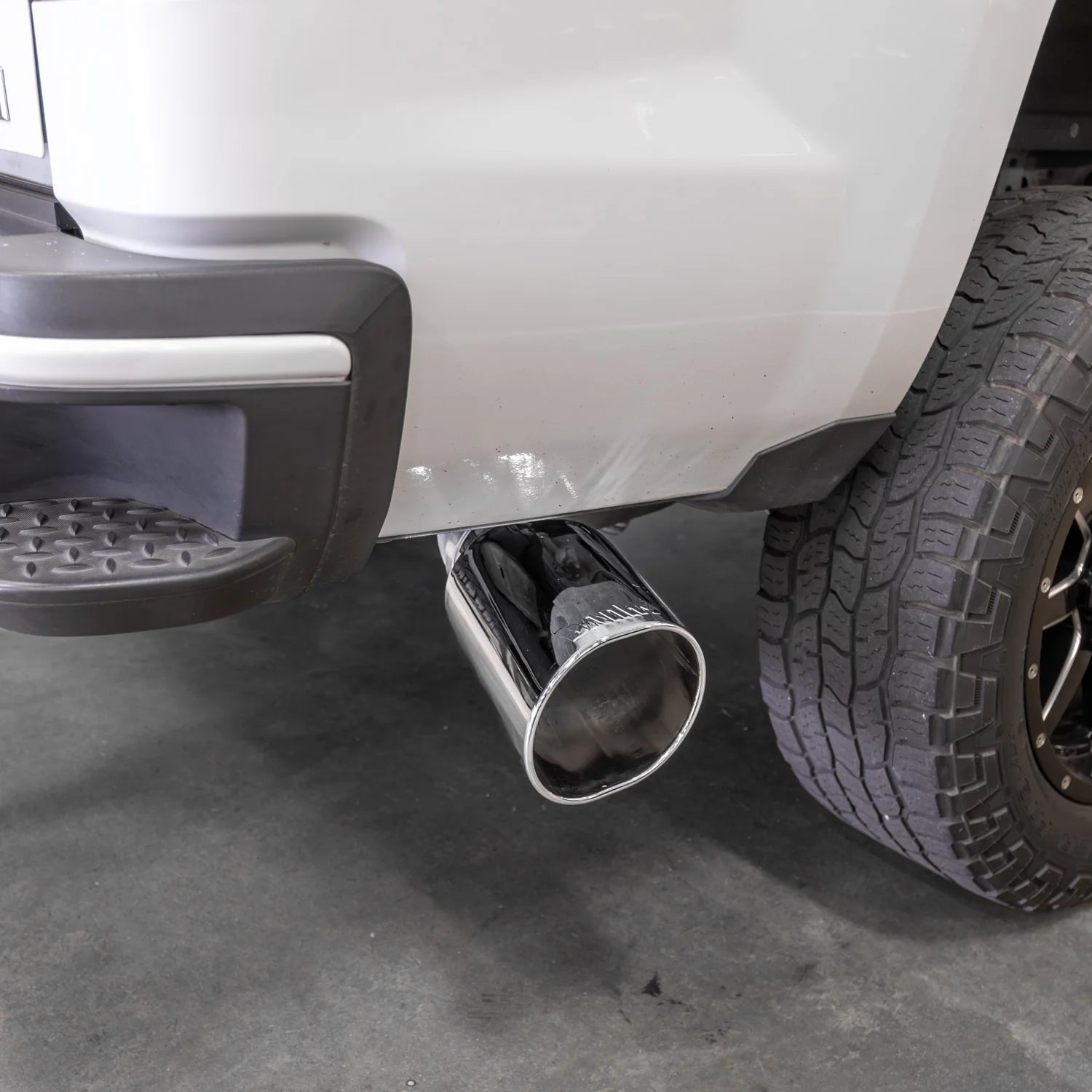

Duramax owners can choose from two huge patented 6.5 x 7.5-inch ob-round slash-cut exhaust tips: chrome-plated polished stainless steel or high-temp Cerakote matte black.
And, unlike other brands, Banks' Cerakote black or Chrome tip will not turn brown with heat.
Drop The Pressure
Banks patented negative back-pressure tip virtually eliminates back-pressure after the DPF. With a side-draft rocket nozzle-like tip, exhaust gasses are literally sucked out of the end of the exhaust.
With pressure sensors installed, this negative exhaust pressure resulted in an impressive 9% reduction all the way back to the turbine inlet.
Don't Be Deceived
With the stock exhaust nozzle measuring 2.85-inch compared to the Monster Exhausts massive 5-inch outlet, the Banks system offers a 192% greater flow area than stock.
The Monster Exhaust boasts 85% less backpressure than stock, leading to more power and increased fuel economy..
Drop That Heat
The Monster Exhaust also provides a 15% reduction in exhaust temperature two feet behind the tip during regen!
The Diesel Particulate Filter (DPF) on the Duramax L5P is cleaned through regeneration in which scorching exhaust gas temperatures can last up to 20 minutes while driving.

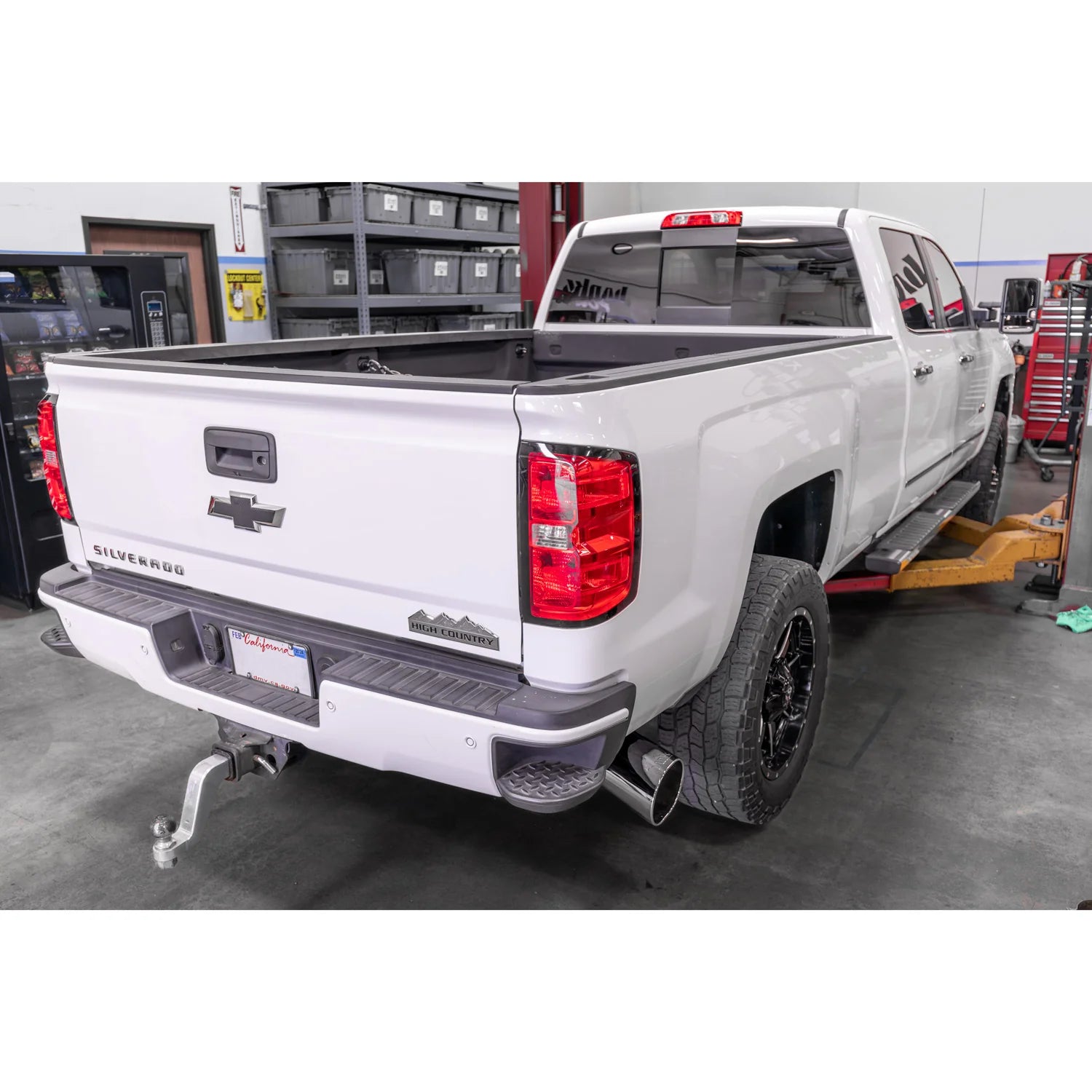

Unlike the stock Duramax exhaust, which directs a prolonged jet-like blast of super-heated exhaust gas directly at anything being towed, the Monster Exhaust is aimed out to the side of the truck.
This allows ambient air to diffuse the heated gas, eliminating the risk of melting a trailer, which has been reported by many Duramax owners.
