'20-23 Chevy/GMC 2500/3500 Fox 2.5 Performance Elite Series Rear Shocks Suspension Fox
'20-23 Chevy/GMC 2500/3500 Fox 2.5 Performance Elite Series Rear Shocks Suspension Fox close-up

Fox

'20-23 Chevy/GMC 2500/3500 Fox 2.5 PB Performance Elite Series Rear Shocks

$1,599.95
SKU: Fox-883-26-085
Quantity:

'20-23 Chevy/GMC 2500/3500 Fox 2.5 PB Performance Elite Series Rear Shocks

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

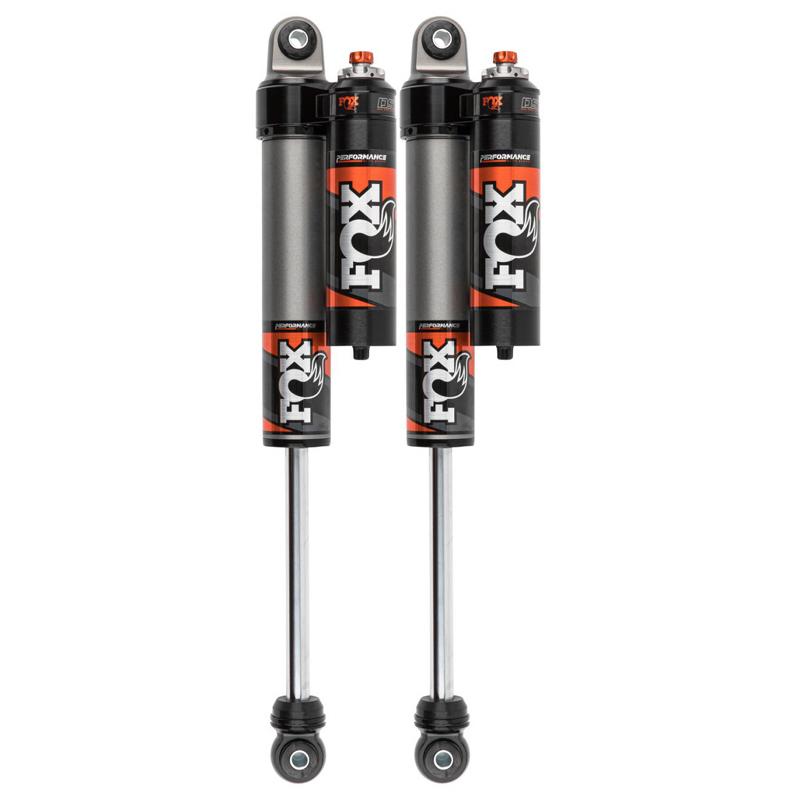

Fox's Performance Elite Series 2.5 Piggyback Reservoir smooth body shocks for the rear of the 2020-2023 Chevy/GMC 2500 and 3500 give your truck enhanced ride quality and the control you need when heading off the pavement.

Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

VEHICLE FITMENT:
  • 2020-2023 Chevy 2500
  • 2020-2023 Chevy 3500
  • 2020-2023 GMC 2500
  • 2020-2023 GMC 3500
SPECS:
  • Lift Height: 0-1"
  • Extended: 26.390"
  • Compressed: 16.350"
  • Travel: 9.975
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
KEY FEATURES:
  • Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
  • Body Plating: Hard-anodized for a durable finish
  • Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Adjuster Type: DSC - Dual Speed Compression

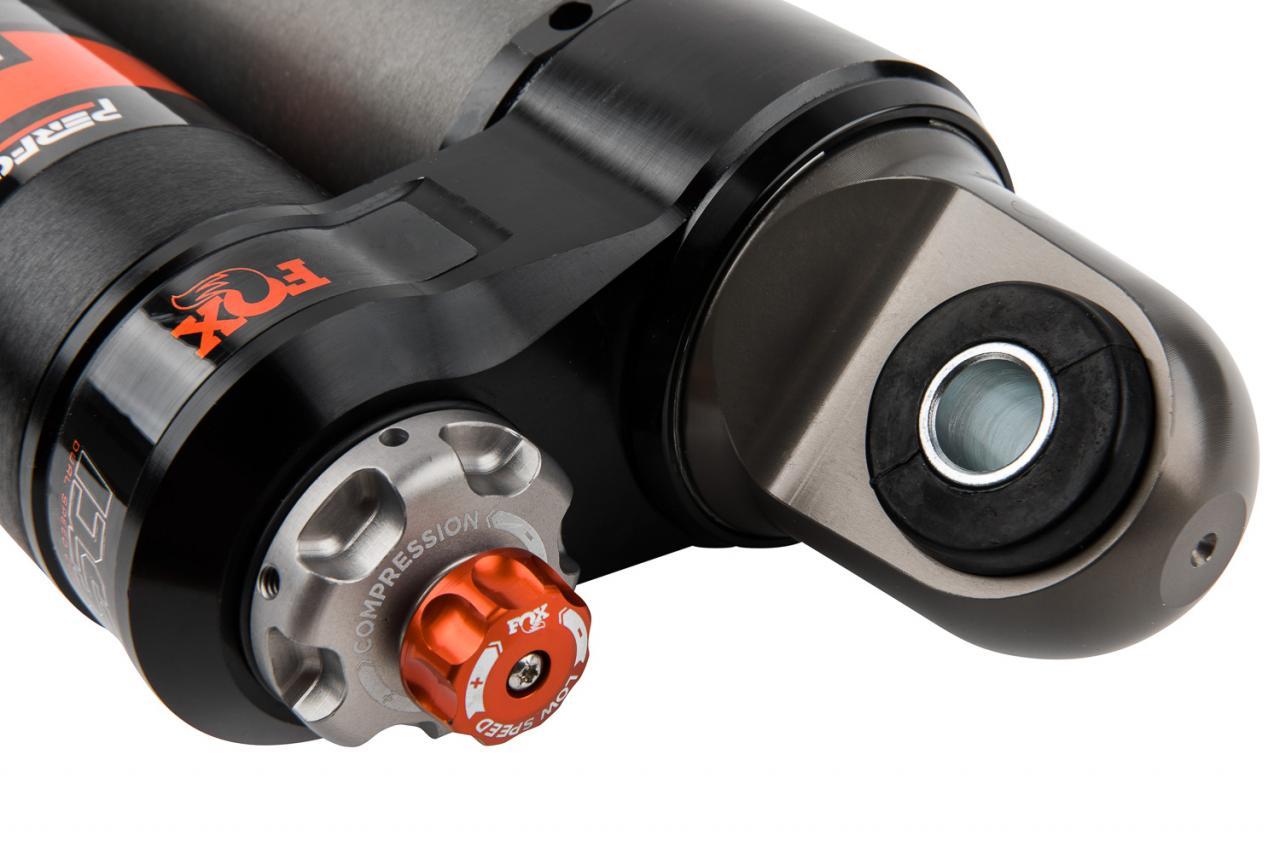

DSC (DUAL SPEED COMPRESSION) ADJUSTER FEATURES:

Add remarkable versatility and precise tuning with new DSC. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.
