Fox

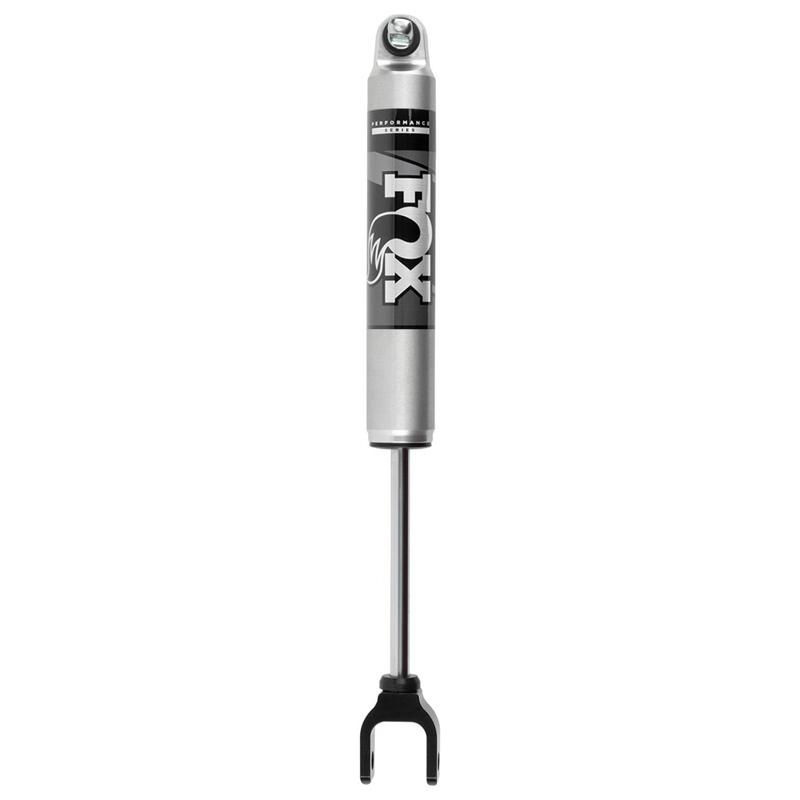

'20-Current Chevy/GMC 2500/3500 2.0 Performance Series IFP Front Shock

  • VENDOR: Fox
  • PART#: Fox-985-24-238
  • YOUR PRICE: Regular price $179.95

These shocks are sold individually

PRODUCT OVERVIEW:

Fox's 2.0 Performance Series IFP shock for the front of your 2020-Current Chevy/GMC 2500 and 3500 use Fox's race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find Fox's race-proven performance valving technology Fox's Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

KEY FEATURES:

  • Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Body Plating: Clear-anodized for a durable finish
  • Reservoir: Internal IFP mono-tube reservoir design
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation

SPECS:

Part Number Lift Height Extended Compressed Fitment Note

985-24-238

0-1" 18.160 13.280

985-24-240

1.5-2.5 18.910 13.280 Requires Upper Control Arm
