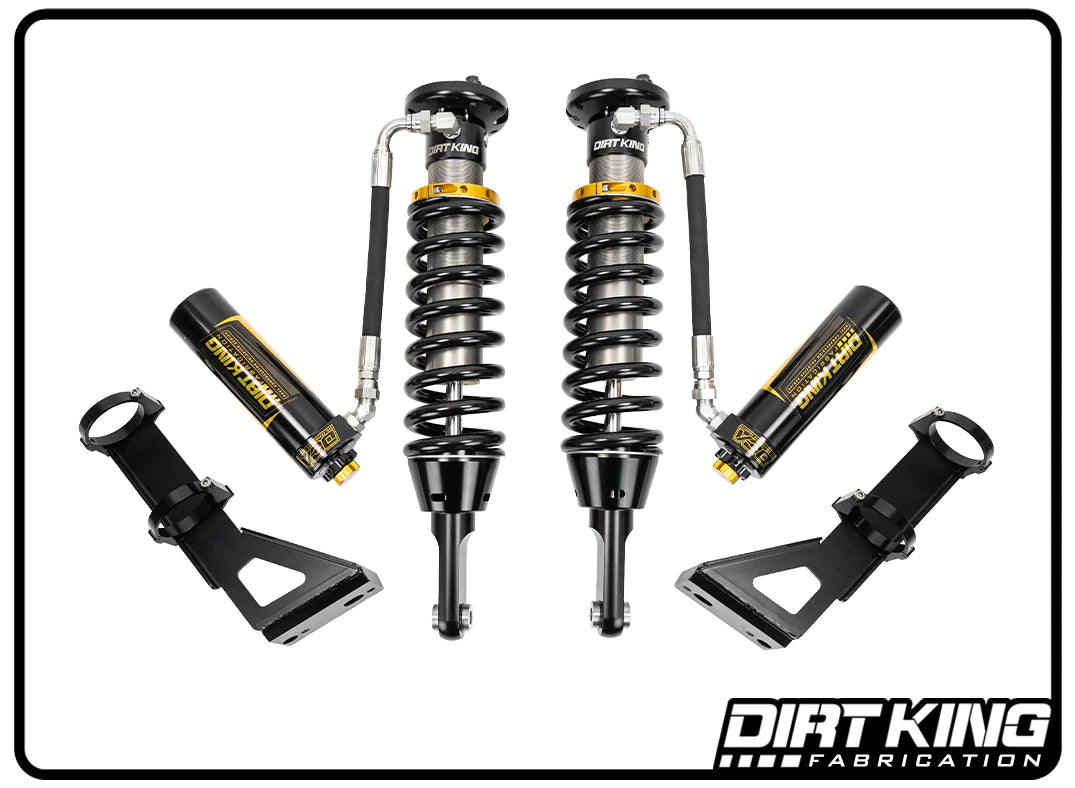

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Display of Included Parts

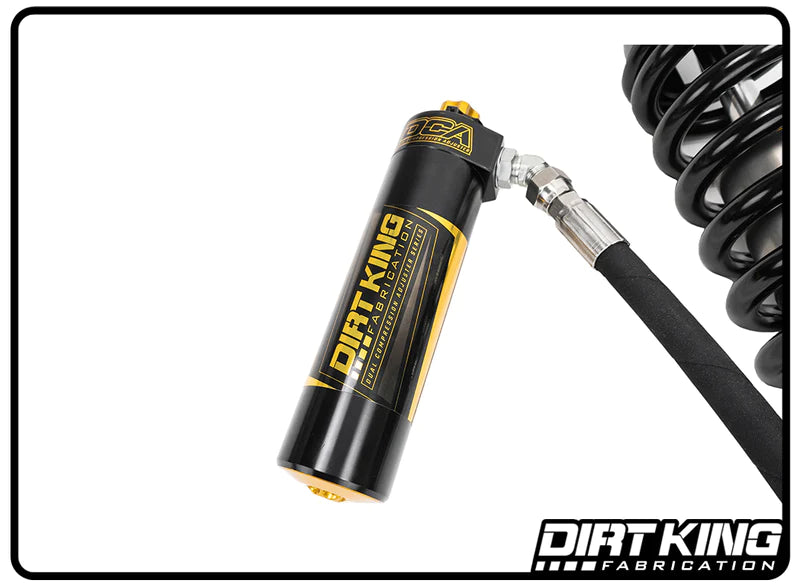

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Close-up Display

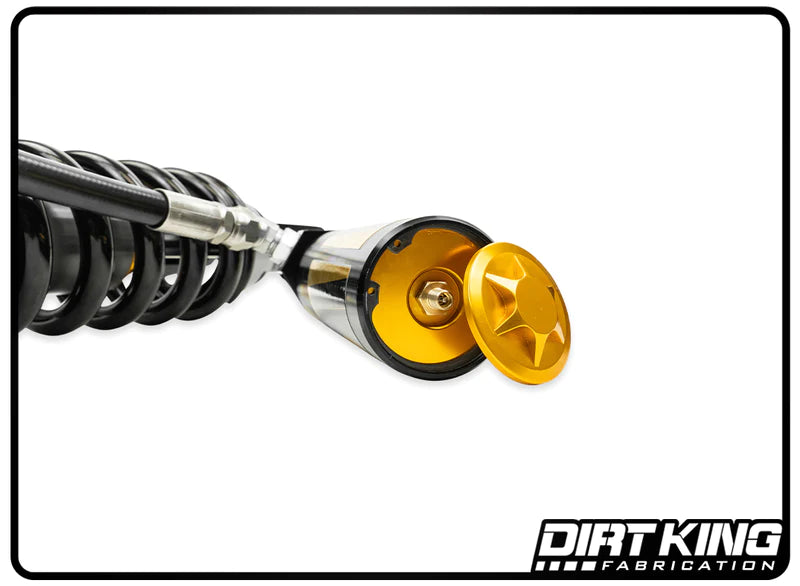

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Close-up Display

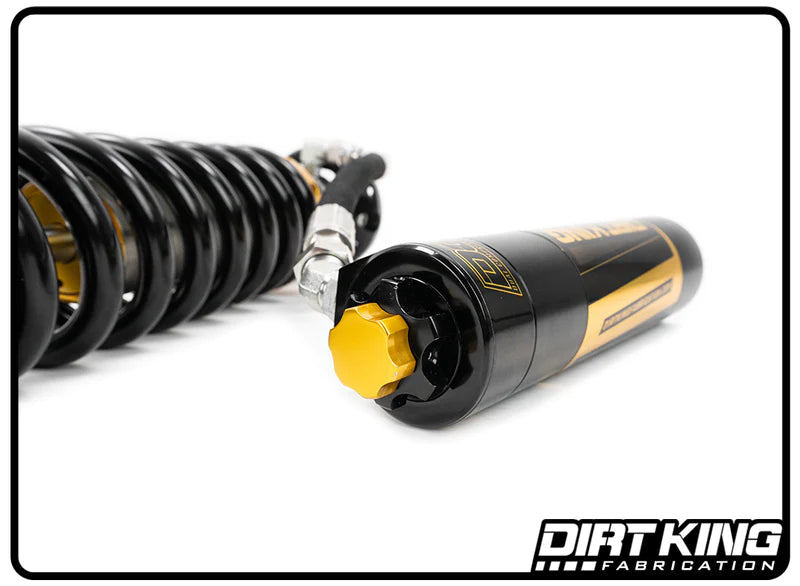

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Close-up Display

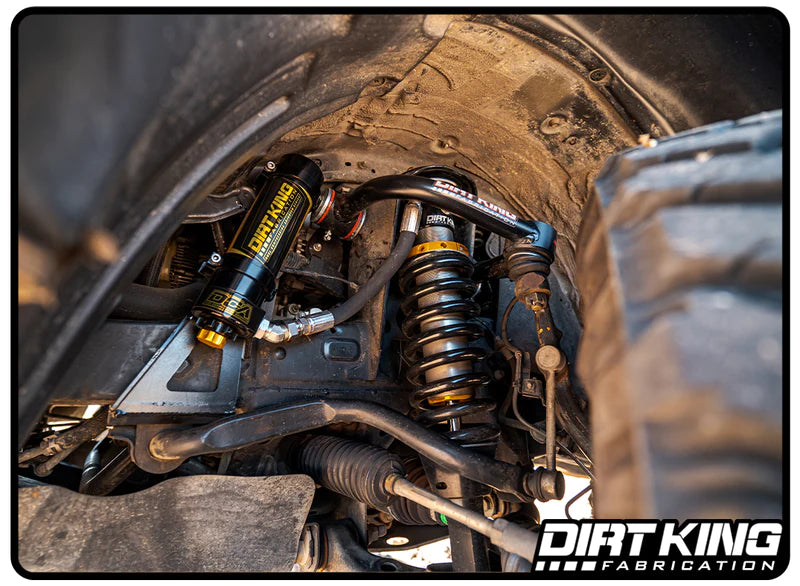

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Close-up Display on vehicle

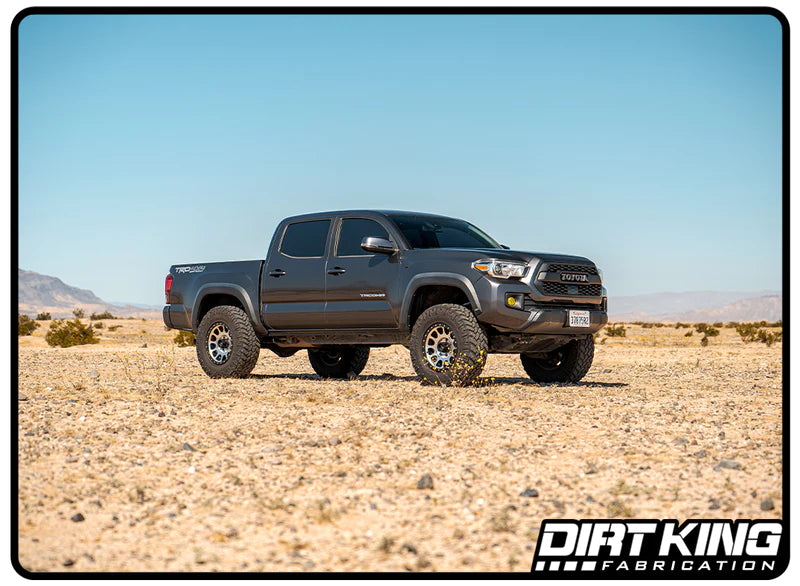

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir Display on vehicle

Dirt King Fabrication

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir

$2,299.00
SKU: DK-811989F
Quantity:

05-23 Tacoma 2.5 Coilovers | DCA Remote Reservoir

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The Dirt King 2.5 Dual Compression Adjuster (DCA) Series coilovers will take your Toyota Tacoma's off-road capability to the next level while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. Experience more control with increased wheel travel, more articulation, and higher ground clearance. The coilovers come preset with 2.5" of lift to level the vehicle but this can vary if you have other aftermarket upgrades. Included with the shocks is a spanner wrench allowing you to make adjustments. No detail was overlooked on this product to deliver the superior quality and performance that Dirt King is known for.

FEATURES
  • Increased suspension travel
  • Vehicle specific valving providing optimal ride comfort
  • Aluminum body for cooler operation and corrosion resistance
  • Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments
  • Less seal drag with the 3/4" shafts compared to traditional 7/8" shafts resulting in smoother operation
  • Direct bolt-on replacement that uses factory shock mounting location
  • Maxima custom oil blend. The proprietary light viscosity semi-synthetic oil blend is low friction and extremely resistant to high operating temperatures
  • Cold wound, high-tensile alloy steel coil springs that retain consistent rate and ride height
  • Completely rebuildable and serviceable. All tools and replacement parts can be purchased from Dirt KingCOIL
SPECS
  • 2.5" hard-anodized 6061 aluminum bodies
  • Dual compression adjusters with 10 adjustments for each knob
  • Induction-hardened 3/4" shafts
  • Provides up to 3” of lift | Must be paired with aftermarket UCA
    *Note: We do not recommend lifting the vehicle more than 3". Excessive preload will reduce the ride quality.
