Carli Suspension
1994-2002 Ram 2500/3500 Backcountry Suspension System
Sway Bar End Link Option
Rear Leaf Spring Option
1994-2002 Ram 2500/3500 Backcountry Suspension System
94-98 Ram 2500/3500 (CS-DEL-94) / Progressive Add-A-Pack Kit (CS-DPAP-94)
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
all around comfort and ride quality

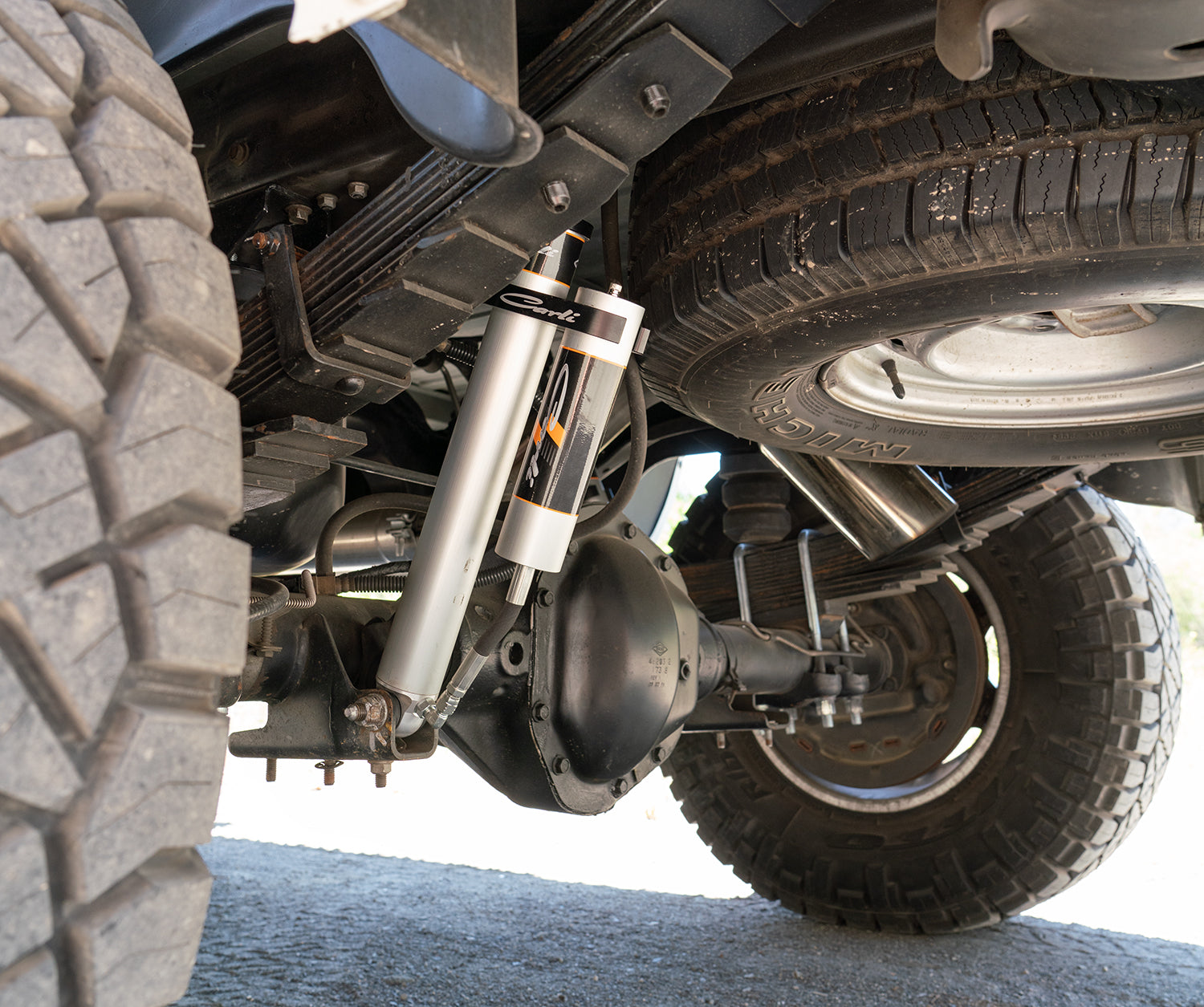

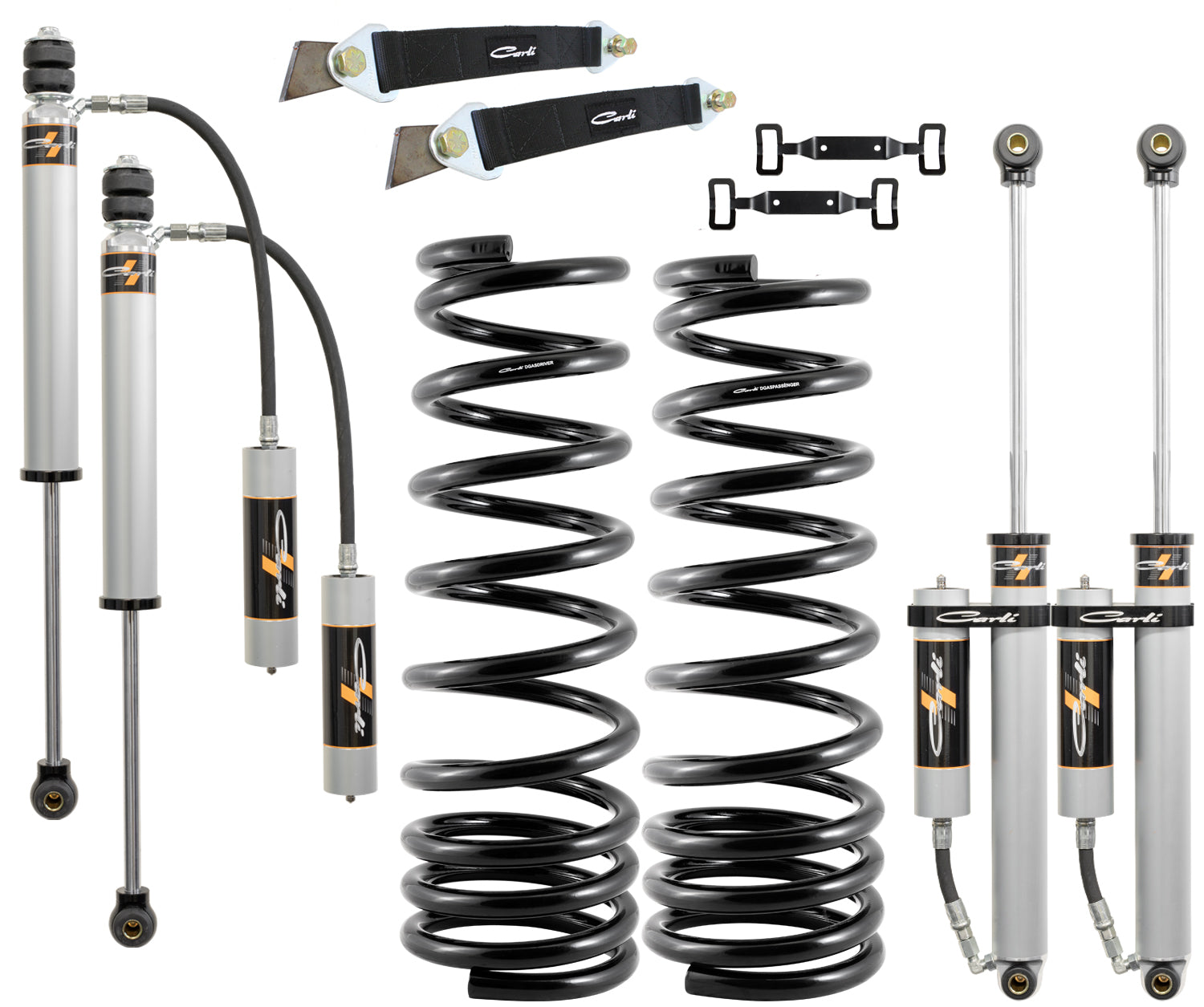

Utilizing Carli SPEC 2.0″ Diameter, Remote Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in-town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-piece bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.
The Details

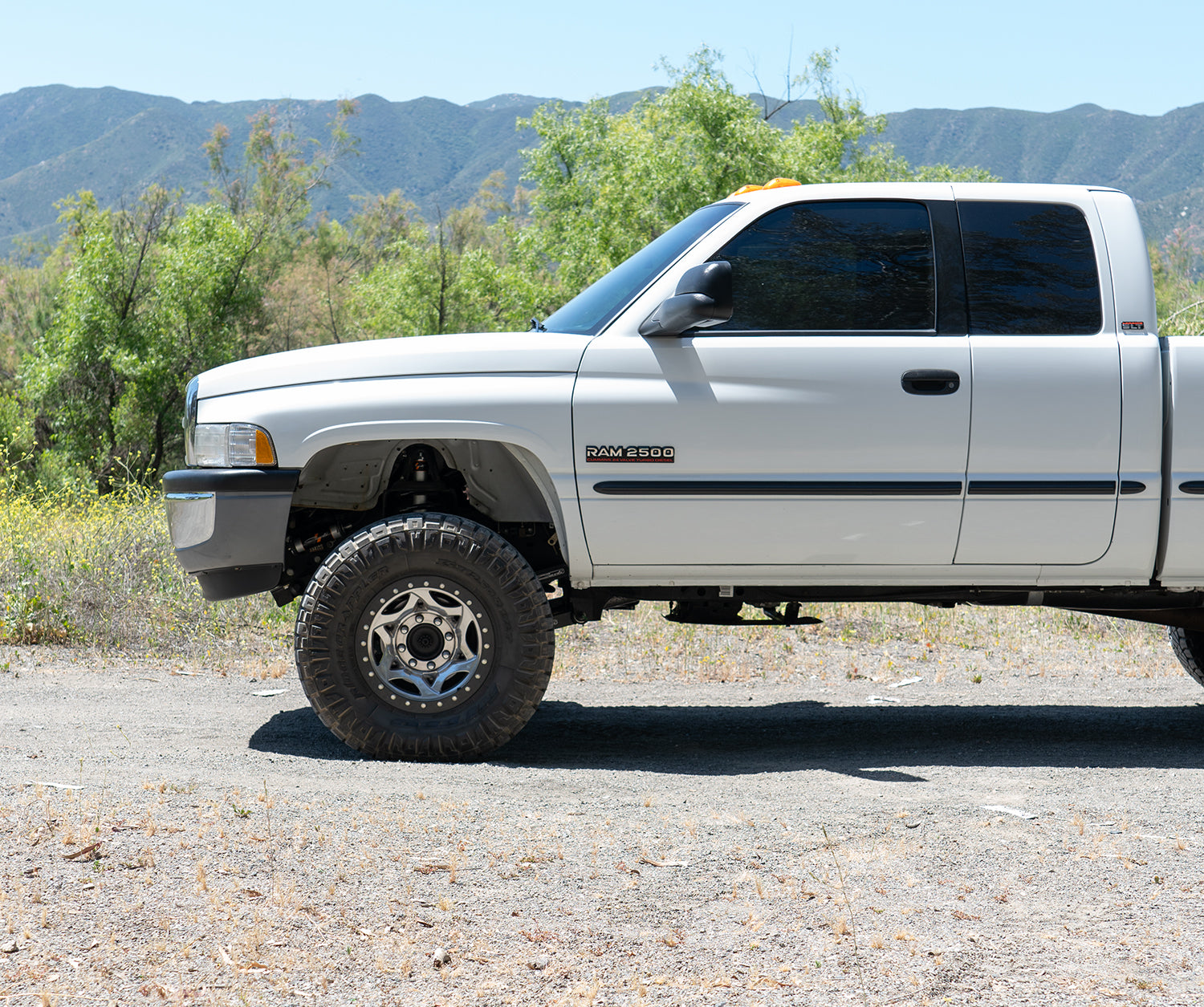

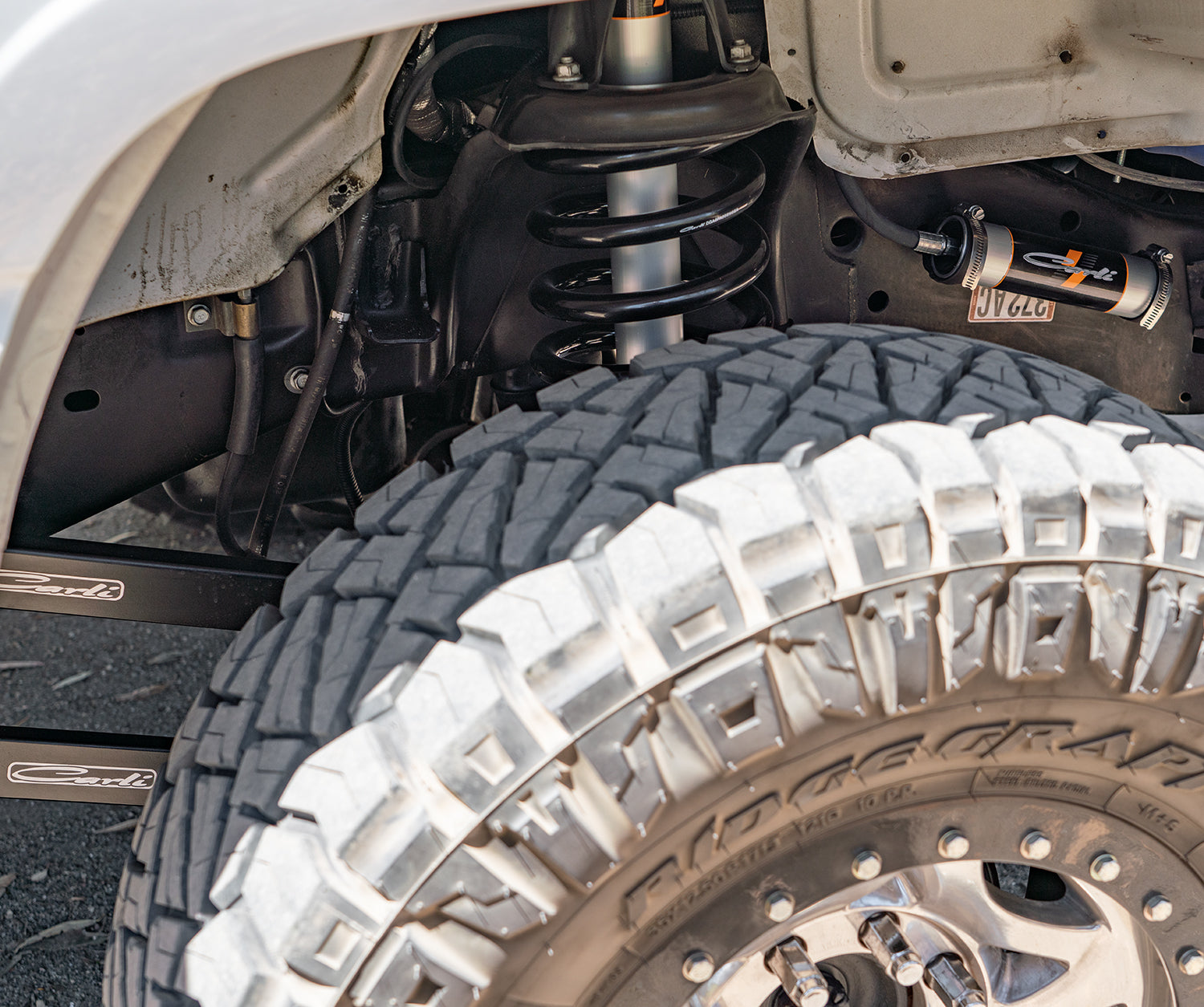

Your truck will sit 2.5”-3” higher in the front (year/cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. For the 2nd Gen Platform, these coils are Multi-Rate and Side Specific.
The rear is lifted 1”-2” via the customer’s choice of a Progressive Add-A-Pack or Full Progressive Leaf Pack. The Progressive Add-A-Pack replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability.
The optional Full Progressive Leaf Pack is HIGHLY RECOMMENDED as it’s with what this system was tuned. This spring pack replaces the entire factory leaf spring assembly increasing travel and drastically increasing comfort throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500.
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer extended, Sway Bar End Links. The End links are equipped with ½” FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement points. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. Although this is perfectly operable, we recommend the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel. Unfortunately, we do not offer an adjustable track bar for the 1994-2002 platform at this time.
NOTE
The 1994-02 Ram 2500/3500 trucks are notorious for a driver’s side lean up to 1.5″ (lower on the driver’s side than the passenger’s side). Carli Coil Springs and Leaf Springs for the 1994-02 are designed side-specific to lift the Driver’s side more than the Passenger’s side to lessen/eliminate this common lean. However, we’ve had trucks require the taller spring be installed on the passenger’s side to achieve a level stance and trucks that require the same height springs be installed on both sides to achieve a leveled stance. These trucks are not an exact science and were designed long before CAD programs and design standardization. For this reason, we cannot guarantee the truck will sit level side to side nor is the corrective action a “warranty”. Our choice was either discontinue the product line OR present the customer with the design oddities so they know what they’re getting into. As there are not many performance options for the 2nd gen trucks, we elected to keep the product line as the side to side correction can be alleviated with the use of small spring spacers with NO performance degradation.
Wheel and Tire fitment
This system will fit up to a 35” tire with Extended Control Arms – We recommend wheels with 5.75-6” of backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
