Icon Vehicle Dynamics

'19-Current Ram 2500 4WD 2.5" Suspension System-Stage 1

  • VENDOR: Icon Vehicle Dynamics


  • PART#: ICON-K212541


    MSRP: Regular price $1,070.74

    YOUR PRICE: $1,019.75



PRODUCT OVERVIEW:

ICON's 2019-Current RAM 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

KEY FEATURES:

  • ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Less body roll than stock
  • No drive shaft modifications needed

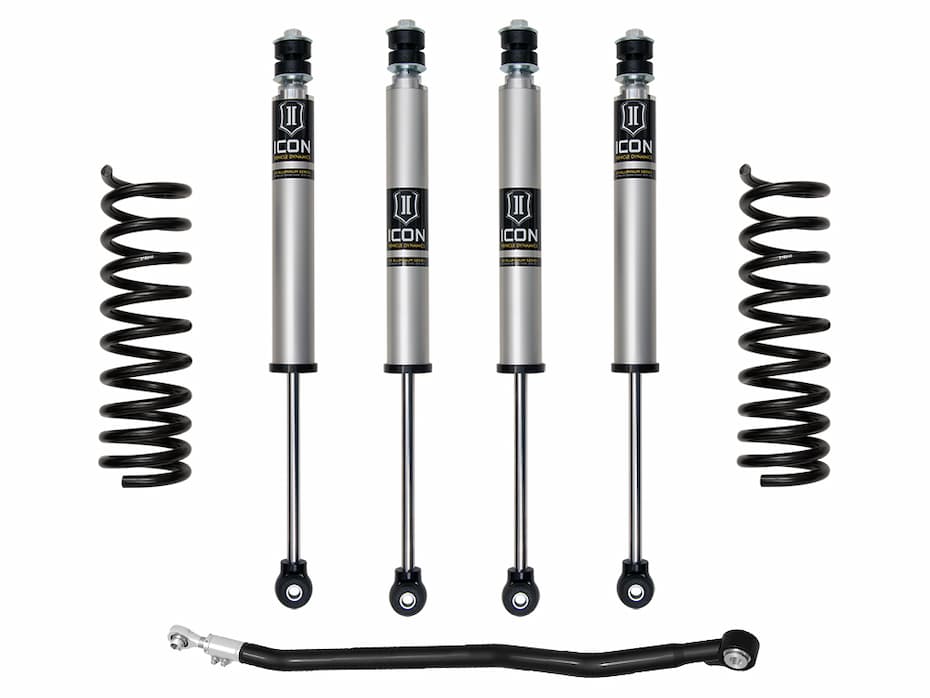

SYSTEM COMPONENTS:

  • 214200 (QTY: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
  • 216528 (QTY: 2) | 14-UP RAM HD 2.5" FRONT LIFT 2.0 VS IR
  • 216529 (QTY: 2) | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 5.25” BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18" x 9" w/ 5.5” BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20" x 9" w/ 5.75" BS / 19mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
