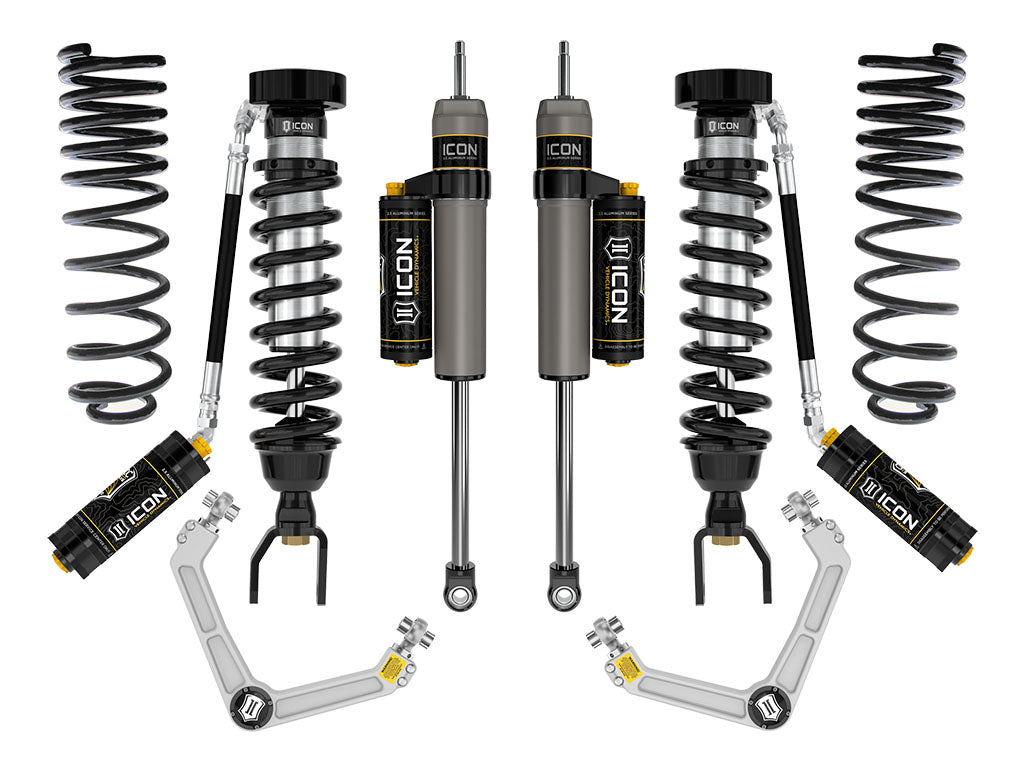

19-23 Ram 1500 Icon Stage 4 Suspension System w/ Billet UCA

Icon Vehicle Dynamics

19-23 Ram 1500 Icon Stage 4 Suspension System w/ Billet UCA (2-3" Lift)

$4,525.75 $5,657.19
Save $1,131.44
SKU: K213114
Quantity:

19-23 Ram 1500 Icon Stage 4 Suspension System w/ Billet UCA (2-3" Lift)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Icon Vehicle Dynamics' Stage 4 Suspension System (2-3" Lift) with Billet Upper Control arms for the 2019-2023 1500 delivers a unique level of on and off-road performance. This stage 4 suspension system includes a rear 1.5" dual rate spring kit and 2.5 remote reservoir front coilovers with Icon's CDCV. This kit is designed to provide improved vehicle performance and allow for the fitment of larger and more aggressive tires.

This suspension system includes Icon's billet upper control arms with Icon's Delta Joint are included for additional strength and improved suspension geometry for more predictable handling.

VEHICLE FITMENT:

  • 2019-2023 Ram 1500 (2-3" Front Lift)
  • 2019-2023 Ram Rebel lift height range 1.25-2.25" over stock (front) and 1" over stock (rear)
  • WILL NOT WORK ON 2019-UP RAM CLASSIC MODELS
  • SPRING NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS

KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE lined spherical bearings and application specific mounting hardware
  • Adjustable coilovers from 2-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

SYSTEM COMPONENTS:

  • 211015 QTY. 1 - 2019-UP RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT
  • 218560DJ QTY. 1 - 2019-UP RAM 1500 BILLET UCA DJ KIT
  • 217716P QTY. 1 - 2019-UP RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR
  • 216533 QTY. 1 - 2009-UP RAM 1500 REAR 1.5" DUAL RATE SPRING KIT

CDC VALVE FEATURES:
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

  • CDC Valve shocks are application specific tuned like all ICON shocks
  • Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
  • 10 detented stops and large adjuster knob provide easy-to-feel adjustments
  • Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
  • Clearly engraved knob for direct reading of current setting

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • NOT FOR VEHICLES WITH AIR RIDE
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE IS USED FOR TOWING
  • SPRING NOT RATE FOR ECO DIESEL EQUIPPED TRUCKS
  • Ships in multiple boxes
  • WILL NOT WORK ON 2019-UP RAM CLASSIC MODELS

Holistic Engineering - The ICON Difference:

When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide balanced on and off-road performance. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer and ONE standard of quality

About ICON Vehicle Dynamics:

ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for enthusiasts that demand the highest levels of performance, ruggedness, and durability out of their suspension systems.
