19-23 RAM 1500 Suspension System-Stage 3 Suspension Icon Vehicle Dynamics

Icon Vehicle Dynamics

19-23 Ram 1500 Icon Stage 3 Suspension System (0-1.5" Lift)

$2,429.99 $3,037.49
Save $607.50
SKU: K213103
Quantity:

19-23 Ram 1500 Icon Stage 3 Suspension System (0-1.5" Lift)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.

ICON Vehicle Dynamics RAM 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series piggyback reservoir rear shocks paired with 1.5" lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 RAM 1500 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

KEY FEATURES:

  • Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
  • ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
  • 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
  • Corrosion resistant CAD plated shock bodies with 7/8? shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fits 2WD & 4WD applications
  • 6061 Aircraft grade aluminum CNC machined components
  • Shocks are fully rebuildable and revalvable
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

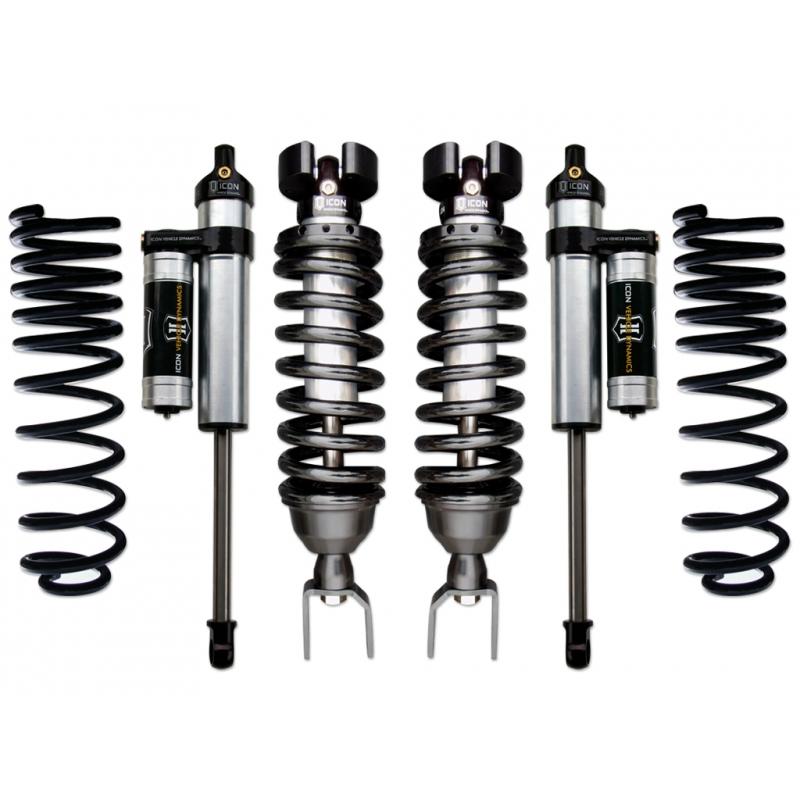

SYSTEM COMPONENTS:

  • 211000 (QTY: 1) | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD .75-2.5" 2.5 VS IR COILOVER KIT
  • 212150 (QTY: 1) | 09-UP RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
  • 217716P (QTY: 1) | 19-UP RAM 1500 0-3" REAR 2.5 VS PB PAIR

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" with 5" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
  • SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS
  • NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
