19-23 Ram 1500 Icon Stage 2 Suspension System w/ Billet UCA

Icon Vehicle Dynamics

19-23 Ram 1500 Icon Stage 2 Suspension System w/ Billet UCA (2-3" Lift)

$3,127.11 $3,908.89
Save $781.78
SKU: K213112
Quantity:

19-23 Ram 1500 Icon Stage 2 Suspension System w/ Billet UCA (2-3" Lift)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Icon Vehicle Dynamics' Stage 2 Suspension System (2-3" Lift) for the 2019-2023 1500 delivers a unique level of on and off-road performance. This stage 2 suspension system includes a rear 1.5" dual rate spring kit. This kit is designed to provide improved vehicle performance and allow for the fitment of larger and more aggressive tires.

This suspension system includes billet upper control arms are included for additional strength and improved suspension geometry for more predictable handling.

VEHICLE FITMENT:

  • 2019-2023 Ram 1500 (2-3" Front Lift)
  • 2019-2023 Ram Rebel lift height range 1.25-2.25" over stock (front) and 1" over stock (rear)
  • WILL NOT WORK ON 2019-UP RAM CLASSIC MODELS
  • SPRING NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS

KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE lined spherical bearings and application specific mounting hardware
  • Adjustable coilovers from 2-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8" polished shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

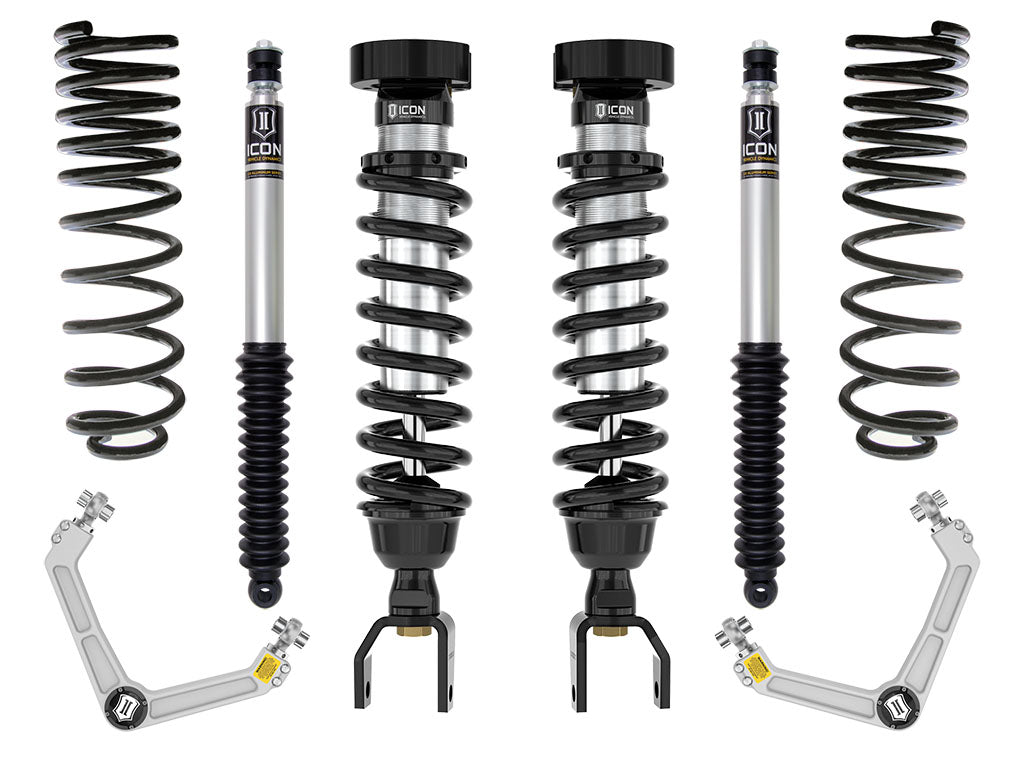

SYSTEM COMPONENTS:

  • 211010 QTY. 1 - 2019-UP RAM 1500 2-3" 2.5 VS IR COILOVER KIT
  • 218560DJ QTY. 1 - 2019-UP RAM 1500 BILLET UCA DJ KIT
  • 216533 QTY. 2 - 2019-UP RAM 1500 REAR 2.0 VS IR
  • 216533 QTY. 1 - 2009-UP RAM 1500 REAR 1.5" DUAL RATE SPRING KIT

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • NOT FOR VEHICLES WITH AIR RIDE
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE IS USED FOR TOWING
  • SPRING NOT RATE FOR ECO DIESEL EQUIPPED TRUCKS
  • Ships in multiple boxes
  • WILL NOT WORK ON 2019-UP RAM CLASSIC MODELS

Holistic Engineering - The ICON Difference:

When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide balanced on and off-road performance. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer and ONE standard of quality

About ICON Vehicle Dynamics:

ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for enthusiasts that demand the highest levels of performance, ruggedness, and durability out of their suspension systems.
