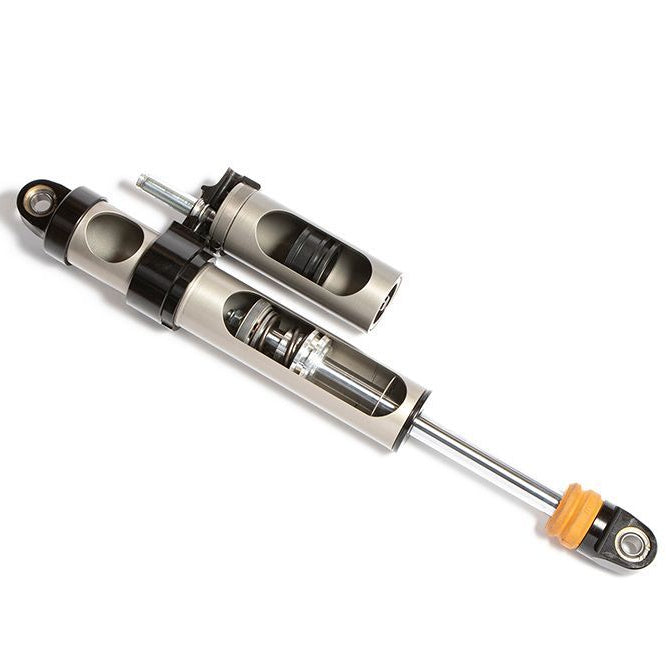

'19-23 Jeep JT (Gladiator) SDI E-Clik Pro Suspension System individual part display
'19-23 Jeep JT (Gladiator) SDI E-Clik Pro Suspension System parts

SDI

'19-23 Jeep JT (Gladiator) SDI E-Clik Pro Suspension System

$4,999.00
SKU: SDI-SS-20510015

'19-23 Jeep JT (Gladiator) SDI E-Clik Pro Suspension System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

SDI E-CLIK PRO Suspension System for Jeep JT Gladiators

SDI's E-CLIK PRO Suspension System for the 2019-2023 Jeep JT (Gladiator) includes all the features of SDI's E-CLIK ACTIVE system plus it allows the user to tune like a Pro.

VEHICLE FITMENT:
  • 2019-2023 Jeep Gladiator JT Models
    • Rubicon Models: 1.5 – 3.0 inch lift
    • Other Models: 3.25 – 5 inch lift

PRO SYSTEM FEATURES:

  • 5 menus allow the sensitivity of the automatic adjustment to be fine tuned
    • Pitch Sensitivity
    • Roll Sensitivity
    • Turn Sensitivity
    • Throttle Sensitivity
    • Brake Sensitivity

E-CLIK ACTIVE SYSTEM FEATURES:

  • An ECU uses input from 12 Sensors, calculating 250 times per second to adjust each shock automatically based on terrain and driving conditions.
    • Our 8 Axis IMU (Inertial Measurement Unit) is a High Accuracy, stand-alone unit, calculating 500 times per second. Not a simple one that is part of the ECU circuit board.
    • Control system was developed in house at SDi
  • E-CLIK touch screen controller with knurled selector ring.
    • 3 modes
      • Road – Prioritizes composure, more damping for a composed ride and excellent feedback to the driver. More sensitive to driver inputs: braking, throttle, steering.
      • Trail – Prioritizes comfort, less damping for a more comfortable ride. More sensitive to vehicle roll and pitch.
      • Manual – Allows the user to select the front and rear shock setting and disables the system from making automatic adjustments.
    • Real Time displays
      • Shock setting at all 4 corners
      • Vehicle Roll and Pitch
      • Vehicle Speed
WHAT'S INCLUDED:

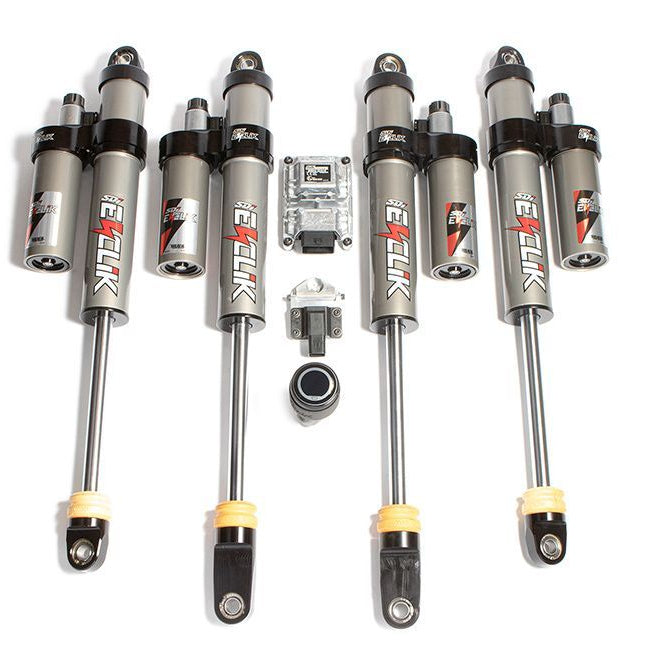

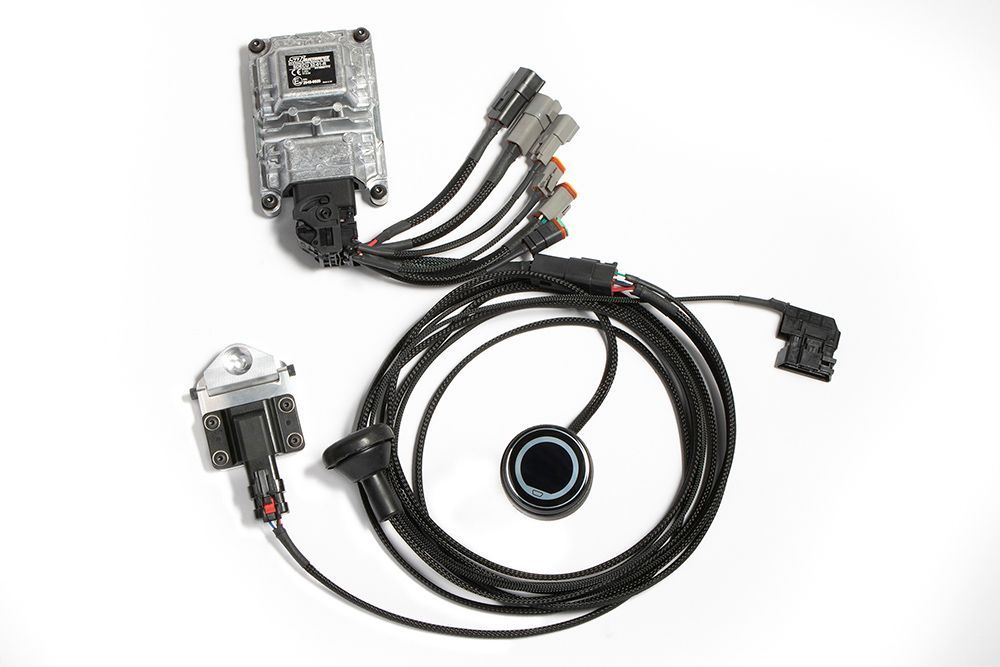

The E-CLIK ACTIVE Suspension System contains 4 Shocks, Main Harness, Power Harness, Color Touch Screen Controller (with controller mount),IMU w/ Bracket, ECU, Front Shock Harness, Rear Shock Harness, Zip-Ties, Fasteners, and Instructions

SPECS:
Extended Length Stroke
Front Position 1 27.25 10.75
Position 2 26.5 10
Position 3 27.25 9.25
Rear Position 1 30.25 12.125
Position 2 29.5 11.375
Position 3 28.75 10.625
