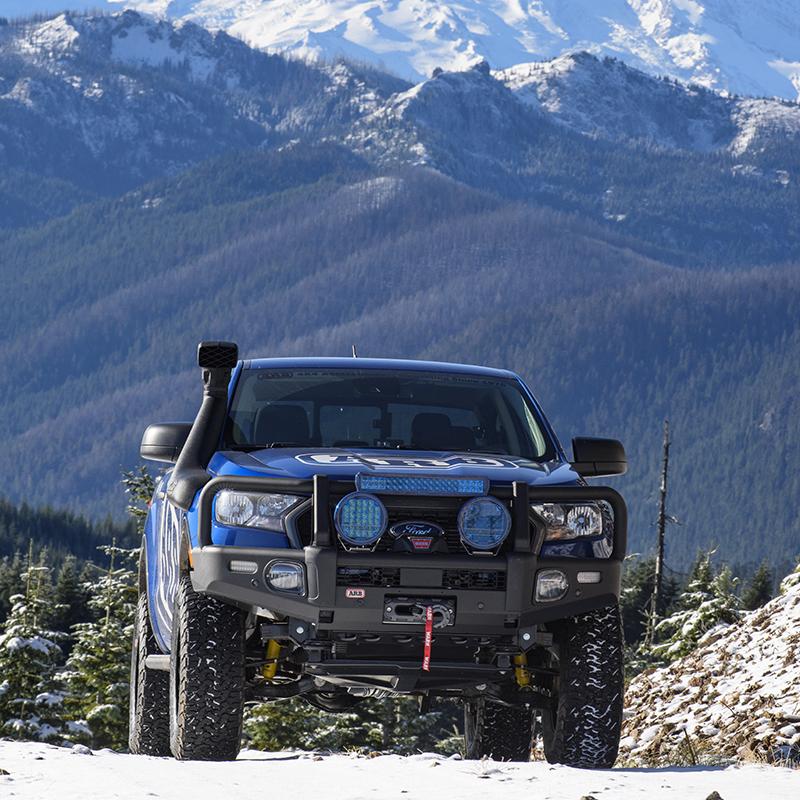

'19-22 Ford Ranger Summit Series Bumper ARB display on Vehicle (Front View)

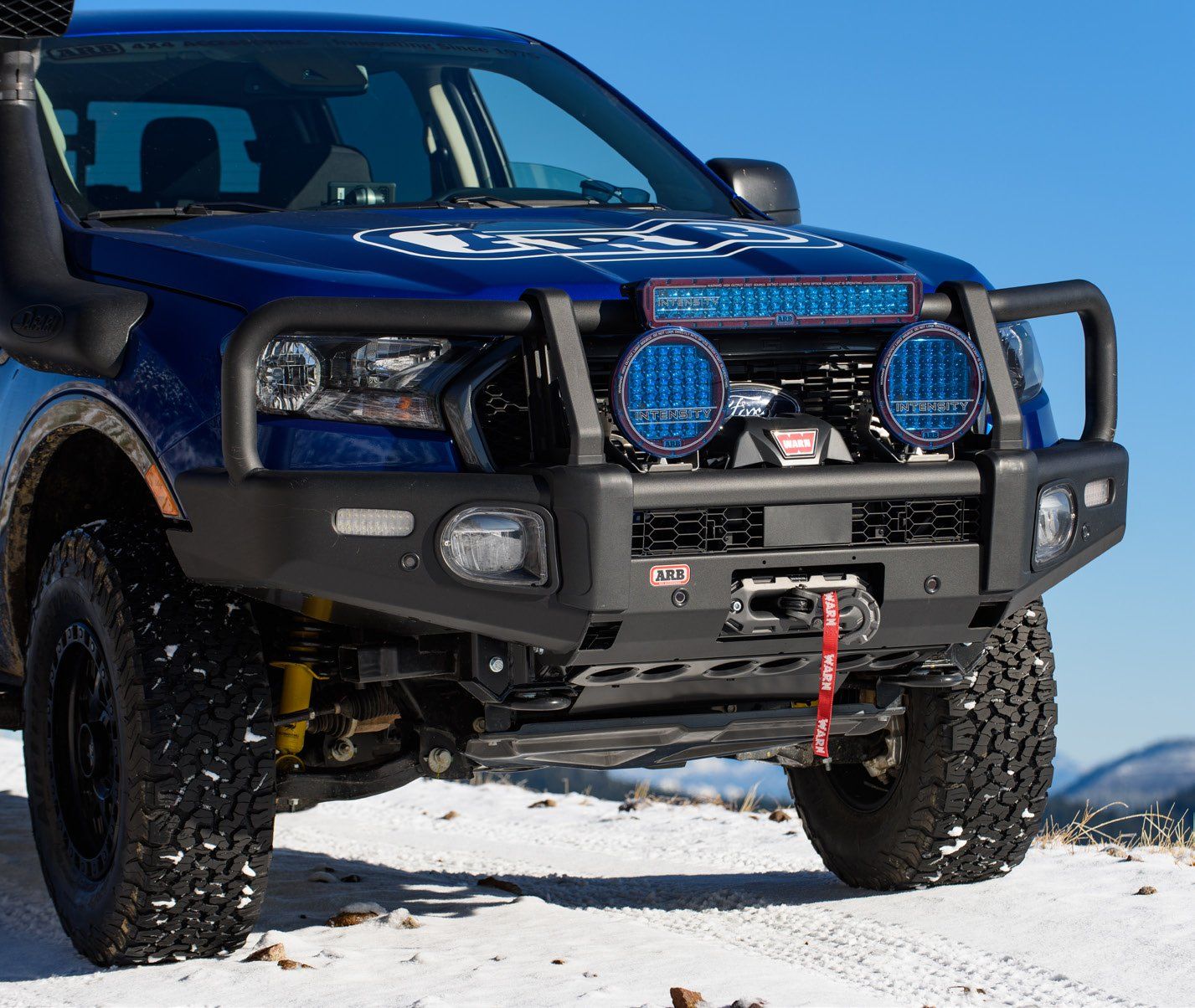

'19-22 Ford Ranger Summit Series Bumper ARB Close-up display on Vehicle (Angled Front View)

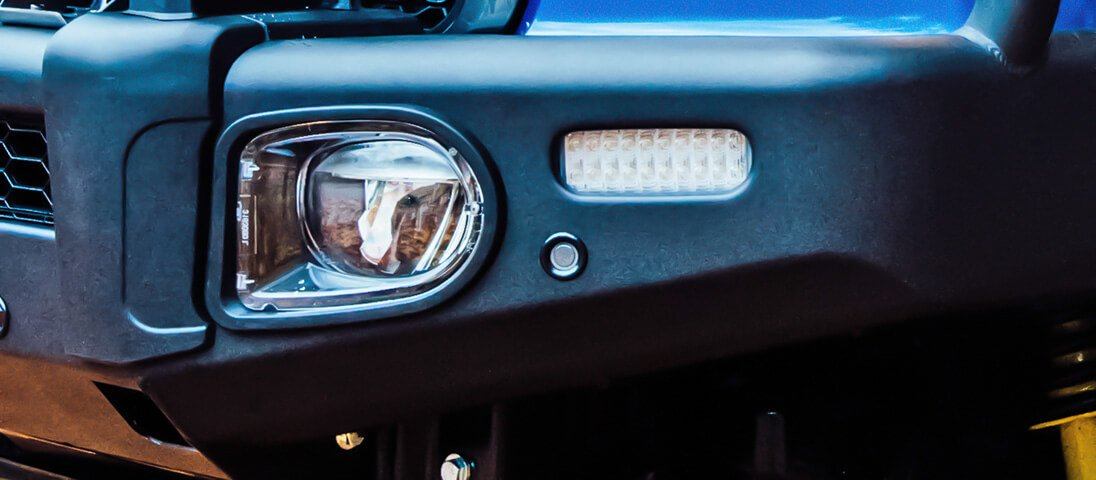

'19-22 Ford Ranger Summit Series Bumper ARB close-up Display on Vehicle

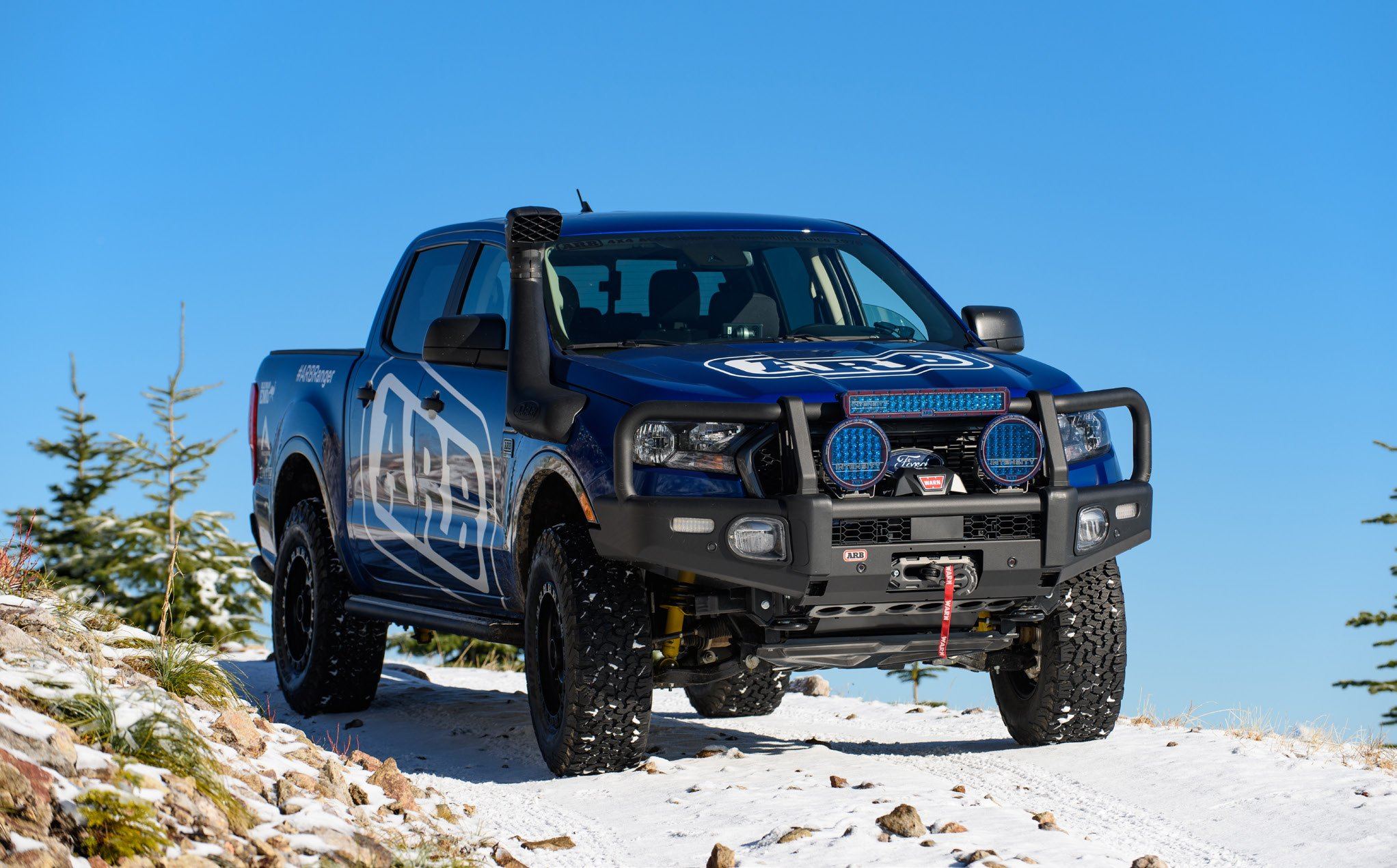

'19-22 Ford Ranger Summit Series Bumper ARB display on Vehicle (Front Angled View)

ARB

'19-23 Ford Ranger Summit Series Bumper

$2,143.95
SKU: ARB-3440560K
Quantity:

'19-23 Ford Ranger Summit Series Bumper

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The Summit Bumper for the 2019-22 Ford Ranger continues the tradition of pioneering innovation with a relentless pursuit of quality. Like its Summit Bumper counterparts, this bumper is winch-compatible and sits higher on the vehicle for improved ground clearance. Moreover, the Ranger Bumper‘s wings are designed to fit around the vulnerable OE light located in the lower flare to provide enhanced protection.

Additional adjustments were made for Rangers with adaptive cruise control to ensure compatibility with an ARB Bumper. Now, adaptive cruise control is kept in a central position and can be mounted with the control box using a supplementary kit. Additional features include press-form cover straps, larger ARB fog lights, surround, and a threepiece split pan grille with access doors for winch-clutch operation.

KEY FEATURES:
  • Vehicle-specific design for the MY19 Ford Ranger
  • Registered design of styling and design components
  • Durable-steel construction for maximum protection
  • Incorporates ARB’s renowned multi-fold, upswept, and tapered wing design for optimum strength and approach angle
  • 30mm (1.18in) radius on wings and center section
  • Engineered, airbag-compatible mounting system that secures to the chassis via high-tensile bolts (Includes bracing from the bumper to the chassis to tie the bumper into a cradle around the chassis rather than just mounted on the face of the chassis flange)
  • 3-piece grille for split pan resulting in maximum strength and airflow
  • Extensive protection panels on the center and sides
  • Pressed-form top pan and aluminum (powder-coated black) winch cover panel
  • Twin ARB Jack points located beneath each buffer
  • Durable two-piece buffers
  • Includes ARB LED indicator and clearance light
  • Two antenna brackets located on the top of the center tube
  • Will accommodate Warn and low-mount model electric winches up to 10,000lbs (Supplementary winch installation kit required to install winch control box)
  • Provision to accommodate ARB Intensity LEDs and IPF lights
  • Provision for OE parking sensors (Parking-sensor plugs included for non-sensor models)
  • Provision for optional ARB Fog light covers part number 3500680
  • Compatible with roller fairlead cover part number 3500850
  • Bumper adds approximately 7” (178mm) to the overall length of the vehicle
  • Approximately 40lbs (18kg) is removed from the vehicle for fitment
  • Zinc-rich primer for additional corrosion resistance
  • Finished in Integrit textured-black powder coat
WHAT'S INCLUDED:
  • 1 x Summit Bumper
  • 1 x Fit Kit
  • 1 x LED Fog Light Kit
  • 1 x Winch Installation Kit (separate WARN ZEON fit kits may be required)
WINCH MODEL FITMENT:

The following winches fit the Ranger ARB Summit Winch Bumper:

  • Warn M8000, XD9000, 9.5XP, 9.5XDC
  • Warn ZEON 8, 8-S, 10 and 10-S
  • Warn ZEON Platinum 10 and 10-S
  • VR EVO 8, 8-S, 10 AND 10-S

To allow fitment of the adaptive cruise-control unit, the control-box mount is now part of the supplementary winch-installation kit. Please note that not all winches on the market will have corresponding pre-drilled control-box mount holes.
Additional fit kits are required depending on the winch being fitted:

  • Warn ZEON and ZEON Platinum fitment require Warn part No W89965 short-wiring kit.
  • Warn ZEON Platinum fitment may require Warn part No W94288 enhanced-signal kit.
ADAPTIVE CRUISE CONTROL:

Some Ranger trim packages feature adaptive cruise control with forward-collision alert. To relocate the adaptive cruise-control module to a central location, the recessed control mount has been replaced with a separate bolt-in winch-control box installation kit.

Vehicle Fitment:
  • 19-22 Ford Ranger XL/XLT 4 Cylinder-2.5L
  • 19-22 Ford Ranger XLT 5 Cylinder-3.2L
  • 19-23 Ford Ranger Lariat/ XL/ XLT 4 Cylinder-2.3L
  • 2021 Ford Ranger XLT 4 Cylinder-2.2L
  • 2022 Ford Ranger XL 4 Cylinder-2.2L
