Fox

'19-23 Ford Ranger Fox Factory Race Series 2.5 RR Coilovers & Rear Shocks

$3,899.90
SKU: 883-06-156 & 883-26-059
Quantity:

'19-23 Ford Ranger Fox Factory Race Series 2.5 RR Coilovers & Rear Shocks

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Fox's bolt-on Factory Race Series Remote Reservoir Coilovers and rear shocks for the 2019-Current Ford Ranger provide improved damping in any terrain.

Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks and rear shocks can give your Ford Ranger.

FITMENT DETAILS:
  • VEHICLE FITMENT: 2019-Current Ford Ranger
  • Will only fit U.S Models
  • NOTE: Use of an aftermarket upper control arm is required to maintain OEM alignment specs

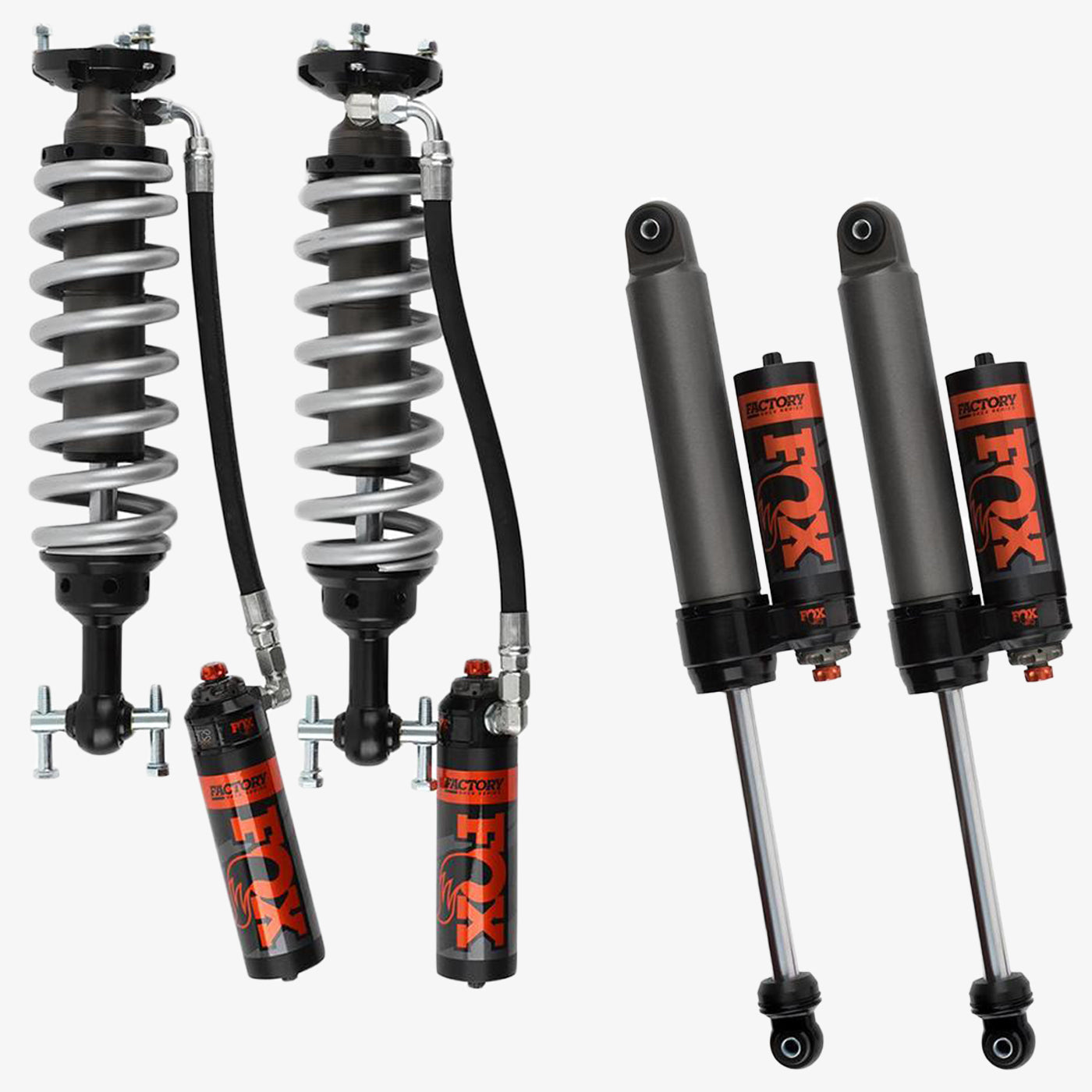

WHAT'S INCLUDED:
  • QTY 2. '19-Current Ford Ranger Factory Race Series 2.5 RR Coilovers - 883-06-156
  • QTY 2. '19-Current Ford Ranger Fox Factory Race Series 2.5 PB Rear Shocks - 883-26-059

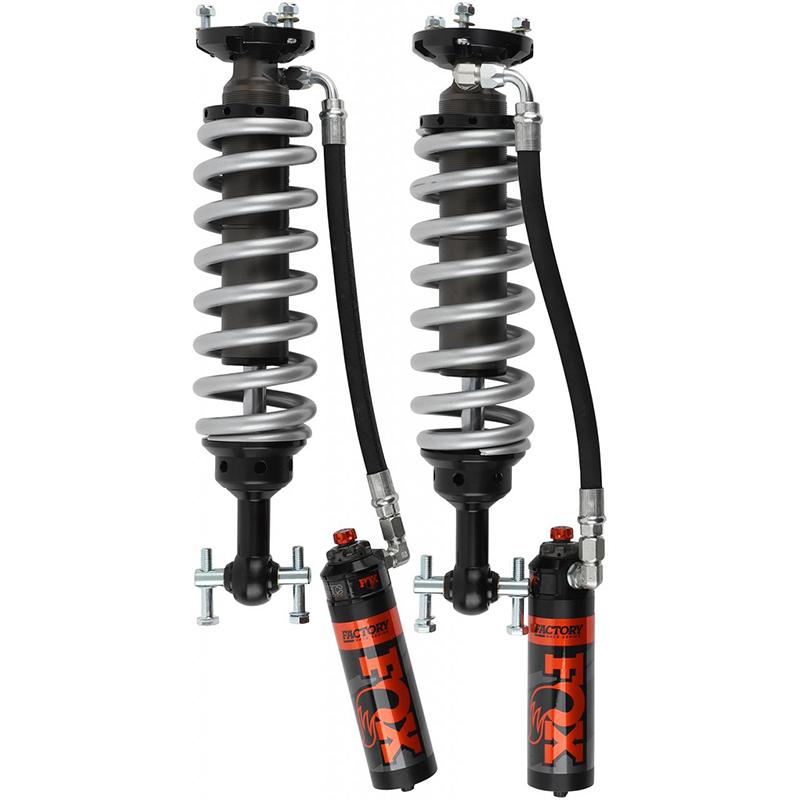

COILOVER SPECS and FEATURES (883-06-156):
  • Body: 2.5” smooth bore zinc plated seamless steel body
  • Body Plating: Zinc-plated and double-clear coated for long lasting finish
  • Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Spring: Application specific, adjustable 3.0 Eibach® racing springs
  • Shaft: 7/8" hard chrome plated steel shafts
  • Piston: 6061-T6 hard-anodized, high flow aluminum piston
  • Valving Application: specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Adjustments: Ride height preload ring
  • Travel: (in) 4.050
  • Compressed (in): 16.740
  • Extended (in): 20.786
  • Top Mount: OEM
  • Bottom Mount: Bar Pin
  • Fitment notes: Fits U.S. Models Only | Includes Universal Bracket

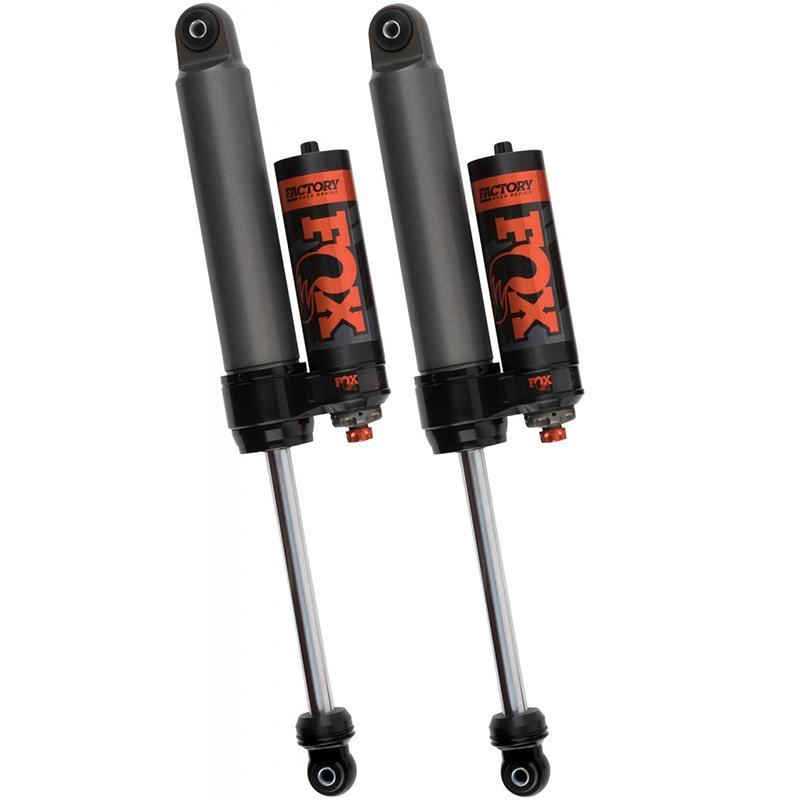

REAR SHOCKS SPECS and FEATURES (883-26-059):
  • Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
  • Body Plating: Hard-anodized for a durable finish
  • Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Fitment notes: Fits U.S. Models Only*
  • Travel (in): 9.545
  • Compressed (in): 15.490
  • Extended (in): 25.030
