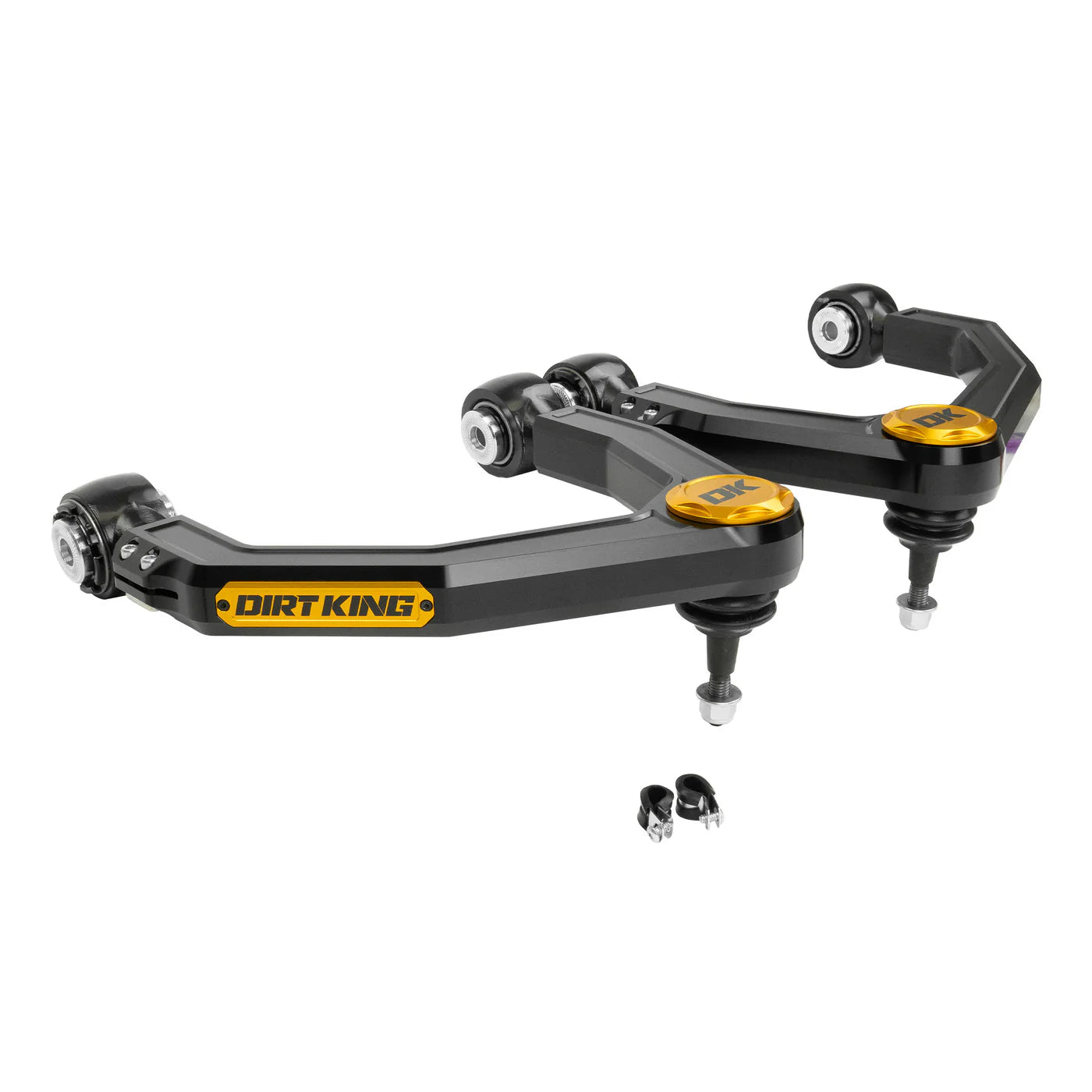

'19-23 Chevy/GMC 1500 Heim Upper Control Arms Suspension Dirt King Fabrication display

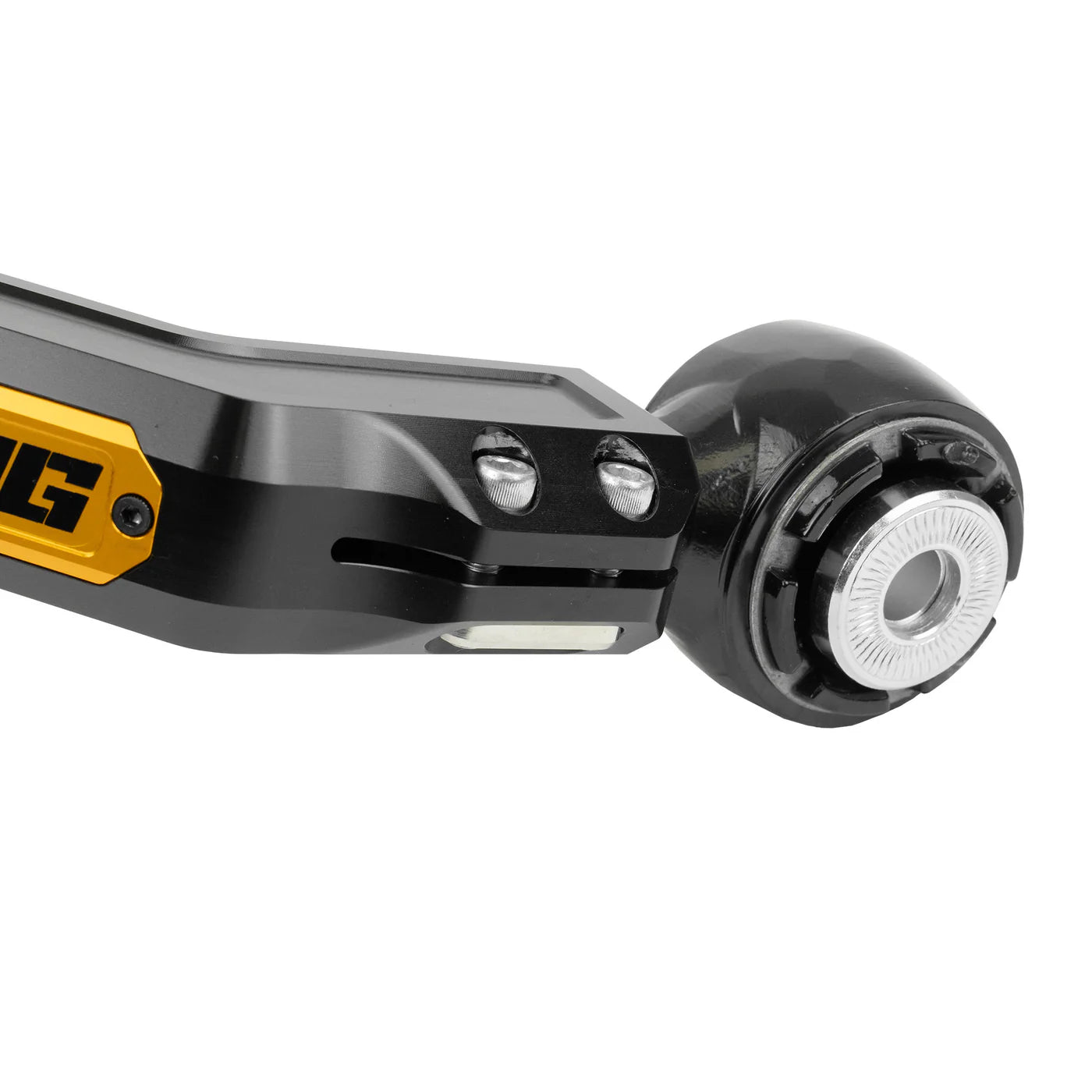

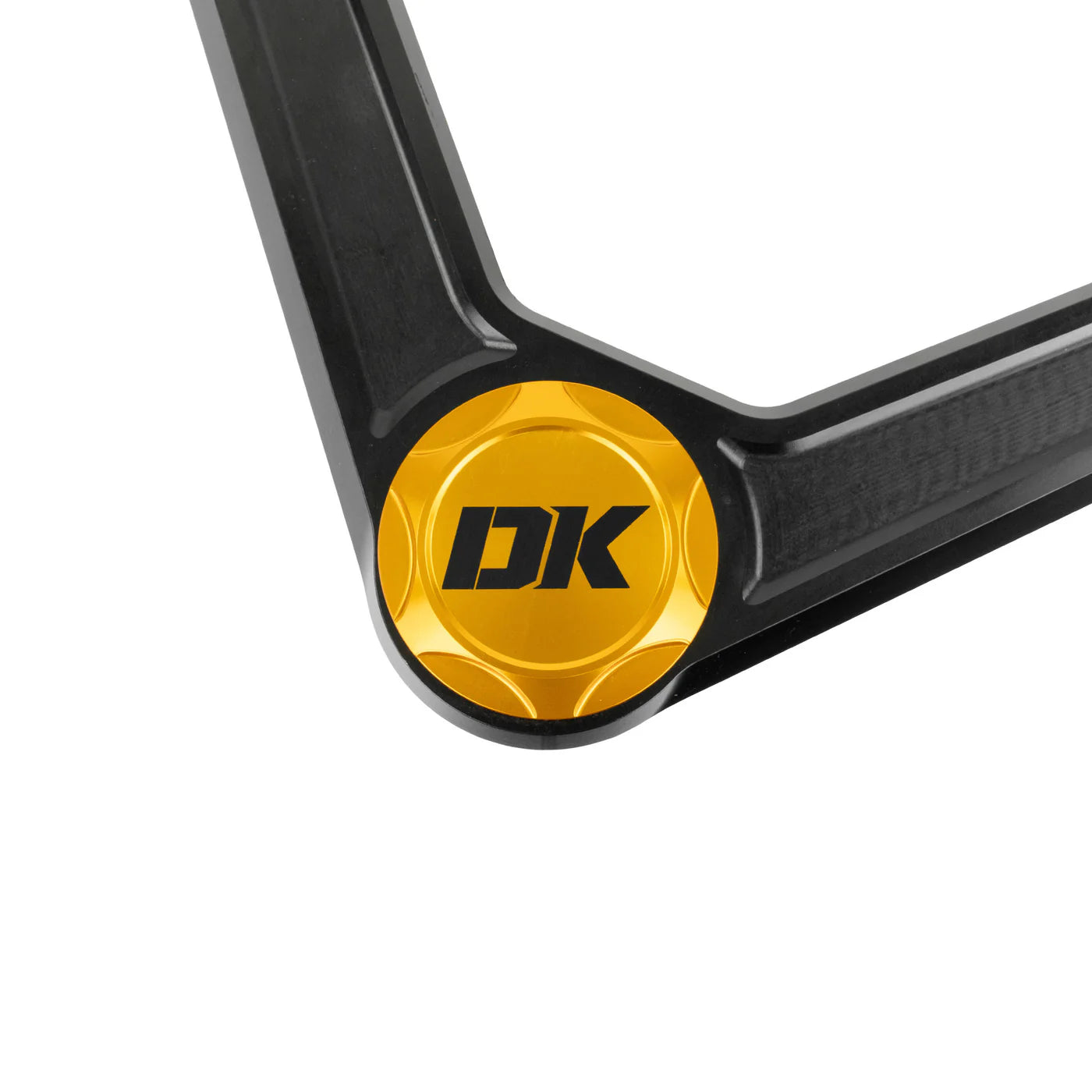

'19-23 Chevy/GMC 1500 Heim Upper Control Arms Suspension Dirt King Fabrication close-up
'19-23 Chevy/GMC 1500 Heim Upper Control Arms Suspension Dirt King Fabrication

Dirt King Fabrication

'19-23 Chevy/GMC 1500 Heim Upper Control Arms

$979.02 $999.00
Save $19.98
SKU: DK-636903
Quantity:

'19-23 Chevy/GMC 1500 Heim Upper Control Arms

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Dirt King Fabrication's Heim Upper Control Arms for the 2019-2023 Chevy and GMC 1500 feature a boxed plate construction and are made in the USA.

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. Dirt King solved these problems by designing their upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. Dirt King also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we used heavy duty ¾” FK heims for additional camber and caster adjustability. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on Dirt King's upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

KEY FEATURES:
  • CAD designed
  • Boxed plate construction
  • Utilizes American made FK bearings
  • 4130 chromoly uniball cups
  • Brushed stainless steel logo plates
  • Preassembled for fast installation
  • Zinc plated components for corrosion resistance
  • Professionally MIG welded
  • Proudly made in the USA
FITMENT:
  • 2019-2023 Chevy Silverado 2WD / 4WD
  • 2019-2023 GMC Sierra 2WD / 4WD
SPECS:
  • Wheel Travel: Additional 2” of travel compared to stock
  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 17”
  • Coil over Shock Size: Factory or OEM replacement coilovers
  • Wheel Travel / Lift
    The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1” of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, ADS and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.
WHAT'S INCLUDED:
  • Boxed plate upper control arms
  • 1” FK uniballs
  • 3/4" FK heim joints
  • 17-4 stainless steel misalignment spacers
