The Carli-SPEC Commuter for the 2019+ Ram 1500 is the first of it’s kind within our 1500 offerings. The front coilover is a 2.5″ Diameter, non reservoir. In our custom tuning process, we found the additional surface area of the 2.5″ piston (vs. the 2.0″ piston in our previous Fox offering) resulted in a far better ride both on and off-road for the heavier front end. The empty bed is adequately handled by the included 2.0″ Internal reservoir shock.
On road ride tuned in to a beautifully smooth result – in fact, it’s one of the best rides we feel we’ve achieved to date. When the pavement ends, the ride is fantastic and controlled but, these shocks were travel limited to be compatible with the factory upper control arm AND are non-reservoir. Pushing them hard in the dirt will result in more frequent service intervals and top-out events as you find the limits of the down-travel bottle-necked by the factory control arm. If you’re looking for a significant improvement in off-road performance, we recommend jumping up to the Performance System equipped with King Reservoir Shocks and Carli extended control arms.
Designed and tuned for the truck that spends its life on road with occasional dirt trails, this custom shock project was intensely focused on delivering a comfortable in-town ride and smoothing the freeway’s all while improving vehicle control for light off-road adventures.
Base Kit Includes:
|AS-RAM15SPKG-CS20IFP-B||Carli-SPEC 2.5" Coilover IFP Front, 2.0" IFP Rear Shock Pkg.|

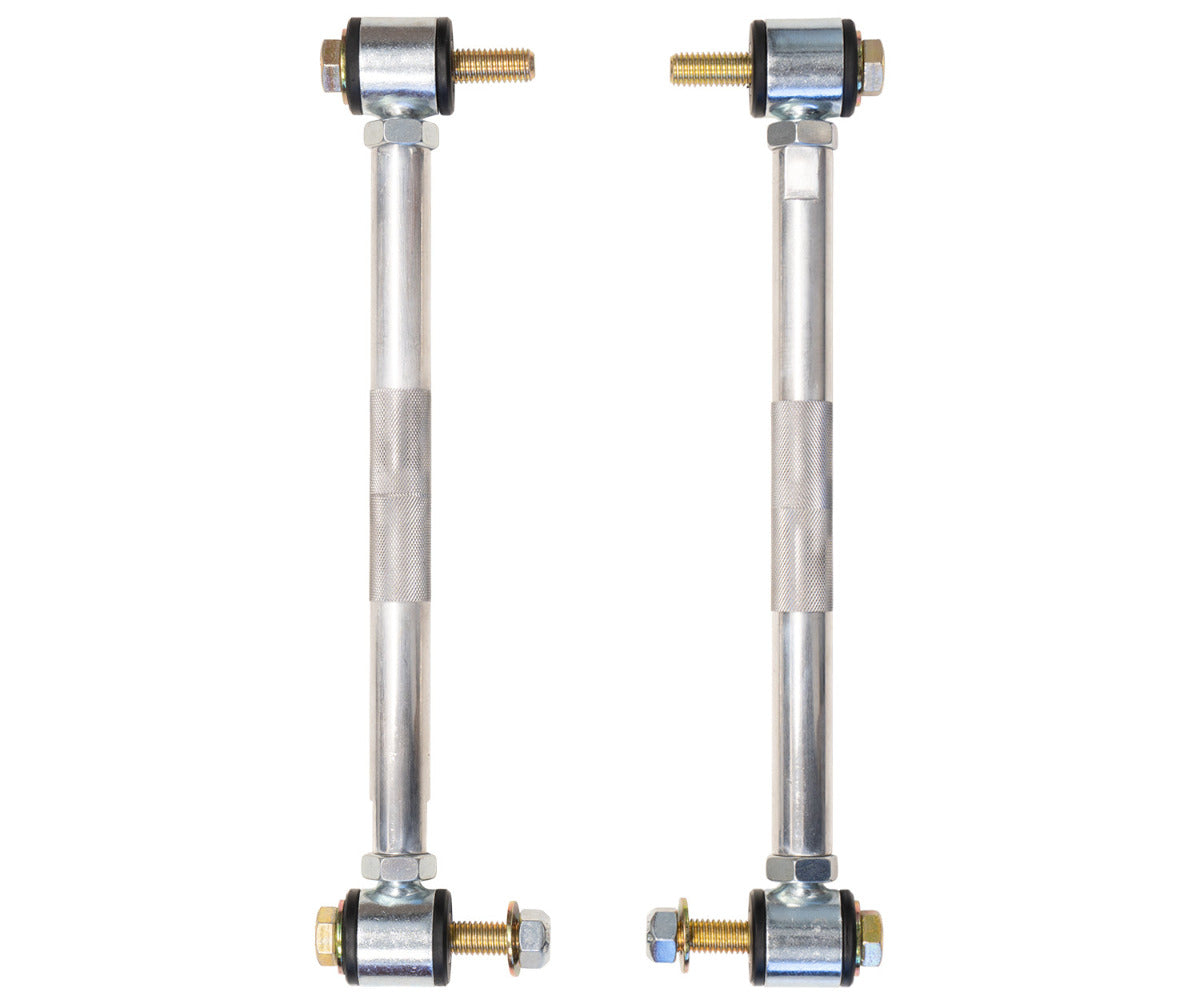

|CS-RAM15-EL-R||Rear Sway Bar End Links|

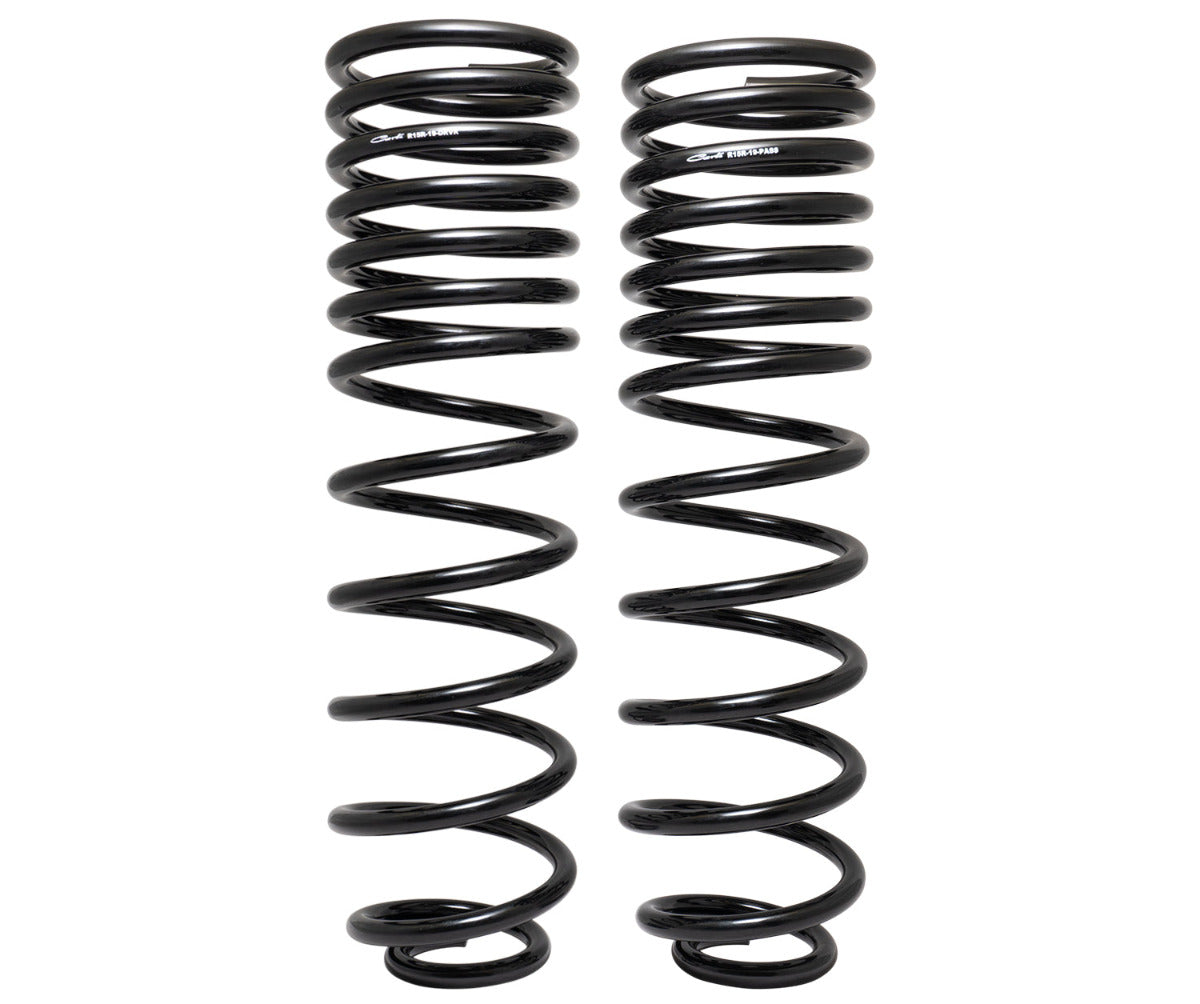

|CS-RAM15MRC-RBL-19-R-HD||Rebel/Off-Road Package - 1/2" Lift HD Rear Coil Springs (500lbs. Constant load!)|
|Ram 1500 Front Lift||Rebel/Off Road Pkg Front Lift||Rear Lift|
|2.5″ – 3.0″||1.5″||0.5″-1″|
|Front Travel||Rear Travel||Shock Diameter||Tire Fitment|
|8″||12″||2.5″ Front / 2.0″ Rear||35″ x 12.5|
NOTE: The above figures will deviate if the truck is equipped with Multi-Function Tailgate or Ram Box options!
EcoDiesel customers can expect 1/2″ LESS of front lift than stated above.
