19-24 RAM 1500 4X4 CARLI-SPEC 2.5" LIFT COMMUTER SYSTEM Display of included Parts
19-24 RAM 1500 4X4 CARLI-SPEC 2.5" LIFT COMMUTER SYSTEM Display of Included Parts

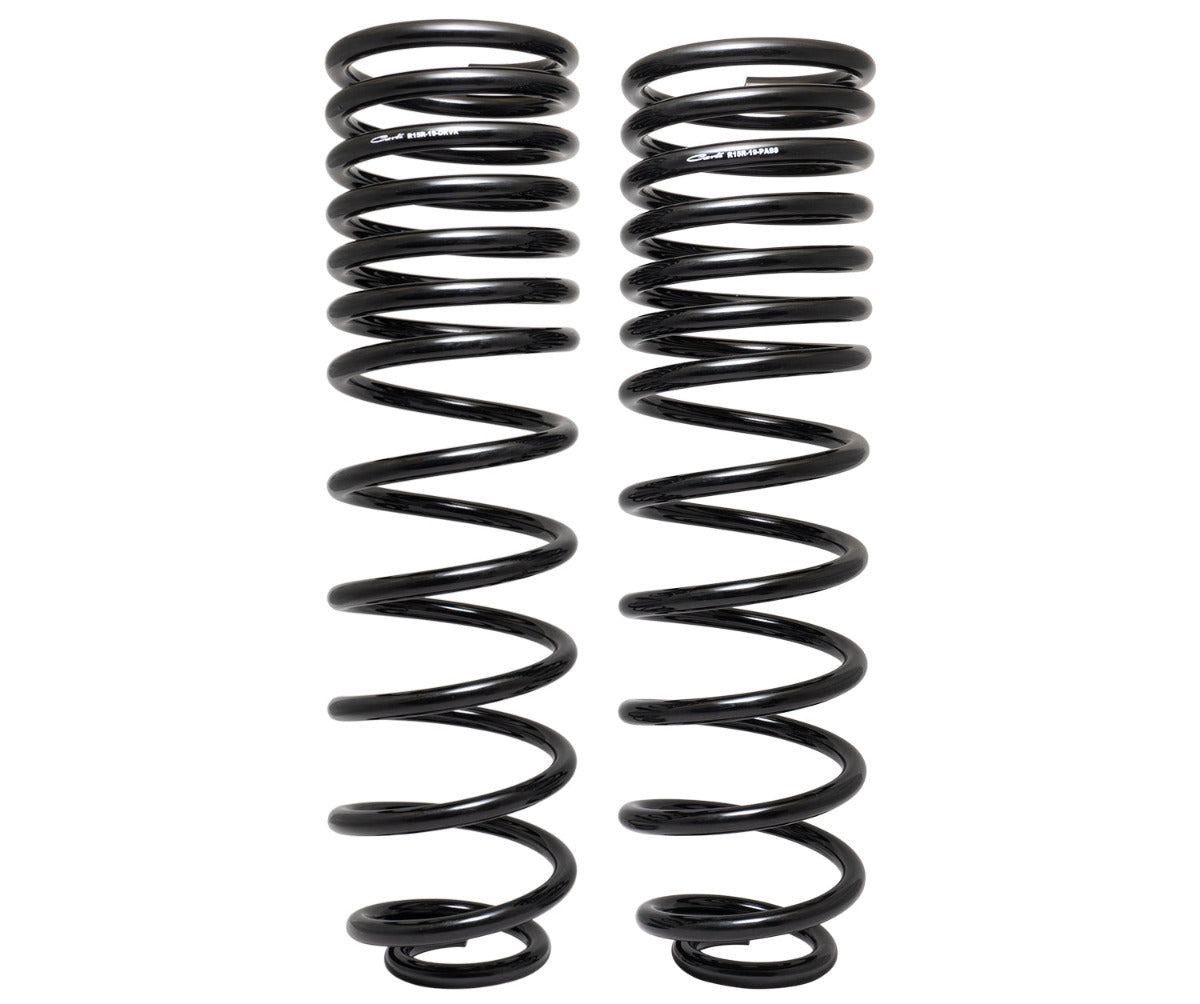

19-24 RAM 1500 4X4 CARLI-SPEC 2.5" LIFT COMMUTER SYSTEM Coil Springs Display

Carli Suspension

19-24 RAM 1500 4X4 CARLI-SPEC 2.5" LIFT COMMUTER SYSTEM

$2,510.00
SKU: CS-RAM15COM-CS-19
Quantity:

19-24 RAM 1500 4X4 CARLI-SPEC 2.5" LIFT COMMUTER SYSTEM

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Ram 1500 Front Lift Rebel/Off Road Pkg Front Lift Rear Lift
2.5″ – 3.0″ 1.5″ 0.5″-1″



Designed and tuned for the truck that spends its life on road with occasional dirt trails, this custom shock project was intensely focused on delivering a comfortable in-town ride and smoothing the freeway’s all while improving vehicle control for light off-road adventures.

With the Commuter system, it’s not necessary to purchase the Carli Upper Control Arm. The factory arm DOES limit the travel of the Commuter kit. The Commuter kit is actually capable of about 1" more travel than it's spec'd with BUT, we had to install a short internal spacer in the coilover to limit the travel of the shock and ensure customers were not topping out on the factory ball joint in the upper control arm. The King Shocks we offer include our control arms and achieve this extra 1" down travel. Being more budget and on-road focused, we limited the travel of the Commuters for safe operation with the factory control arm. If a customer decided to purchase the Commuter for it's on-road prowess and elects to purchase the Carli Control Arms, the internal spacer could be removed by the user (or user's selected shock service facility) to achieve the same suspension travel as the Performance Kits.

If one were to purchase the Commuter System and the Carli Upper Control Arm, then removed the internal shock spacer to achieve the full down-travel of which these shocks are capable, this brake line kit would be required as the factory lines will not be sufficient length. These are NOT required for the standard Commuter System.

Front Travel Rear Travel Shock Diameter Tire Fitment
8″ 12″ 2.5″ Front / 2.0″ Rear 35″ x 12.5



NOTE:

The above figures will deviate if the truck is equipped with Multi-Function Tailgate or Ram Box options!

Base Kit Includes:

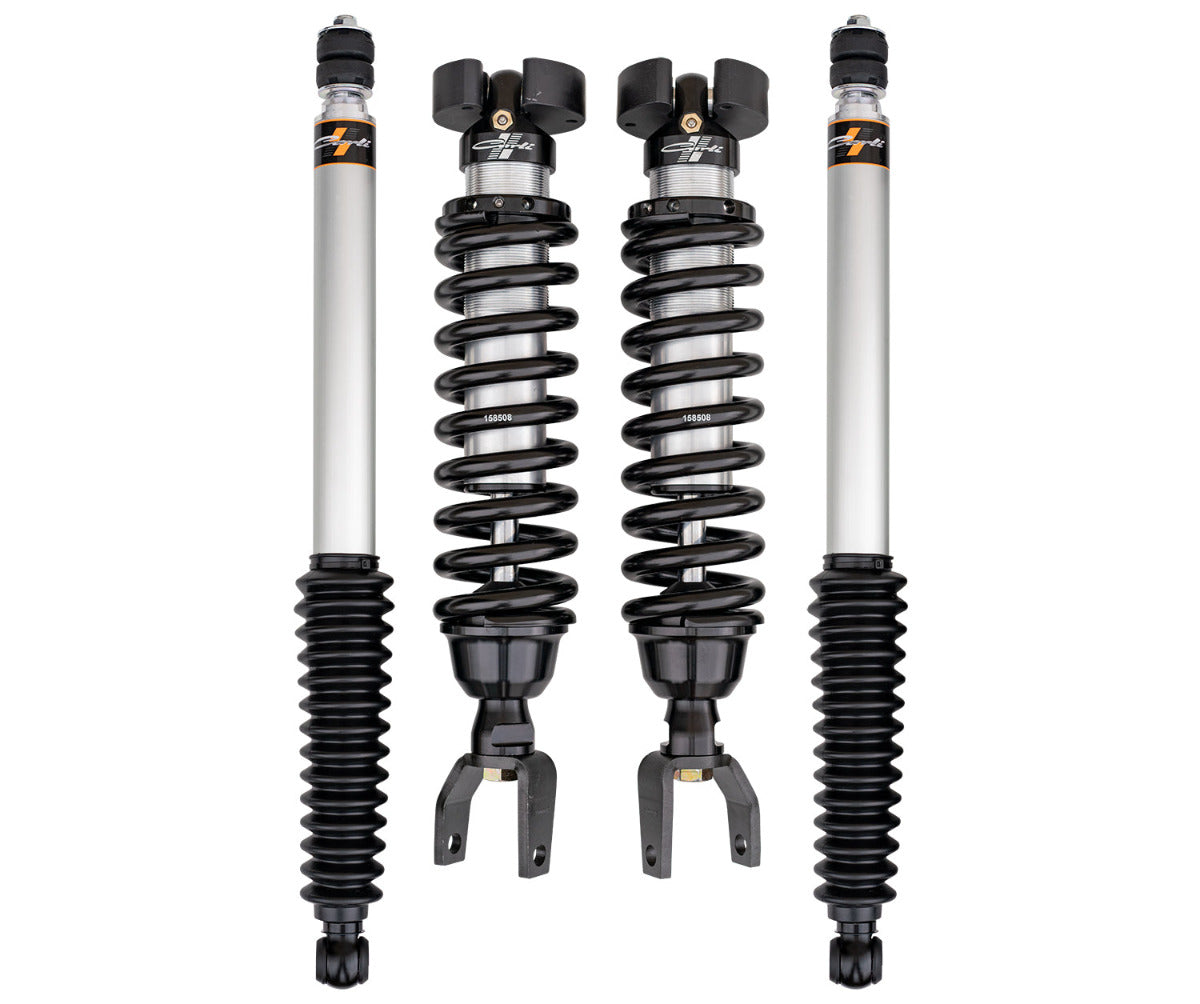

AS-RAM15SPKG-CS20IFP-B Carli-SPEC 2.5" Coilover IFP Front, 2.0" IFP Rear Shock Pkg.
CS-RAM15-EL-R Rear Sway Bar End Links
CS-RAM15MRC-19-R 1/2" Lift Ram 1500 Rear Coil Springs
