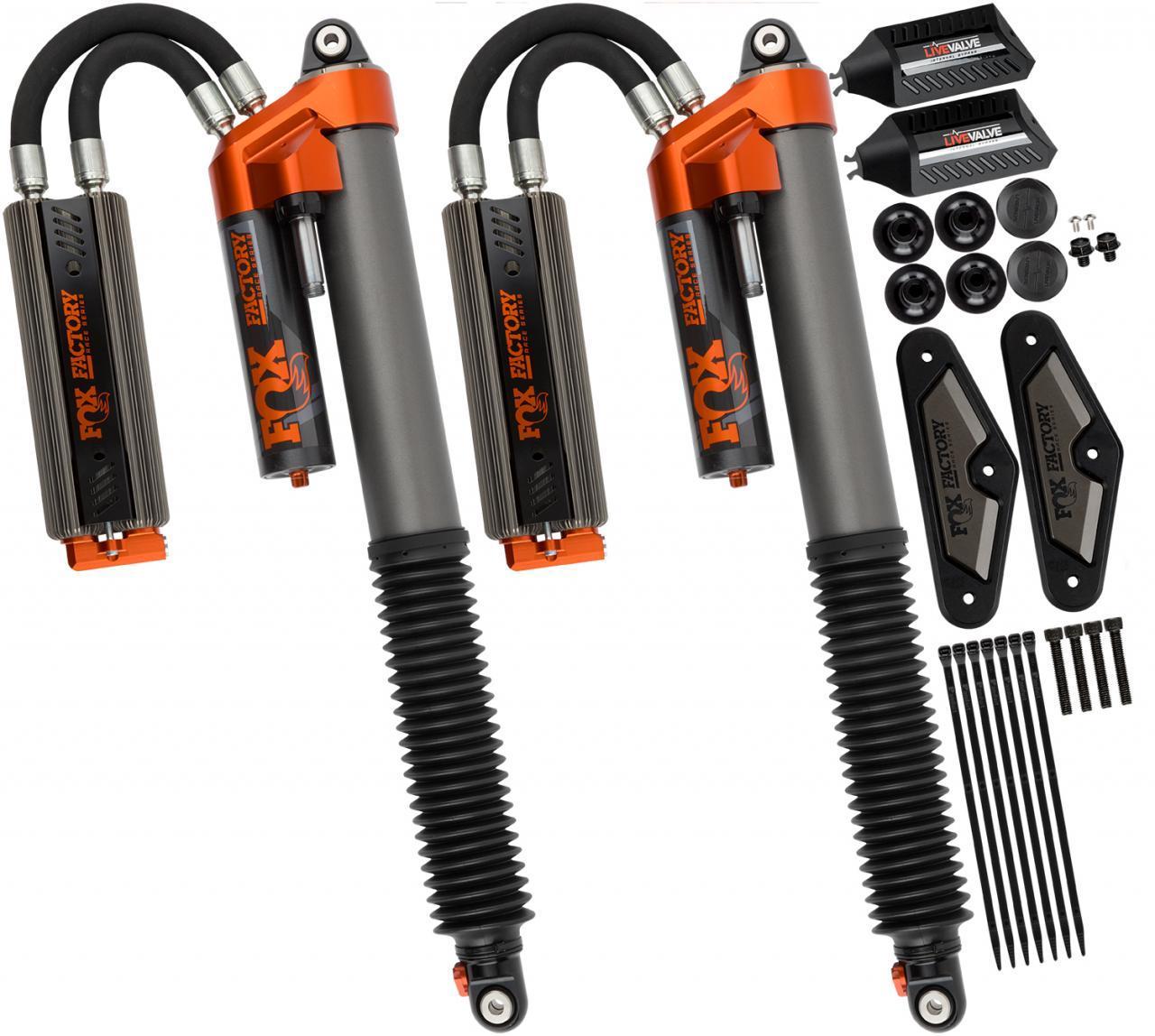

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Display of Included Parts

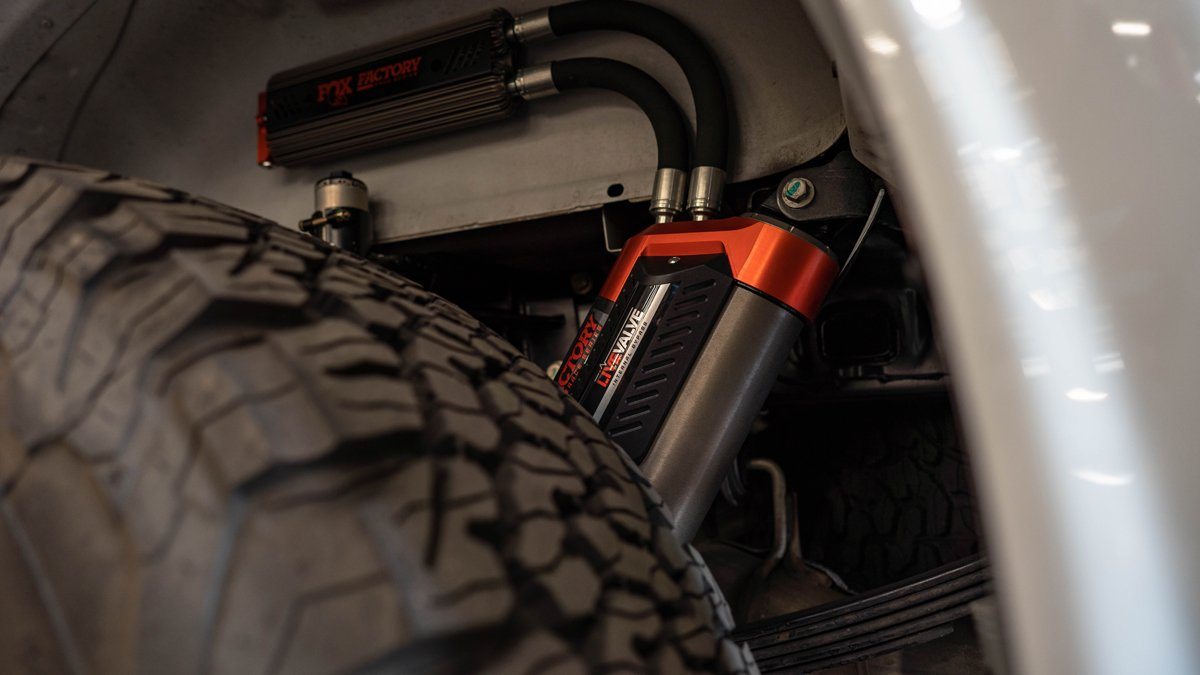

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Close-up Display

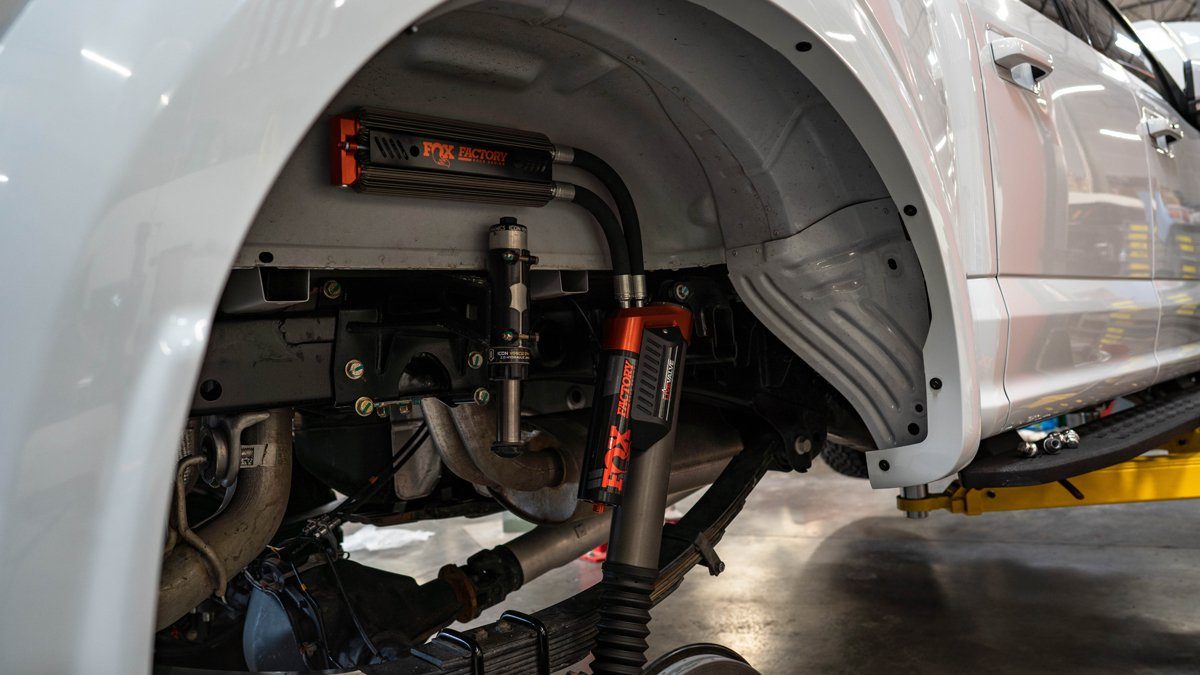

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Close-up Display on Vehicle
'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Display on Vehicle
'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Display on Vehicle

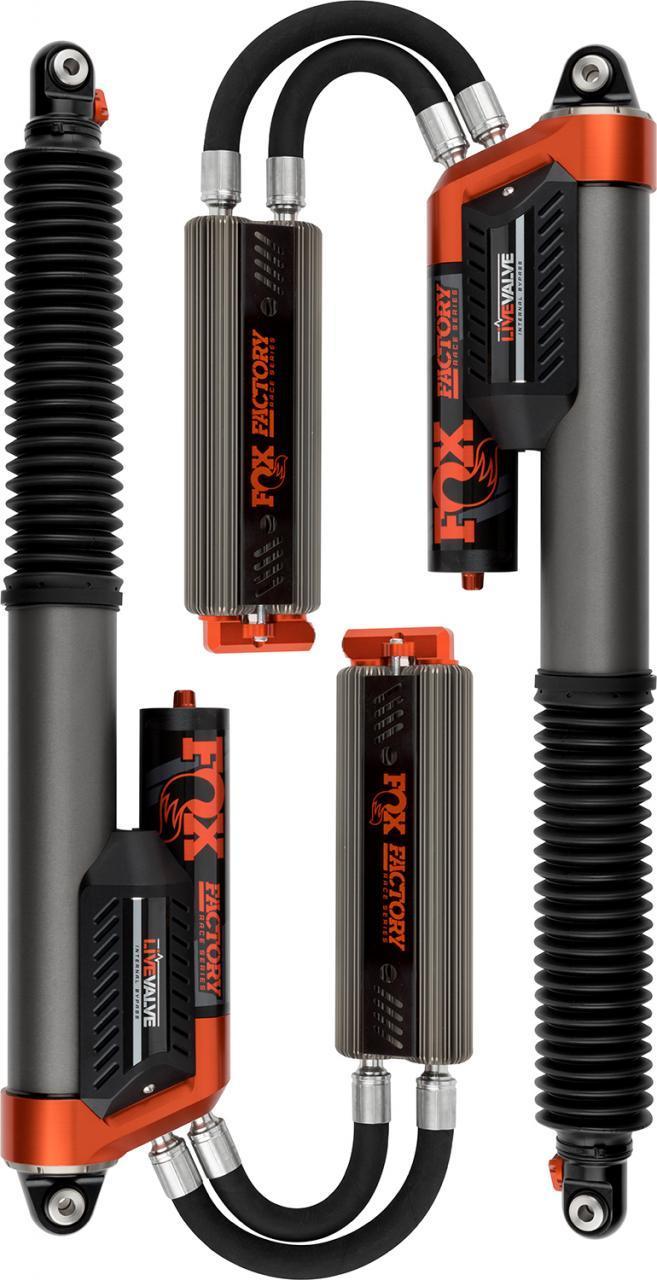

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Display of Included Parts

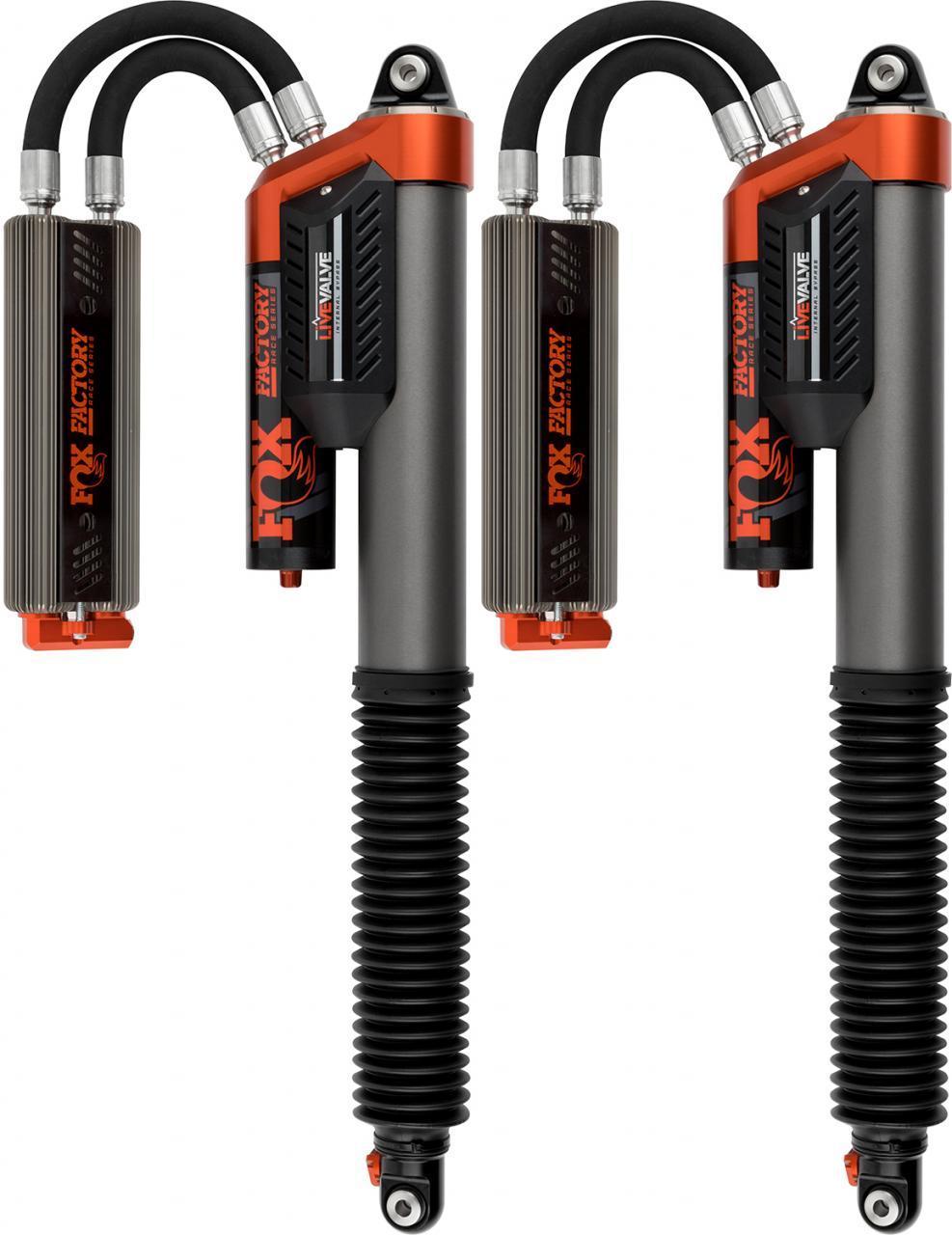

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Display of Included Parts
'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153 Close-up Display on Vehicle

Fox

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153

$3,899.95
SKU: Fox-883-09-153

'19-20 Ford Raptor 3.0 Fox Live Valve Rear Shocks - 883-09-153

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Designed for the 2019-2020 Ford Raptor Fox's 3.0 Live Valve Internal Bypass Reservoir Rear Shocks can instantly adapt to the terrain.

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Our new three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

LIVE VALVE FEATURES:
  • Live Valve semi active technology equipped, plug and play integration to factory electronics
  • Rebound and compression adjustable via Quick Switch Technology (QS3)
  • Rotatable hose fittings for easy installation
  • FOX patented, position-sensitive Internal Bypass damping technology
KEY FEATURES:
  • Body: Hard 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
  • Body Plating: Hard-anodized for a durable finish

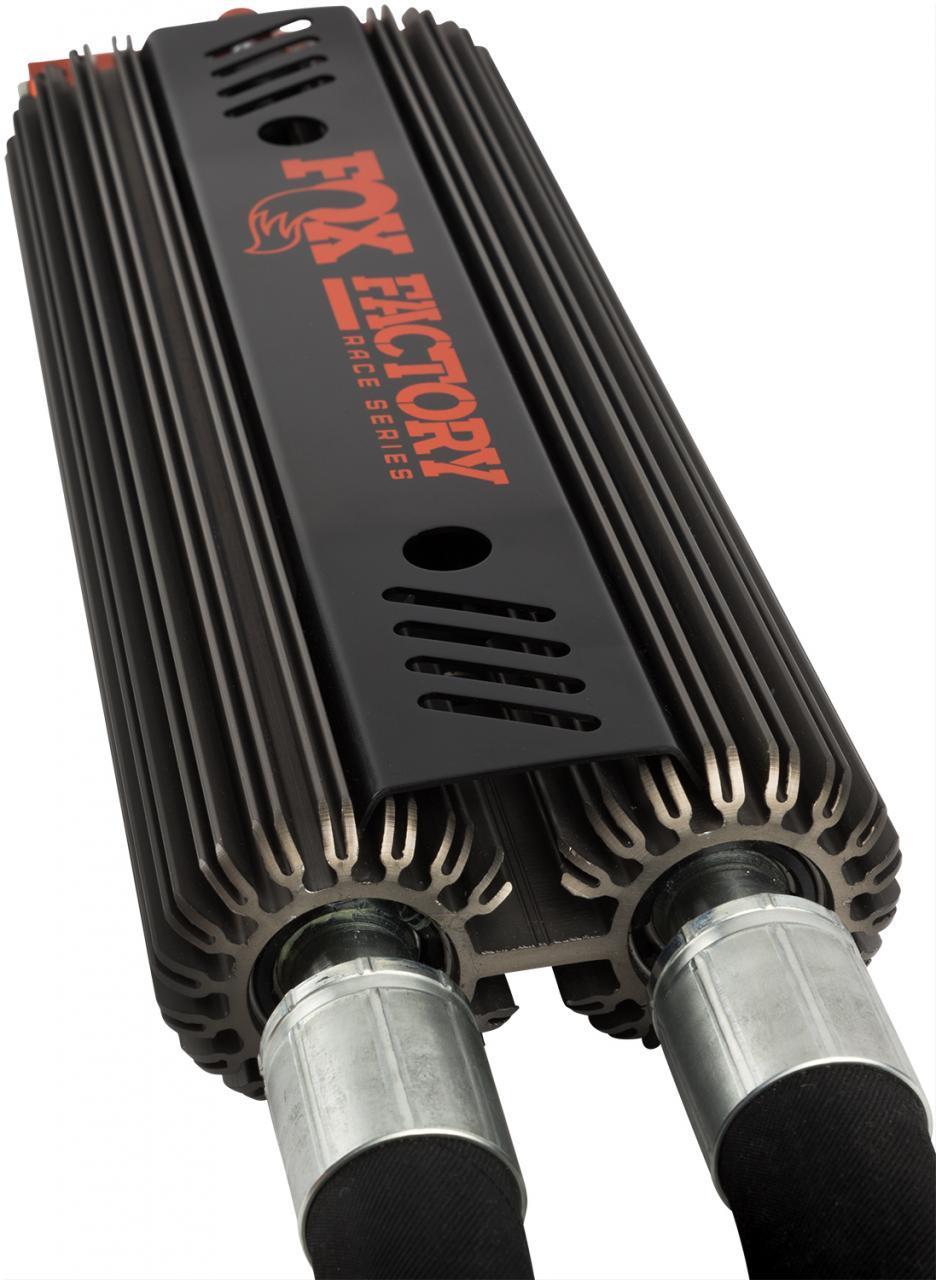

  • Reservoir: Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
  • Components: Anodized, CNC-machined 6061-T6 billet aluminum
  • Spring: Heavy duty 3.75? racing spring (fronts)
  • Shaft: 7/8" hard chrome plated 17-4 H900 stainless steel
  • Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
  • Valving: Application-specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
  • Oil: JM92 Advanced Suspension Fluid
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
  • Mounting: Heat treated steel spherical heim mounting
  • Adjustments: Adjustable ride-height/preload QS3 rebound and compression adjuster
  • Travel (in): 12.170
  • Compressed (in): 18.980
  • Extended (in): 31.150
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Fitment notes: External Cooling System (ECS2) Mounting Hardware Included
