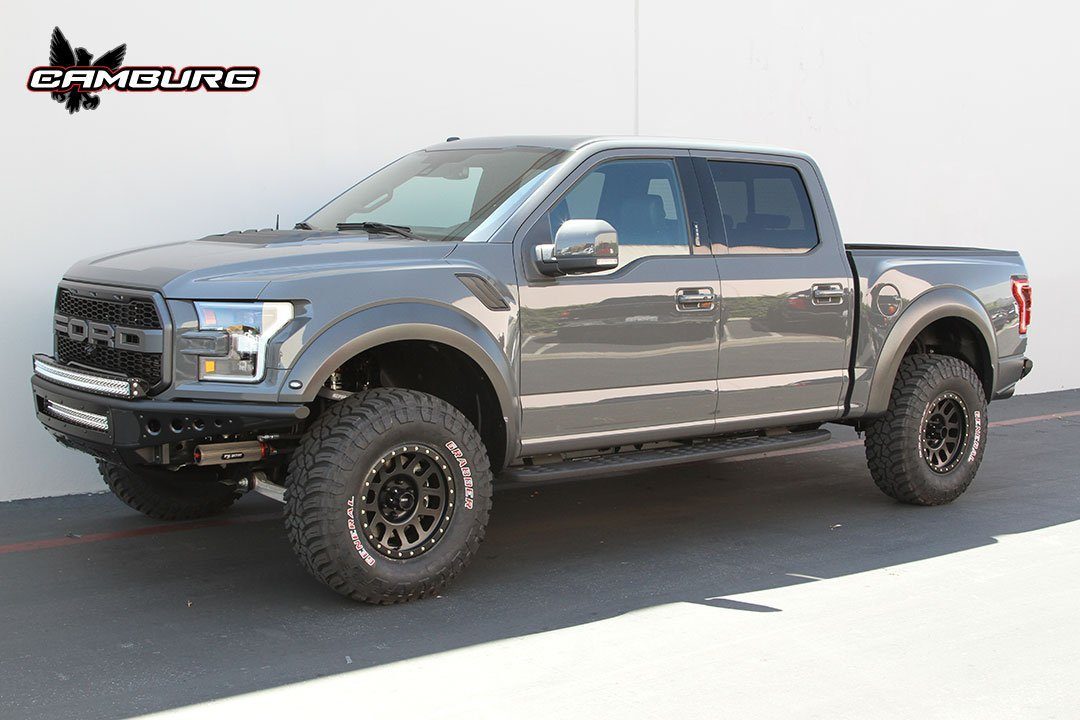

'17-Current Ford Raptor Camburg Fox Factory 3.0 DSC Kit

  • PART #: CAM-110142


    YOUR PRICE: Regular price $7,394.90




PRODUCT OVERVIEW:

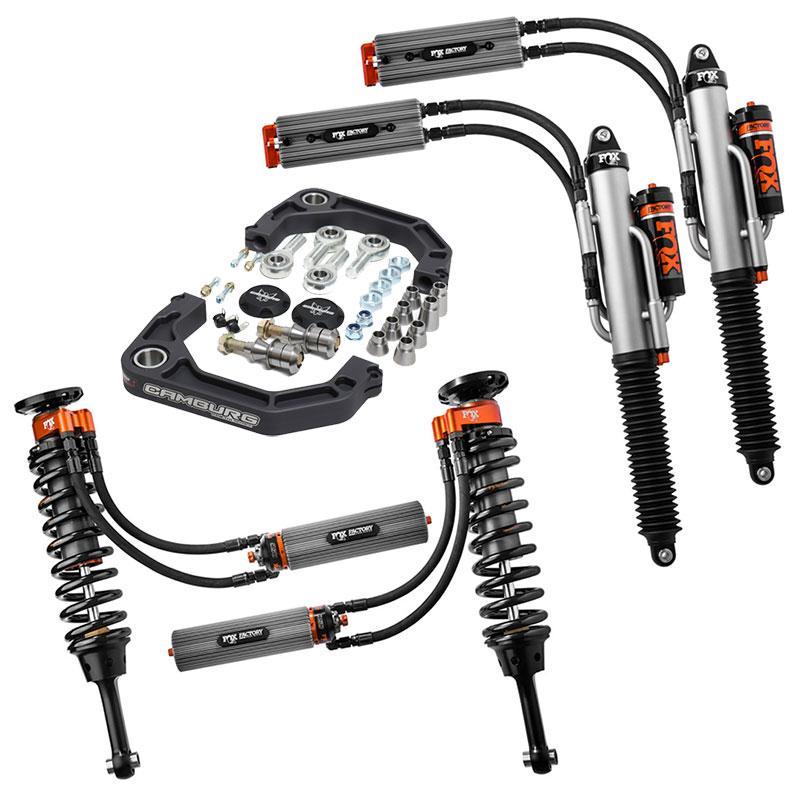

Using Camburg's Kinetik upper control arm for the '17-Current Raptor and Fox Factory 3.0 Series front and rear shocks with DSC adjusters this kit is the ultimate suspension kit for the Gen2 Raptors.

KIT SPECS:

Lift Wheel Travel Track Width Wheel Size Max Backspacing Tire Size
1.5-2 in 12.50 in Stock 17-20 in 4.75 in 35-37 in



Upper Control Arm Features:

Like Camburg's tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger and stronger 9/16” 12 point bolt with a low profile bolt-on uniball cap to resist the elements.
Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed with larger 6” suspension kits or damaged frames. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use.

KEY FEATURES:

  • CNC machined from aircraft quality 6061 aluminum
  • FK 7/8 heim joints FK 1.25 uniballs
  • Corrected caster & camber for lifted trucks
  • Made in the USA

Front Coilover Features:

Body 3.0" Hard anodized aluminum
External Reservoir NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
Components Hard anodized, CNC-machined 6061-T6 billet aluminum
Spring 3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
Shaft 7/8" 17-4 H900 hard chrome plated stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Specific for Gen 2 Raptor to maximize performance and comfort
Oil JM92 Advanced Suspension Fluid
Bearing Spherical, PFTE-lined, heat-treated steel
Mounting Heat treated steel spherical heim mounting



Rear Shock Features:

Body 3.0" steel body new, proprietary coating for improved durability
External Reservoir NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
Components Hard anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" 17-4 H900 hard chrome plated stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Specific for Gen 2 Raptor to maximize performance and comfort
Oil JM92 Advanced Suspension Fluid
Bearing Spherical, PFTE-lined, heat-treated steel
Mounting Heat treated steel spherical heim mounting
Adjustments
  • Quick Adjust Bypass (QAB) adjusters
