17-Current Ford F250/350 2.0 Base Leveling Kit

  • PART #: CS-FLVL-17


    YOUR PRICE: Regular price $1,349.00




INSTALL INSTRUCTIONS:

PRODUCT OVERVIEW:

The Super Duty Leveling System is designed for people seeking the best on-road ride quality on a budget. Utilizing Fox 2.0” internal reservoir shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The Fox 2.0s boast extruded aluminum construction with a clear anodizing for corrosion resistance, are fully rebuildable and are built with hour-glass bushings in the rod-ends. Fox builds these shocks with their legendary red shock oil that flows well down to -55° F. Unlike most of our suspension systems, the Leveling System was tuned with 20”, factory wheels on factory Michelin tires given many in the entry level, 2.5” lift market want the most bang for their buck and will continue to run the factory wheels and tires.

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. Extended, Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Sway Bar Drop Brackets to recenter the sway bar in the new extended travel stroke and Caster Shims to tighten the steering. We recommend adding an Adjustable Track Bar to center the front axle; for those that do not wish to, we include our High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop given the slight driver’s side shift of a leveled Super Duty without a track bar.

The front will sit level to the rear and payload is maintained as the rear springs are unaltered in this system. The rear shocks are shared with the Commuter 2.0” system as they’re tuned around a modified factory spring pack. The rear will be more controlled and planted. This system can be upgraded to a Commuter System with the addition of a rear Add-a-Pack and Adjustable Track Bar.

SHOCK DIAMETER LIFT HEIGHT TIRE SIZE FRONT TRAVEL REAR TRAVEL
2.0" 2.5" Up to 37" Tire 9" 12"

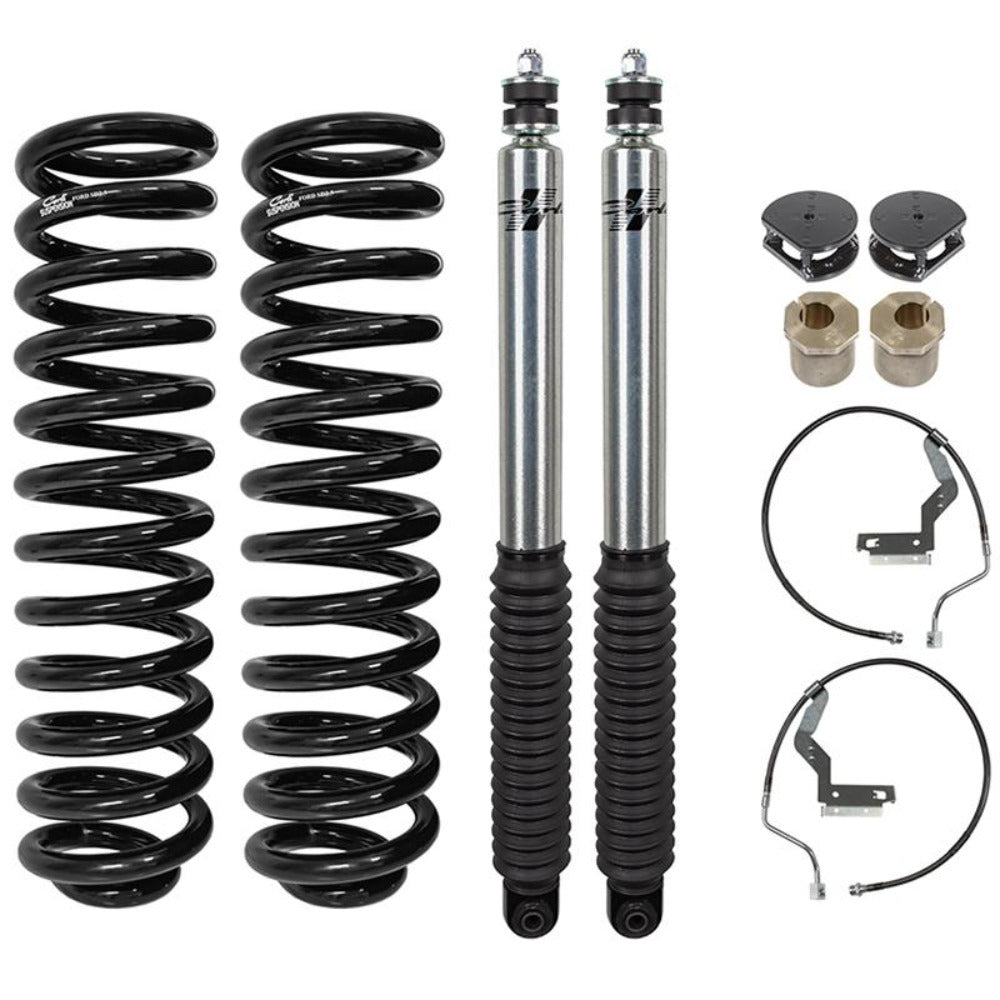

CS-FLC-05 Front Leveling Coils
CS-FC20SPKG-LVL-17 Carli Custom Tuned Fox 2.0" IFP Shocks
CS-FORDBBL-17-F Front Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FBDF-2.5-17 High Clearance Bump Stop Drops, Front
CS-FSBD-17 Sway Bar Drop Bracket
