'17-20 Ford Raptor 3GD Series Sports Rotors-Front Brakes EBC display
'17-20 Ford Raptor 3GD Series Sports Rotors-Front Brakes EBC display
'17-20 Ford Raptor 3GD Series Sports Rotors-Front Brakes EBC parts

EBC

'17-20 Ford Raptor EBC 3GD Series Sports Rotors-Front

Sale price$427.93
SKU: EBC-GD7462
Quantity:

'17-20 Ford Raptor EBC 3GD Series Sports Rotors-Front

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

Designed for the 2017-2020 Current (Gen2) Ford Raptor EBC's 3GD Series Sports Rotors are designed to improve the braking performance when paired with a set of EBC brake pads. These rotors are designed to work with Gen2 Raptors that are equipped with an electric parking brake.

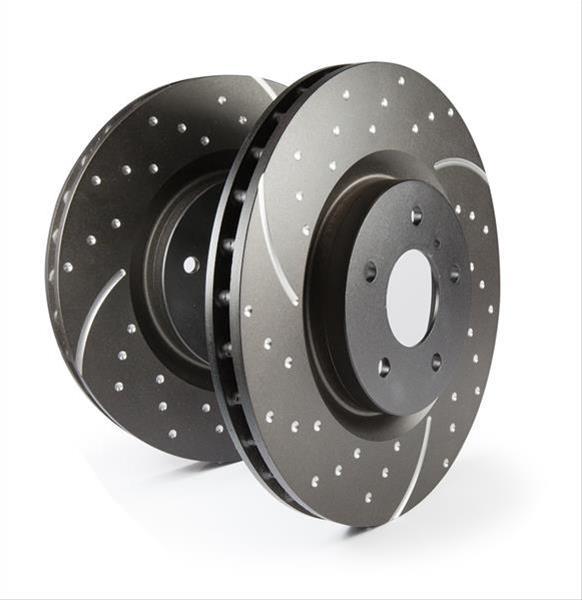

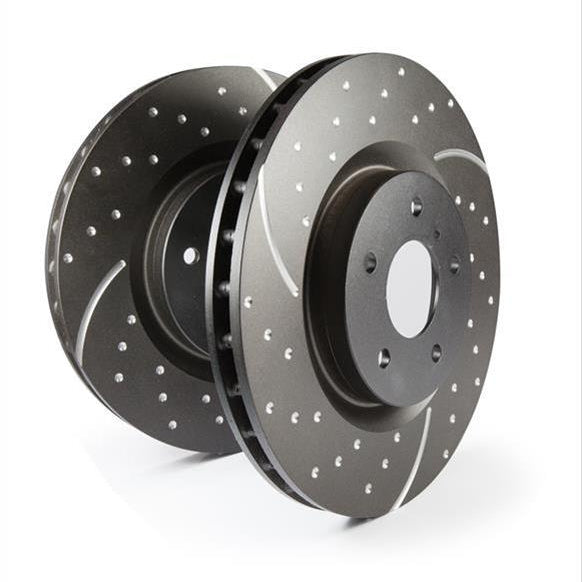

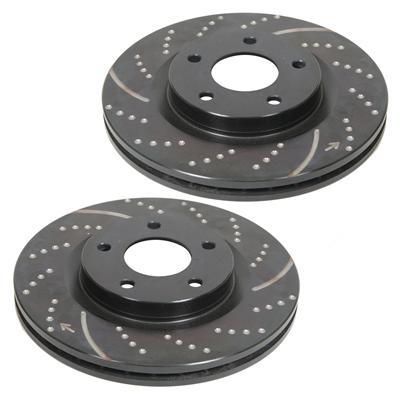

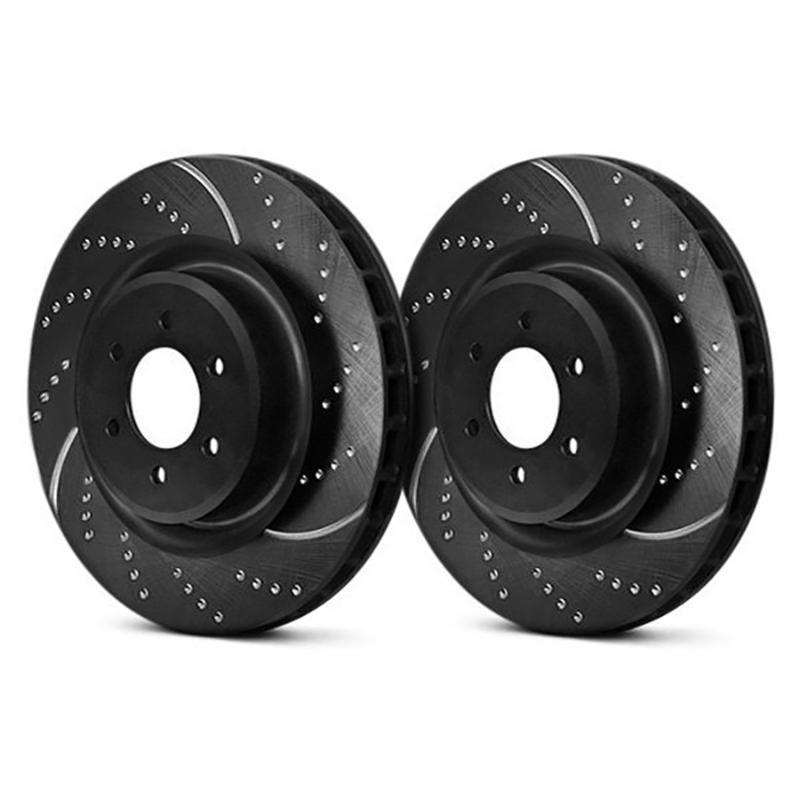

3GD Series Sport Dimpled and Slotted Vented 1-Piece Front Front Brake Rotors (GD7462) by EBC®. These replacement rotors feature both slots and drilled dimples to provide the superior level of cooling needed for high performance street driving, trailer towing, 4x4 use, drifting, and short track runs. Anodized finish provides corrosion resistance on non-contact areas. The anodized layer is designed to disappear in the area that the brake pads contact the rotor.

VEHICLE FITMENT:

FITMENT: FMSI Front Pad Design-D976; w/Electric Parking Brake;

TECH INFO:

  • Driving Style: Hauling & Towing, Performance / Racing
  • Rotor Design: Rotors Only
  • Rotor Construction: 1-Piece
  • Rotor Style: Dimpled & Slotted
  • Rotor Material: High Quality Gray Iron
  • Rotor Finish: Black Anodised
  • Rotor Type: Vented
  • Rotor Diameter: 350.52mm (13.8")
  • Rotor Height: 49.5mm (1.95")
  • Nominal Thickness: 34mm (1.34")
  • Minimum Thickness: 32mm (1.26")
  • Lug Holes Quantity: 6
  • Bolt Circle: 135mm (5.315")
  • Center Hole Diameter: 90mm (3.543")
  • Quantity: 2 Per Pack

KEY FEATURES:

  • EBC recommends use with Greenstuff 6000/7000, Yellowstuff, and Redstuff pads
  • Angled slots on rotor surfaces allow superior expulsion of heat, water, brake dust, and friction gases
  • Round indents in the rotors surface further increase cooling without the risk of cracking that drill-through holes pose
  • Black GEOMET and NITROTHERM™ anti corrosive finish
  • Brake rotors are unidirectional to the left and right side of your vehicle to maximize effectiveness
  • 3GD vented centers feature a wider aperture for air to pass between both rotor sides for superior cooling
  • EBC recommends a 500 mile break in period with lighter braking application
  • This type of rotors are designed to make a buzzing/rubbing sound

BENEFITS:

  • Dimples are resistant to cracking compared to drilled holes
  • Slots increase pad bite and de-glaze pads
  • Create an escape route for debris, dust, and water
  • Reduce stopping distances in wet weather
