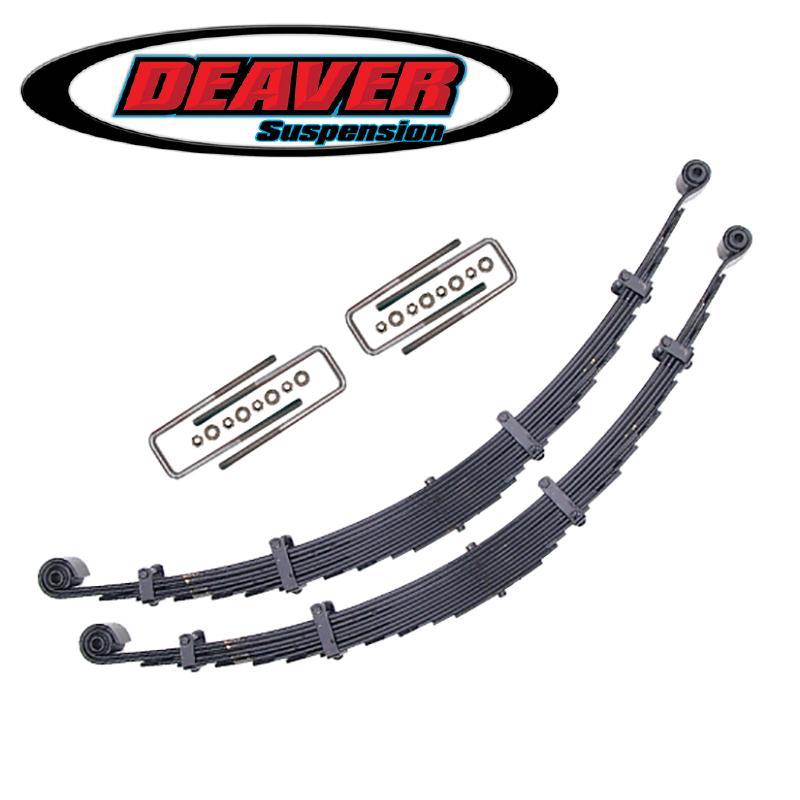

'17-20 Ford Raptor Deaver Rear Leaf Spring Replacement Kit Display of Included Parts

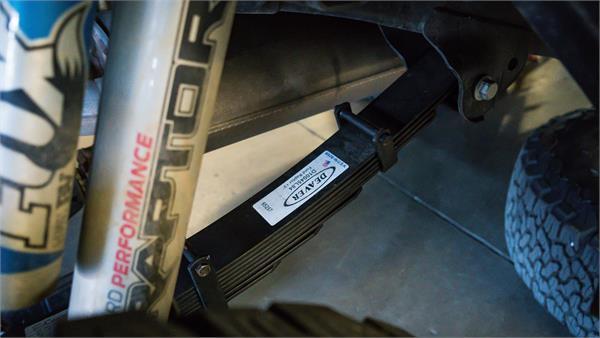

'17-20 Ford Raptor Deaver Rear Leaf Spring Replacement Kit Display on Vehicle

Deaver Springs

'17-20 Ford Raptor Deaver Rear Leaf Spring Replacement Kit

$1,896.00
SKU: DEA-L83K
Lift Height (in.):

Lift Height (in.)
Spring Configuration:

Spring Configuration
Quantity:

'17-20 Ford Raptor Deaver Rear Leaf Spring Replacement Kit

+2" / Standard

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Deaver Progressive Series rear leaf springs for the Ford Raptor are high-quality 12-leaf units fabricated with high grade 5160 “American Made” steel. A higher leaf count spring allows the use of thinner leaf material that yields a more flexible progressive leaf stack, or pyramid, producing a much smoother spring rate curve throughout the complete suspension cycle. The even, linear compression rate curve of our progressive system spring is the primary key to excellent ride quality.

Other designs features include full military-wrapped spring eyes for superior durability, diamond cut inner leaf ends minimizing shear points and anti-friction pads inserted between the leafs for a smoother ride and quiet operation.

Combined with properly valved shock absorbers, the ride is enhanced beyond belief.

VEHICLE FITMENT:

2017-2020 (2nd Gen) Ford Raptor

KEY FEATURES:
  • 12 leaf count of thin material
  • Military wrap
  • Reversed eyes front and rear to maximize compression travel at ride height
  • 4-piece bolt through retaining clips
  • Insert pads to reduce friction on the ends of the leaves
  • Diamond cut ends with insert pads on the tips to reduce friction
  • Improves off road performance
  • Direct bolt on to stock location
  • HD'S / CHASE WEIGHT CONFIGURATION:
    Increases bed load capacity by 400-500lbs.
WHAT'S INCLUDED:
  • Leaf springs
  • U bolts
  • Bushing kit
  • 18mm front eye bolts
SPECS:
  • Height indicated in description, takes into consideration the removal of the OEM block. The HD/Chase weight will net more lift if unloaded
Part# Lift Height (in.) Spring Configuration

L83K

 +2" Standard

L83HDK

 +2" Chase Weight

L84K

 +3" Standard

L84HDK

 +3" Chase Weight

M44K

 +4" Standard

M44HDK

 +4" Chase Weight

P18K

 +5" Standard

P18HDK

 +5" Chase Weight
