Banks Power

'17-19 Chevy/GMC 2500/3500 CoolRunner Oil Pan for 6.6L Diesel L5P

$598.00
SKU: 35135-B
Quantity:

'17-19 Chevy/GMC 2500/3500 CoolRunner Oil Pan for 6.6L Diesel L5P

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

overview

Banks CoolRunner Oil Pan utilizes technology from our military engine program to extend oil life. The system rejects more heat and reduces aeration better than stock and all competitors. Two additional quarts of oil and Banks FlowThru Fins aid in cooling. Unlike stock, the CoolRunner allows all fluid to drain during oil changes.

Key Features
  • Engineered for the best heat rejection, improved oil flow, and full oil drain
  • Adds 2 additional quarts of oil capacity

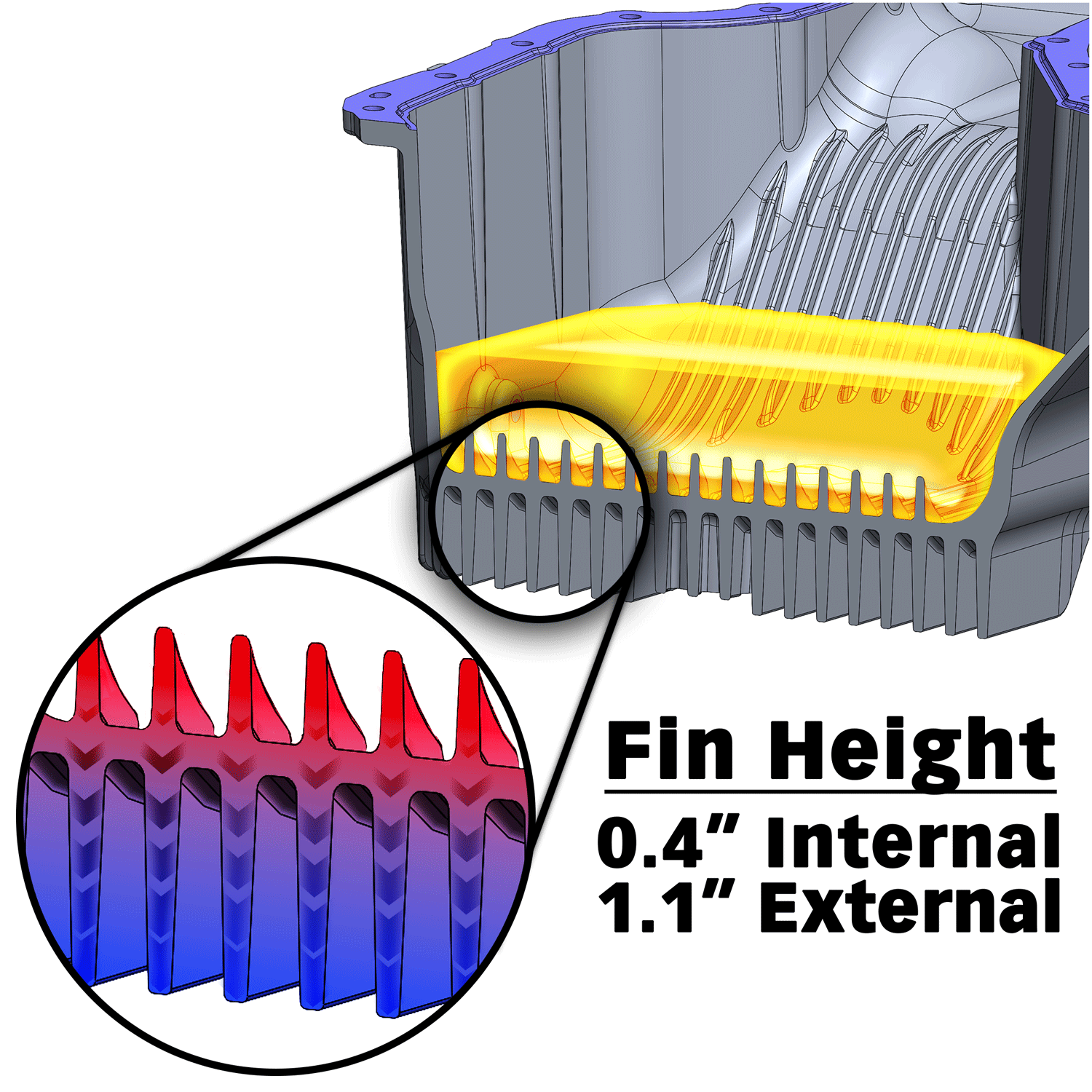

  • FlowThru Fins TM efficiently transfer heat through the cover
  • 72.4% more cooling surface area than stock pans

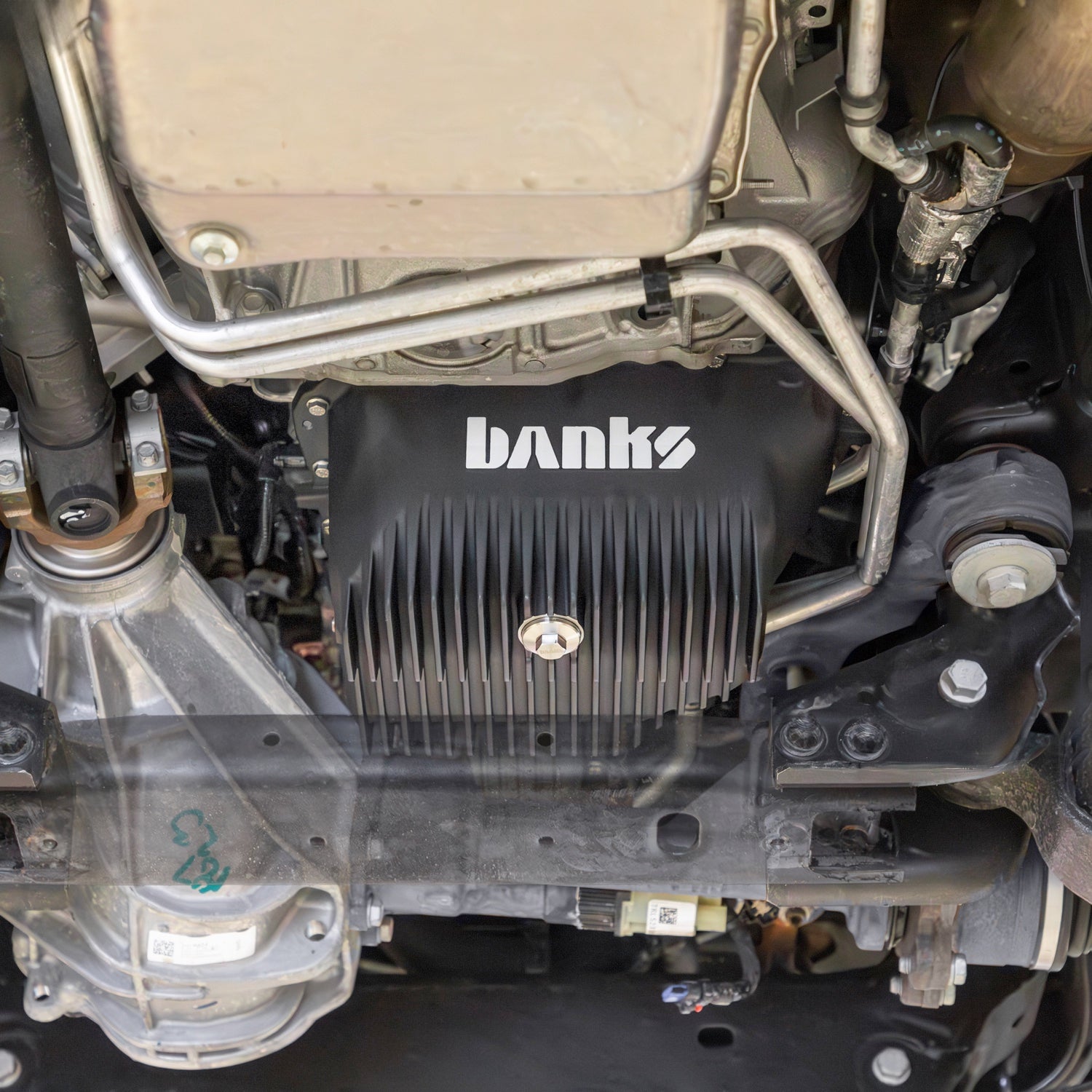

  • Does not hang lower than factory front cross members

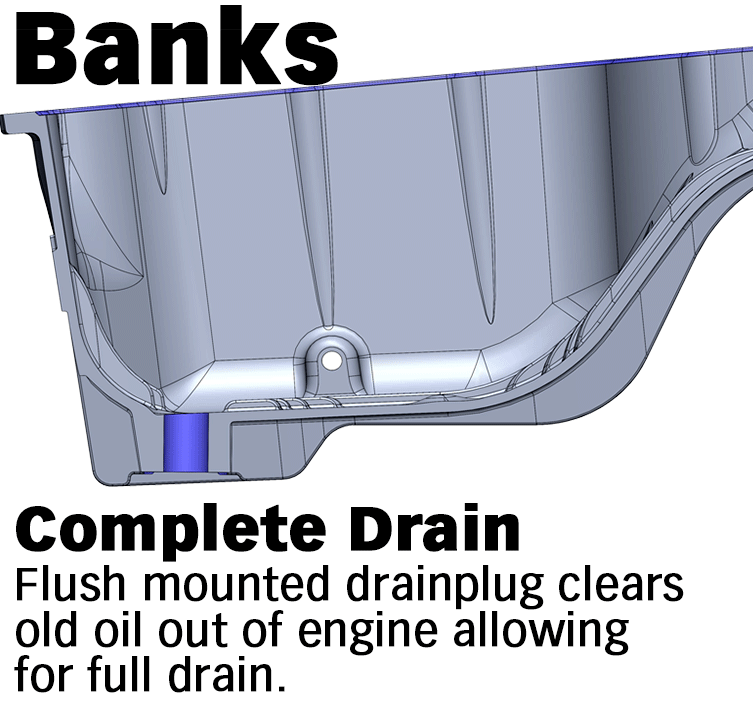

  • Allows full engine oil drainage
Fluid Dynamics
  • Internal cooling fins run inline with the drain port with streamlined passageways
  • Anti-Cavitation dimple directly under oil pickup improves oil flow rate
  • Downward facing port eases oil change process
  • Low fluid aeration means longer fluid life
Technical Specs
  • 1/8 NPT port for aux temp sensor

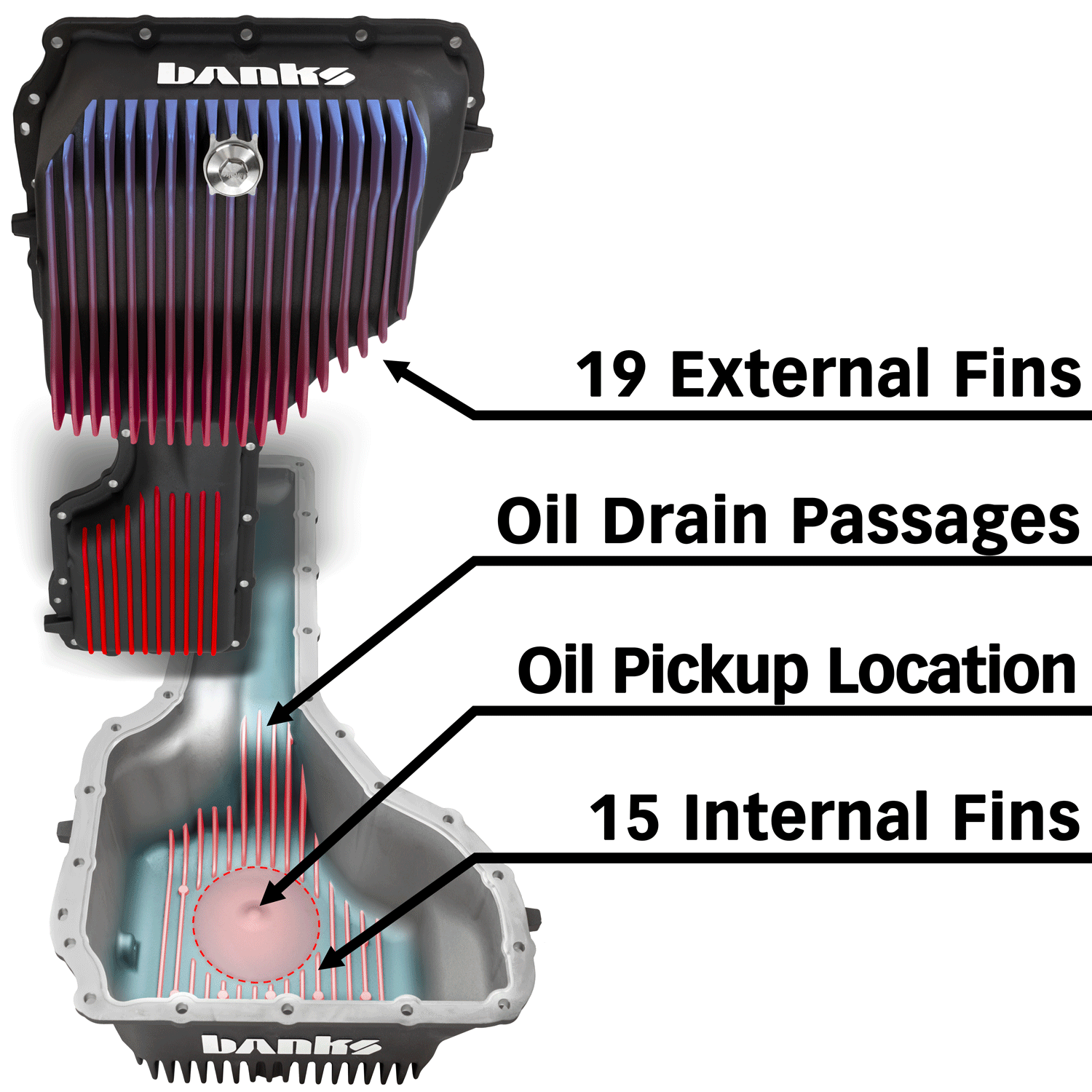

  • External heat radiation fin count: 19
  • Internal heat absorption fin count: 15

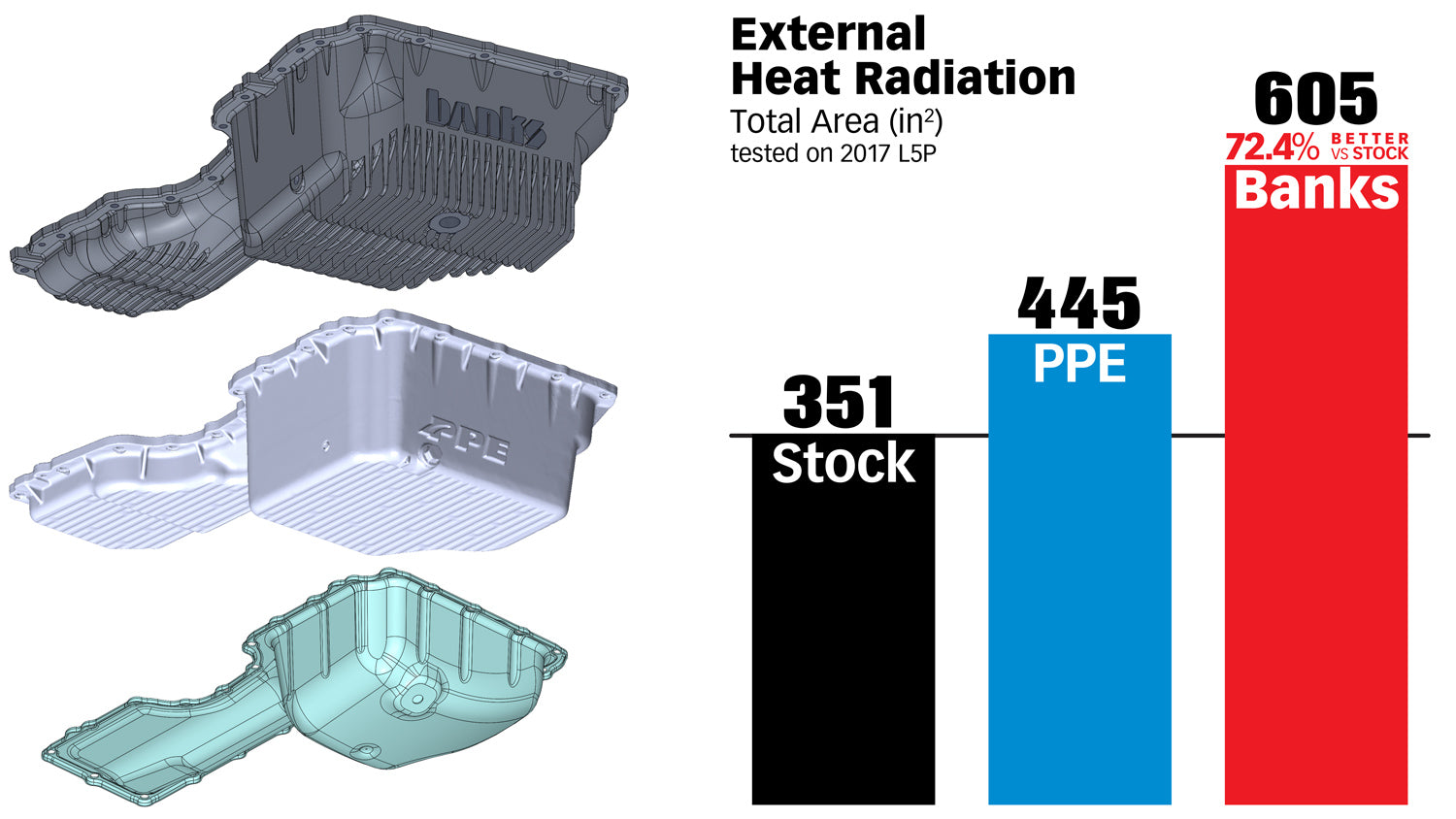

  • External heat radiation surface area: 605 in2

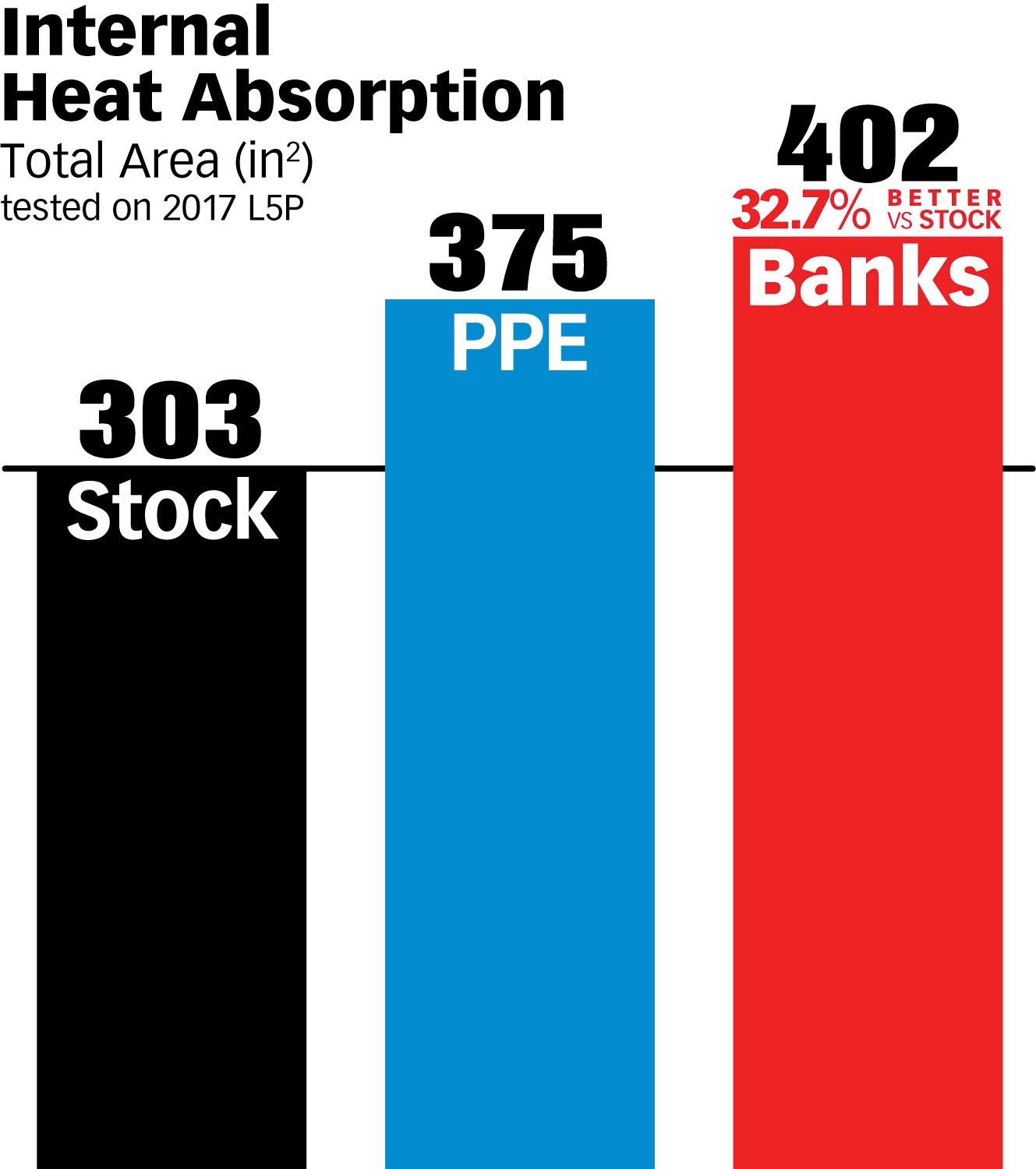

  • Internal heat absorption surface area: 402 in2
  • Fasteners: 26 x stainless steel M6 flange hex bolts
  • Material: A380 aluminum die-cast with CNC machined surfaces
Oil service
  • High temp resistant Ferrite Magnetic Drain Plug
  • Fully drains oil pickup tube for quicker oil changes
  • Banks recommends Amsoil 15W-40 Signature Series Max-Duty Synthetic Diesel Oil
  • Adds 2.0 Qts additional capacity(Check OEM Owners Manual)
