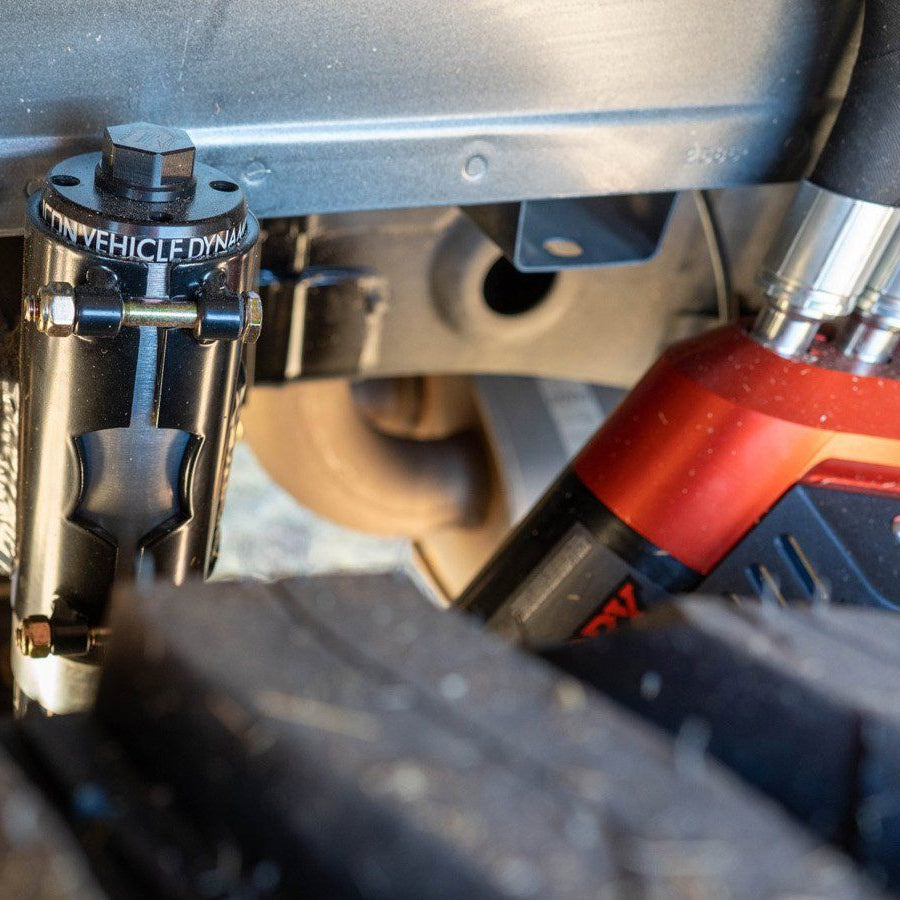

'17-18 Ford Raptor 3.0 Fox Factory Series Piggyback QAB Rear Shocks

  • VENDOR: Fox
  • PART#: Fox-883-09-141

  • YOUR PRICE: Regular price $3,499.95


Taking inspiration from off-road racing, the Fox Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).

This kit delivers the next level of off-road performance without sacrificing every day ride quality.


  • Body: 3.0" steel body new, proprietary coating for improved durability

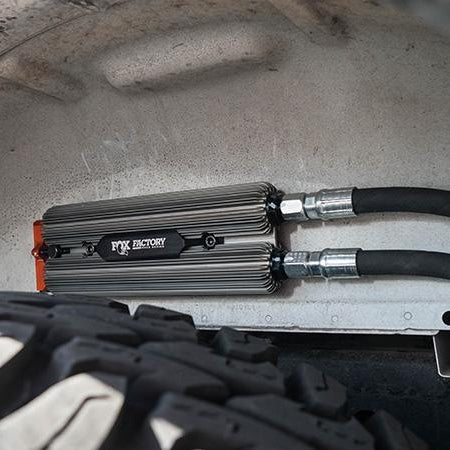

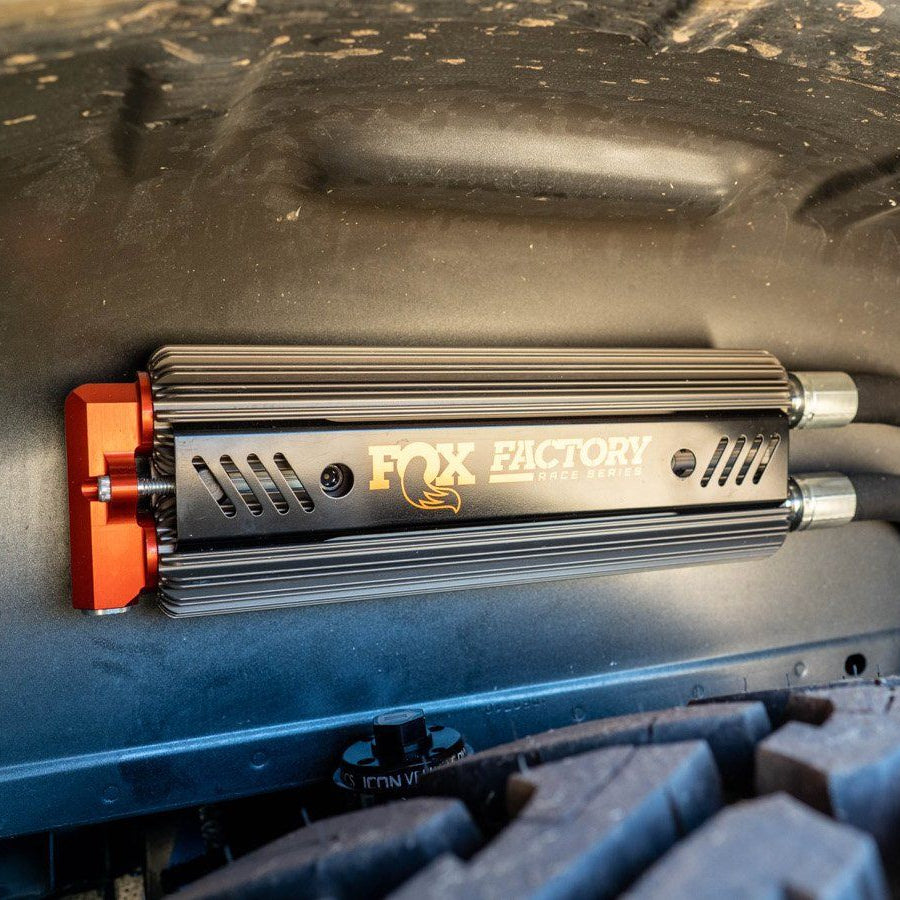

  • Reservoir: Hard anodized impact extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
  • Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
  • Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
  • Valving: Specific for Gen 2 Raptor to maximize performance and comfort
  • Oil: JM92 Advanced Suspension Fluid
  • Bearing: Spherical, PFTE-lined, heat-treated steel
  • Adjustments: Quick Adjust Bypass (QAB) adjusters
  • Adjuster Type: QAB - Quick Adjust Bypass
  • Extended: 31.150
  • Compressed: 18.880
  • Travel: 12.270
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
