'15-22 Chevy Colorado 2WD Long Travel Kit
'15-22 Chevy Colorado 2WD Long Travel Kit
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

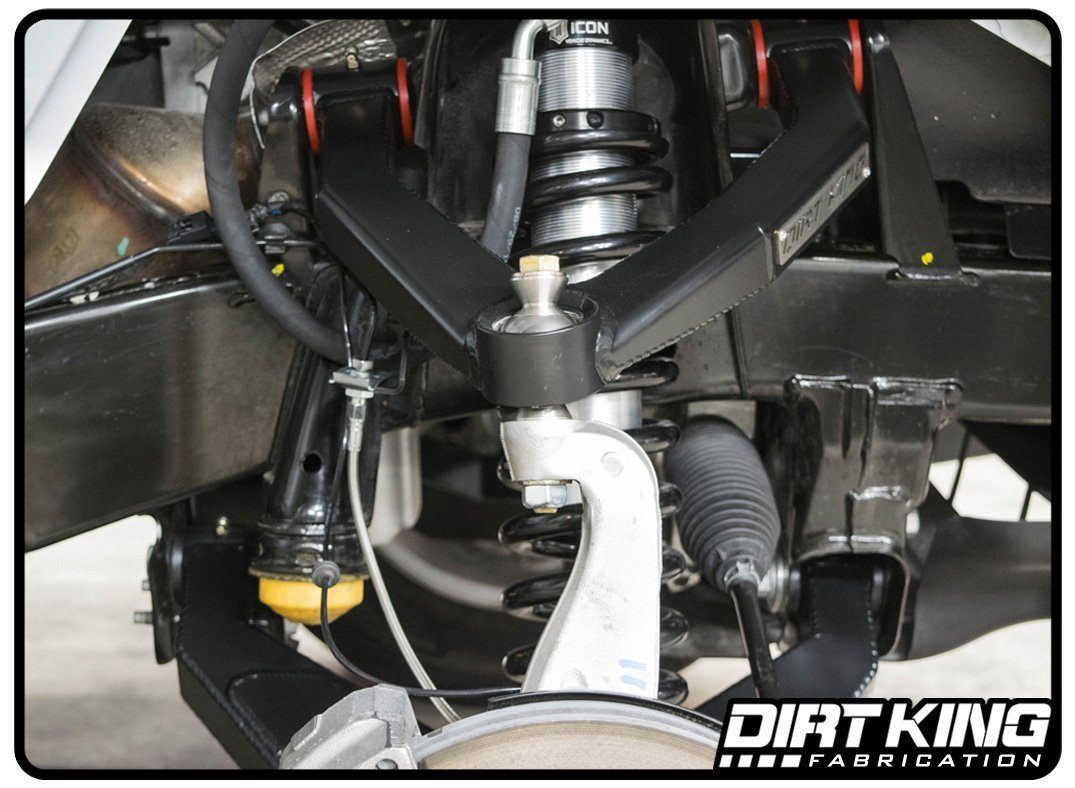

The Dirt King Fabrication long travel kit for the 2015-2022 Chevy Colorado 2WD was developed to drastically improve the Colorado's off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America

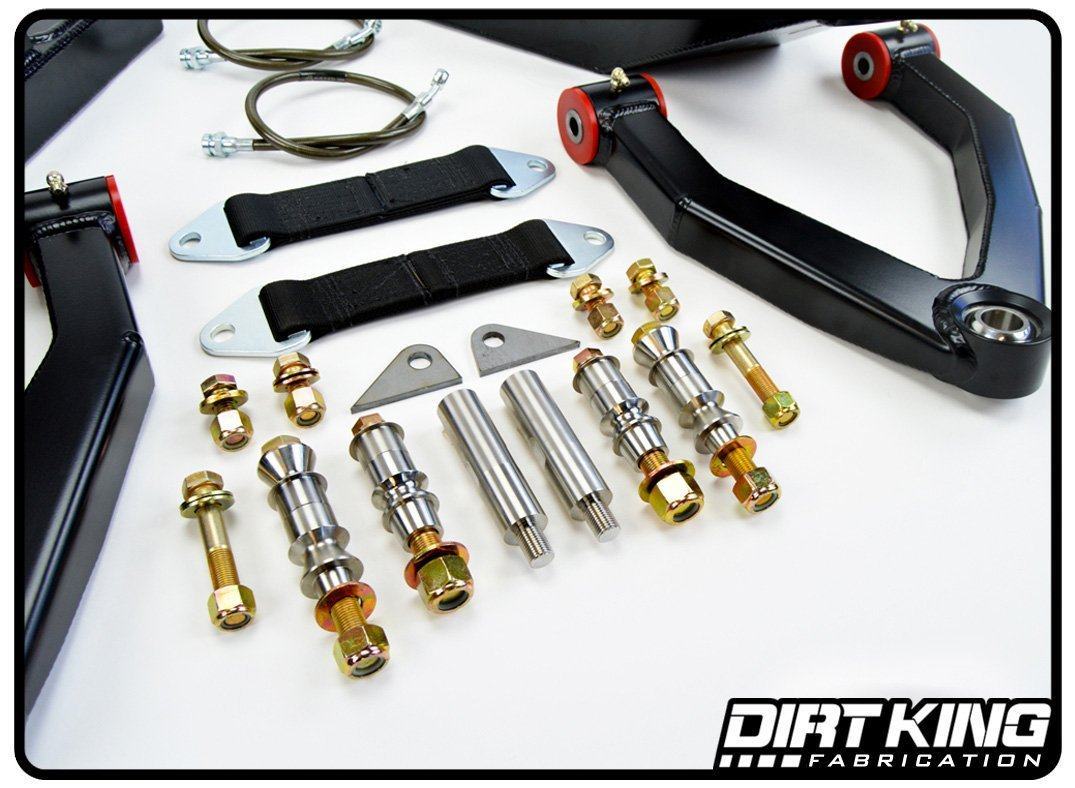

KEY FEATURES:
- Bolt on application, minimal modifications required
- Utilizes American made FK bearings
- 4130 chromoly uniball cups
- Polyurethane bushings for the UCA’s
- Delrin bushings for the LCA’s
- Zinc plated inner bushing sleeves
- Grease fittings for easy servicing
- 3/16" and 1/8” boxed plate construction
- Internally ribbed with extrusions for weight reduction
- Bump stop plating
- Limit strap tabbing
SPECS:
- Wheel Travel: 13.5”
- Amount of Lift: 0-4”
- Track Width: 3.5” wider per side
- Maximum Tire Size: 35”
- Maximum Backspacing: 4.75”
- Minimum Rim Size: 16”
- Coil over Shock Size: 2.5” x 8” (view spec sheet)
- Bump Stop Size: 2.0” x 2.0” (view spec sheet)
Wheel Travel
In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop.
Tire Info
When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump.
