10-14 Toyota FJ Cruiser Suspension System-Stage 2 Suspension Icon Vehicle Dynamics Billet Delta Joint UCA 650lbs. (Standard)
10-14 Toyota FJ Cruiser Suspension System-Stage 2 $3,032.04

UCA Option

Front Spring Rate
10-14 Toyota FJ Cruiser Suspension System-Stage 2 Suspension Icon Vehicle Dynamics Billet Delta Joint UCA 650lbs. (Standard)

Icon Vehicle Dynamics

10-14 Toyota FJ Cruiser Suspension System-Stage 2

$3,032.04
SKU: K53062T
UCA Option:

UCA Option
Front Spring Rate:

Front Spring Rate

10-14 Toyota FJ Cruiser Suspension System-Stage 2

Tubular Delta Joint UCA / 650lbs. (Standard)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

This ICON Stage 2 suspension system for the 2010-2014 Toyota FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

KEY FEATURES:
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
  • Bolt-on system means no cutting or welding necessary for install
  • Spring Rate Options
    • 650lbs. is the standard coil spring rate
    • 700lbs. coil springs are included to better support added weight from accessories such as front bumpers and winches.

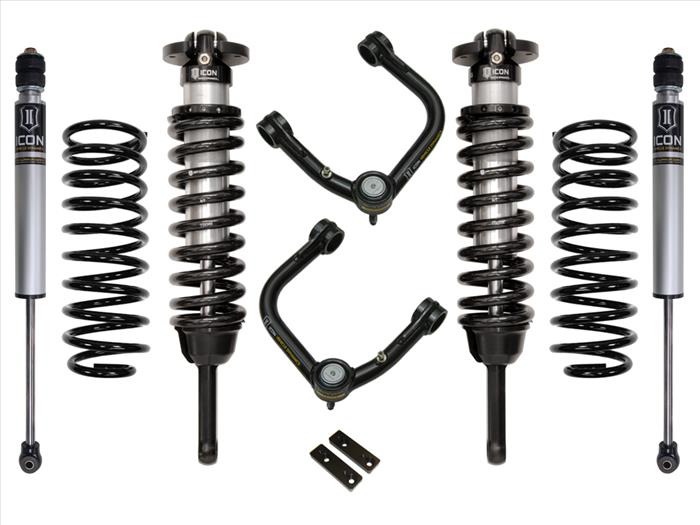

SYSTEM COMPONENTS:
  • 58647 (QTY: 1) | 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT
  • UPPER CONTROL ARM OPTION
    • 58551DJ (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX BILLET UCA DJ KIT
    • 58451DJ  (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX TUBULAR UCA DJ KIT
  • 52700 (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX REAR 2" SPRING KIT
  • 56505 (QTY: 2) | 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.0 VS IR
TECH INFO:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT
  • 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200
