'09-18 Dodge Ram 1500 2WD Long Travel Race Kit
Vehicle Year
'09-18 Dodge Ram 1500 2WD Long Travel Race Kit
2009-2012
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

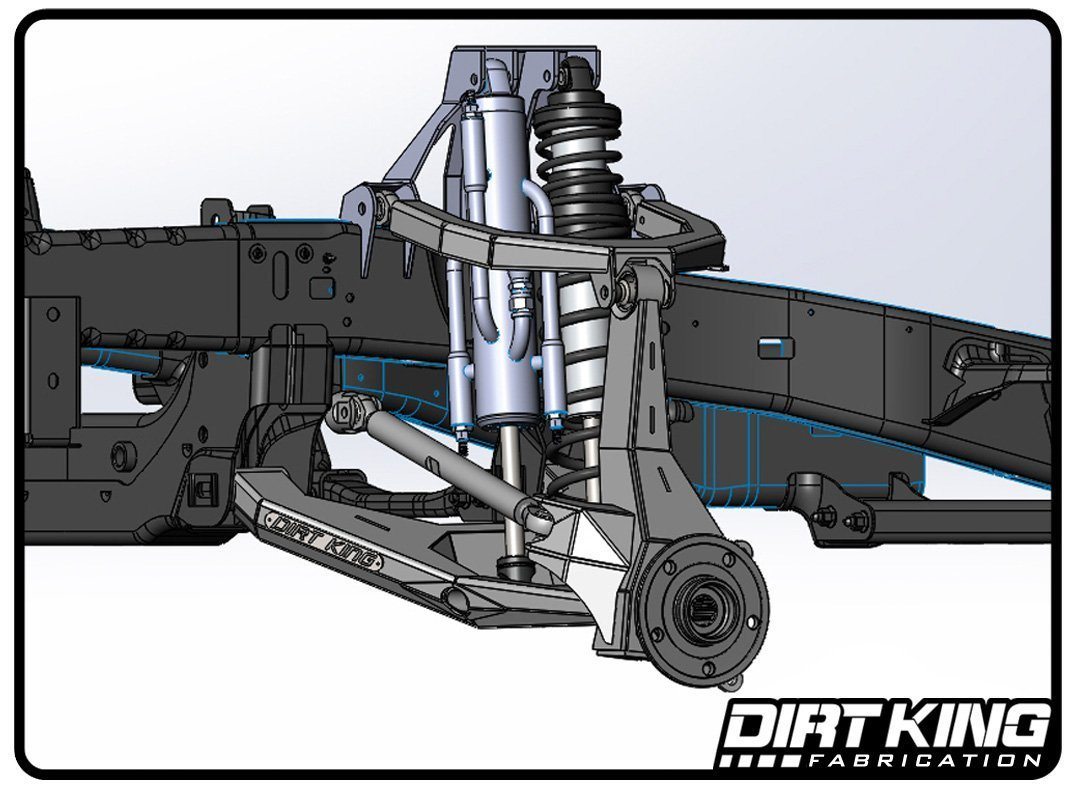

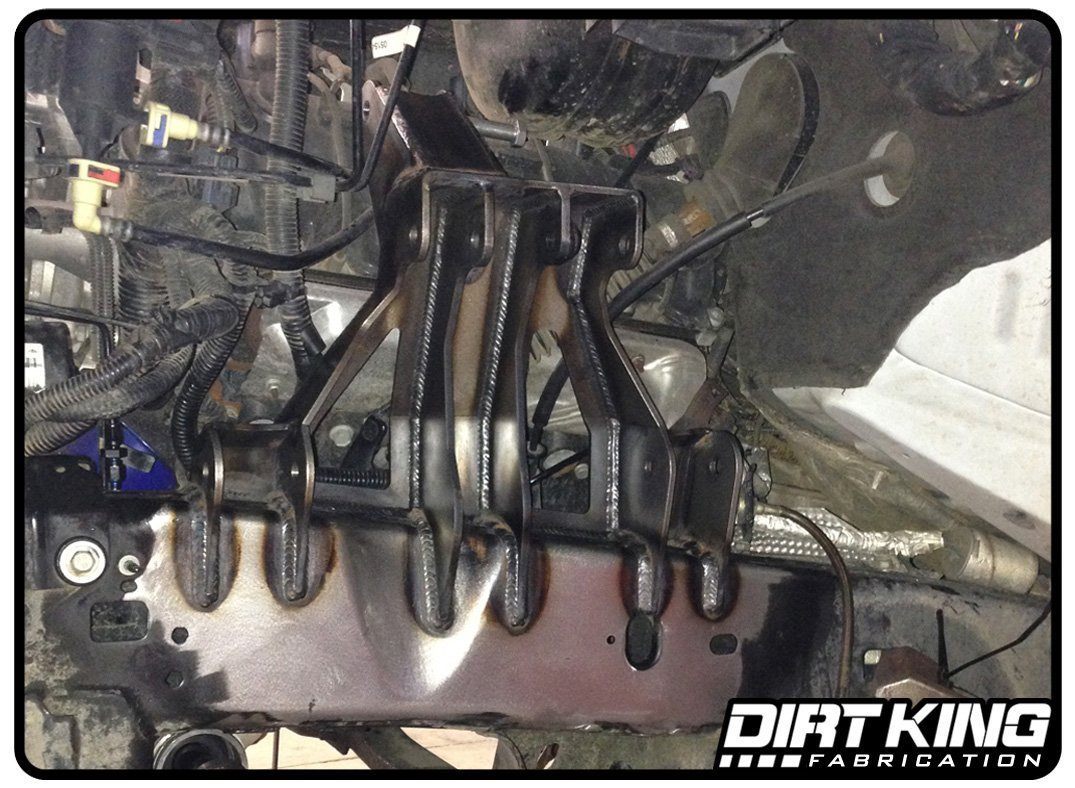

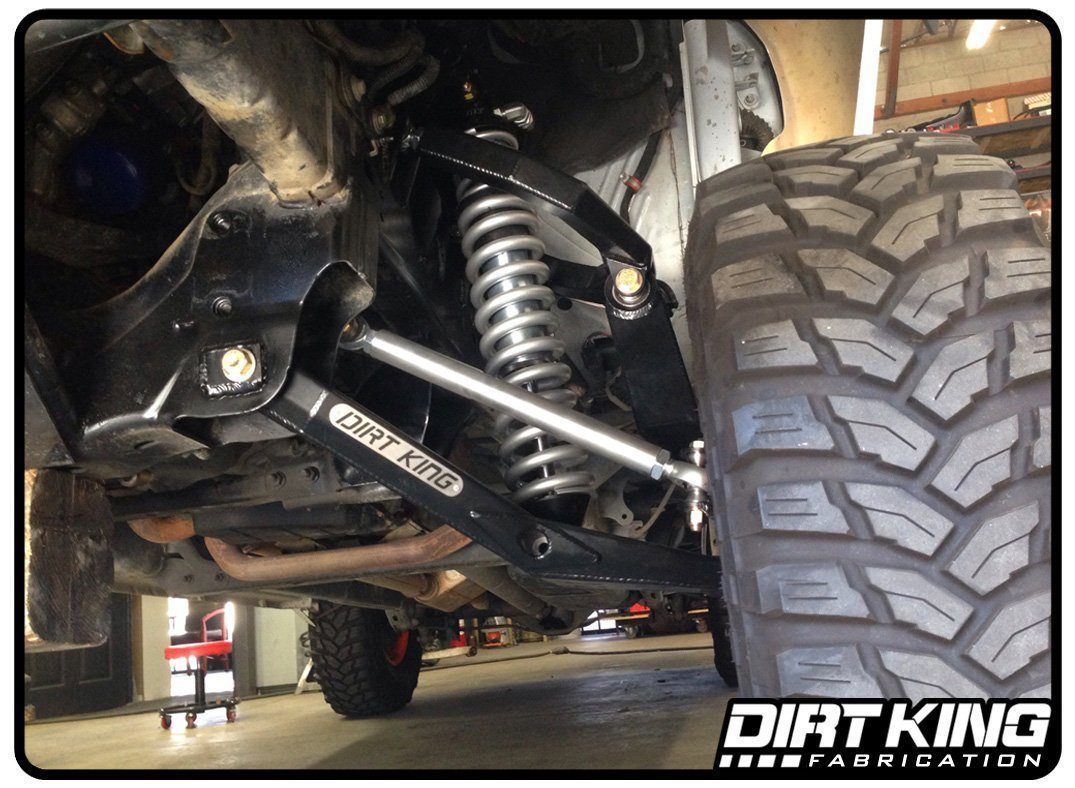

The Dirt King Fabrication long travel suspension system for the '09-18 Dodge Ram 1500 2WD was developed for the most extreme off-road terrain. The long travel race kit is capable of 17.5” of travel and can accept up to a 37” tire. Dirt King has perfected the suspension geometry by relocating the upper control arm mounts and modifying the outer pivot locations on the spindle. With these changes we were able to achieve twice the amount of travel compared to stock and eliminate bump steer throughout the suspension cycle. The kit accepts 2.5 x 10” coil overs and 3.0 x 10” bypasses for superior suspension dampening. This kit is constructed using parts commonly found on trophy trucks such as massive FK 1.5" uniballs and JMX series heims. The result is a suspension system with reliable performance and off road handling that will exceed all expectations.
FITMENT:
- 2009-2018 Dodge Ram 1500 (select correct year range in product options)
- This will only fit 2WD Dodge Ram models

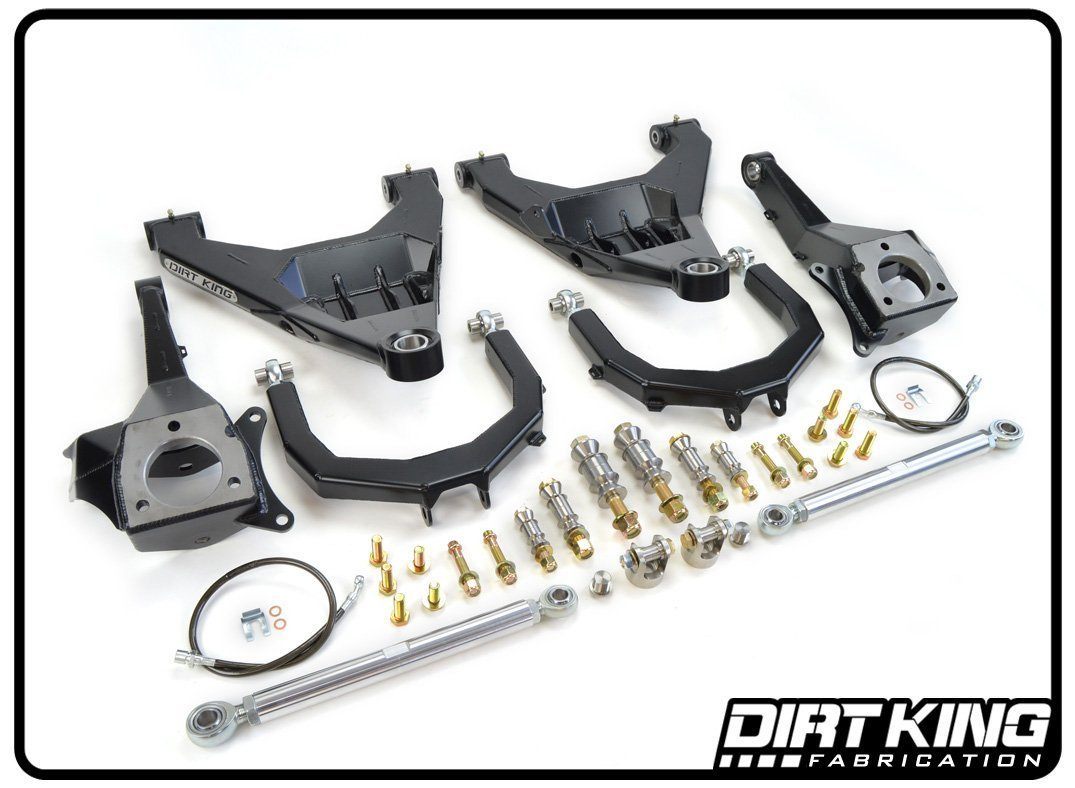

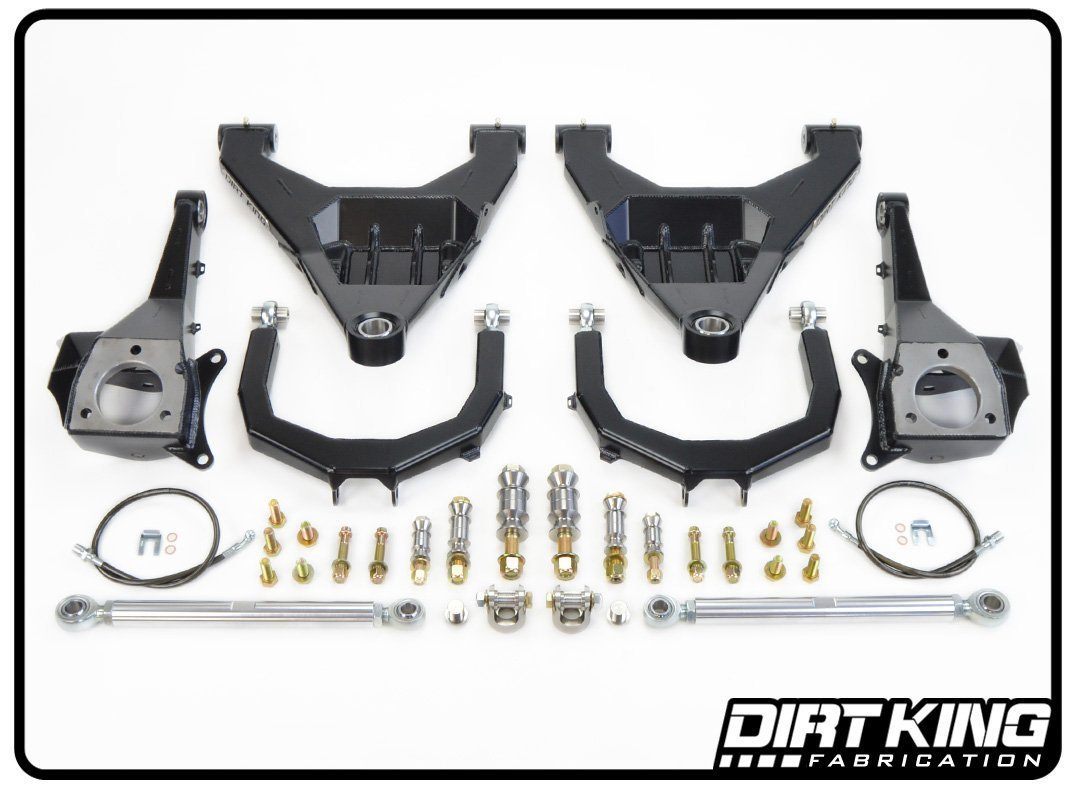

KEY FEATURES:
- Utilizes American made FK bearings
- 4130 chromoly uniball cups
- ¾” heims for the UCA’s

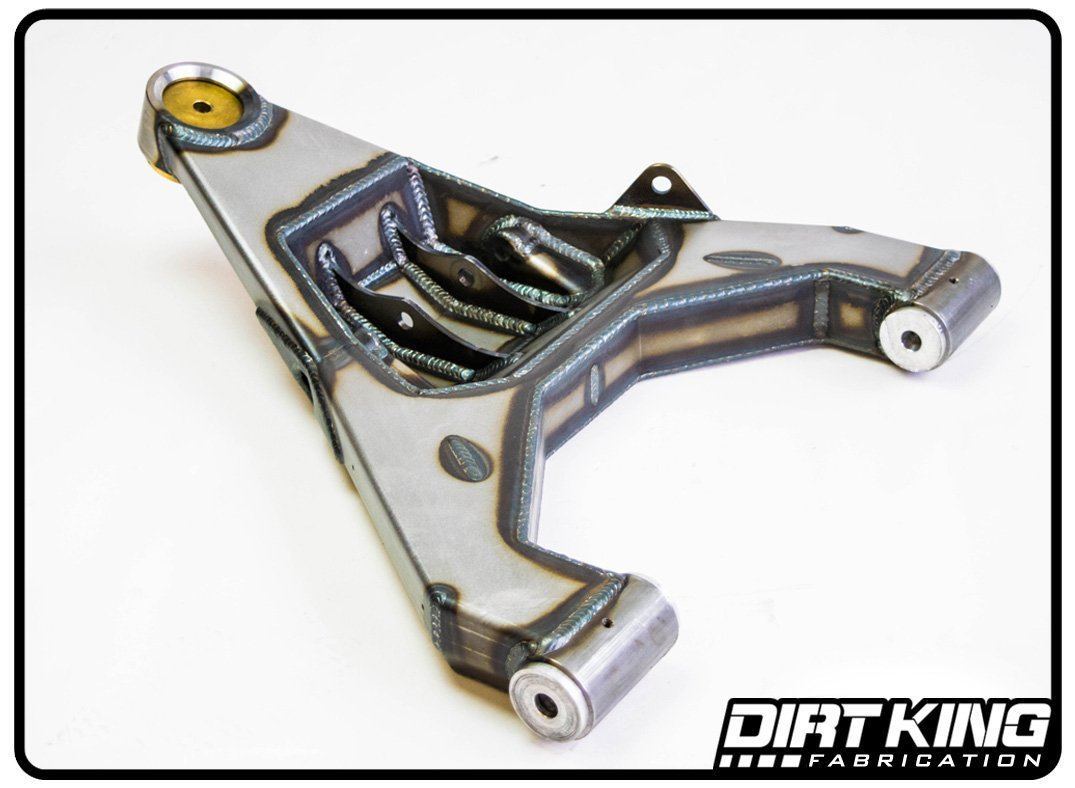

- Delrin bushings for the LCA’s
- Zinc plated inner bushing sleeves
- Grease fittings for easy servicing
- Pocketed lower shock mounting
- 3/16" & 1/8” boxed plate construction
- Internally ribbed with extrusions for weight reduction
- Limit strap tabbing
SPECS:
- Wheel Travel: 17.5”
- Amount of Lift: 0-4”
- Track Width: 4.25” wider per side
- Maximum Tire Size: 37”
- Maximum Backspacing: 4.5”
- Minimum Rim Size: 17”
- Coil Over Shock Size: 2.5 x 10”
- Bypass Shock Size: 3.0 x 10”
