'08-21 Lexus LX570 SDHQ Built Complete Dual Battery Kit

  • VENDOR: SDHQ Off Road
  • PART#: SDHQ-52-3000-200
  • YOUR PRICE: Regular price $1,539.65
  • SDHQ Built Dual Battery FAQs
  • If you have questions about our SDHQ Built Dual Battery Kits. Our SDHQ Built Dual Battery FAQ page will most likely have the answers to most, if not all, of your questions

PRODUCT OVERVIEW:

Our Complete SDHQ Built Dual Battery kit for the 2008-2021 Lexus LX570 is the most durable dual battery system on the market today. With our kit there is no need to piece different components to make your dual battery set up to work. We include all the parts you need for a clean direct from the factory quality install. This dual battery kit was 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish.

Benefits of running a dual battery system:

If you are someone who goes or is planning on going on 4x4 camping trips (overlanding), then you will need auxiliary power. A dual battery system is where two separate batteries are working in conjunction with each other. However, each battery has a different purpose. Running a second battery will ensure your Toyota Lad Cruiser has start-up power and that your fridge, lights, and other campsite accessories have constant power.

VEHICLE FITMENT: 2008-2021 Lexus LX570

KEY FEATURES:

  • #SDHQBUILT Dual Battery Kit for the Lexus LX570 will allow you to run all of your aftermarket accessories without draining your main battery.
  • 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
  • Bolt-on installation, no drilling or trimming required.

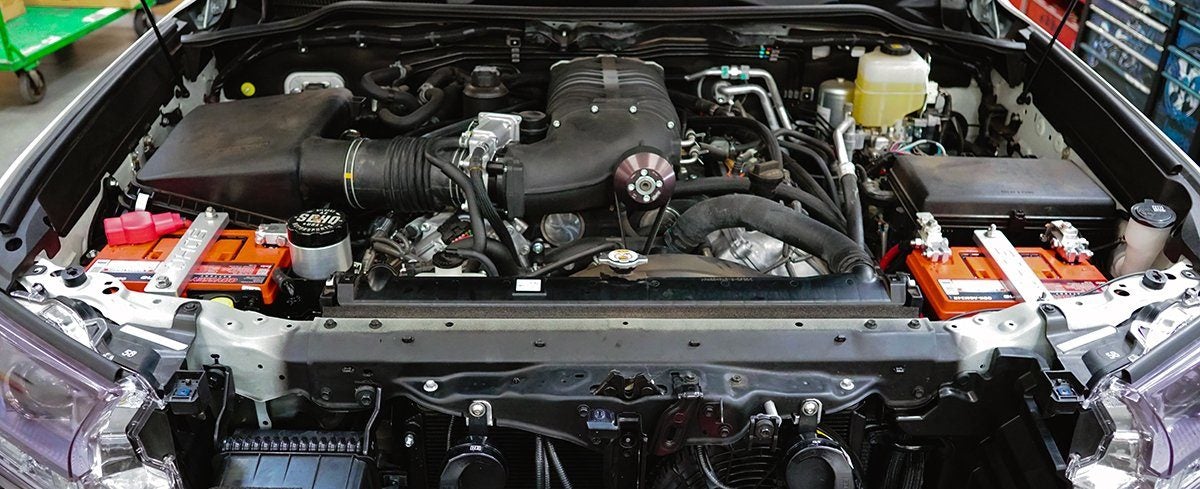

  • Second battery location provides better weight distribution than systems that put the batteries right next to each other.
  • Triangulated mounting positions to provide superior strength (utilizes the firewall, inner fender, and wheel well when mounting).
  • Fits batteries with dimensions up to 11 1/4” Wide x 7” Deep x 7 ⅜” Tall (top of battery, not terminal).
  • Powder coated black for a durable finish.
  • Intergrated mount for Blue Sea Systems ACR
  • Test fitted with stock Intake only
  • Recommended to use 2 new matching batteries. *Batteries are not included*

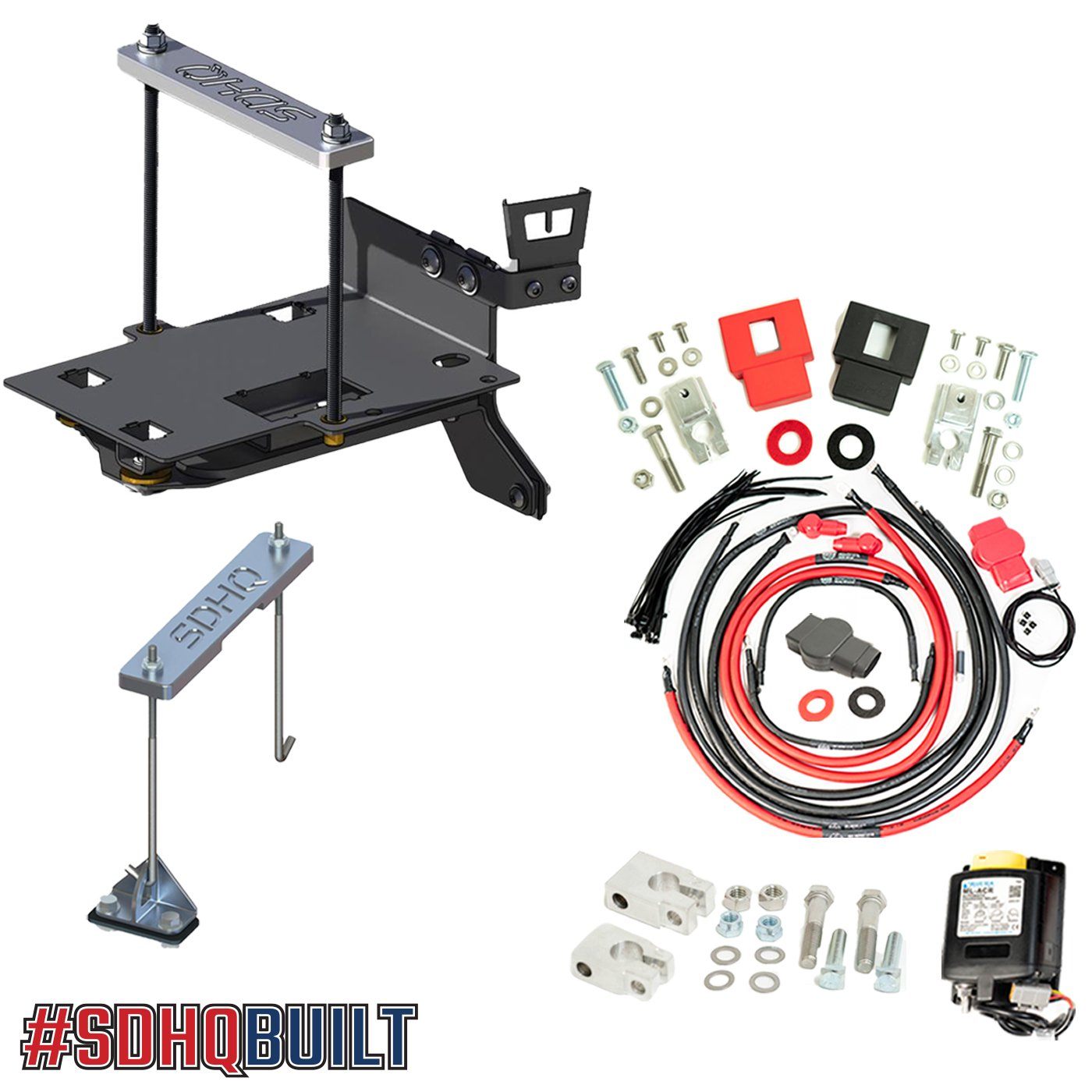

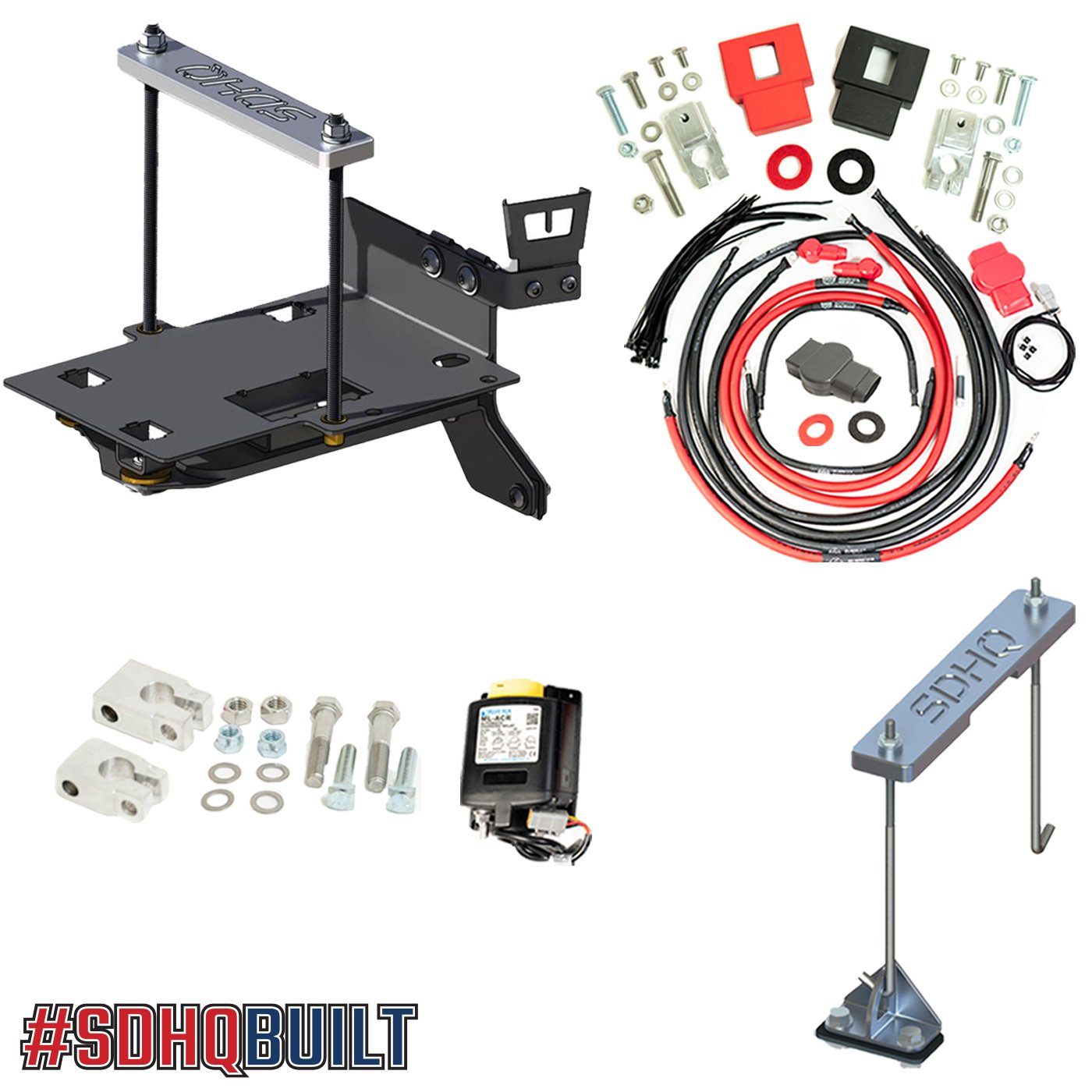

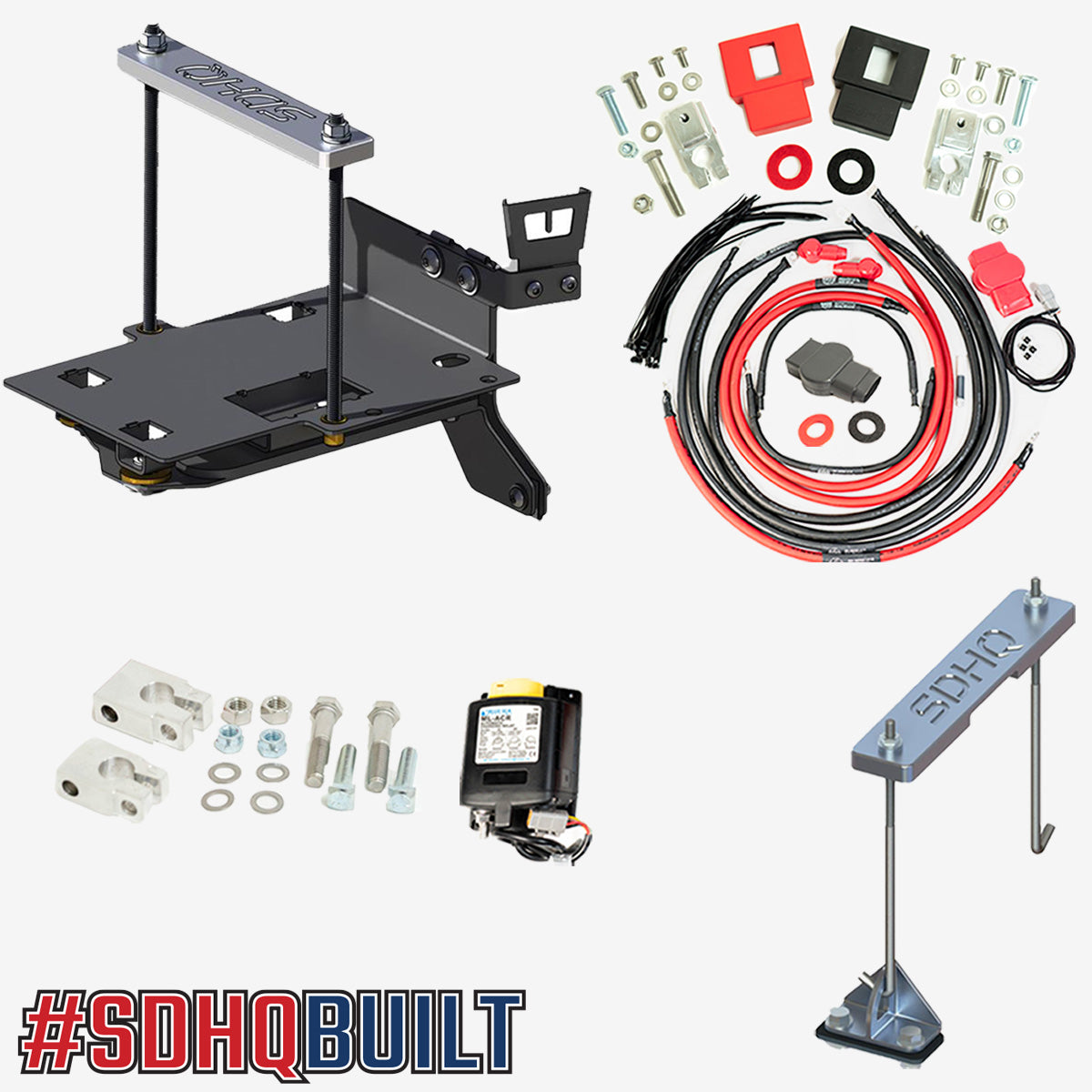

WHAT'S INCLUDED:

    • SDHQ Dual Battery Wiring Kit - SDHQ-50-3002-U1
    • HD Billet Main Battery Terminal Kit - SDHQ-50-3003-C2
    • 34R Main Billet Battery Hold Down - SDHQ-50-3005-U1
    • HD Billet Secondary Battery Terminal Kit - SDHQ-02-3003-C1
    • Blue Sea Systems ACR (Automatic charging relay)
    • 2008-2021 Lexus LX570 Secondary Battery Tray Kit - SDHQ-52-3001-200
    • 2008-2021 Lexus LX570 Main Battery Hold Down Hardware Kit - SDHQ-52-3005-200

COMPONENT OVERVIEW:

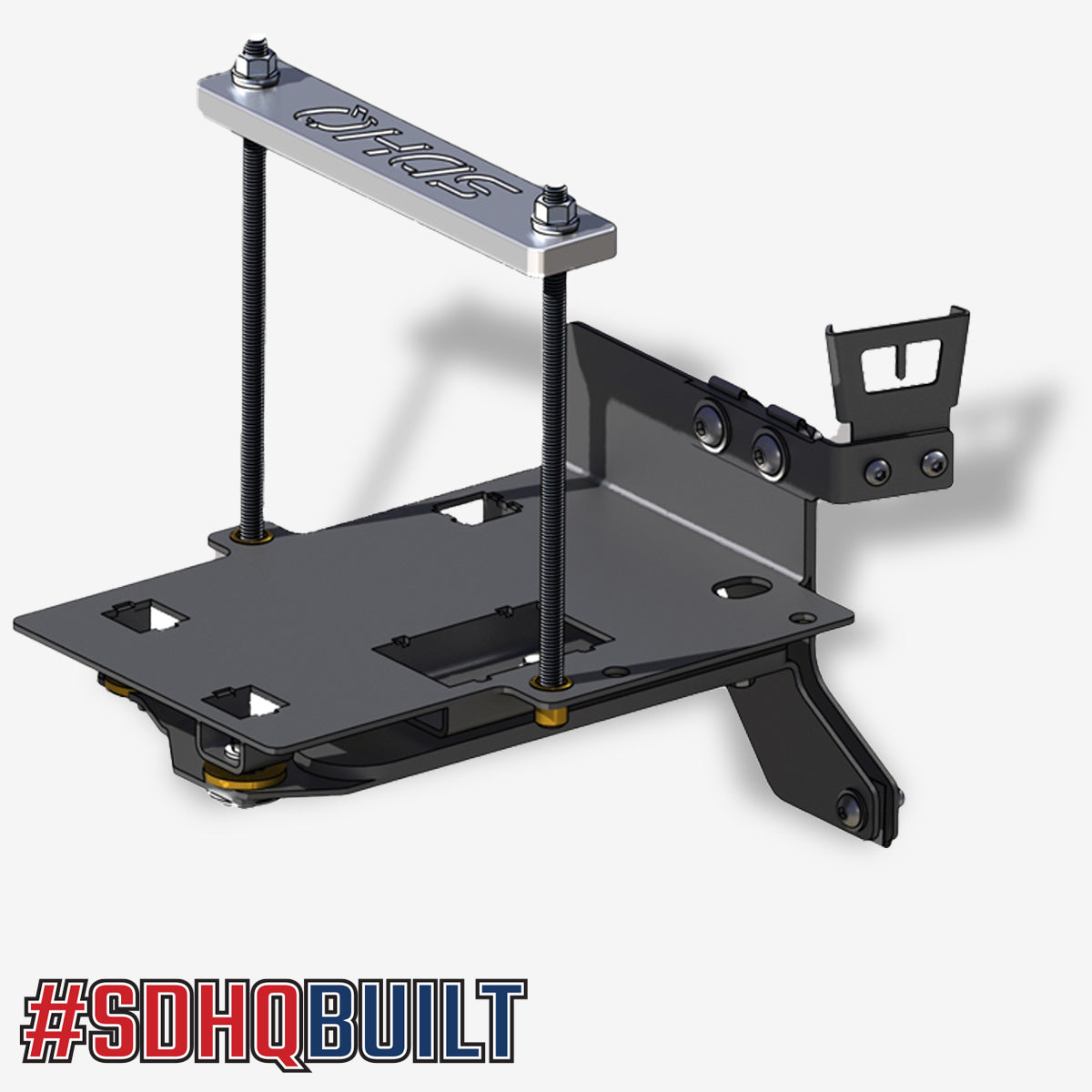

  • The SDHQ Built Dual Battery Tray Kit for the 2008-2021 Lexus LX570 allows you to mount a second battery in the engine compartment of your LX570.
    • Powder coated black for a durable finish.
    • Includes Billet Hold Down
    • Fits batteries with dimensions up to 10 7/8” Wide x 6 7/8” Deep x 7 1/2” Tall (top of battery, not terminal).
    • Does NOT fit Group 27 or 31 batteries
    • Battery Fitment
      Mount fits Group 24, 34/34R (34R fits stock battery location) and 35 series batteries
      • Fits Group 24 and 35 batteries with the SDHQ Built Secondary Battery 24F/35 Upgrade Kit (SDHQ-50-3005-24F)

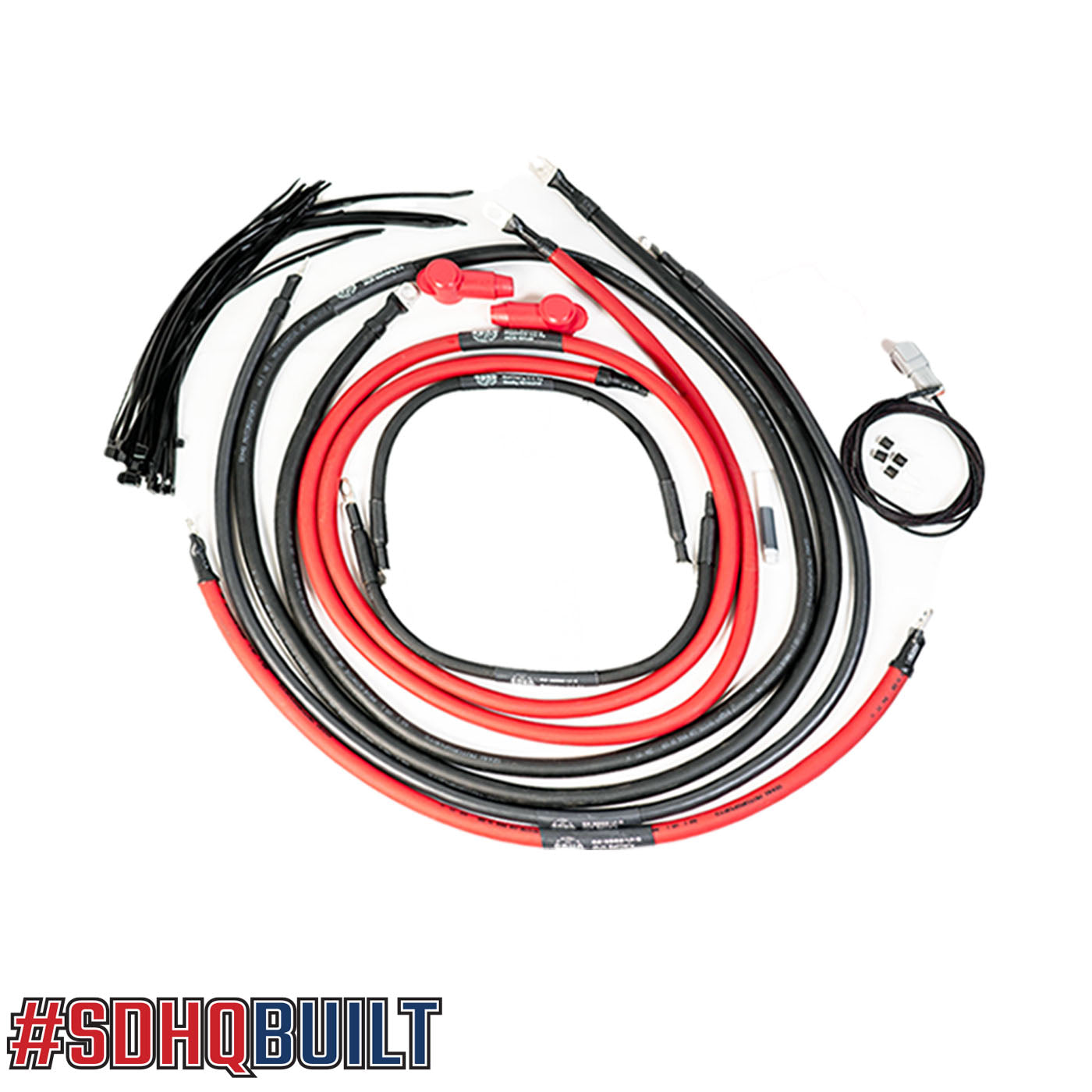

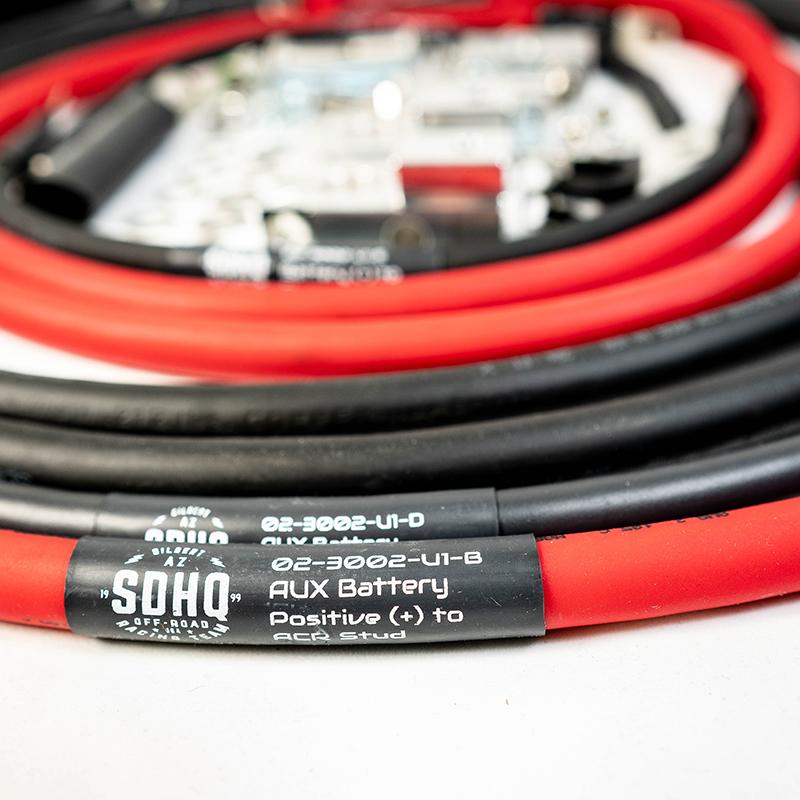

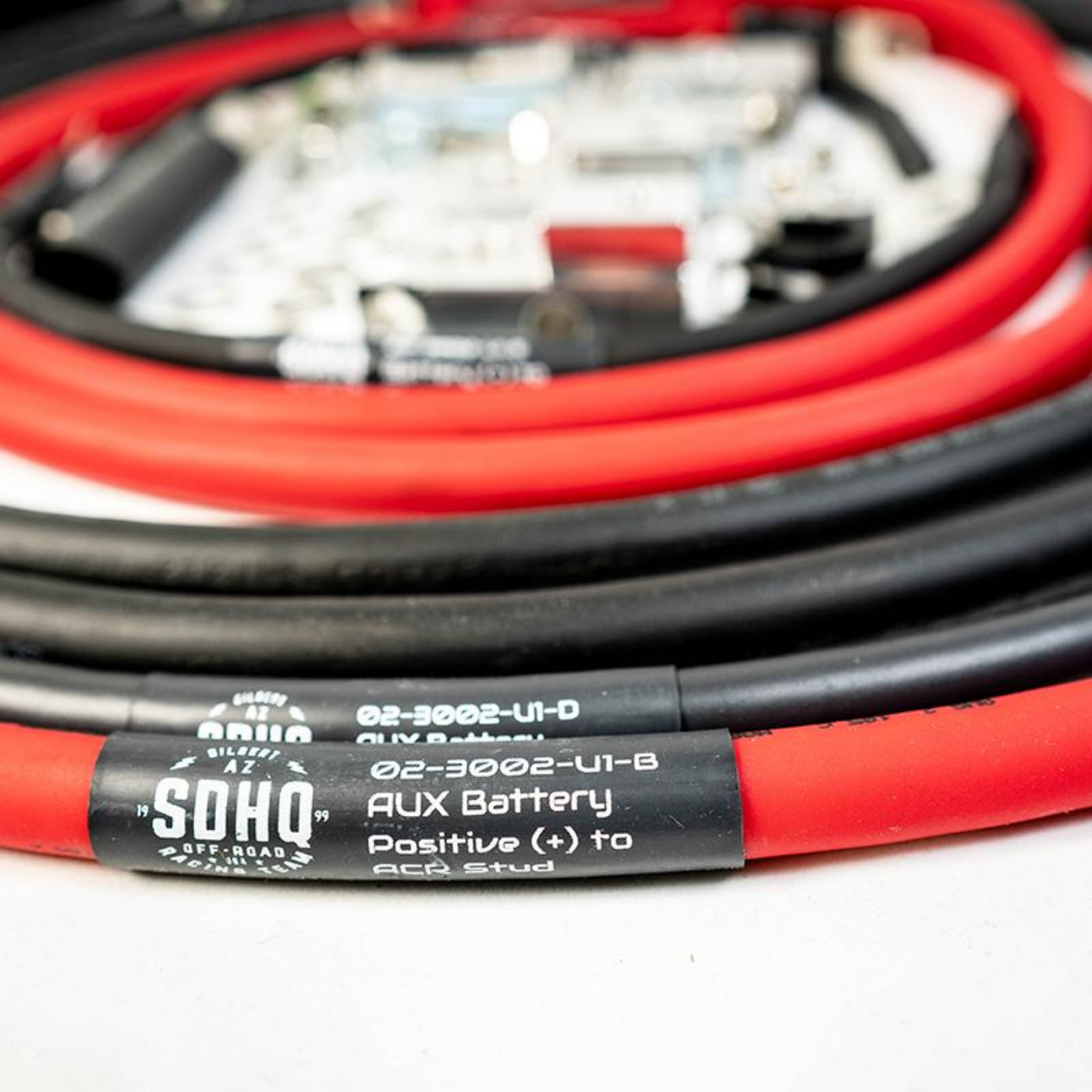

  • This kit includes everything needed to wire your SDHQ Dual Battery Mount System
    • Premium Cross-Linked SAE J-1127-SGX cables
      • 2 AWG Main Cables (main to aux battery ground and main/aux batteries to ACR)
      • 4 AWG Second Battery to Frame Ground Upgrade
      • 6 AWG Main Battery to Body Upgrade
      • 6 AWG Aux Battery to Body Upgrade
    • Upgraded ground wires provide better connection between both batteries and Body/Frame grounds

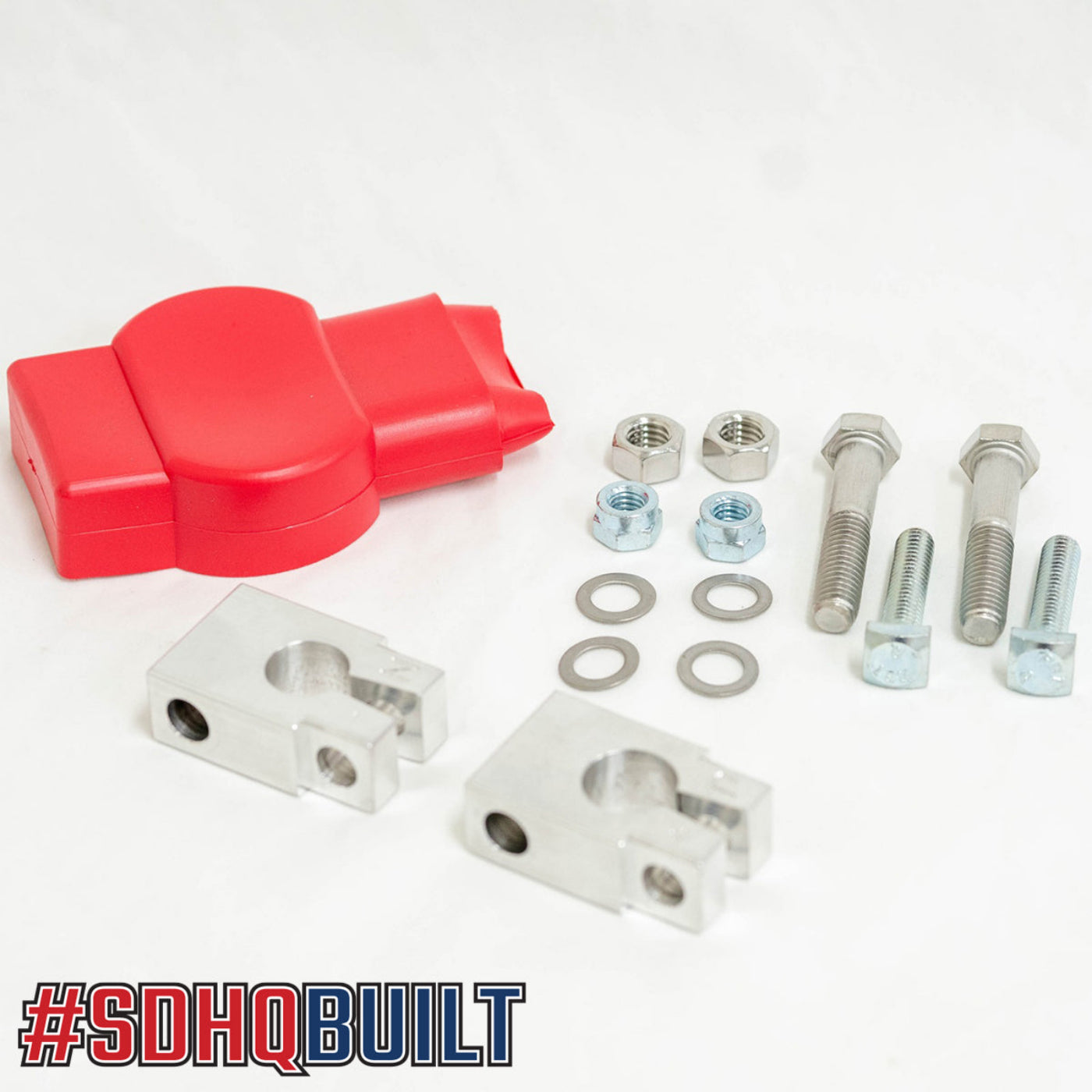

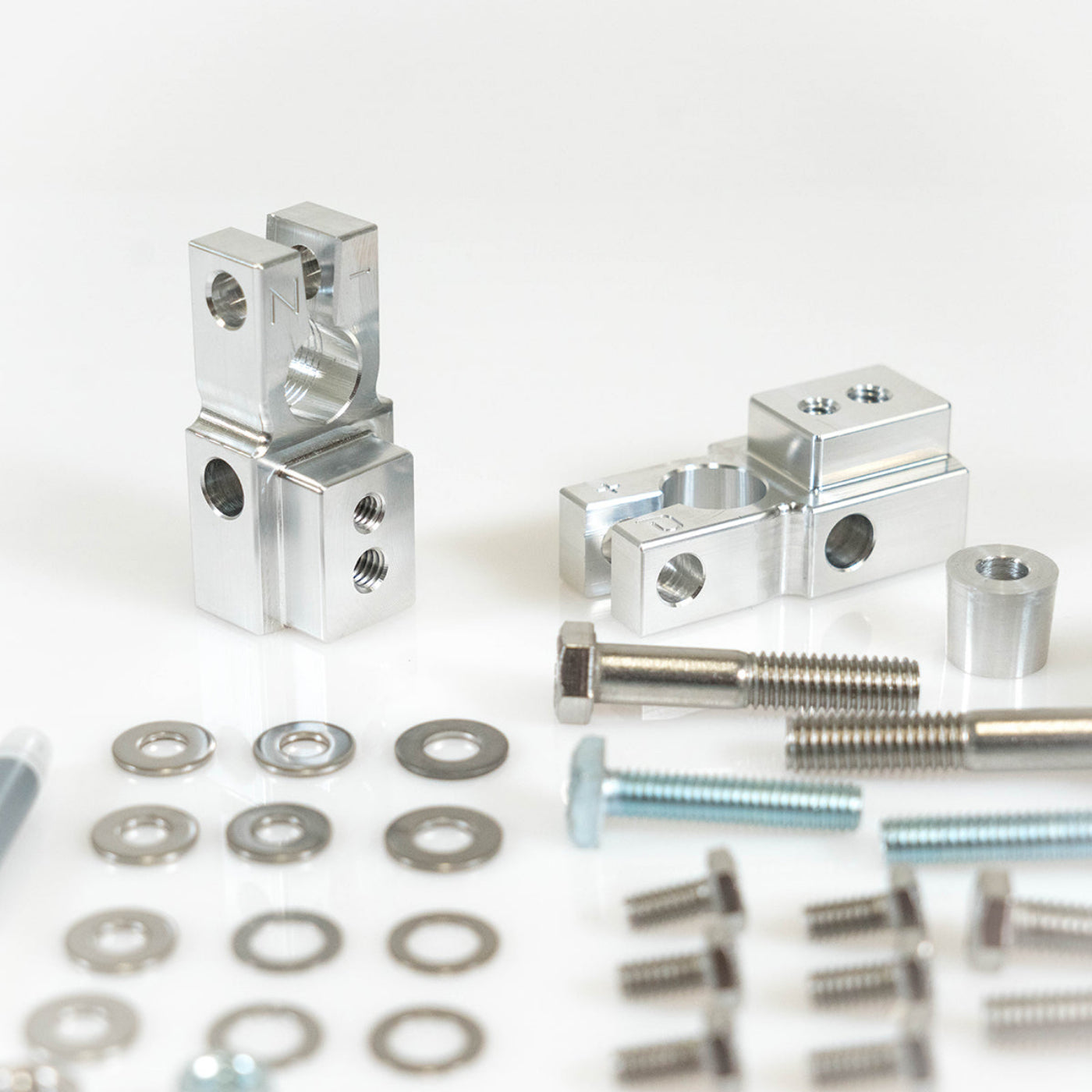

  • SDHQ'S Billet Battery Terminal Upgrade kit is designed to replace your vehicle's OEM battery terminals. No more splicing and cutting up your vehicle's wiring when installing your off-road accessories.
    • Multi connection Battery Terminal
    • Five additional terminal pads
      • 2 - 3/8" Terminal pads
      • 1 - 5/16” Terminal pad
      • 2 - 1/4" Terminal pads
    • Ability to retain all factory wiring
    • Positive and Negative Billet 6061 Aluminum Terminals.
    • Complete Hardware Kit
      • Stainless Steel Hardware with included Anti-Seize Compound.

  • Our #SDHQBuilt Billet Battery Hold Down Kit for the 2008-2021 Lexus LX570 replaces your LX570's weak OEM primary battery hold down with our SDHQ Built hold down kit that is manufactured out of high quality 6061 aluminum.
    • 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
    • Direct bolt in installation for the Lexus LX570.

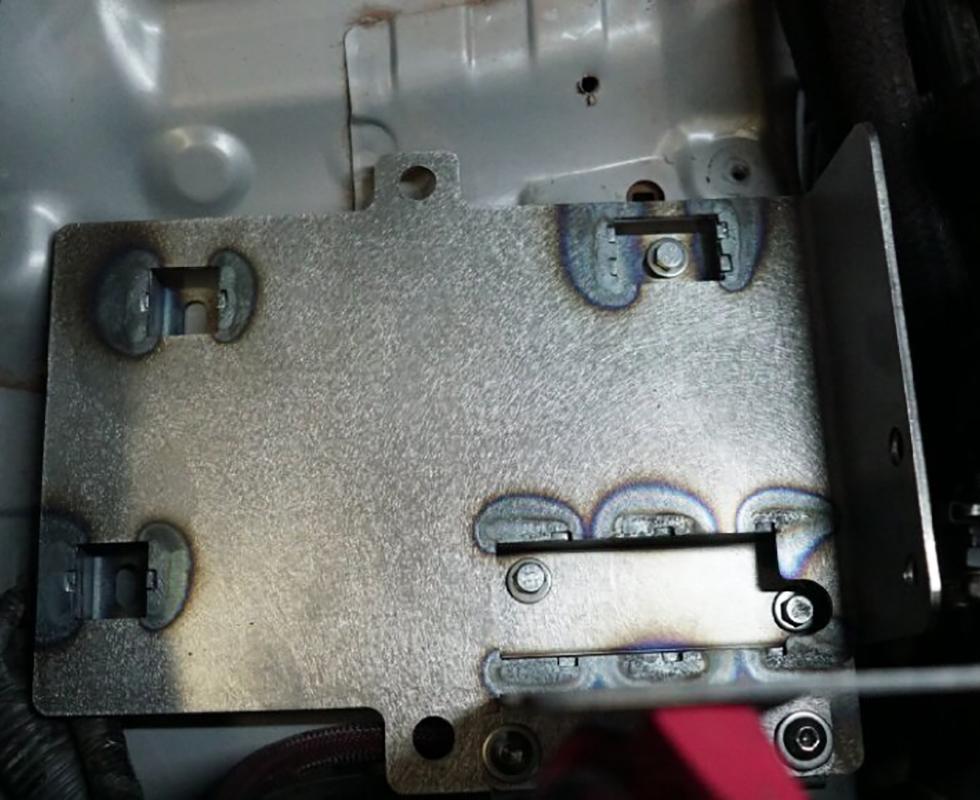

    • The tray mounts to (6) locations on top and (1) location on the side of the wheel well.
    • Second battery location provides better weight distribution than kits that stuff 2 batteries in the stock location.
    • Mount fits 34/34R (34R fits stock battery location)
    • Billet Hold Down included for battery.
    • Powder coated black for a durable finish.
    • Integrated mount for Blue Sea Systems ACR.
    • Battery Fitment:
      • Tray fits Group 24, 34/34R and 25/35 batteries
        Does NOT fit Group 27 or 31 Batteries

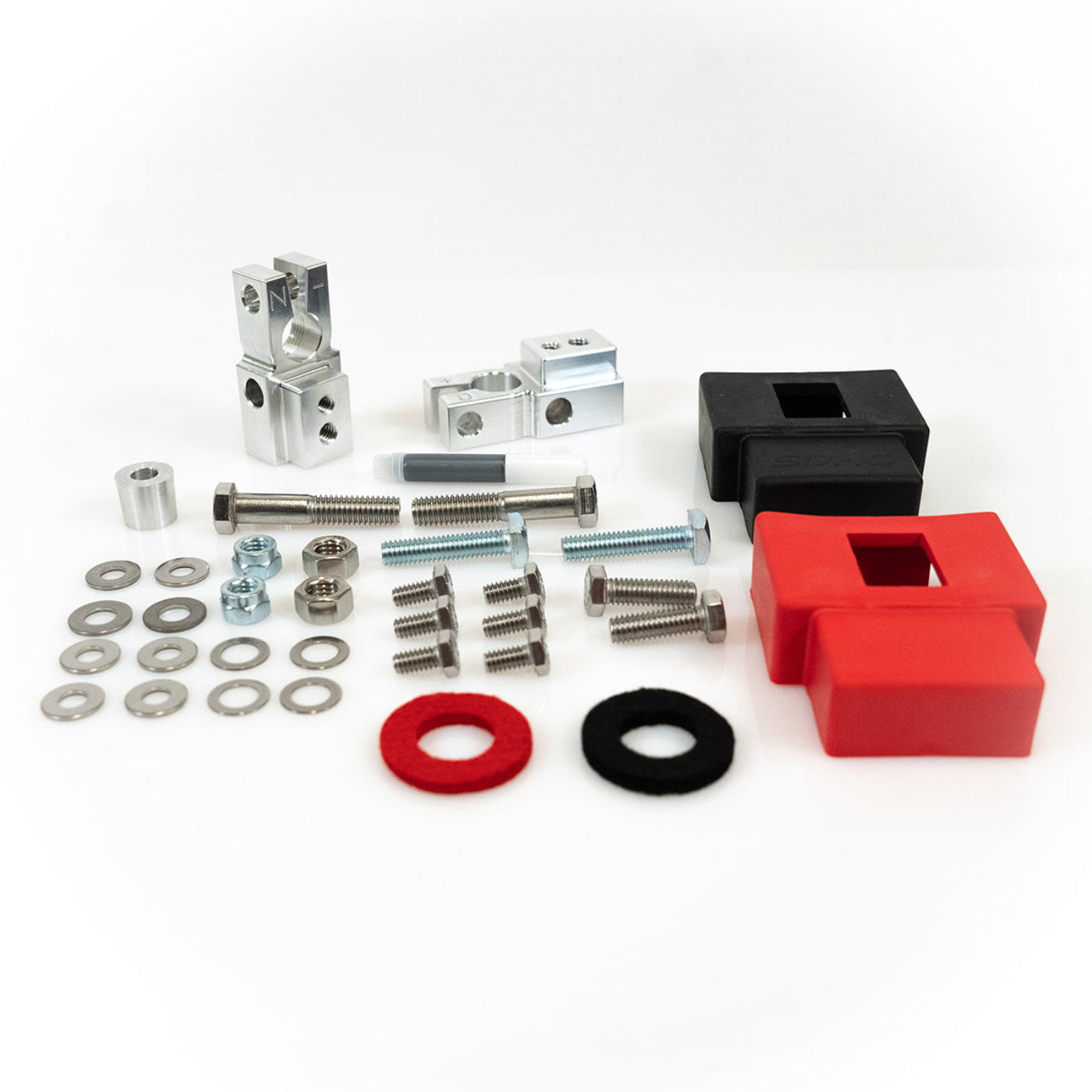

  • Our terminal protection kit were designed and engineered in house at SDHQ for our typical SDHQ Built quality, fit, and finish.
  • Why do I need this protection kit?
    If you are working under the hood of your vehicle our protection kit will protect your billet battery terminals from short circuits.
    • Includes negative and positive protection boot
    • Injection Molded from ExxonMobil Santoprene
    • Recyclable and environmentally friendly

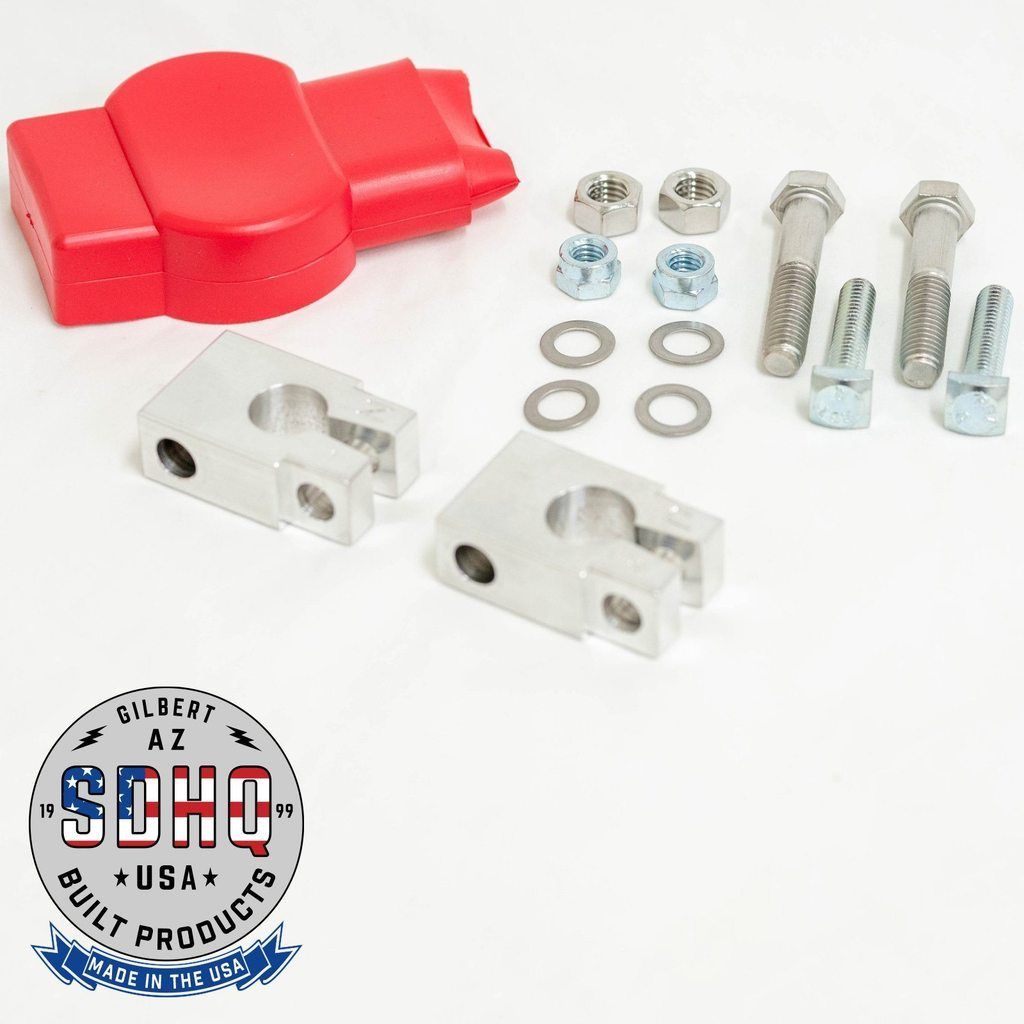

  • Our #SDHQBuilt HD Billet Battery Terminal Kit is designed to be used with a secondary battery (dual battery kit) set up.
  • Circuit allows up to 500 Amps continuous draw and 700 Amps for 5 minutes.
  • Cranking rating of 1450 @ 30 seconds.
  • Live Current Switching up to 300 amps.
  • Circuit is designed to auto charge the 2nd battery when the vehicle is running, but isolates the 2nd battery when the vehicle is off. Leaving the second battery for emergency starting.
  • Manual switch on the circuit allows the batteries to combine or isolate.
  • Optional Remote switch control and LED output to indicate when the batteries are combined, isolated or in lockout.
  • Undervoltage lockout below 9.6 Volts. Overvoltage lockout above 16.2 Volts.

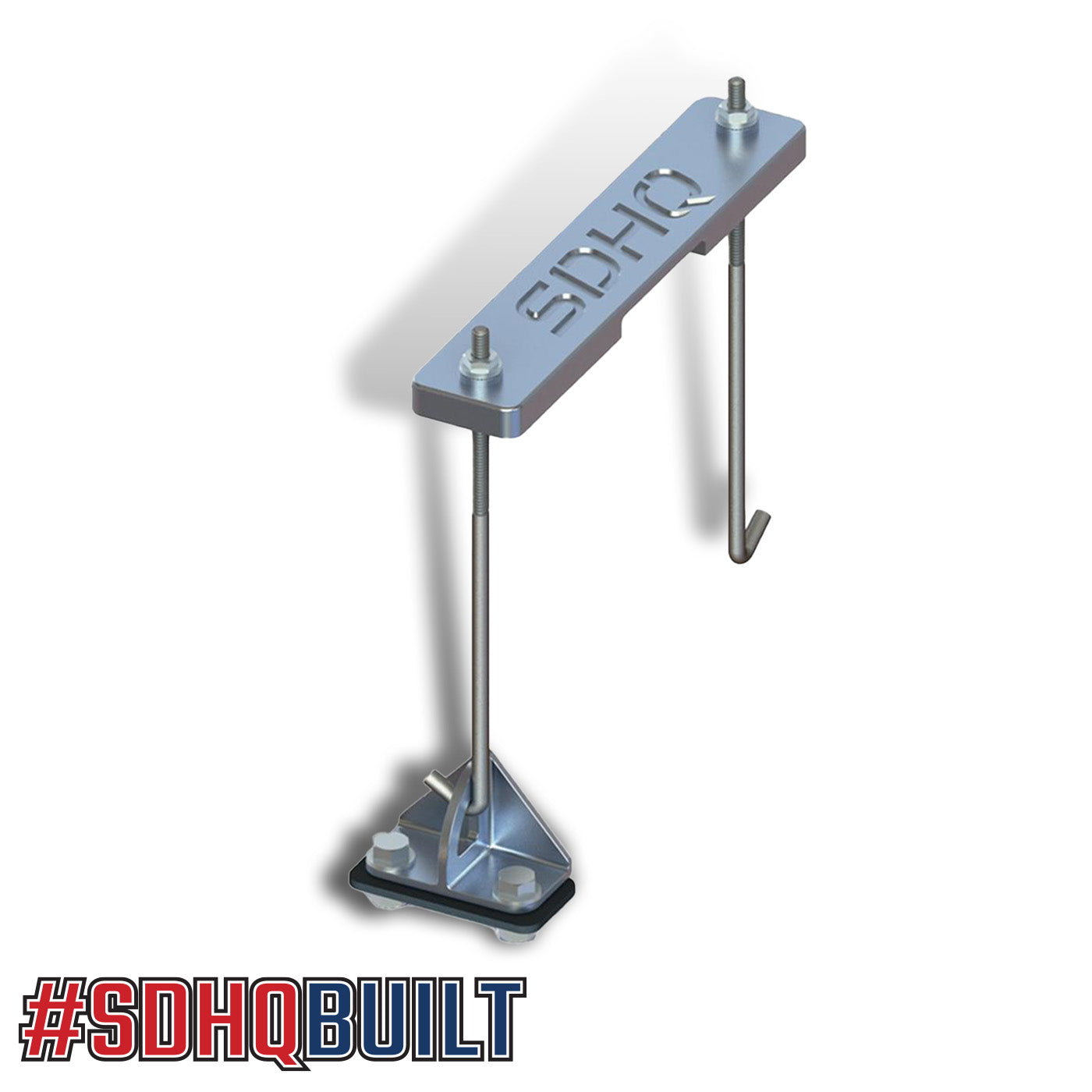

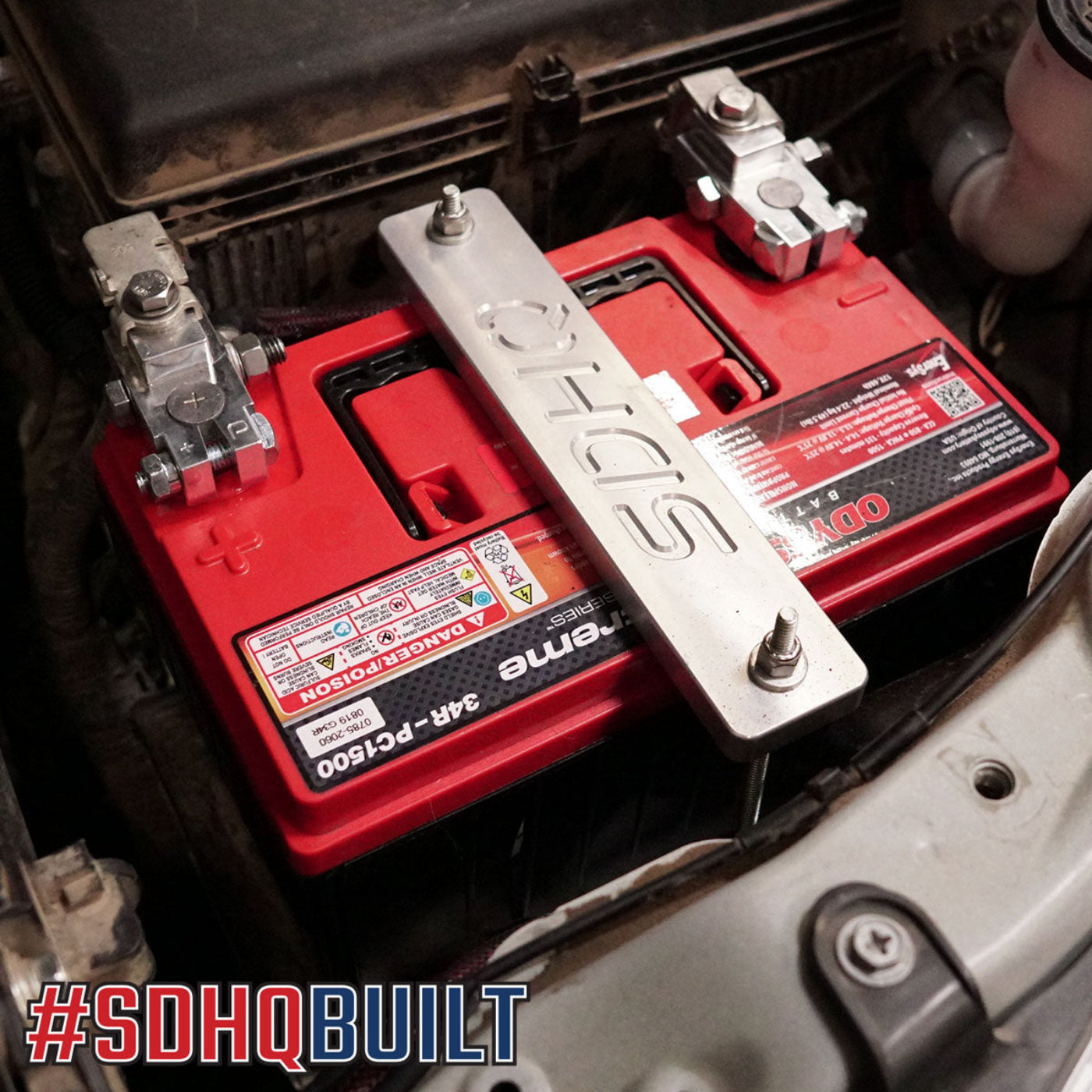

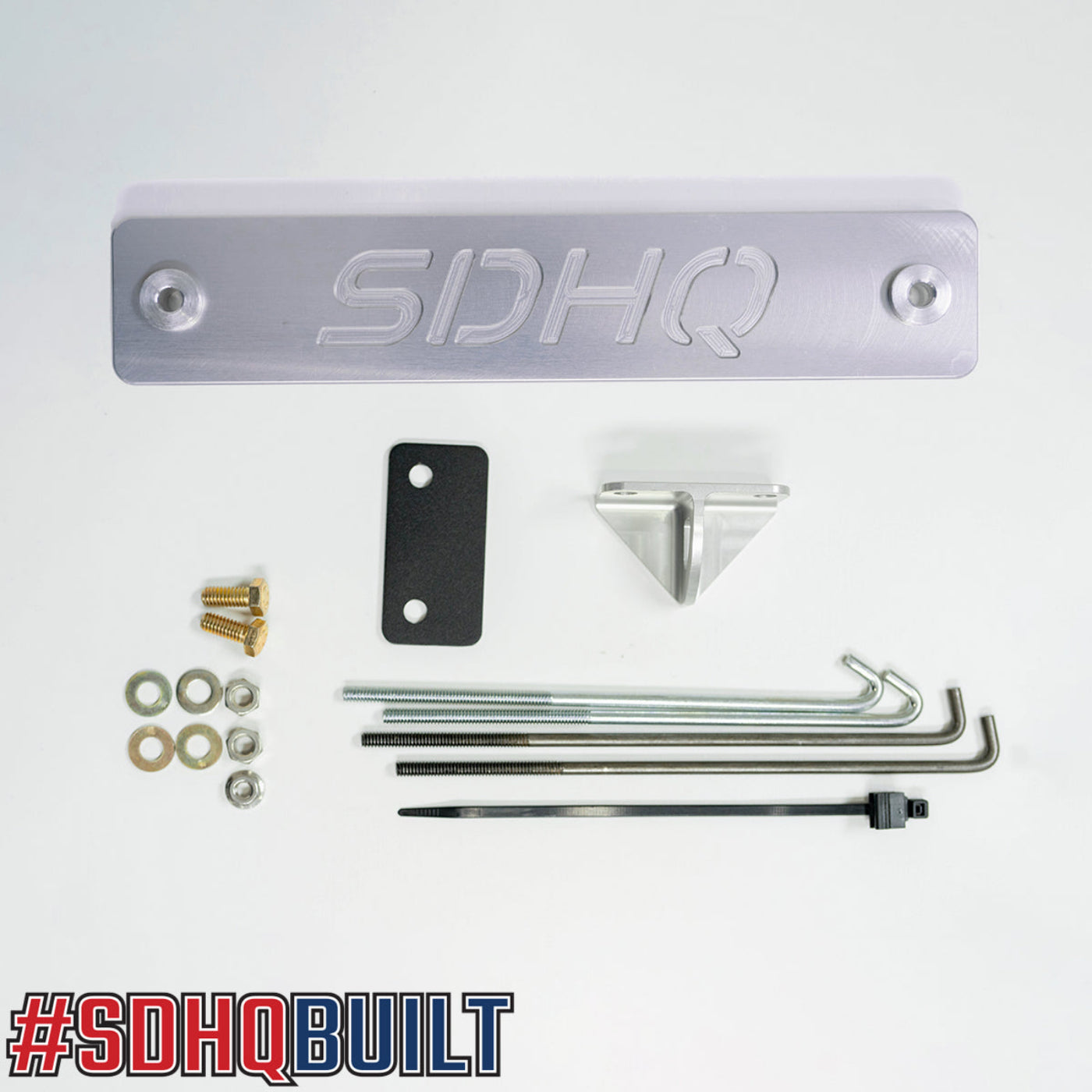

  • Secure your vehicle's primary battery with SDHQ's Billet Battery Hold Down. Manufactured out high quality 6061 Aluminum, this billet hold down kit replaces your vehicle's OEM steel factory hold down.
    • 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
    • Billet Aluminum Hold Down replaces factory sheet metal hold down.
    • Anodized Hold Down for durability.
    • Billet Aluminum for strength
    • Easy driveway installation, no drilling or trimming required.
    • Fits 34R size aftermarket batteries only.
