Carli's Commuter 2.0 system for the 2008-2010 Ford F250 and F350 is designed for people seeking the best on-road ride quality. Utilizing Fox 2.0” internal reservoir shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
- Front Lift: 2.5"
- Rear Lift: 0-2"
- Front Travel: 9.6"
- Rear Travel: 13"
- Shock Diameter: 2.0
- Tire Fitment: 35"x12.50

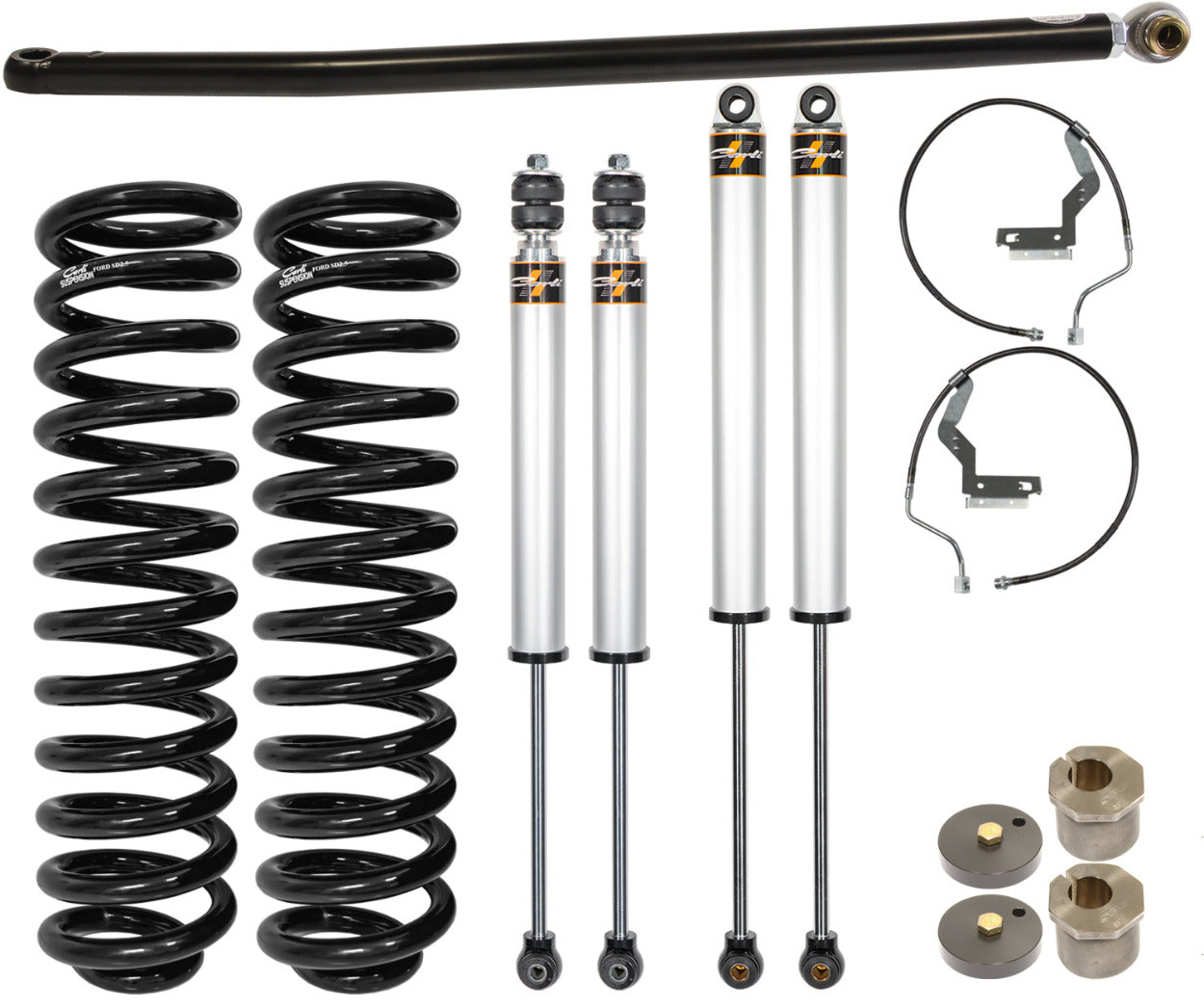

BASE KIT INCLUDES:

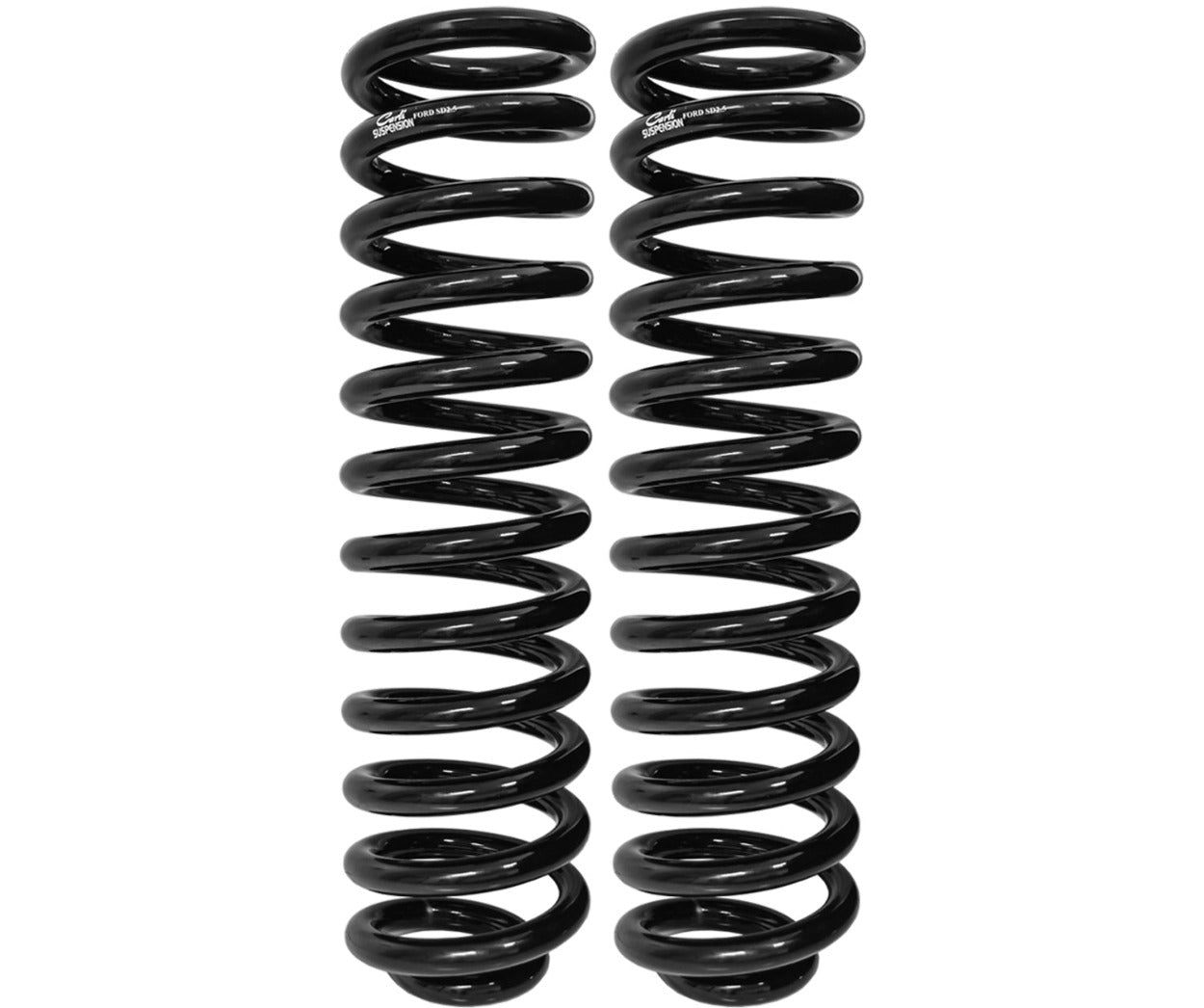

- CS-FLC-05: Front Leveling Coils

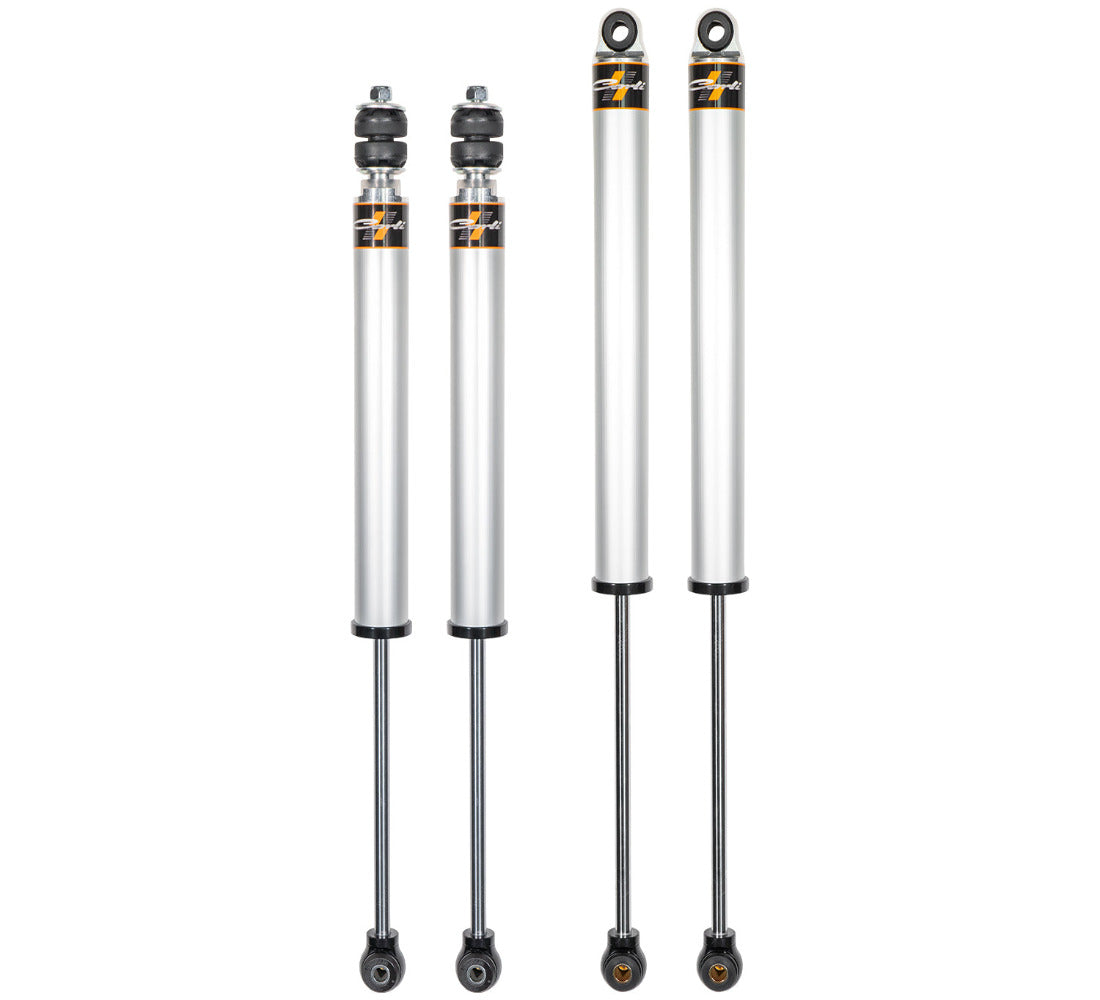

- CS-FC20SPKG-LVL-05: Commuter LVL Shock Package, Front Bump Drops

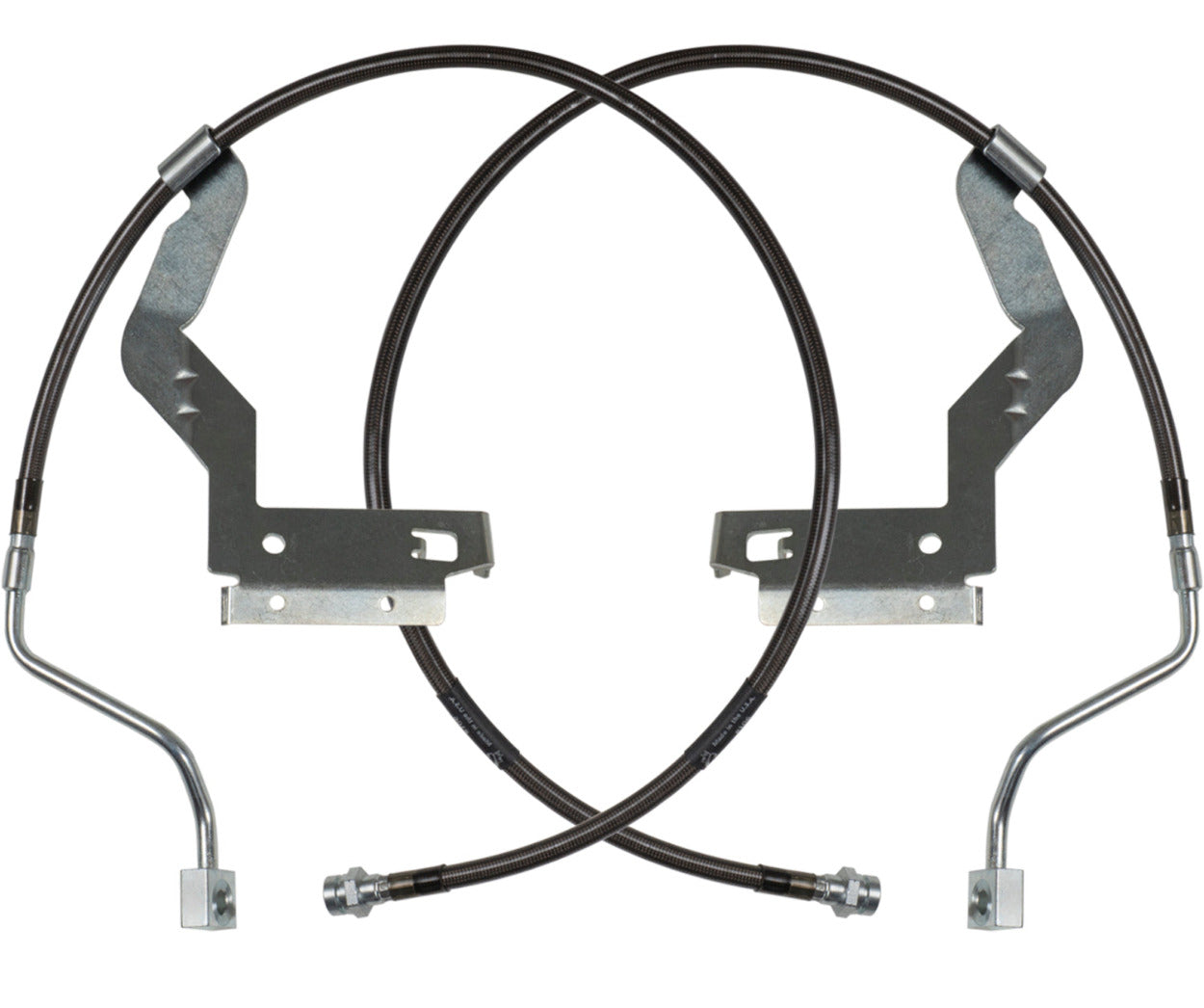

- CS-FORDBBL-08: Brake Lines

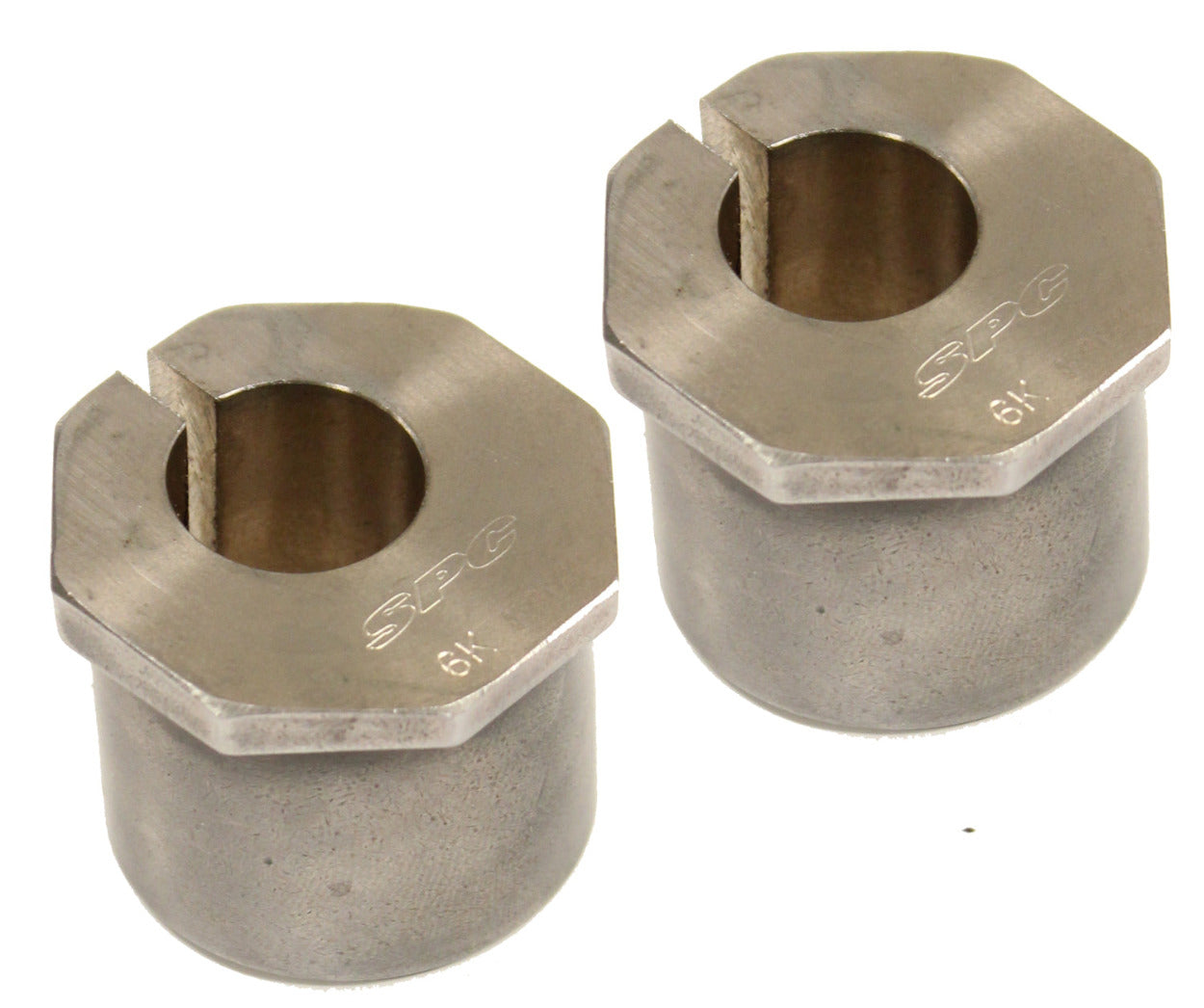

- CS-FCASTERSHIM-2.5: 2° Caster Shims

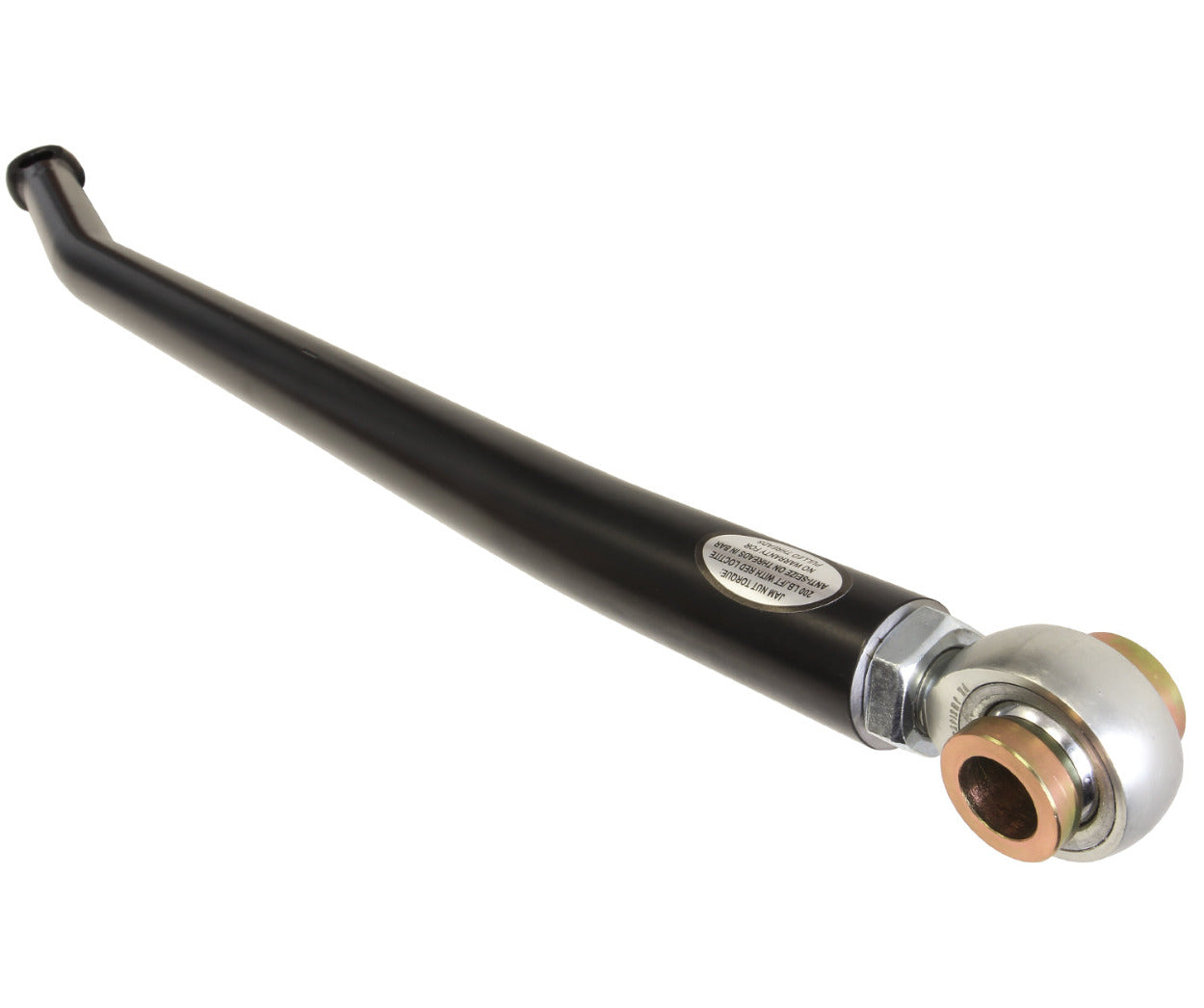

- CS-FPRB-05: Track Bar

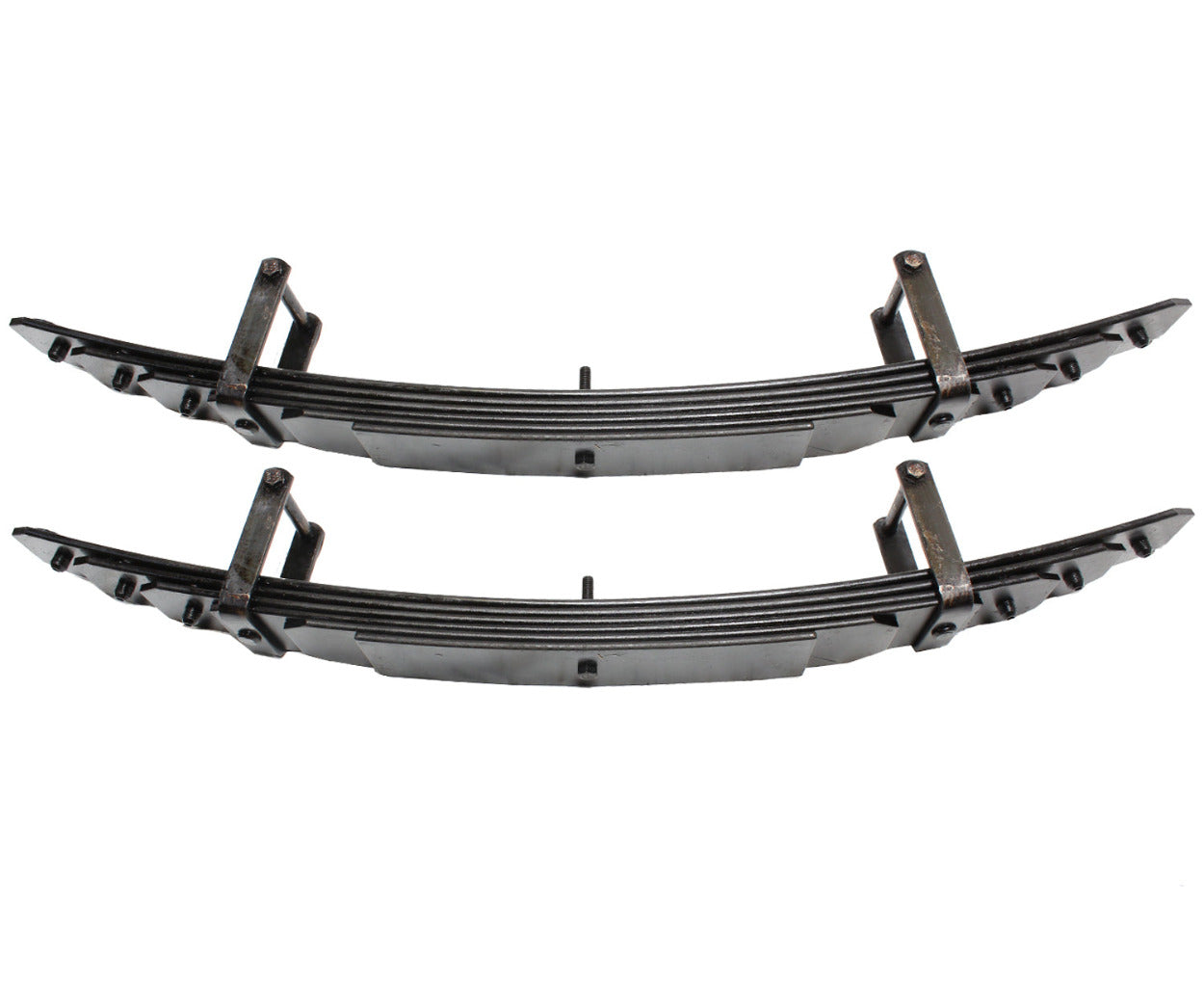

LEAF SPRING SELECTION
This Carli Suspension Kit must be accompanied by a selection of a Leaf Spring option to form a complete system.
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth progressive design
- Supplied with U-bolts and hardware
- Provides 2.0" of lift
- O.E.M. load capacity maintained, improved ride
- Fitment: 2008-2010 F250/350 4x4, 3.5" Axle Tube
The truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling. The rear is outfitted with a Progressive Add-a-Pack lifting it 2” and matching rear shocks help keep the truck planted over rough terrain while maintaining factory towing and payload capacity. The 2.5” systems are designed to work with trucks equipped with the 2” rear block. Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K
The Commuter is the beginning of our no-compromise, custom tuned suspensions. The 2.5” lift variation was tuned with the Progressive Add-a-Pack. We advise against upgrading to the Full Progressive Spring Pack.
WHEEL AND TIRE:
Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
