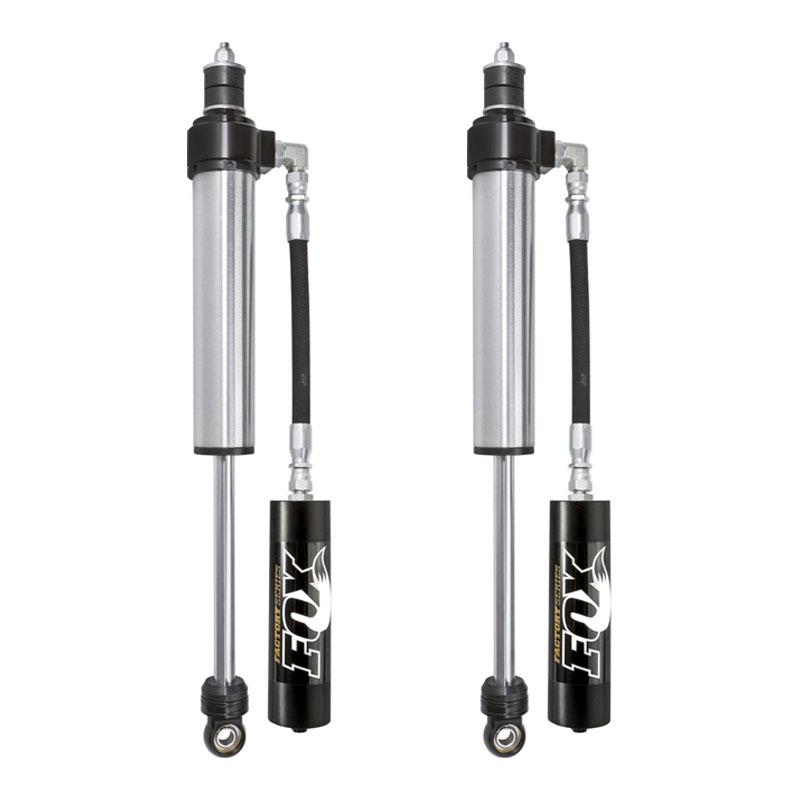

'07-21 Toyota Tundra 2.5 Fox Factory Series RR Rear Shocks

  • VENDOR: Fox
  • PART#: Fox-883-24-006
  • YOUR PRICE: Regular price $1,299.95

These shocks are sold in pairs


Factory Race Series 2.5 Remote Reservoir smooth body rear shocks for the 2007-2021 Toyota Tundra are designed give your Tundra's suspension enhanced on-road ride quality and the control you need when heading off the pavement.


  • Lift: 0-1.5"
  • Body: 2.5" smooth bore zinc plated seamless steel body
  • Body Plating: Zinc-plated and double-clear coated for long lasting finish Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Extended: 25.020
  • Compressed: 15.650
  • Travel: 9.370
  • Top Mount: Stem Top
  • Bottom Mount: Eyelet

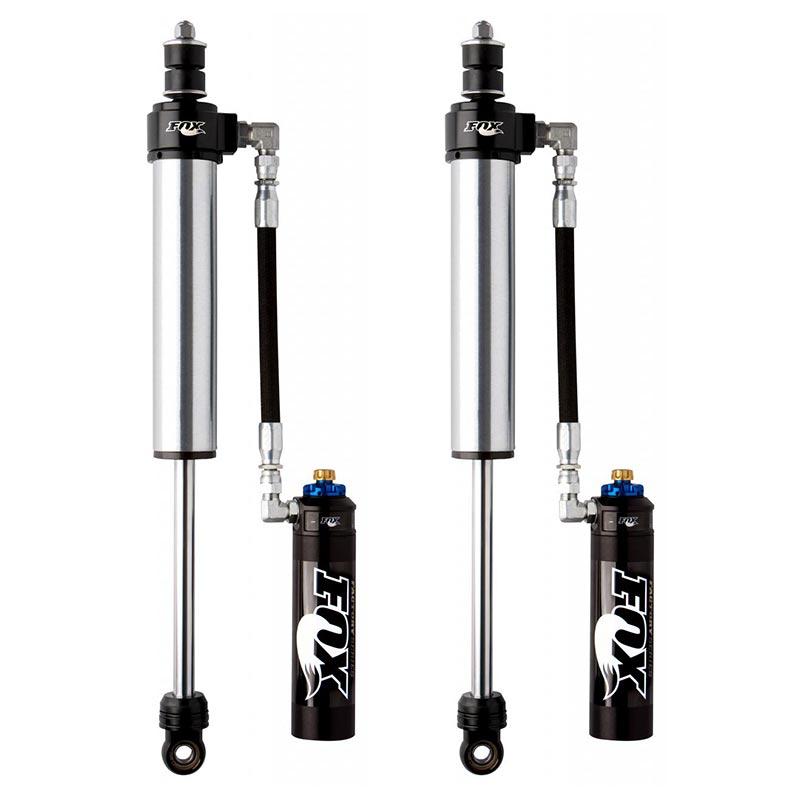

Add remarkable versatility and precise tuning with new DSC. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.
