'07-18 Chevy/GMC 1500 King 2.0 Rear Bump Stop Kit - 20AB001-100

  • VENDOR: King Off-Road Shocks
  • PART#: King-20AB001-100
  • YOUR PRICE: Regular price $1,034.00
Availability: In Stock Ready to Ship!

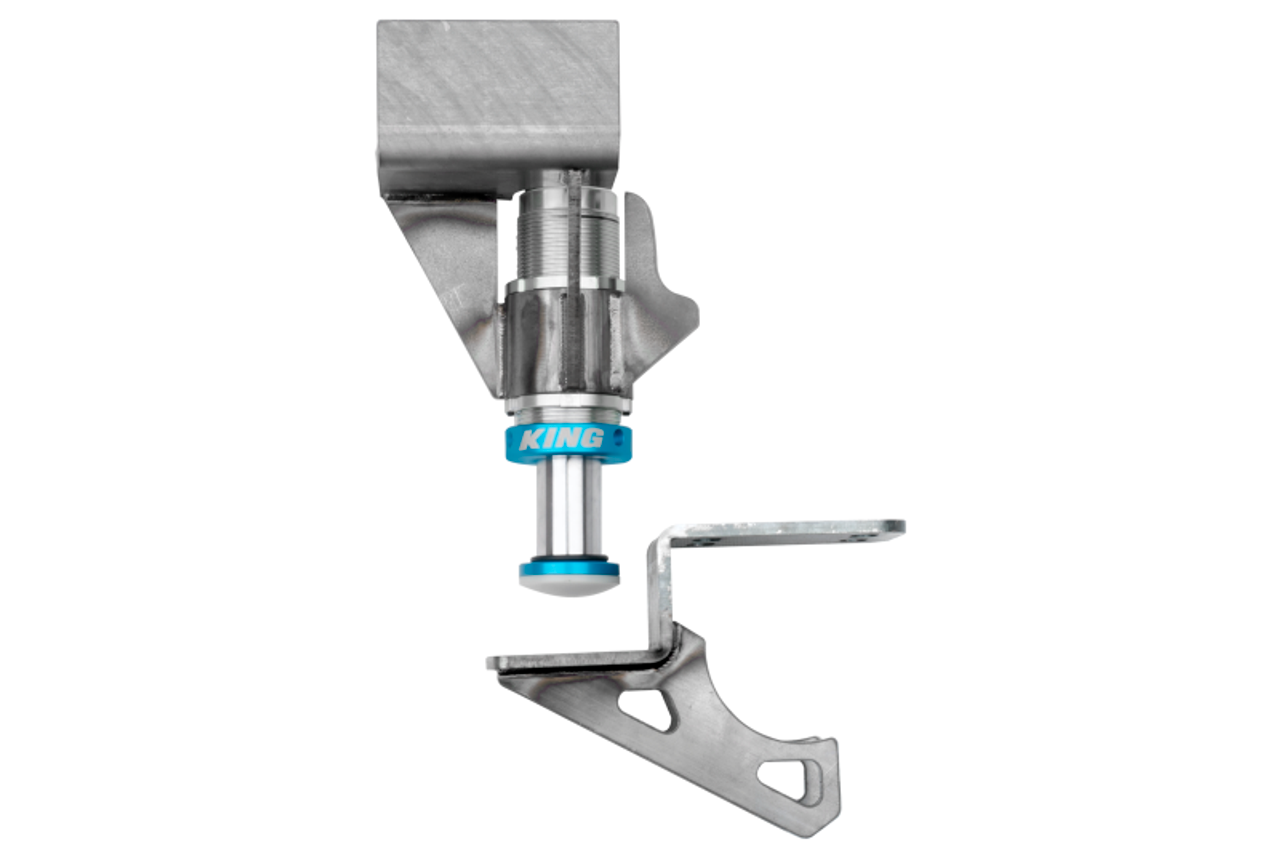

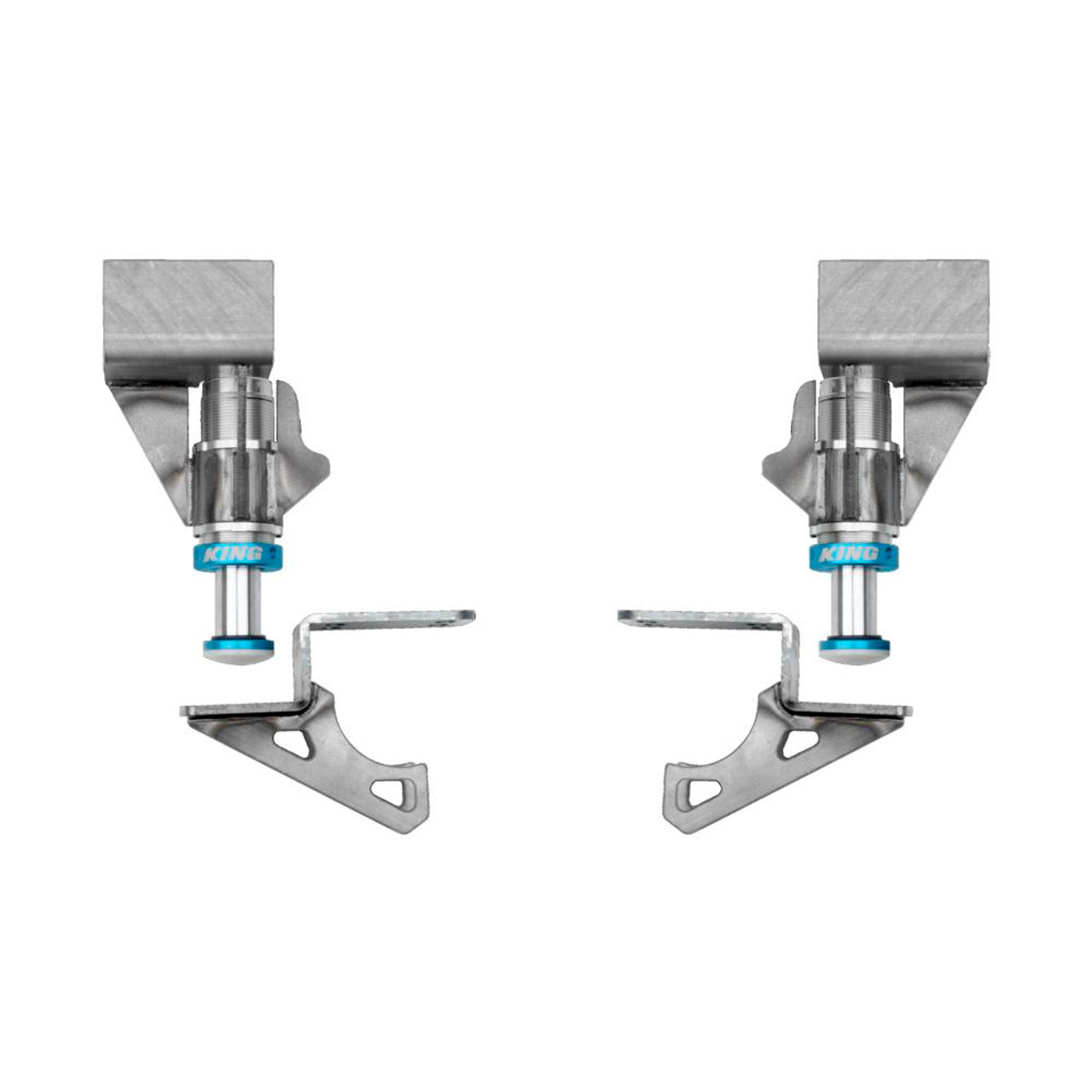

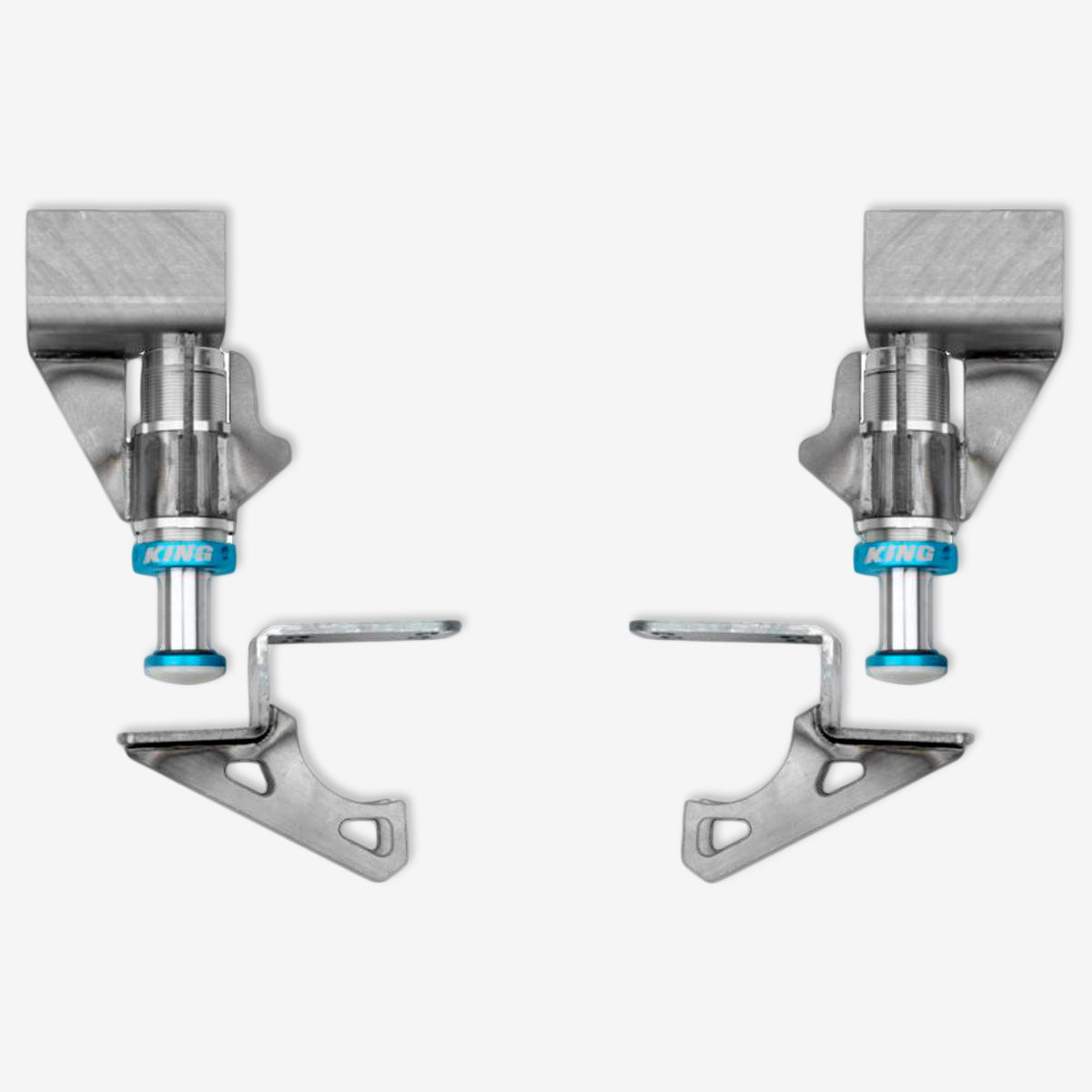

King's 2.0 hydraulic bumpstop kit for the ’07-18 Chevy/GMC 1500 trucks provide an additional level of bottoming control when you are using every bit of suspension travel available.

The bumpstop mount and strike pad are designed to be welded on with no frame modifications required. Using their compact 2.0 x 2″ travel bumpstop, you’re able to add bottoming control and not lose any up travel compared to stock.


  • 2007-2018 Chevy 1500
  • 2007-2018 GMC 1500


  • QTY 2. KING 2.0 Bumpstops
  • QTY 2. KING Bumpstop Mounts
  • QTY 2. KING Bumpstop Strike Pads


  • Aluminum components are machined from aircraft quality billet.
  • Double sealed Schrader cover that mounts to the body, not the valve itself creates a positive seal and keeps dirt and moisture out.
  • Large 1-1/4" or 1-5/8" diameter shafts have a minimum tensile strength of 75,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
  • Unique mounting boss design with indexing pin securely locates the bump stop without pinching the outside of the tube.
  • Long wearing nylon contact pad insures quiet operation and mounts with a simple yet effective single bolt design.
  • Stout 1/8" thick Chromoly bump stop bodies are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function
  • O-ring on shaft helps to gauge shaft travel.
