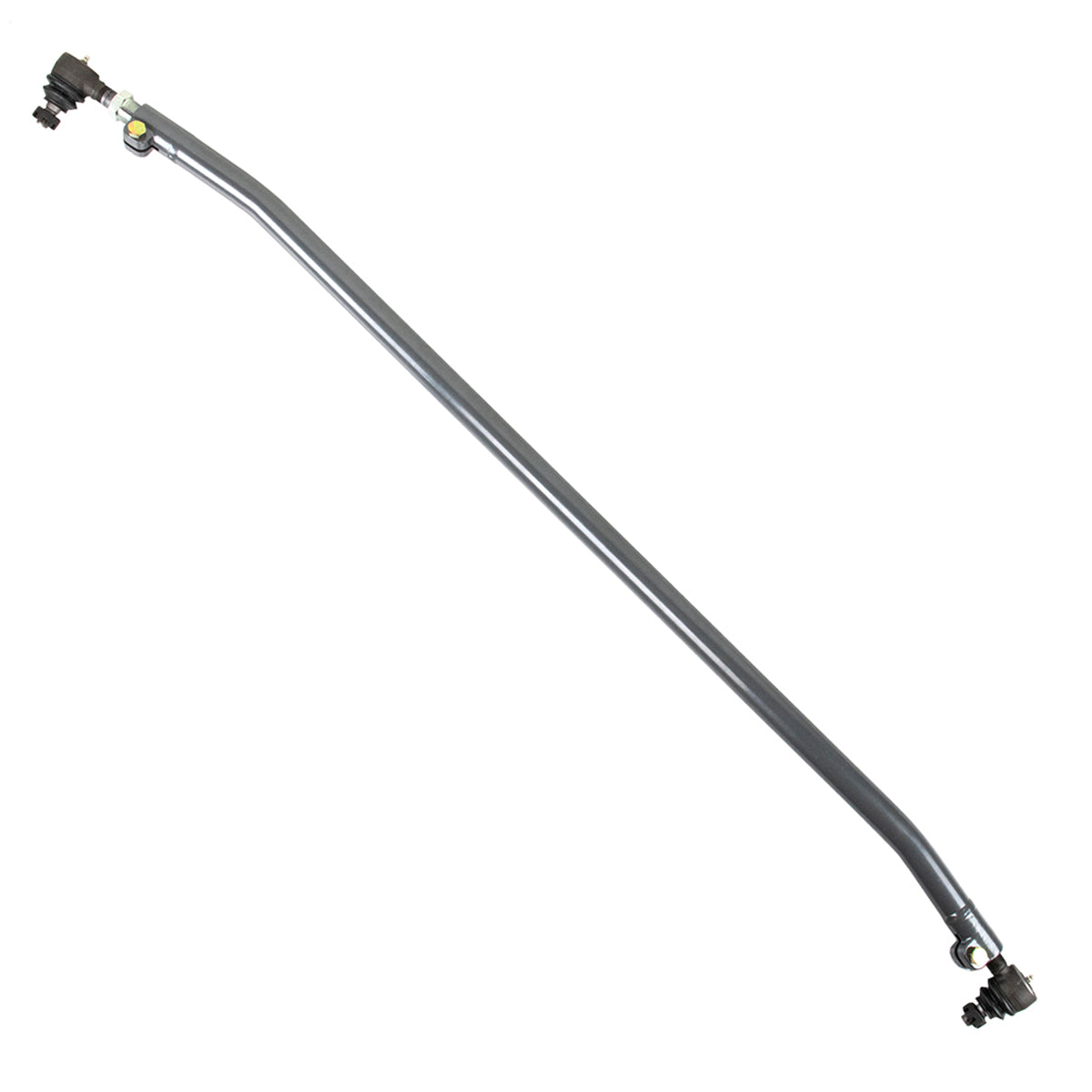

'07-17 Jeep JK/JKU Synergy 4130 Heat Treated Chromoly Tie Rod - 8002-15
'07-17 Jeep JK/JKU Synergy 4130 Heat Treated Chromoly Tie Rod - 8002-15
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
overview
This heavy duty tie rod kit for the 2007-2017 Jeep JK and JKU is the strongest Jeep JK tie rod on the market. This tie rod features 100% bolt on components
KEY FEATURES:
- Heavy duty tie rod for Jeep JK Wranglers
- Bent similar to factory bar to clear sway bar mounts
- Now made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - over 200% stronger than stock tie rod

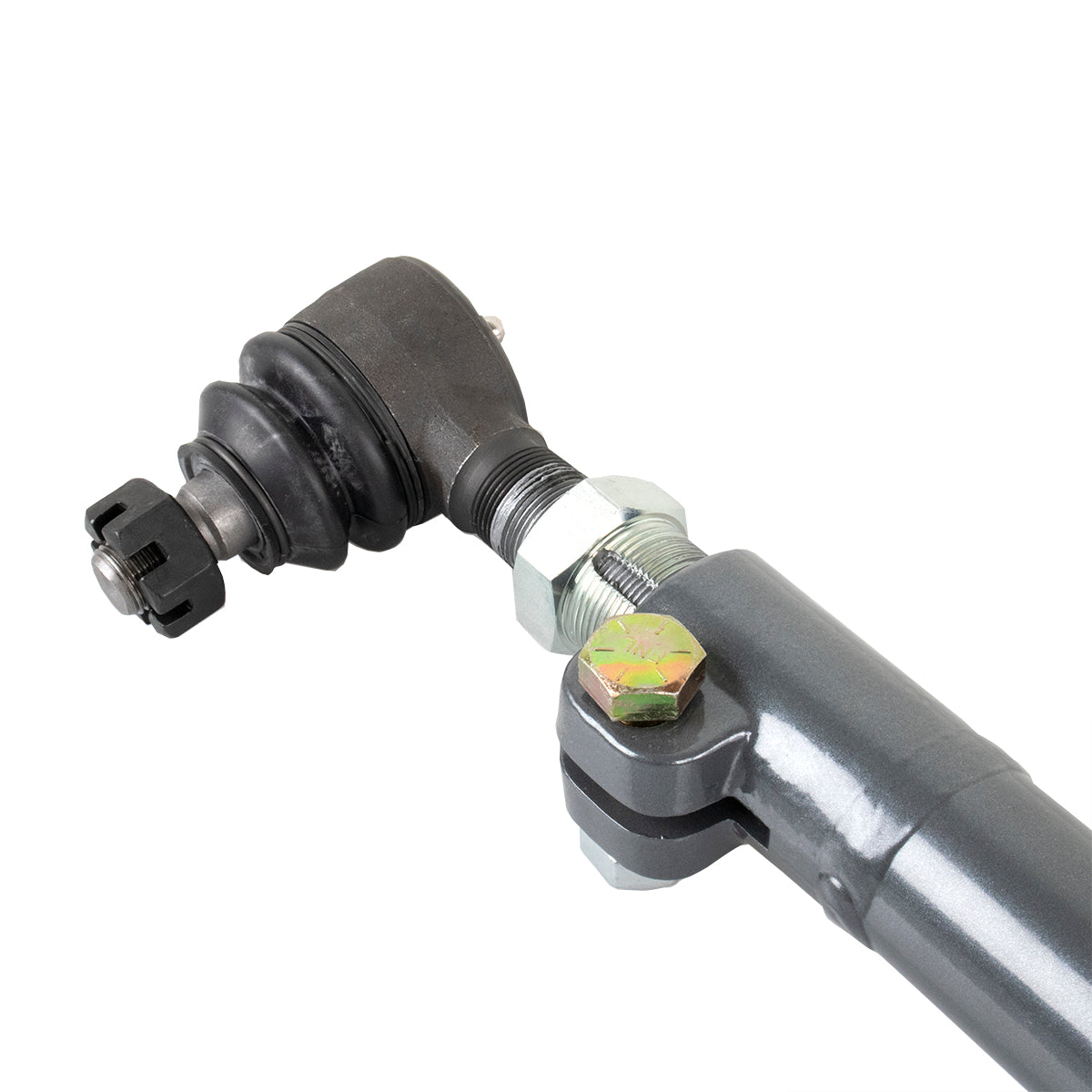

- Synergy Double Adjuster Sleeve: allows adjustment of tie rod length without removing it from the vehicle
- Strongest Jeep JK Tie Rod on the market
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
- 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
- Tie Rod requires the use of a maximum 4-3/4" backspace wheel or the use of a wheel spacer on factory wheel. 4-1/2" back spacing is recommended

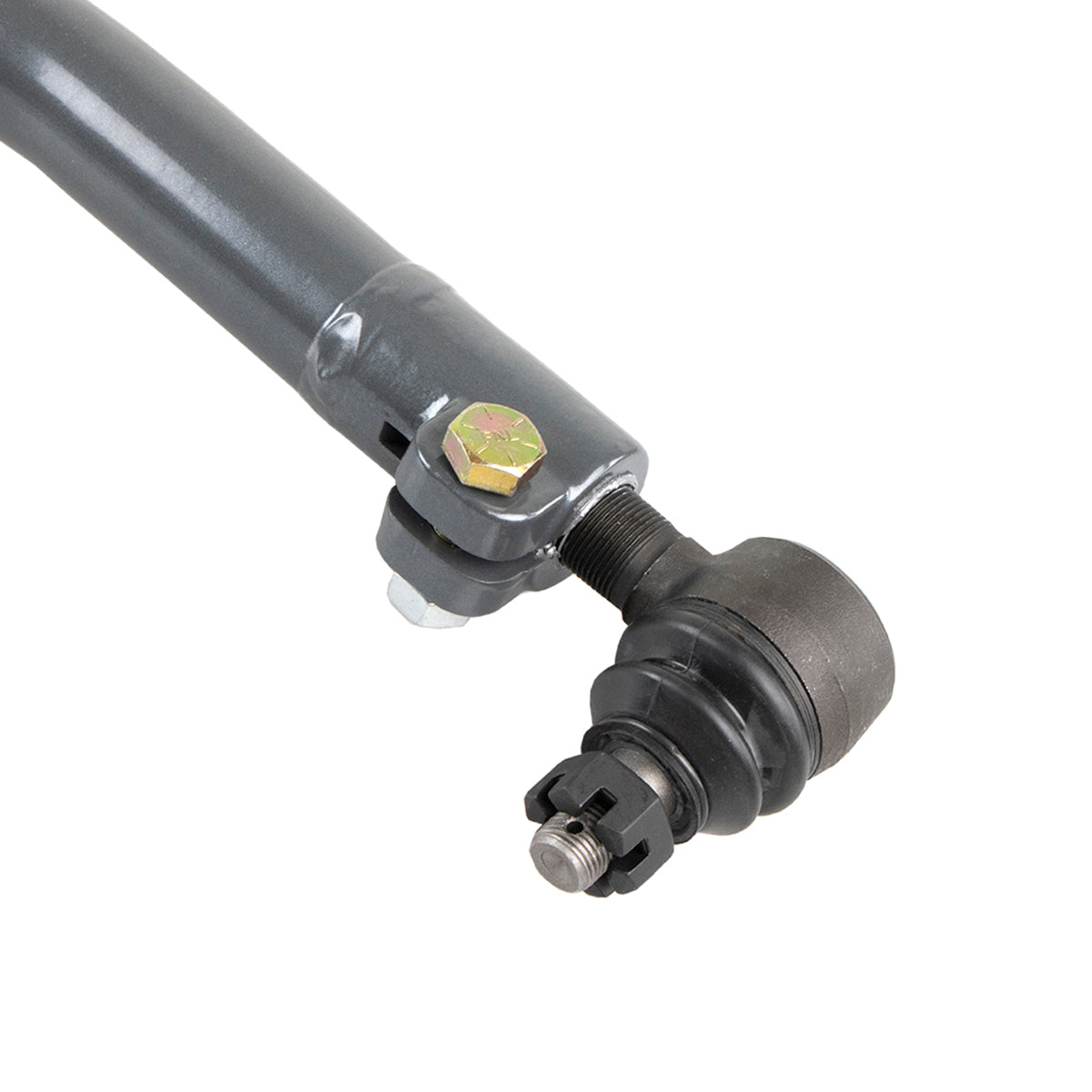

- Tie Rod comes with our own HD Metal on Metal Tie Rod Ends, 4131-L & 4139-L
WHAT'S INCLUDED:
- (2) Heavy Duty Tie Rod Ends
- (1) Castle Nut and Cotter Pin
- (1) Heat Treated Chromoly Tie Rod
- (1) Grade 8 Pinch Bolt & Hardware
- (1) Synergy Double Adjuster Sleeve
- (1) Hex-Style Tube Insert
TECH INFO:
- Supersedes Part Number: 8002, Synergy 1-3/8" diameter JK HD Tie Rod
- Requires use of stabilizer clamp Part Number: 4050-50 or 8007-03 stabilizer relocation kit
- Compatible replacement tie rod ends (4131-L & 4139-L) Both Ends use Left Hand Threaded Joints
- Compatible with Reid Racing High Steer Knuckles (JK001)
- Requires 16" or larger wheel diameter
MAX/MIN LENGTHS:
- MAX EXTENDED: 60.4375"
- MIN COLLAPSED: 58.188"
