Icon Vehicle Dynamics
07-09 Toyota FJ Cruiser Suspension System-Stage 4
UCA Option
Front Spring Rate
07-09 Toyota FJ Cruiser Suspension System-Stage 4
Tubular Delta Joint UCA / 650lbs. (Standard)
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
ICON’s 2007-2009 Toyota FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup – extended travel 2.5 Series coilover shocks, an ICON billet or tubular steel aluminum upper control arm kit, 2” rear coil springs, and a billet aluminum or tubular steel rear lower link arm kit - but sees the addition of 2.5 Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.
DELTA JOINT OVERVIEW:
This system features upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
KEY FEATURES:
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" of front lift height
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Billet Aluminum or Tubular Steel rear lower links offer on vehicle pinion angle adjustment and increase strength
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Series remote reservoir rear shocks with 7/8" shafts
- Bolt-on system means no cutting or welding necessary for install

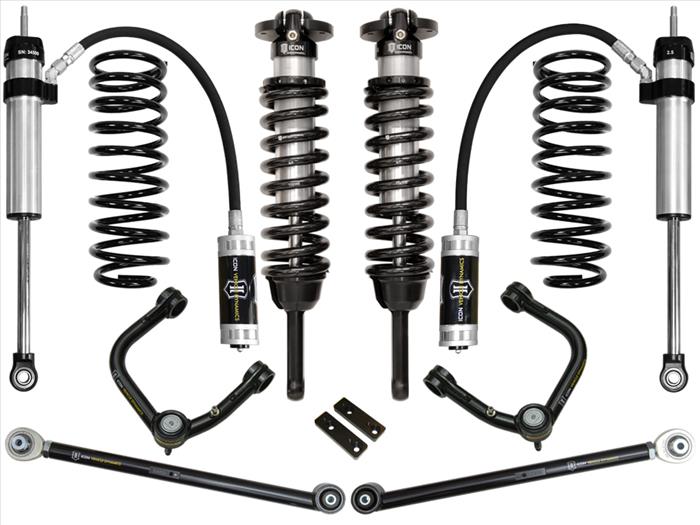

SYSTEM COMPONENTS:
- 58645 (QTY: 1) | 07-09 FJ/03-09 4RNR/03-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT
- UPPER CONTROL ARM OPTION
- 58551DJ (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX BILLET UCA DJ KIT
- 58451DJ (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX TUBULAR UCA DJ KIT
- LOWER TRAILING ARM OPTION
- 54000T (QTY.1) | 07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX TUBULAR LOWER TRAILING ARM KIT
- 54000 (QTY.1) | 07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX BILLET LOWER TRAILING ARM KIT
- 52700 (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX REAR 2" SPRING KIT
- 57810P (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR PAIR
