Fox

'05-16 Ford F250/350 2.0 Performance Series IFP Front Shock

  • VENDOR: Fox
  • PART#: Fox-980-24-677
  • YOUR PRICE: Regular price $199.95

These shocks are sold individually

PRODUCT OVERVIEW:

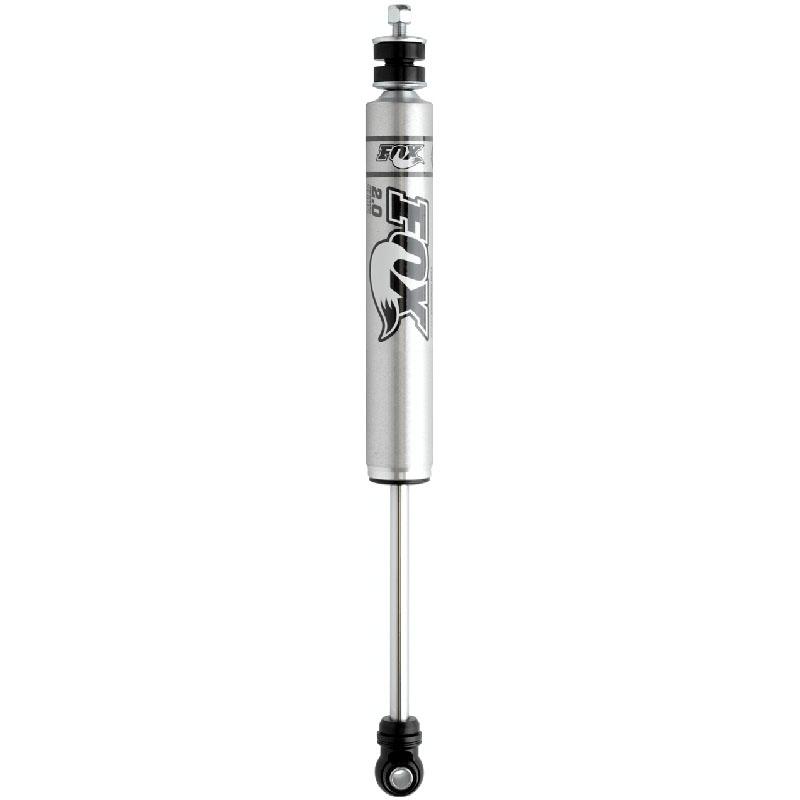

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your 2005-2016 Ford F250/350.

Fox uses their race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find Fox's race-proven performance valving technology Fox's Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

KEY FEATURES

  • Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Body Plating: Clear-anodized for a durable finish
  • Reservoir: Internal IFP mono-tube reservoir design
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Top Mount: Stem Top
  • Bottom Mount: Eyelet

SPECS:

Lift Height (in.) Travel (in.) Compressed (in.) Extended (in.)
0-1.5" 8.1" 13.85" 21.95"
2-3.5" 9.1" 14.95" 24.05
4-5" 9.6" 16.05" 25.65"
5.5-7" 10.6" 16.65" 27.25"
