03-13 Dodge 2500/3500 3.5 Unchained Long Arm System

  • PART #: CS-DUC35-03-D


    YOUR PRICE: Regular price $10,705.00




INSTALL INSTRUCTIONS

PRODUCT OVERVIEW:

Where the Performance 2.5” Long Arm System is more balanced, the tuning in the UnChained System is enough to put the build quality of the rest of the truck to the test and will ride a bit stiffer on the road than our other high-end systems; albeit, still much better than stock. At this level of suspension, customers should install a cage as the off-road capability far exceeds the capability of the truck itself. The Front Boasts massive, long-travel 3.5” King Shocks with an off-road oriented tune; the rear, 3.0” 4-Tube King Bypass Shocks. The 4-tube bypass will have far more bottom-out resistance than their smooth-body counterparts and their capability is user tunable to achieve exactly the rear ride desired by the purchaser.

What does all this mean? Uncompromised off-road ability with a civil on-road ride resulting in a truck that’s a blast to drive in all environments.

KIT FEATURES:

SHOCK DIAMETER LIFT HEIGHT TIRE SIZE FRONT TRAVEL REAR TRAVEL
3.5" 3.0" Up to 37" Tire 11"
12"

BASE KIT INCLUDES:

  • CS-DLRC-10-D: Linear-Rate Coils
  • CS-DLA3-03: Long Arm System
  • CS-DPRB-03: Track Bar

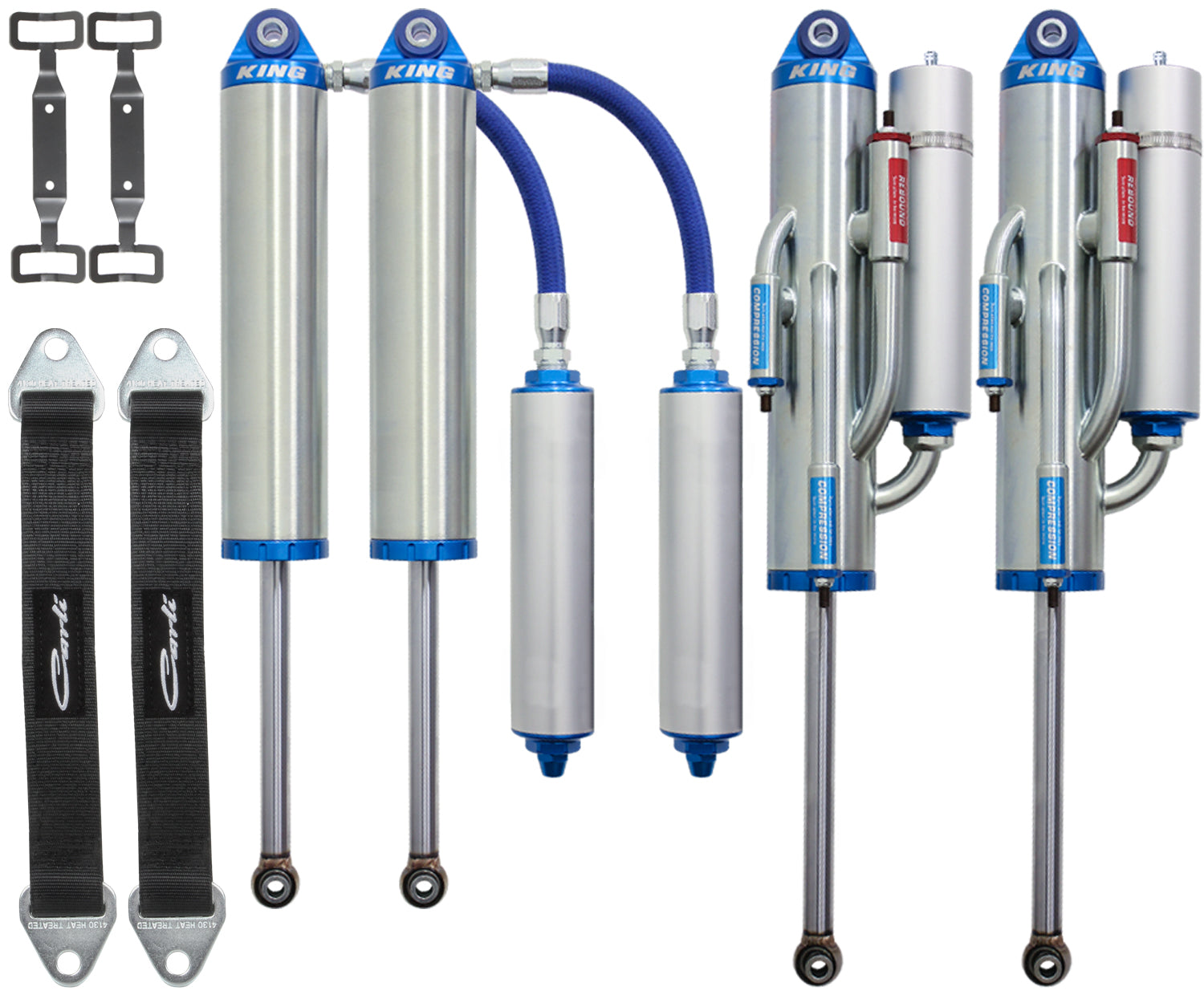

  • CS-DUC35SPKG-03-D-LA: Unchained 3.5 Shocks, Stainless Shafts, Limit Straps, Reservoir Mounts
  • CS-DFST625: Fabricated Shock Tower
  • CS-D30GUSSET: Rear Gusset Kit
  • CS- HOLESAWKIT-4.5: 4" Hole Saw and Arbor
  • CS- DRSMKIT-03: Rear Shock Mounts
  • CS-DFBD-1: Front Bump Drop 1"
  • CS-D3BBL-03: Braided Brake Lines
KIT SPECS:
  • Wheels: This system will fit up to a 37”x12.5” tire with on 17”-18” wheels with 5-5.25” of backspacing. If considering Fiberglass Fenders, a 4.5” Backspacing on a 9” Wide wheels will fit up to a 37x13.5” wide tire
  • Tires: 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 40F/350R
  • Recommended Configuration: Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 37", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
  • Torsion Sway Bar: Selection of the Torsion Sway Bar Replacement will not Require size selection as the entire sway bar assembly is replaced.
  • Fitting 37" Tires: 37" Tires will fit with the above wheel specifications if the system is equipped with Full Replacement Leaf Springs and Long Arms.

The Details:
With the release of the 3" Long Arm, comes the Long-Arm equipped Systems. The decision has been made to discontinue the older, short-arm variation of the UnChained 3.5" in favor of a Long-Arm equipped, extended travel version at which you’re looking now. This system requires customers to cut off the factory control arm mounts in favor of the Carli Drop Brackets to house our internally gusseted, fully fabricated Long Arm System. These arms are over 50% longer than the factory arms boasting 3/16” cold-rolled steel construction, internal gusseting, extended travel capability, more linear travel stroke and a better ride quality given their length and position parallel to the ground.

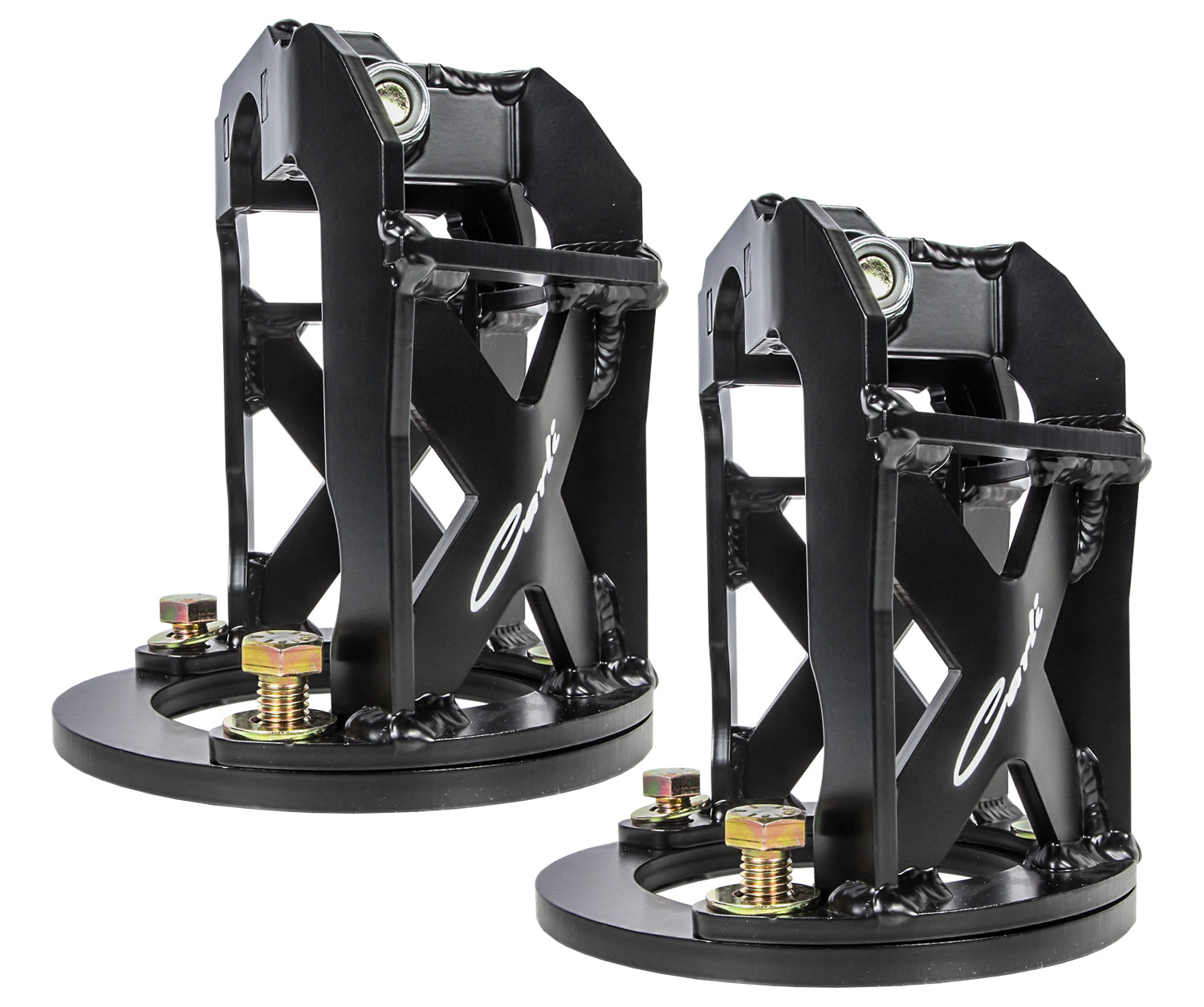

To take advantage of the Long Arm’s capability, we’ve included a 6.25” tall, slide over-design shock tower to ease installation and accommodate the longer (11.25” Travel) shocks, included 1” front bump stop drops and limit straps to ensure customers can dish repetitive beatings to their King 3.5” shocks with confidence of full & safe utilization of the shock’s travel. In a short arm truck, it’s not uncommon to see 7” of up-travel (metal to metal) and 3” of down-travel. The combination of the long arm system’s 6.25” tall tower and 1” bump drop allows for our 11.25” travel shock and shifts the front axle’s operating range down 1”; the result, 2.25” more down-travel when compared to a short-arm system only sacrificing 1” of up-travel. This is a far more balanced setup spec’d with 6” of up travel and 5.25” of down-travel ensuring the front end maintains contact over rough terrain. If you’re looking for a great daily driver to beat up on the weekends, grab a Performance 2.5”; if you’re looking for a no-compromise off-road system to push the envelope of which the Ram platform is considered capable, this is it.

The UnChained system features front Carli Signature tuned, King 3.5” remote reservoir shocks so large, we needed bore the factory spring buckets for them to cycle properly. As the old adage goes, there’s no replacement for displacement. In an effort to provide customers with the best product, we do not sell off-the-shelf King shocks. We spent countless hours dialing in an off-road oriented, Long-Arm tune to ensure we maximized the performance of these monster-shocks while maintaining good road manners. To ensure the rear performance is on par with the front, Carli spec’d KING 3.0” 4-tube Bypass Shocks round off the rear.

For those unfamiliar, a bypass shock has external tubes with one-way check valves that are fully adjustable to allow users to tailor the amount of fluid that bypasses the piston/valving on either the compression or rebound stroke within the effective range of the bypass tube. Typically, there will be a tube surrounding the compression zone (at ride height) that will allow fluid to freely move around the piston giving a supple ride. Once a large hit is encountered, the piston will move upward closing off the port, thereby forcing all fluid through the valving which substantially increases the shock’s resistance in this secondary zone. This acts as an internal bump-stop of sorts and gives tunable progression to the shock making it the perfect dual purpose setup.

Conversely, on the rebound side, we normally spec tubes that are oversized and deep in the travel stroke to allow a high volume of oil to bypass ensuring the shock shaft comes out quick enough to maintain contact with the ground (doesn’t get hung-up in the bump-zone after a large hit). As the shock extends and closes off the rebound tube, all the valving on the rebound side engages to slow the shaft as it reaches maximum extension, top-out. Simply put, the larger the shock diameter, the more capable the setup; the more tubes and “zones”, the more adjustability; the larger the tubes, the more fluid can flow around the piston and the more valving you can run to increase the stopping power in the “bump-stop” or “top-out” zone.

We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

With a 3.0 diameter rear Bypass Shock, we’ve included the addition of the Carli Fabricated Rear Shocks Mounts to ensure your day in the dirt doesn’t end early thanks to a weak point in the factory rear shock mounts.

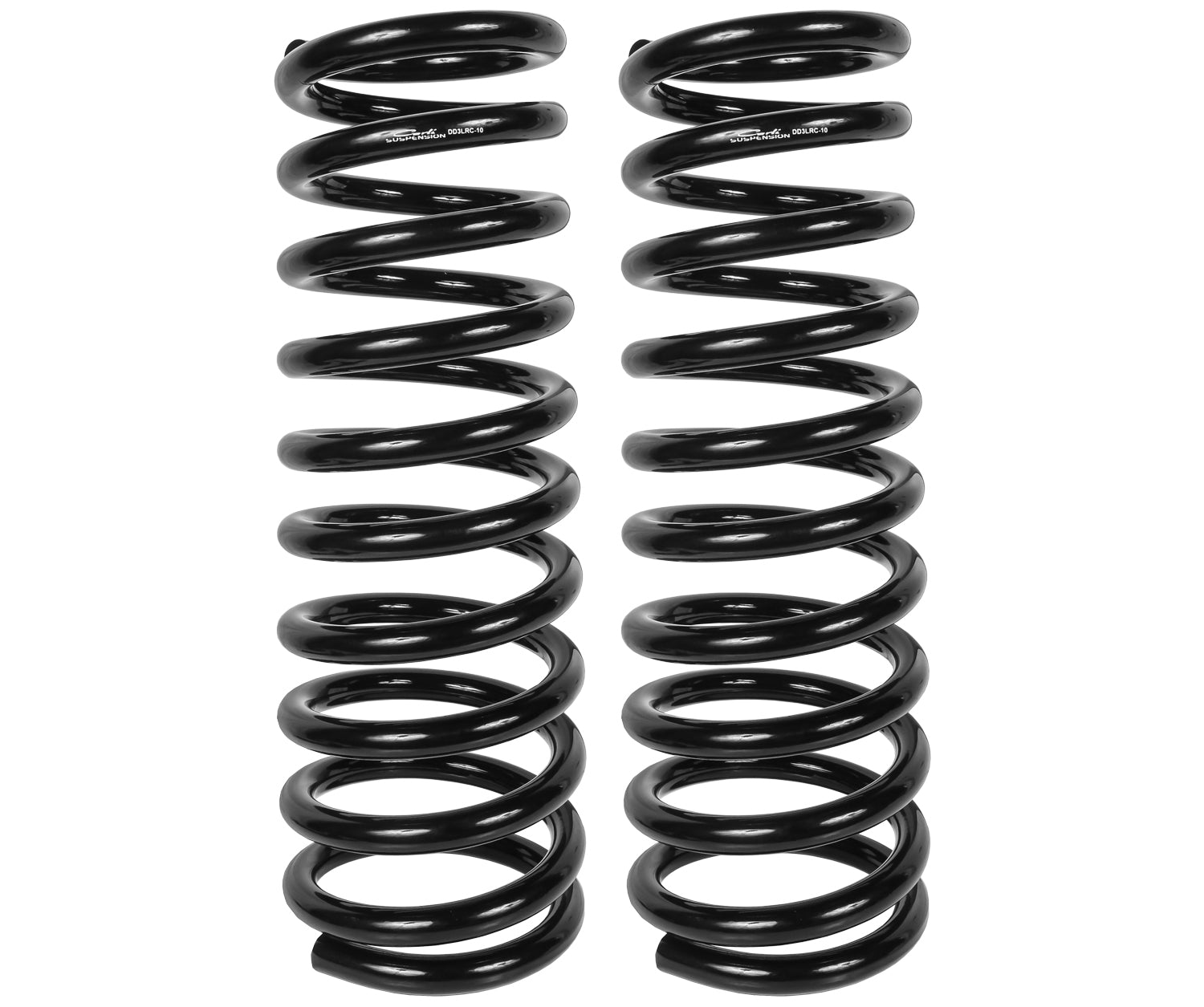

Your truck will sit 3”-3.25” higher in the front (year/cab configuration dependant) with 70% more suspension travel than the factory platform thanks to the taller, linear rate coil springs. These systems require the extended travel capability of the linear spring as the free-height of the multi-rate coils was too short to reach the droop potential.

As this is a high-performance, no compromise system, it includes the Carli Torsion Sway Bar and Full Progressive Leaf Springs (No option for extended sway bar links or add-a-packs). The Carli Torsion Sway Bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package.

The Full Progressive Leaf Pack lift the rear 1.5-2” by replacing the entire factory leaf spring assembly increasing travel and drastically increasing comfort throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500. This payload reduction can be supplemented back to factory 3500 SRW capacity with the addition of the Long Travel Airbags for the best of both worlds; ride quality and payload capacity/load control.

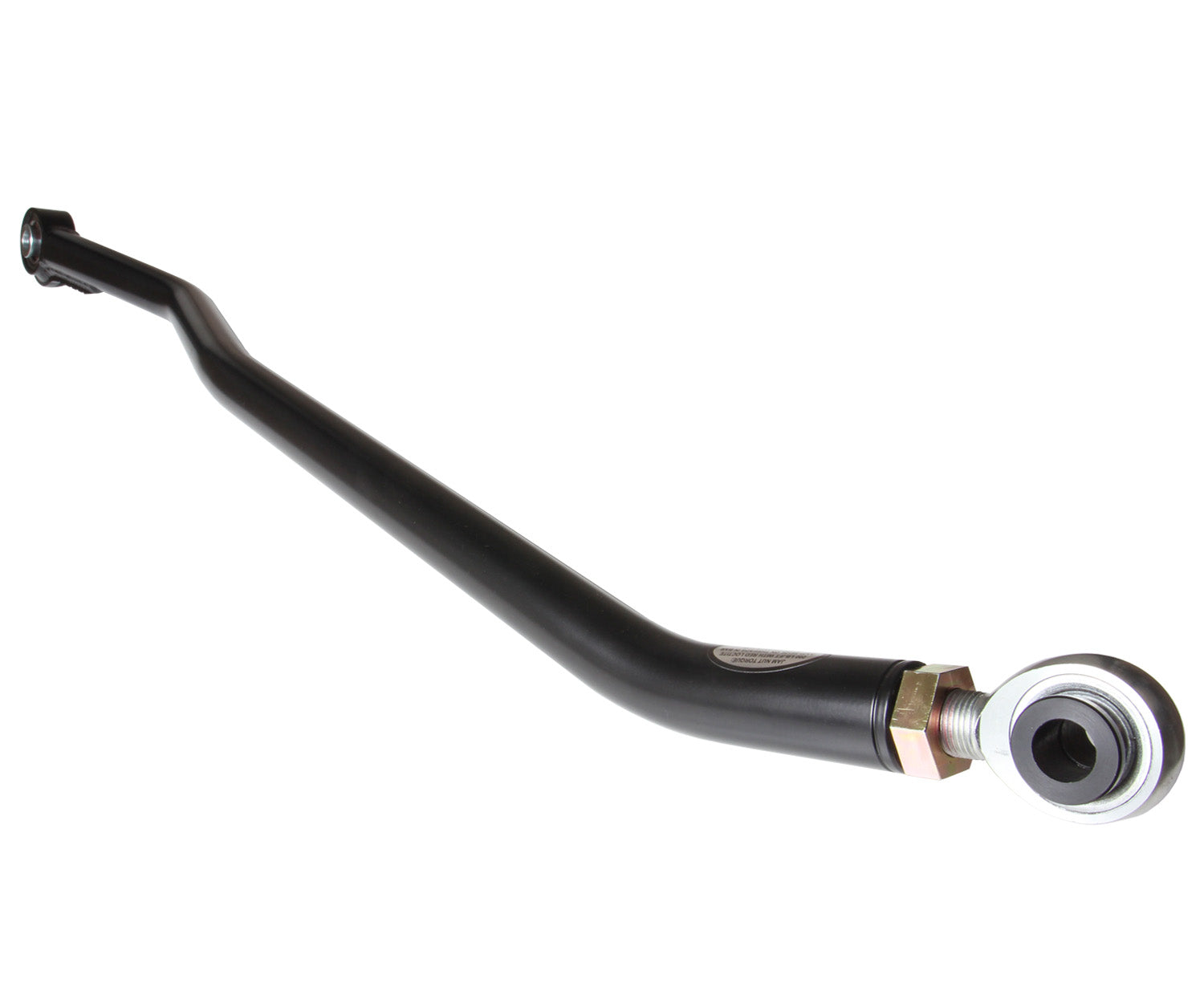

When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application.

Wheel and Tire:
This system will fit up to a 37”x12.5” tire with on 17”-18” wheels with 5-5.25” of backspacing. If considering Fiberglass Fenders, a 4.5” Backspacing on a 9” Wide wheels will fit up to a 37x13.5” wide tire. This system was tuned with 17” wheels on, 37” Toyo M/T at 40F/35R. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
