Total Chaos Fabrication

’03-09 Lexus GX470 2" Expedition Series Long Travel Kit

$3,724.89
SKU: TCF-86222-E
UCA Configuration:

UCA Configuration
Quantity:

’03-09 Lexus GX470 2" Expedition Series Long Travel Kit

Bushings

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

PRODUCT OVERVIEW:

The 2" Expedition Series kit features a redesigned lower control arm serving as an evolution of the Race Series LCA's with select features to improve component strength, function and vehicle handling.

KEY FEATURES:

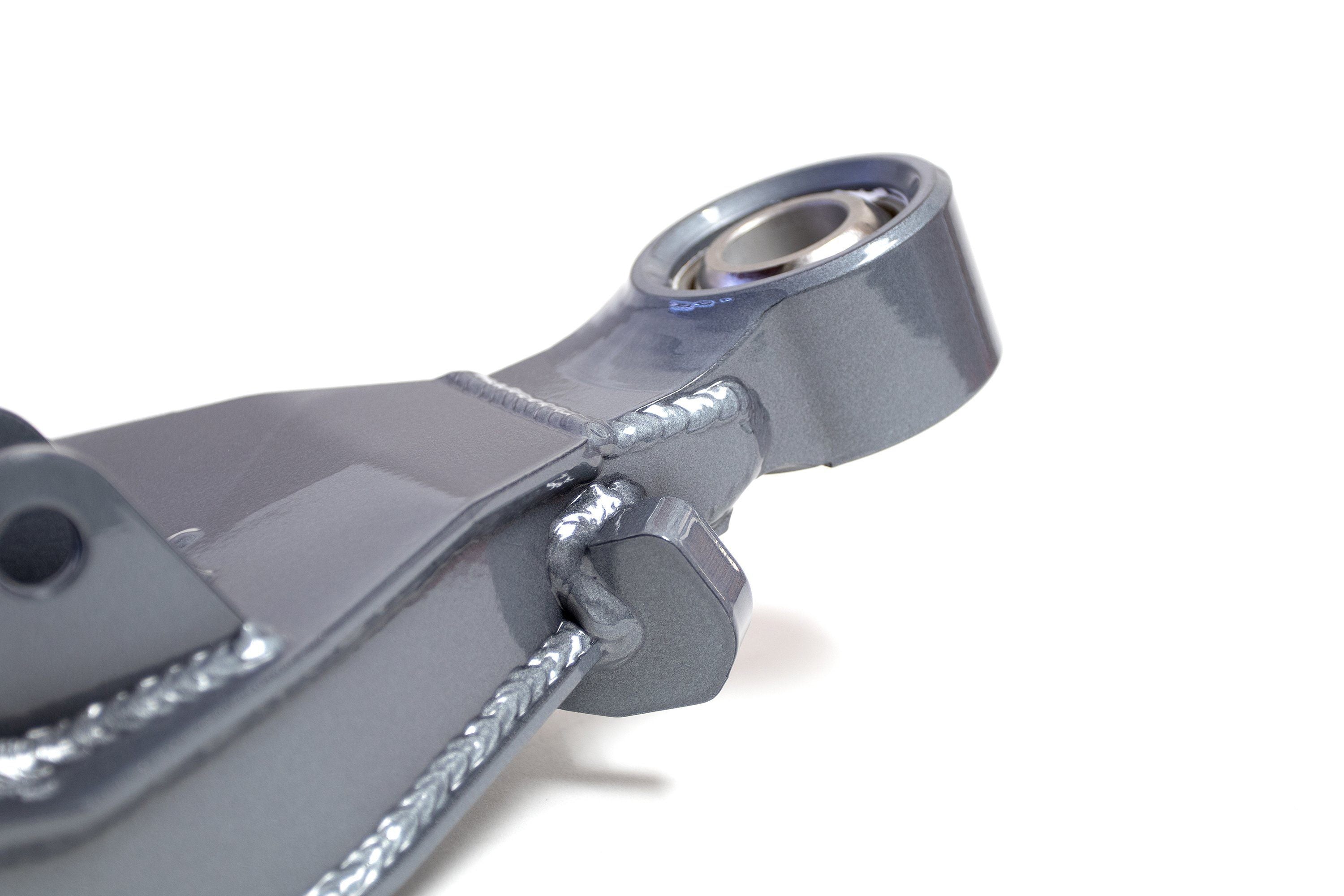

  • A newly integrated steering stop tab retains the factory turning angle with no modification necessary to the OEM ball joint cradles.

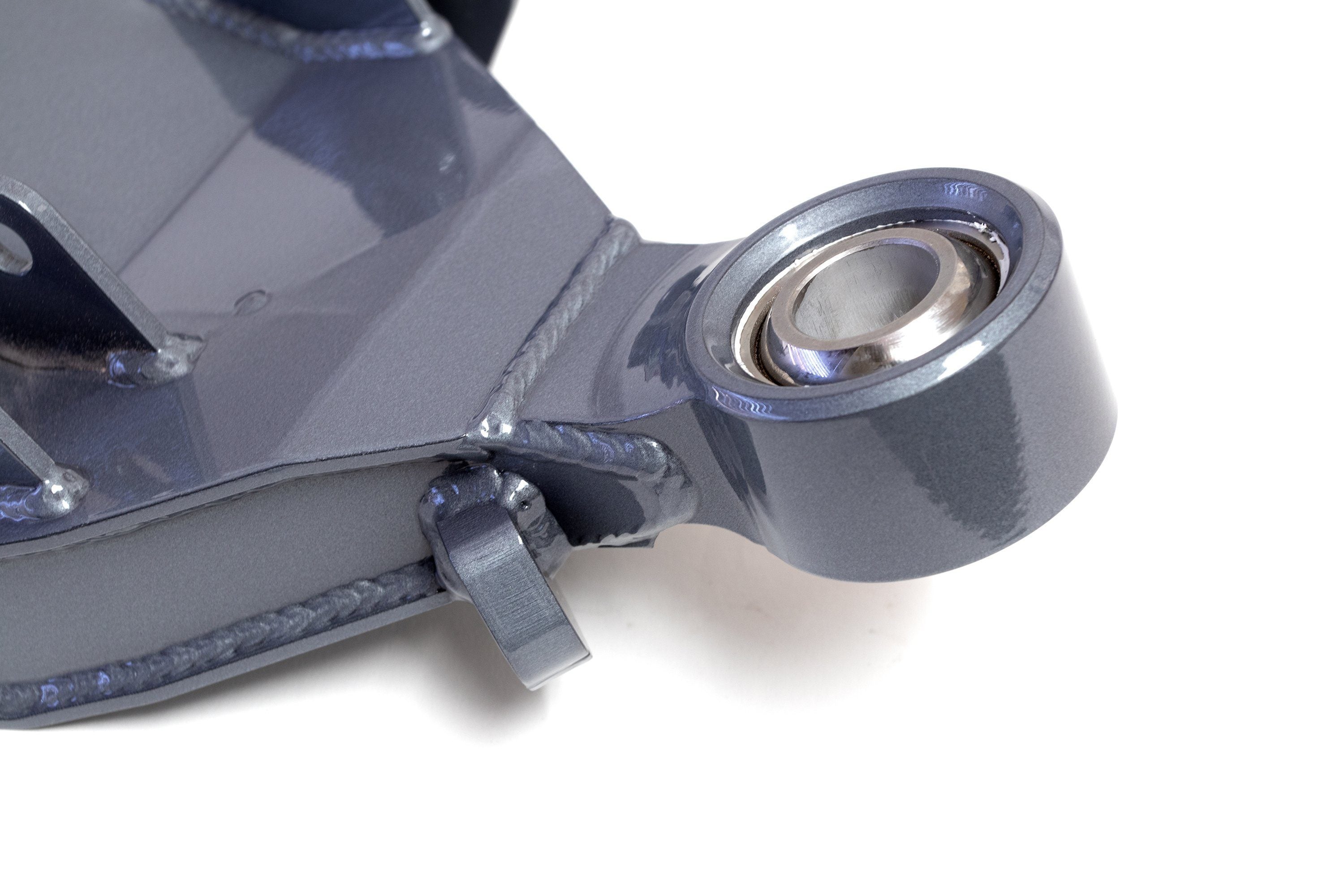

  • Billet CNC machined uniball cup ends extend into the arm providing more turning clearance and increased strength.
  • Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel. TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise and debris buildup.
  • Extended 4130 chromoly upper and lower control arms increase track width 2" per side and bolt to factory control arm mounting locations yielding 11.5" of travel.

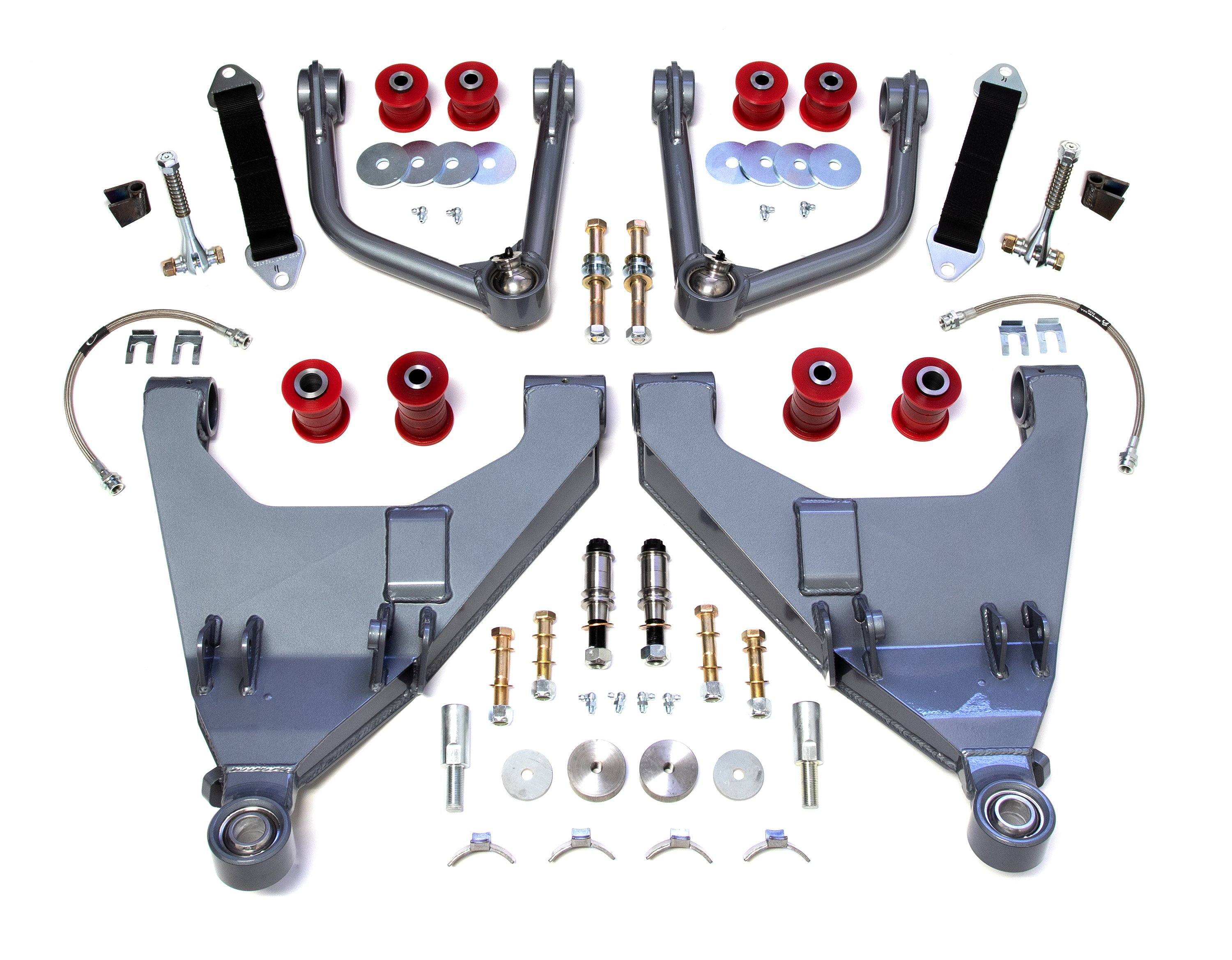

  • Upper and lower control arms utilize urethane bushings and steel inner sleeves which greatly reduce bushing deflection compared to stock rubber bushings.
  • Adjustable limit strap clevises are included to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap.
  • Kit includes DOT approved stainless steel braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and all necessary Grade 8 mounting hardware.
  • Custom TC sway bar designed for use with 2" kit has a lighter rate than stock and does not compromise wheel travel or articulation (sold separately and not included with the kit).
  • 100% made in U.S.A. with a three stage powder coat process includes a durable clear coat to provide a long lasting finish.
  • Extended Travel coilovers WILL NOT WORK. Kit requires the following shocks:
BRAND COILOVER PART# BYPASS PART#
FOX 880-06-953 982-02-954
KING KNG-TC 5119-03 TC1119-34

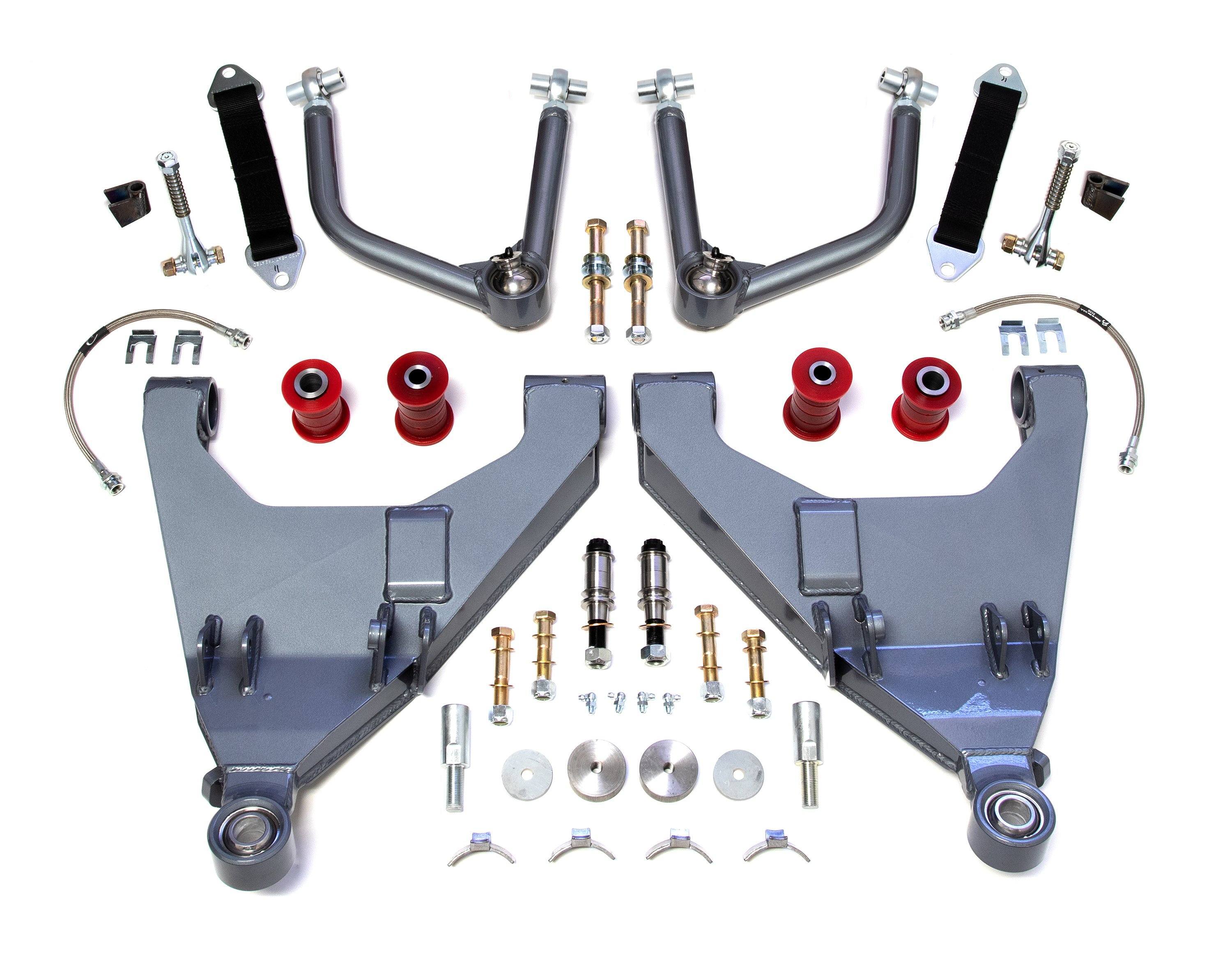

OPTIONAL HEIM PIVOT UPGRADE
  • Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
  • Shipped preset to O.E. location.
  • Lower control arms utilize urethane bushings and steel inner sleeves which greatly reduce bushing deflection compared to stock rubber bushings.
