Baja Designs Squadron Sport LED Light - Pair
Lens Color
Beam Pattern
Baja Designs Squadron Sport LED Light - Pair
Clear / Spot
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Baja Designs Squadron® Sport LED Light utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts making it ideal for near field, side/backup and scene lighting application.

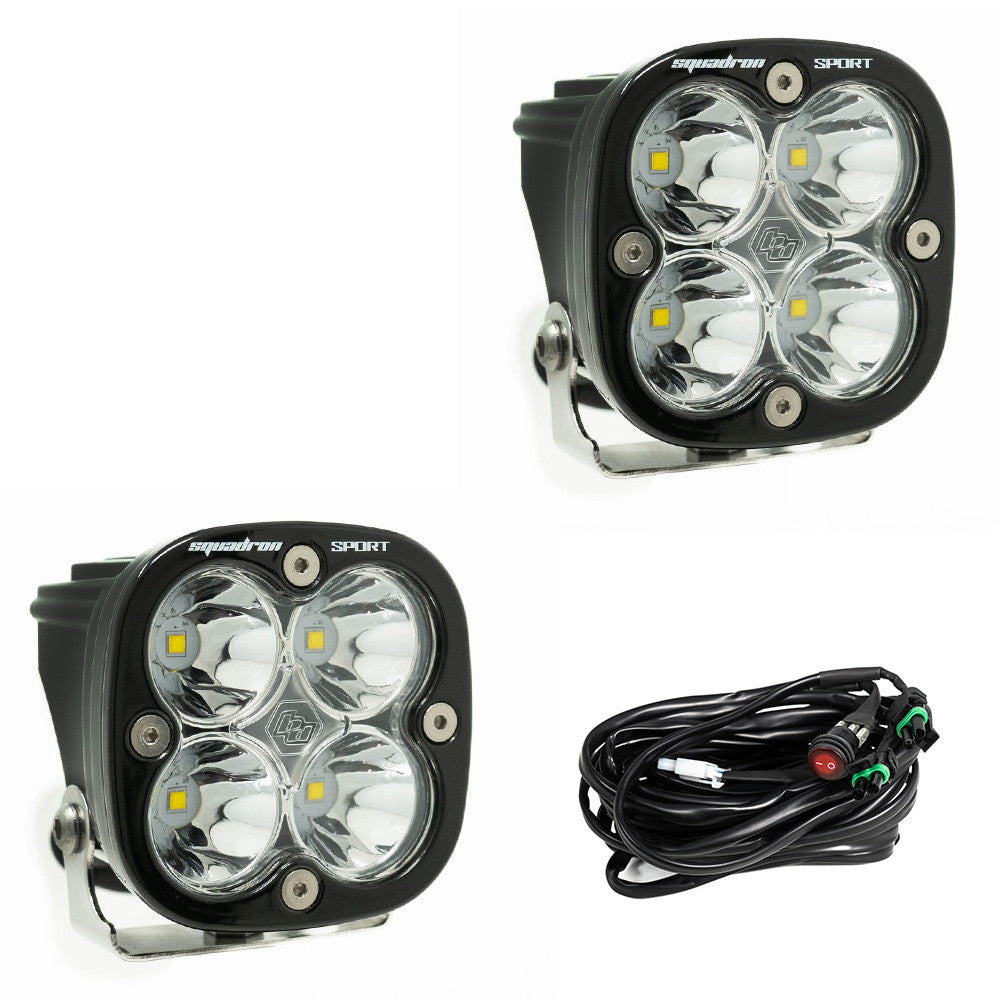

WHAT'S INCLUDED:
- (2) Squadron® Sport LED Lights
- Mounting Brackets
- Wiring Harness
SPECS:
- Lumens: 3,150 Utilizing 4 LEDs
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07" x 2.77" x 3.07"
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:

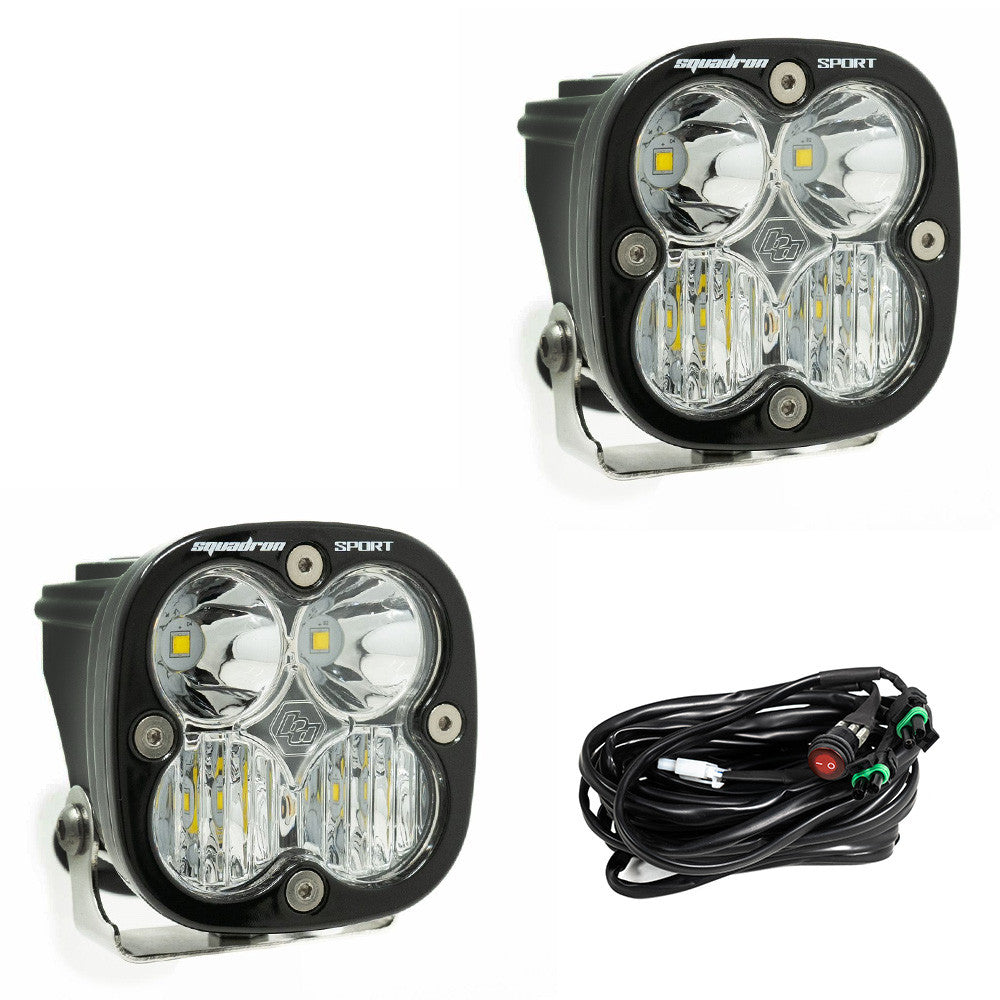

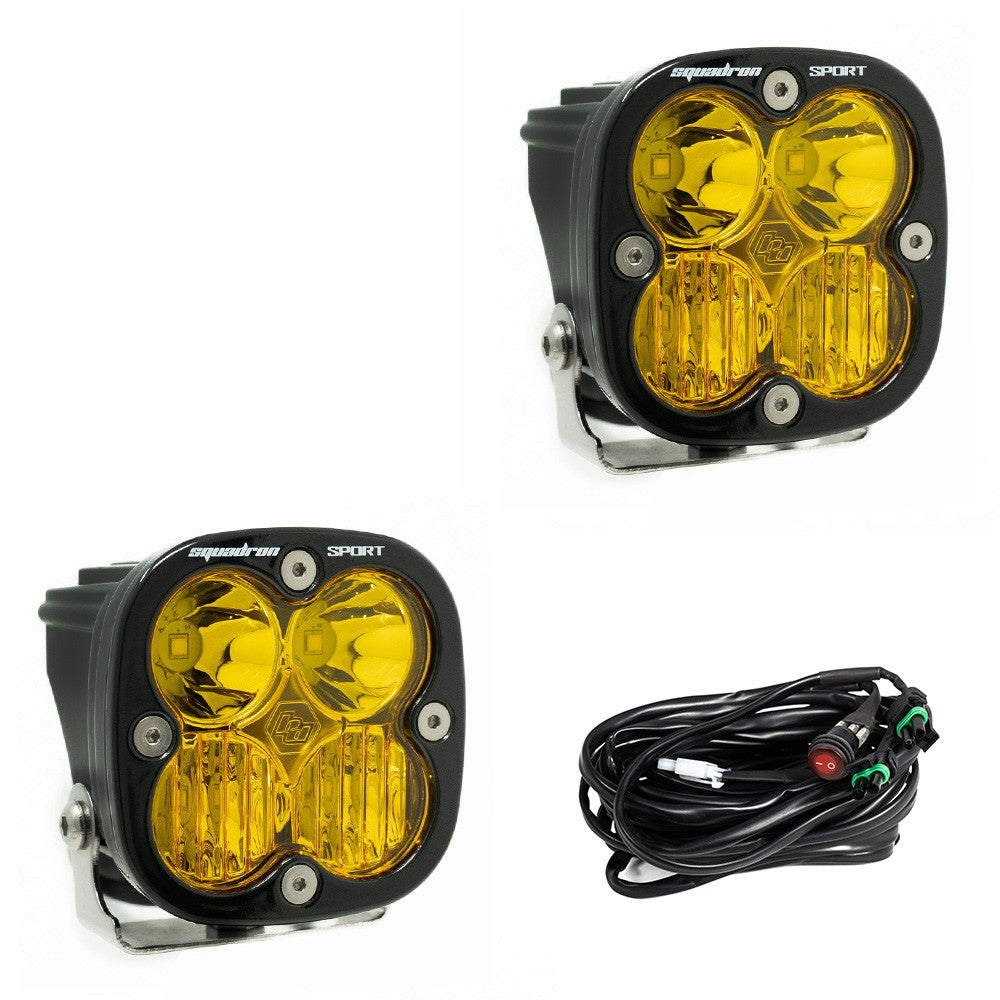

- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance

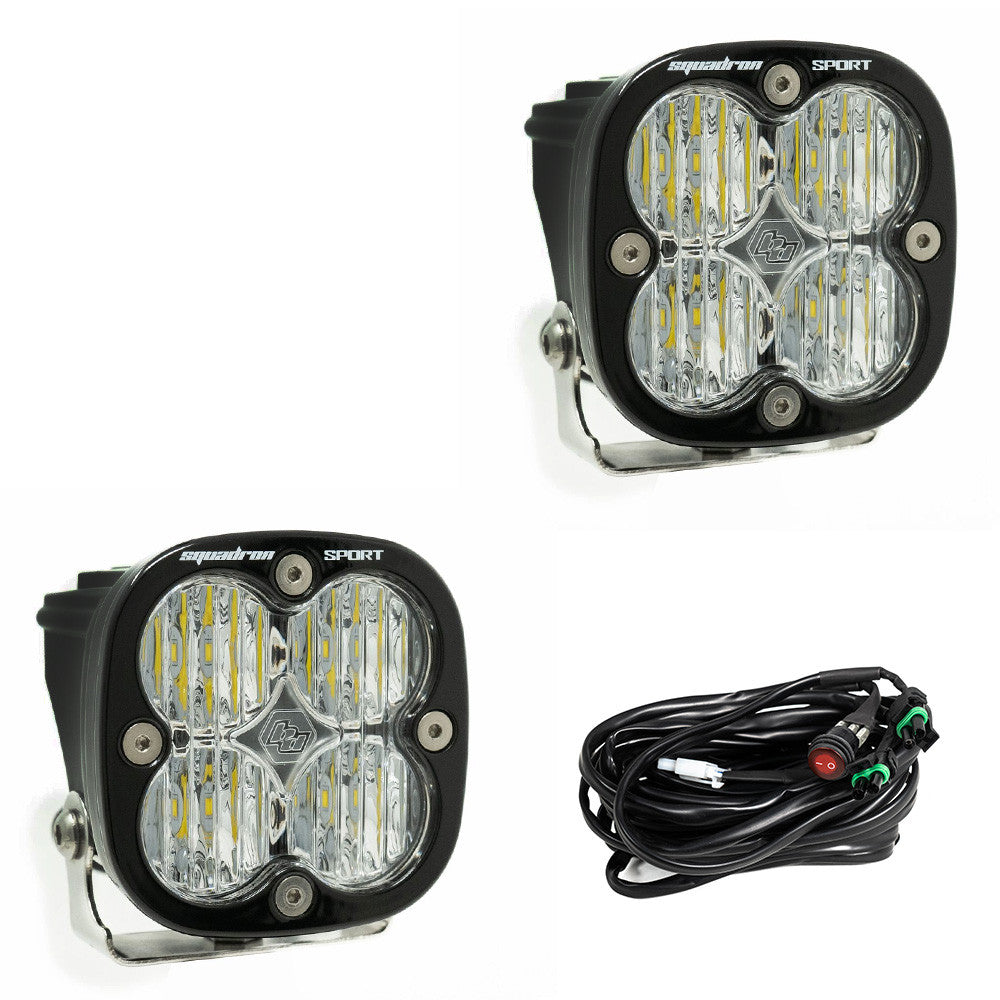

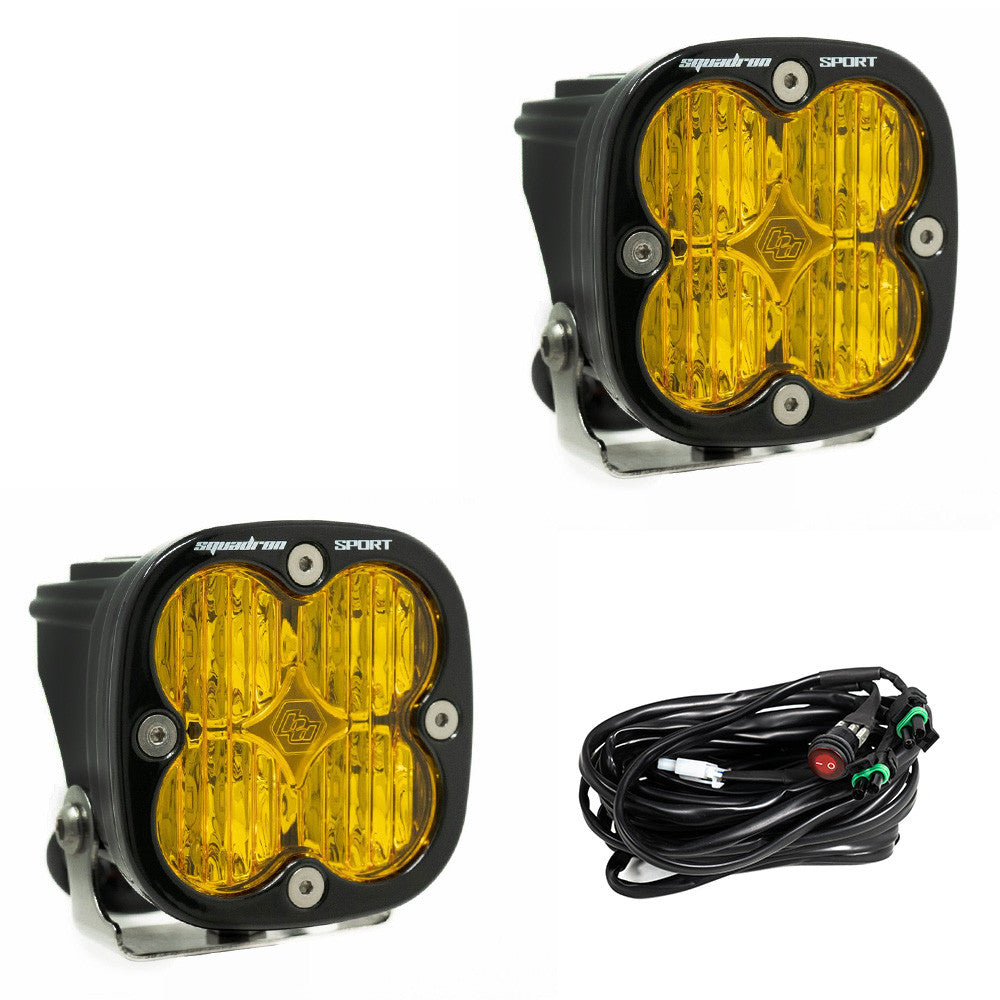

- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.

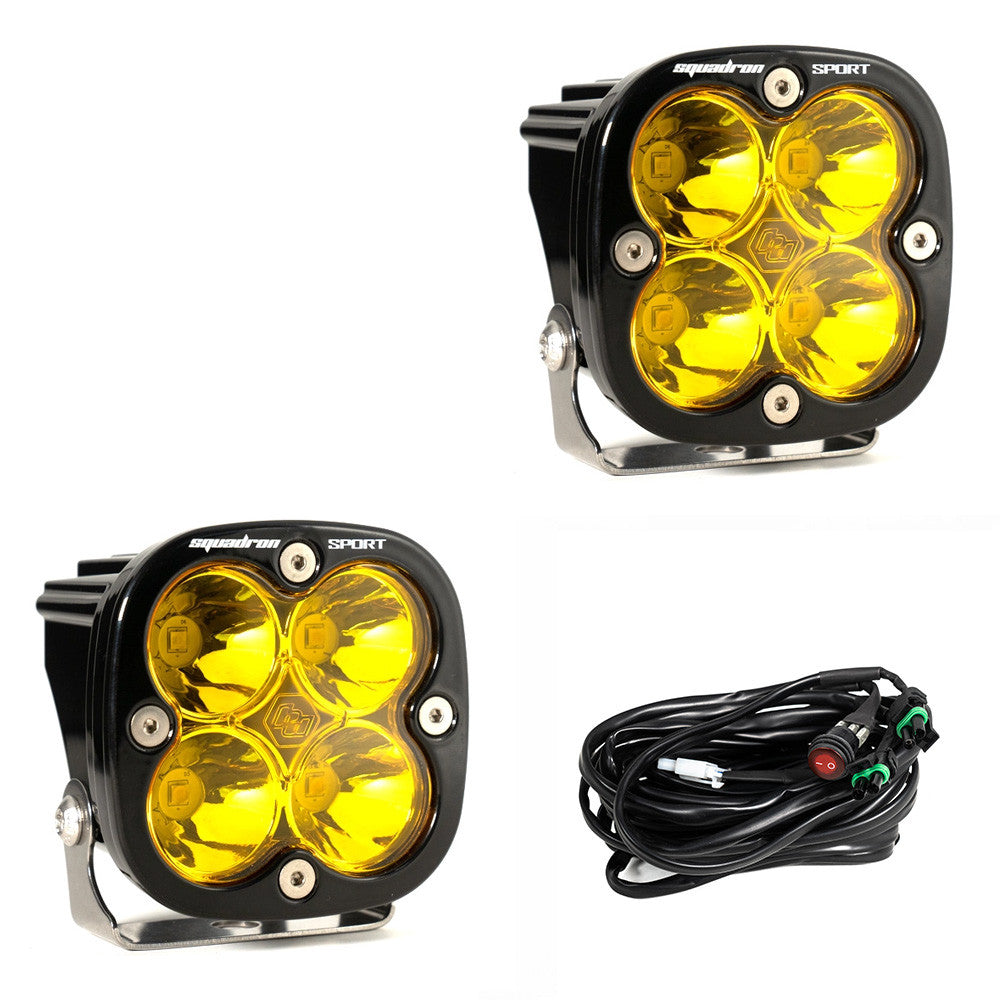

- Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
- Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
