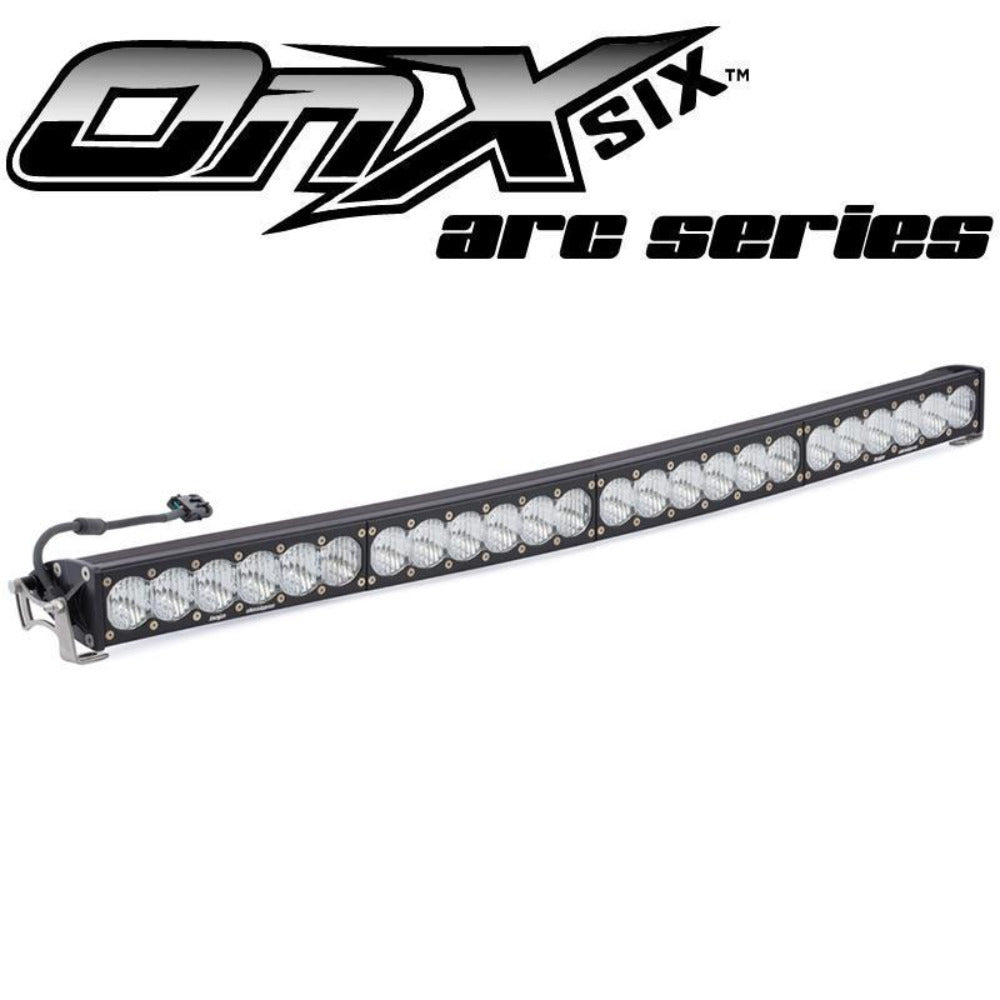

OnX6+ Arc Series LED Light Bar Lighting Baja Designs 40" High Speed Spot Display
OnX6+ Arc Series LED Light Bar Lighting Baja Designs 50" High Speed Spot Display
OnX6+ Arc Series LED Light Bar Lighting Baja Designs Display
OnX6+ Arc Series LED Light Bar Lighting Baja Designs Display

Baja Designs

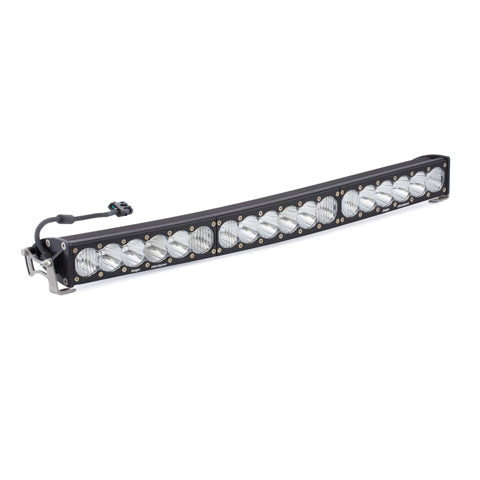

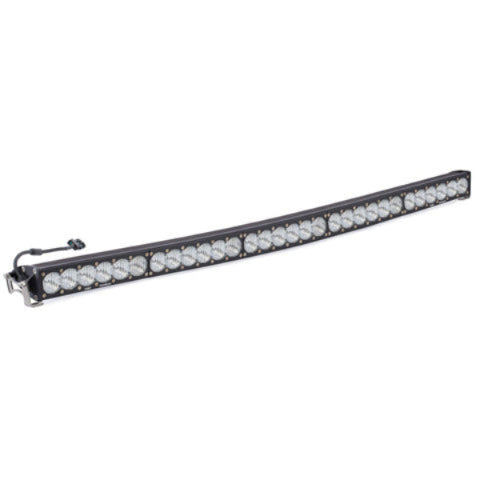

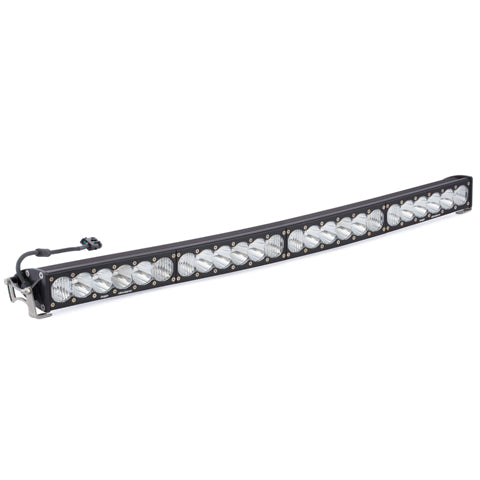

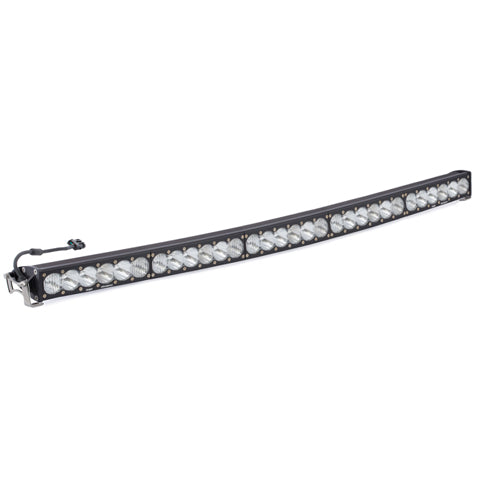

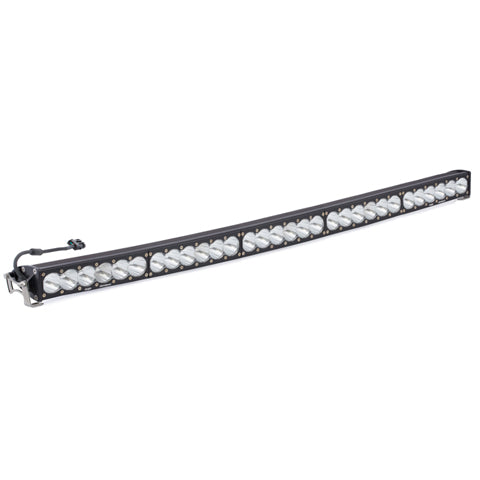

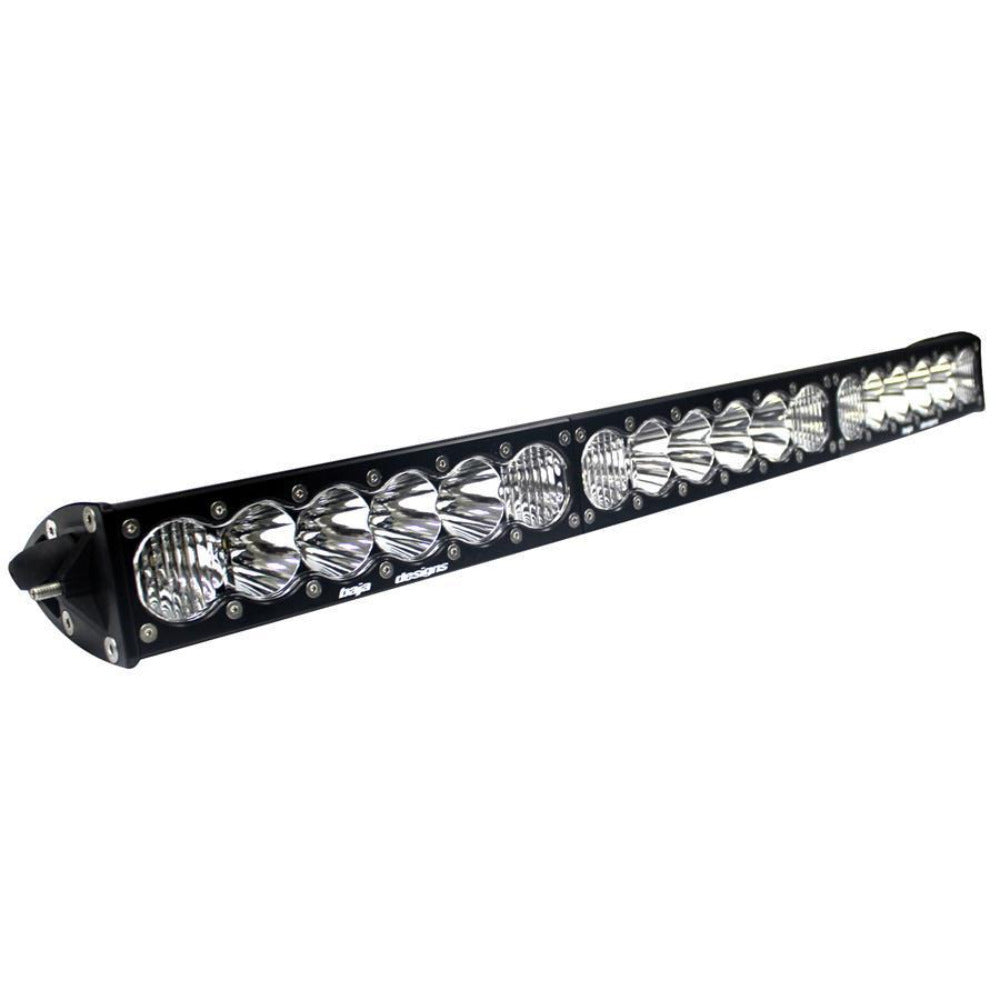

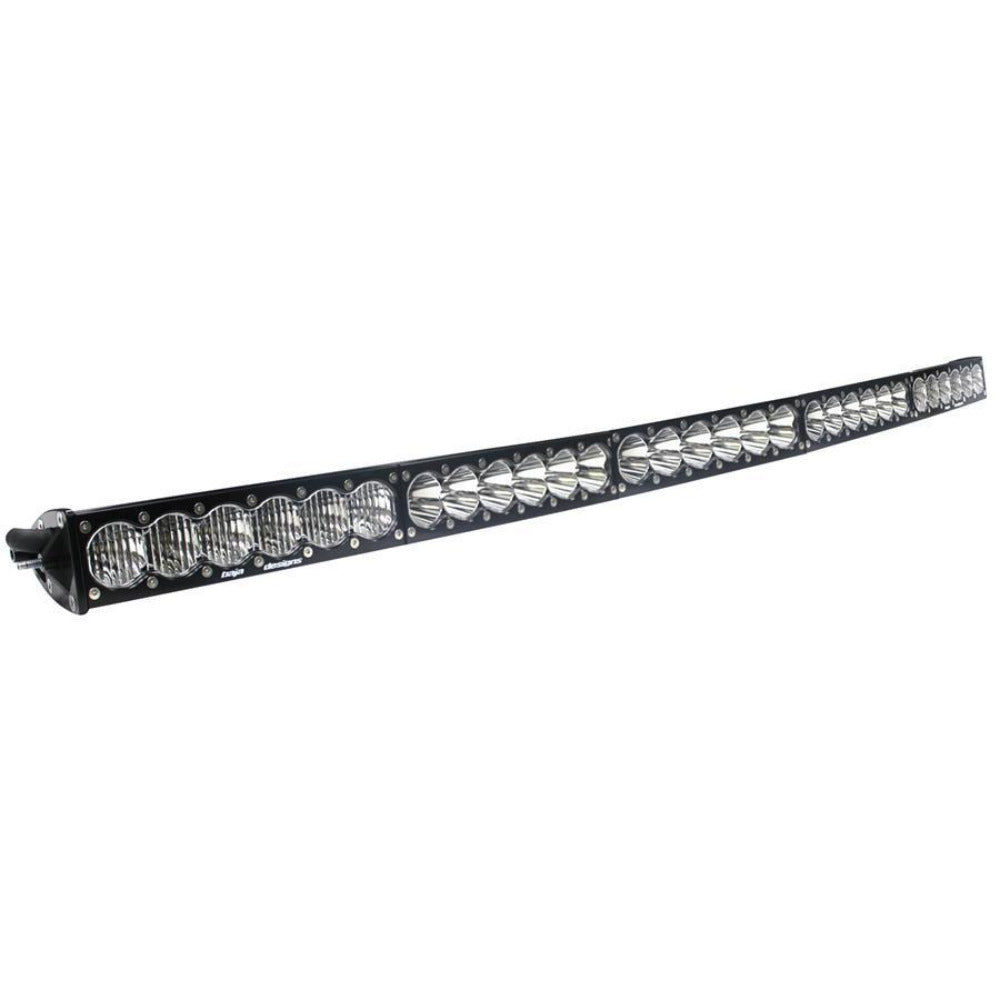

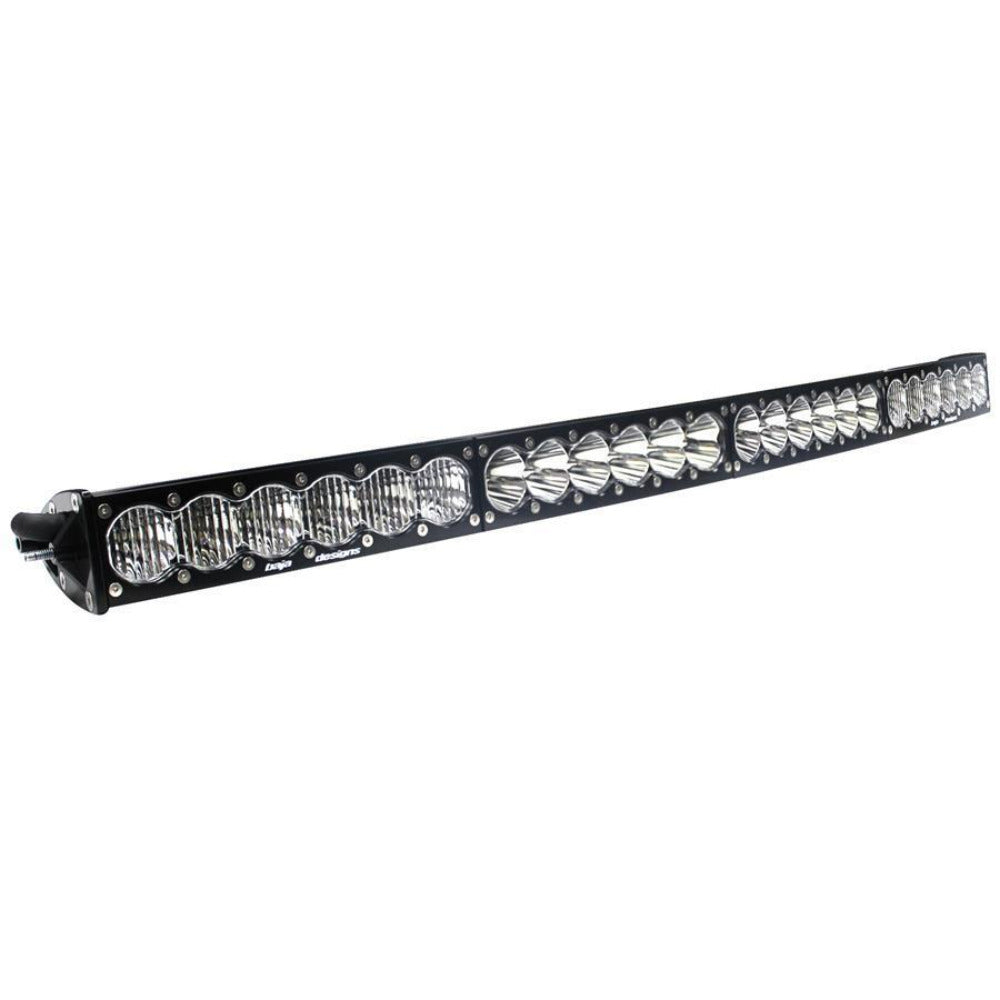

OnX6+ Arc Series LED Light Bar

$1,750.95
SKU: BAJA-524001
Bar Length:

Bar Length
Beam Pattern:

Beam Pattern
Quantity:

OnX6+ Arc Series LED Light Bar

40" / High Speed Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
THE PERFECT MIX OF AESTHETICS AND PERFORMANCE:

The OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 39,220 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

WHAT'S INCLUDED:
  • OnX6+ Arc 40-50” LED Light Bar
  • Mounting Brackets
SPECS:
Bar Length (in.) Lumens Wattage/Amps
40" (High) 39,220 (Low) 32,760 Utilizing 18 Cree LEDs (High) 340W / 26.8A (Low) 284W / 22.4A
50" 39,910 346W / 28.2A


  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
TECH NOTES:
  • Please note that this light does NOT include a harness and the applicable harness to this light is 640119
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance.
  • Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
