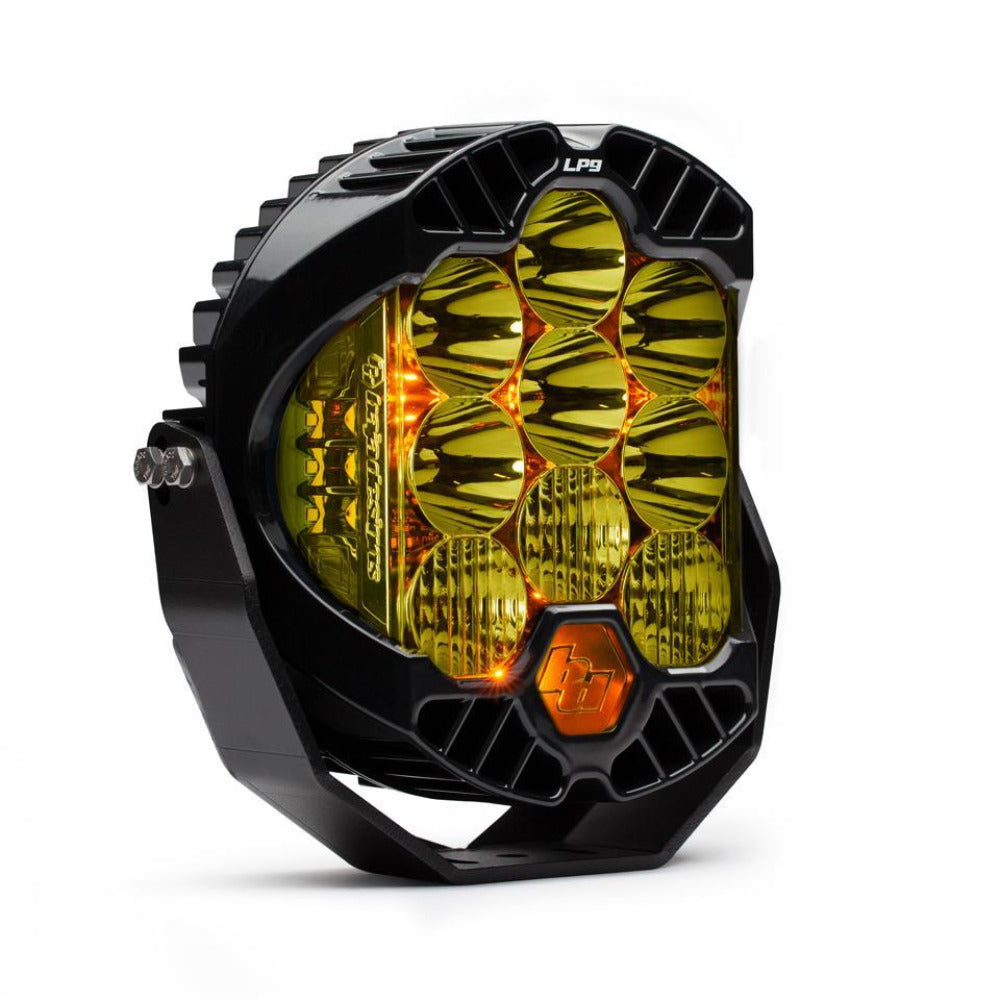

LP9 Racer Edition LED Light Lighting Baja Designs Amber Display

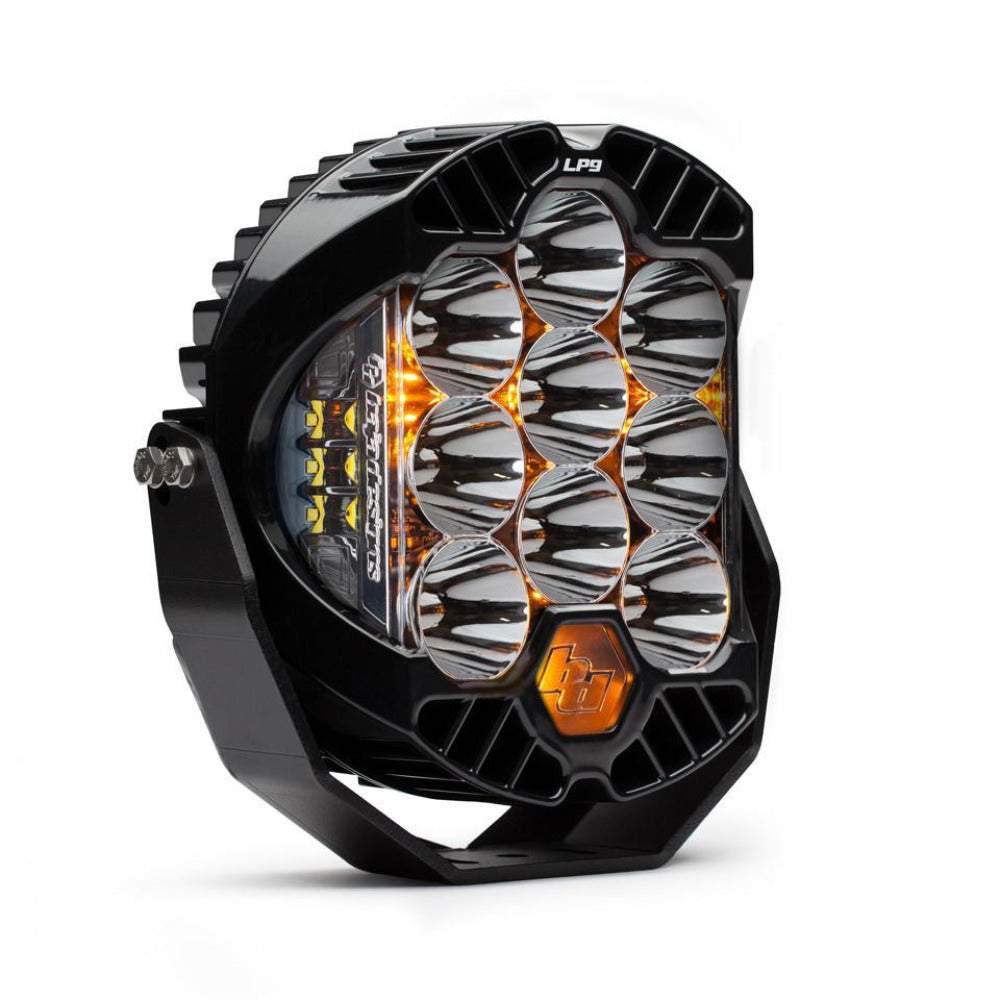

LP9 Racer Edition LED Light Lighting Baja Designs Clear Display

Baja Designs

LP9 Racer Edition LED Light

$669.95
SKU: BAJA-330001
Lense Color:

Lense Color
Quantity:

LP9 Racer Edition LED Light

Clear

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
Baja Designs Lighting Chart

The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances

A modern take on Baja Designs classic 8" La Paz, the LP9 features 9 reflectors plus Integrated Peripheral Technology (IPT), making it ideal for distance as well as near field projection. The Direct Ducted Cooling (DDC) channels air through the front of the light, along the heatsinks, and out the back, allowing for a much cooler running light. A total lumen value of over 12,000 lumens per light - this light is a powerhouse with a full size form factor and next generation styling. Available as a standard LP9, suitable for most off-road applications, as well as a Racer Edition configuration for high speed use - when a tighter, farther reaching pattern is needed.

Functions include: Amber Backlit DRL, Low Power Mode, and High Power Mode.

Baja Designs Features:
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
  • Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
  • Forward Projecting Wattage/Amps:  105W / 7.6A
  • IPT Lumens: 2,280 Utilizing 6 LEDs
  • IPT Wattage/Amps: 21W / 1.52A
  • Dimensions: 8" Diameter/ 3.25" Depth
  • Weight: 6.5lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens:  Hardcoated Polycarbonate
  • Housing:  Hard Anodized Machined Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

PATTERNS:

  • Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
