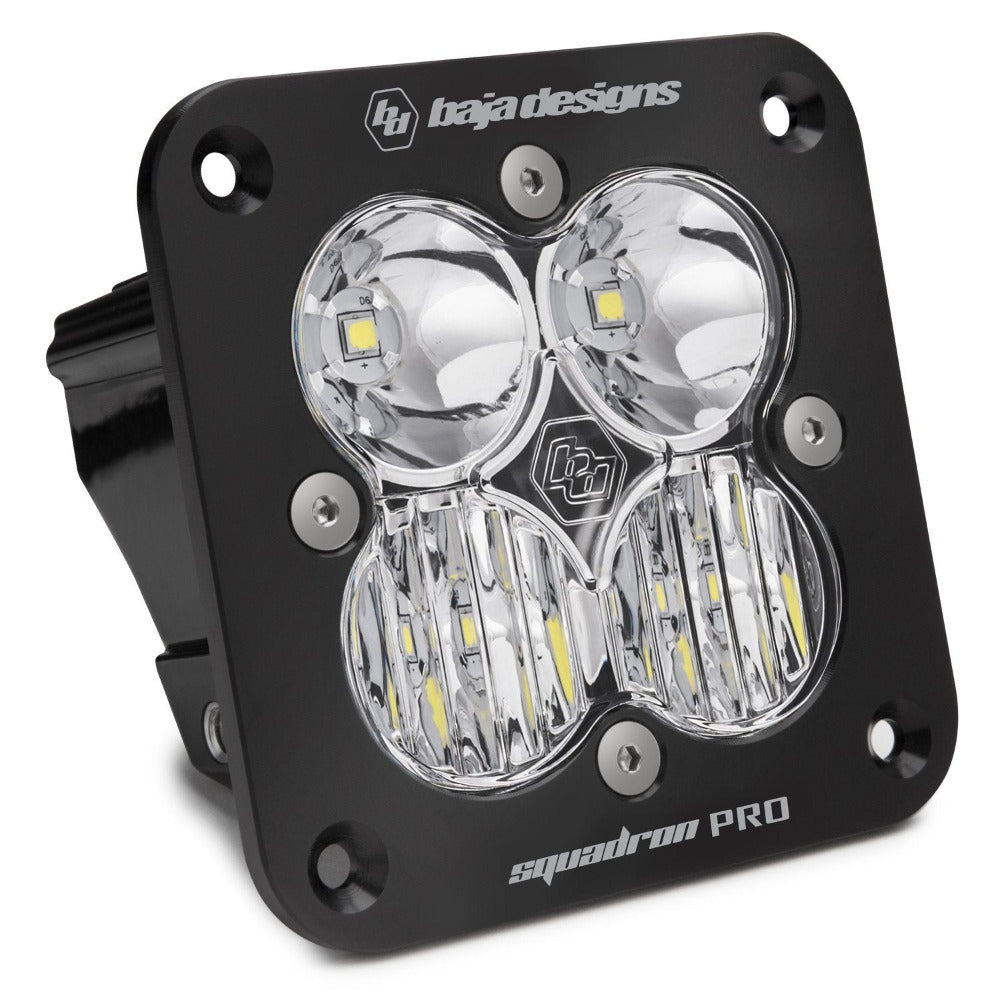

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Clear Driving/Combo Display

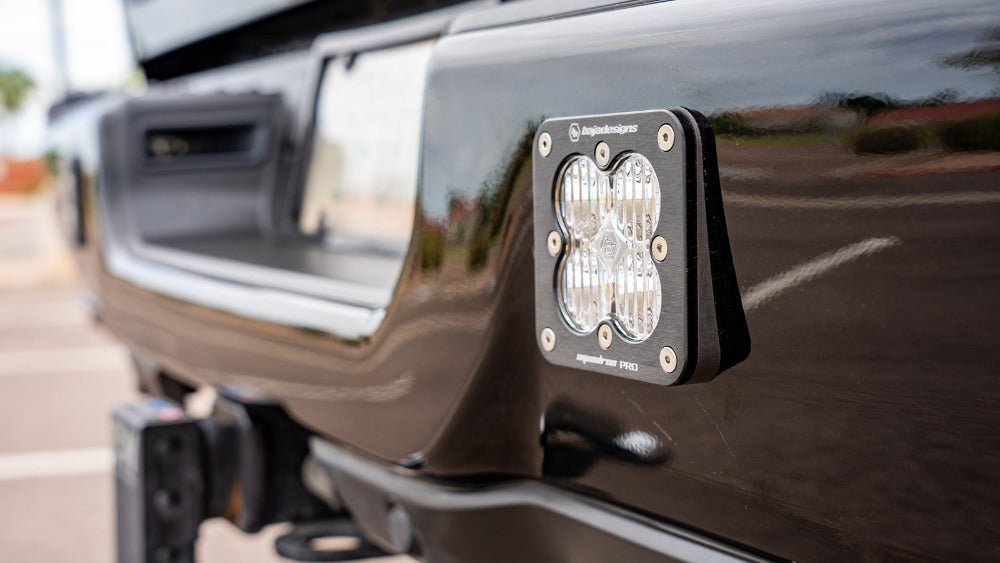

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Clear Close-up Display
Squadron Pro Series Flush Mount LED Lighting Baja Designs White Clear Wide Cornering Display

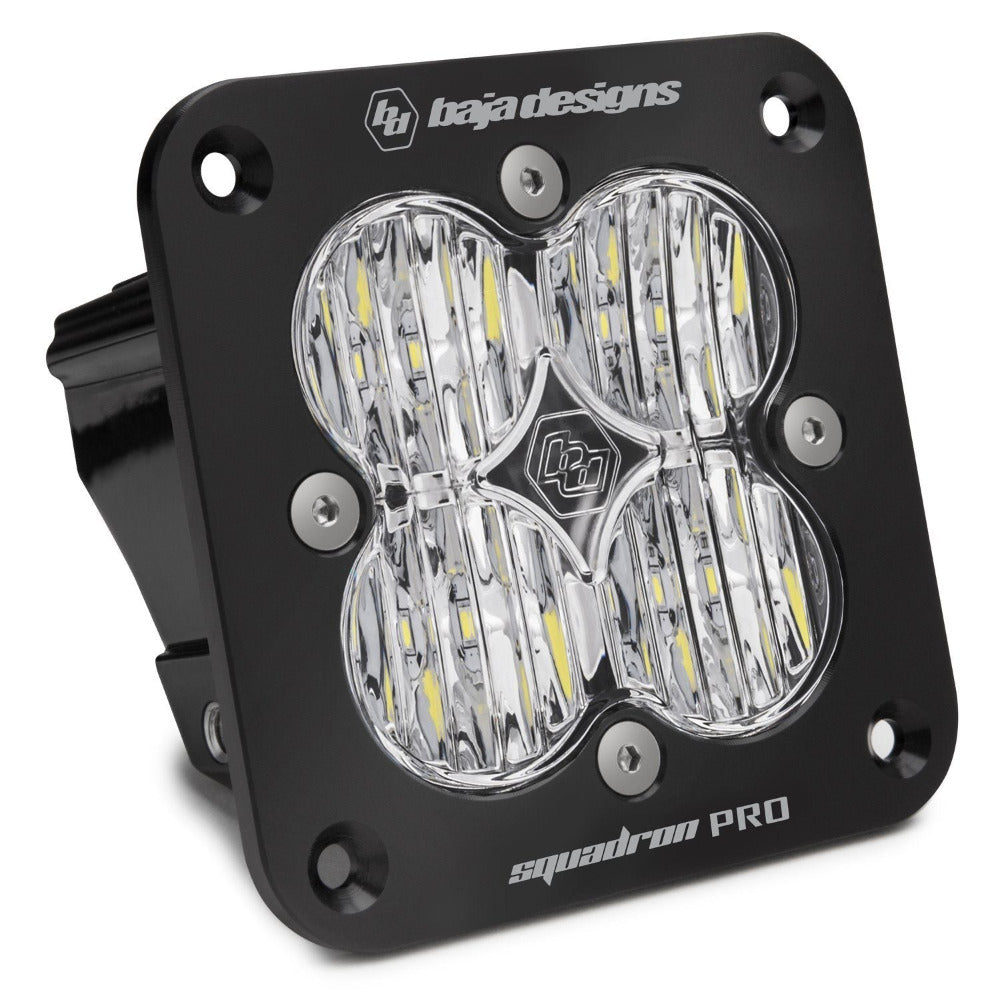

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Clear Wide Cornering Display

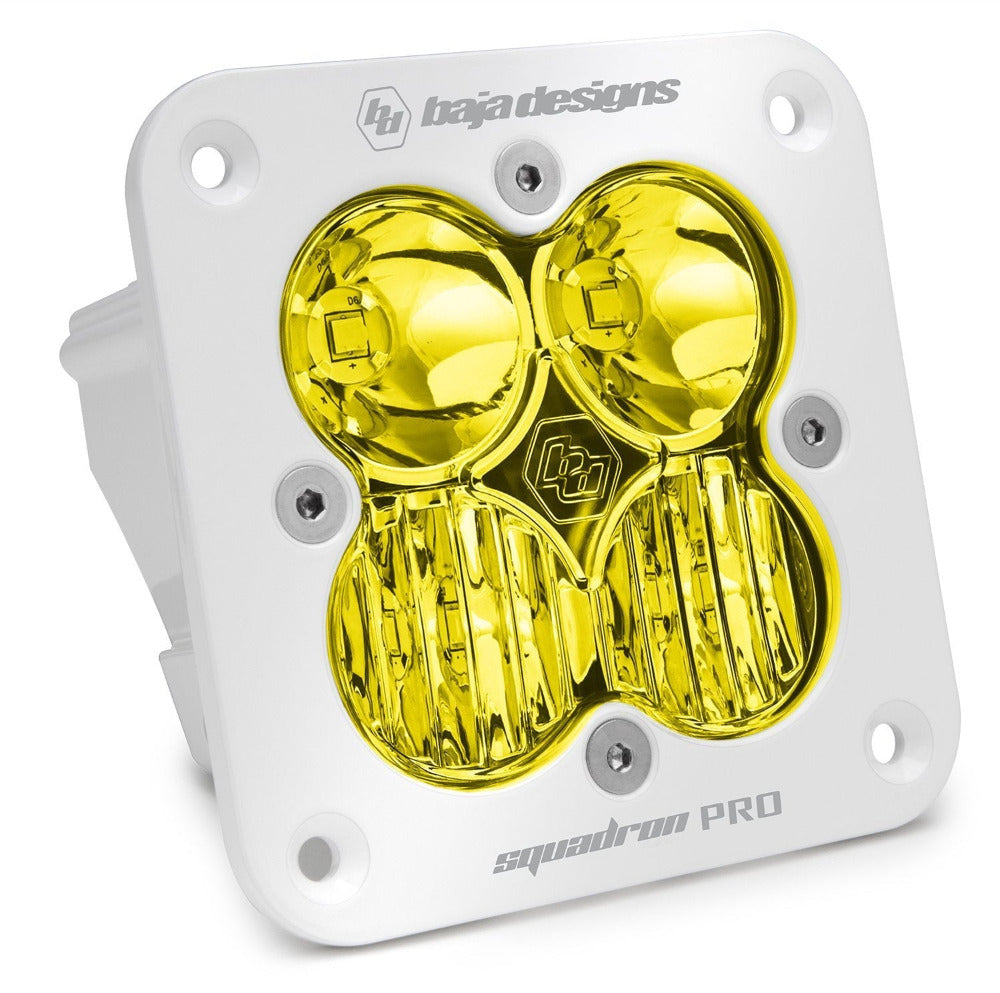

Squadron Pro Series Flush Mount LED Lighting Baja Designs White Amber Driving/Combo Display

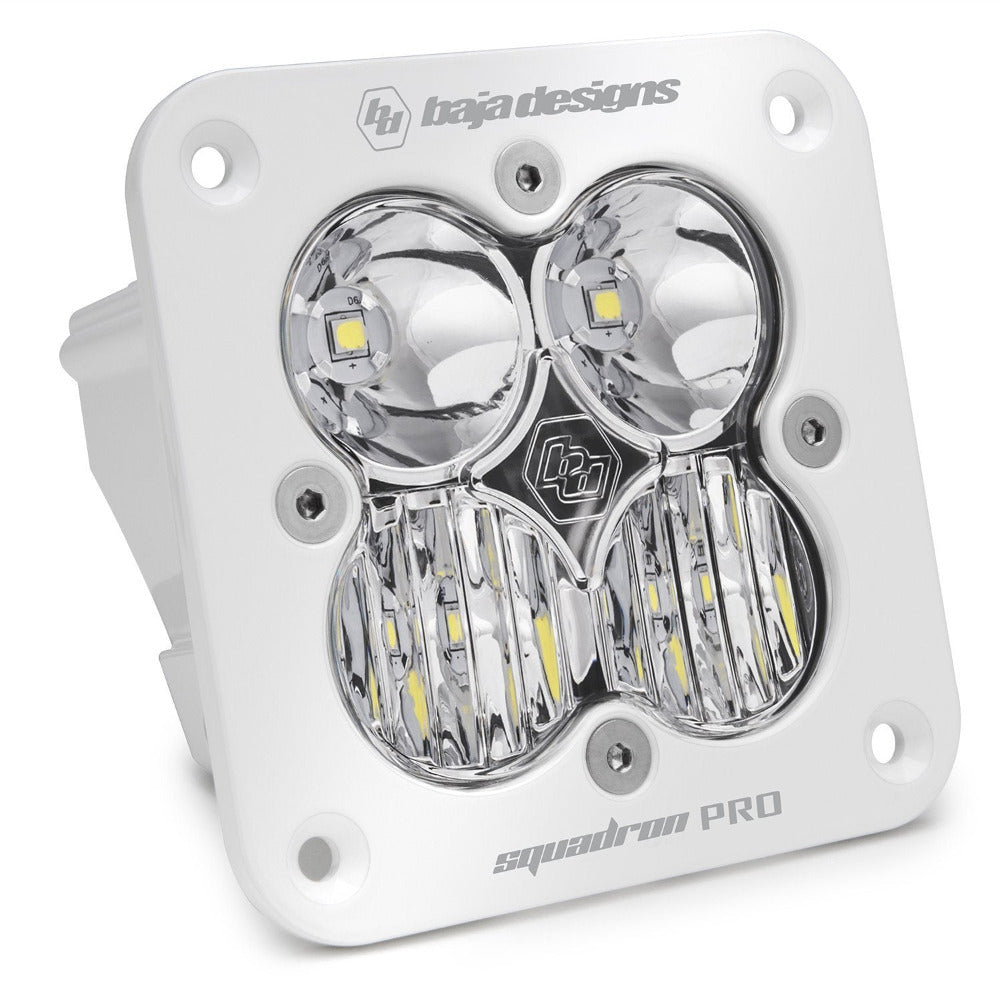

Squadron Pro Series Flush Mount LED Lighting Baja Designs White Clear Driving/Combo Display

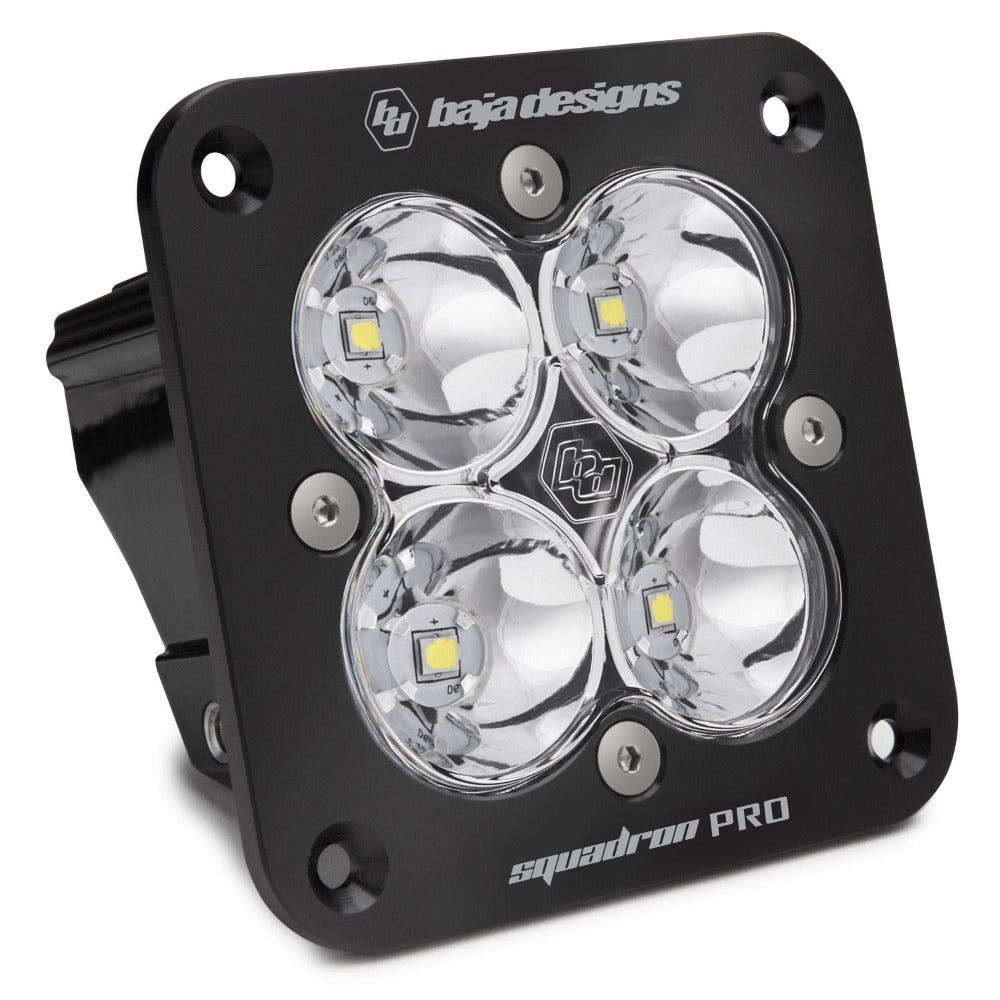

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Clear Spot Display

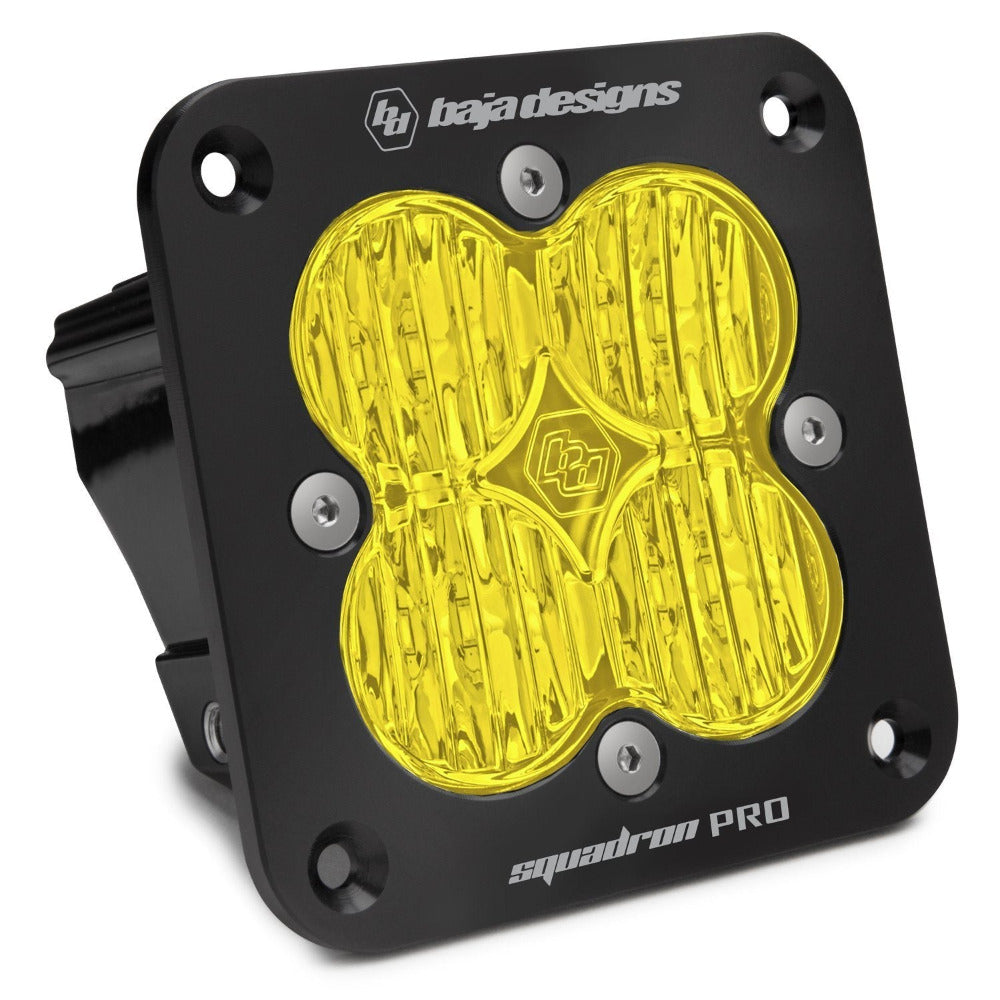

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Amber Wide Cornering Display
Squadron Pro Series Flush Mount LED Lighting Baja Designs Display

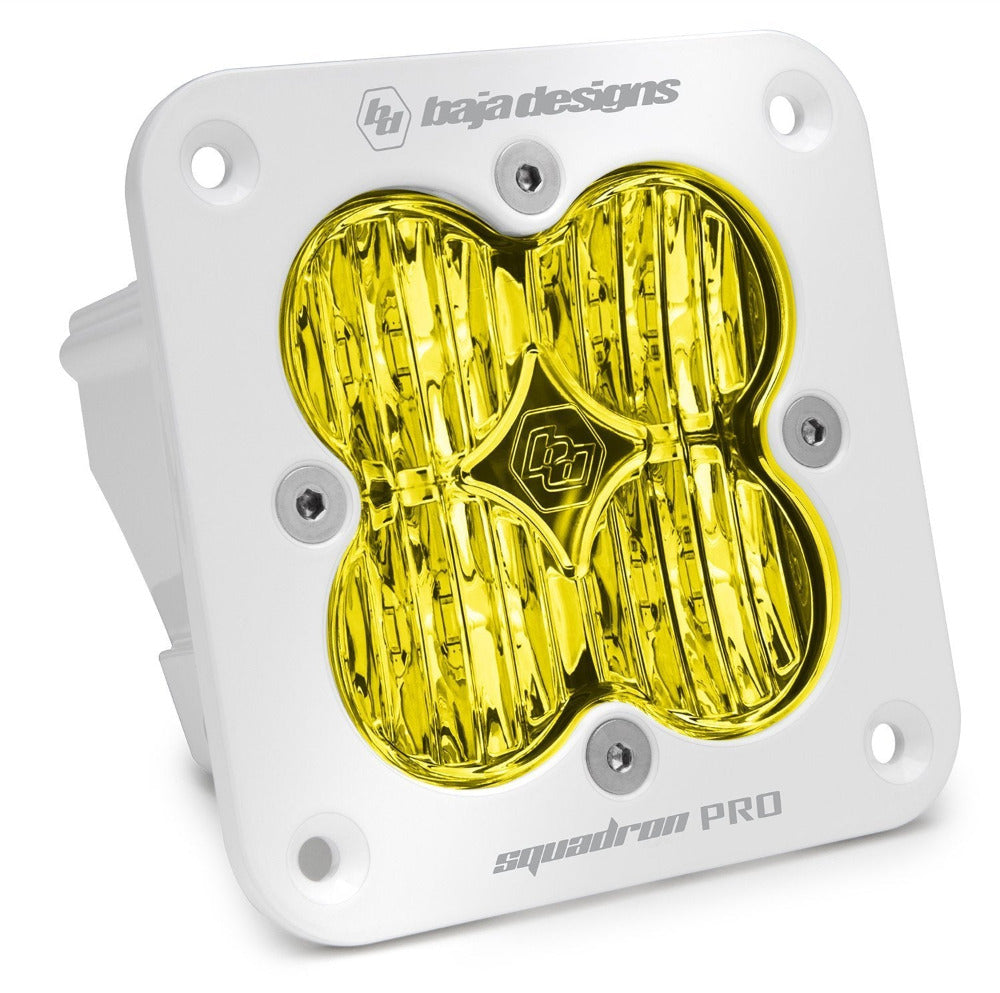

Squadron Pro Series Flush Mount LED Lighting Baja Designs White Amber Wide Cornering Display

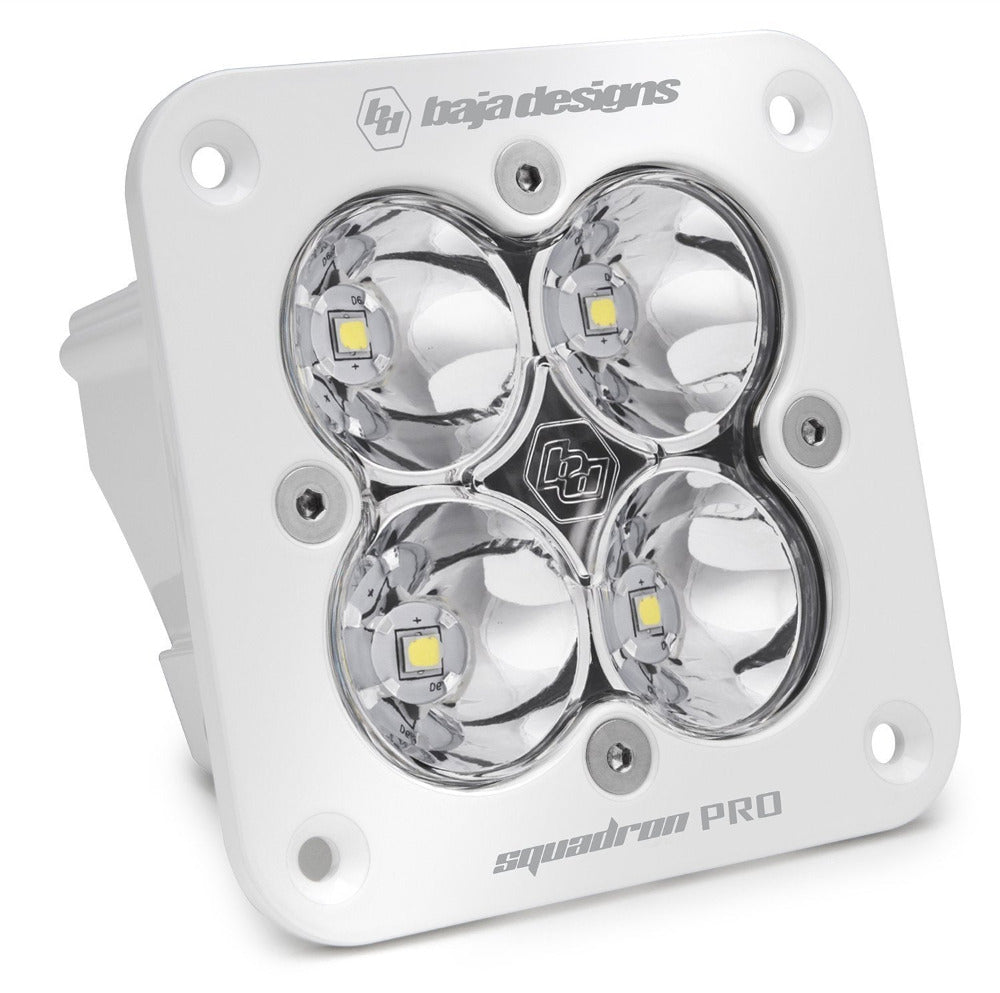

Squadron Pro Series Flush Mount LED Lighting Baja Designs White Clear Spot Display
Squadron Pro Series Flush Mount LED Lighting Baja Designs Display

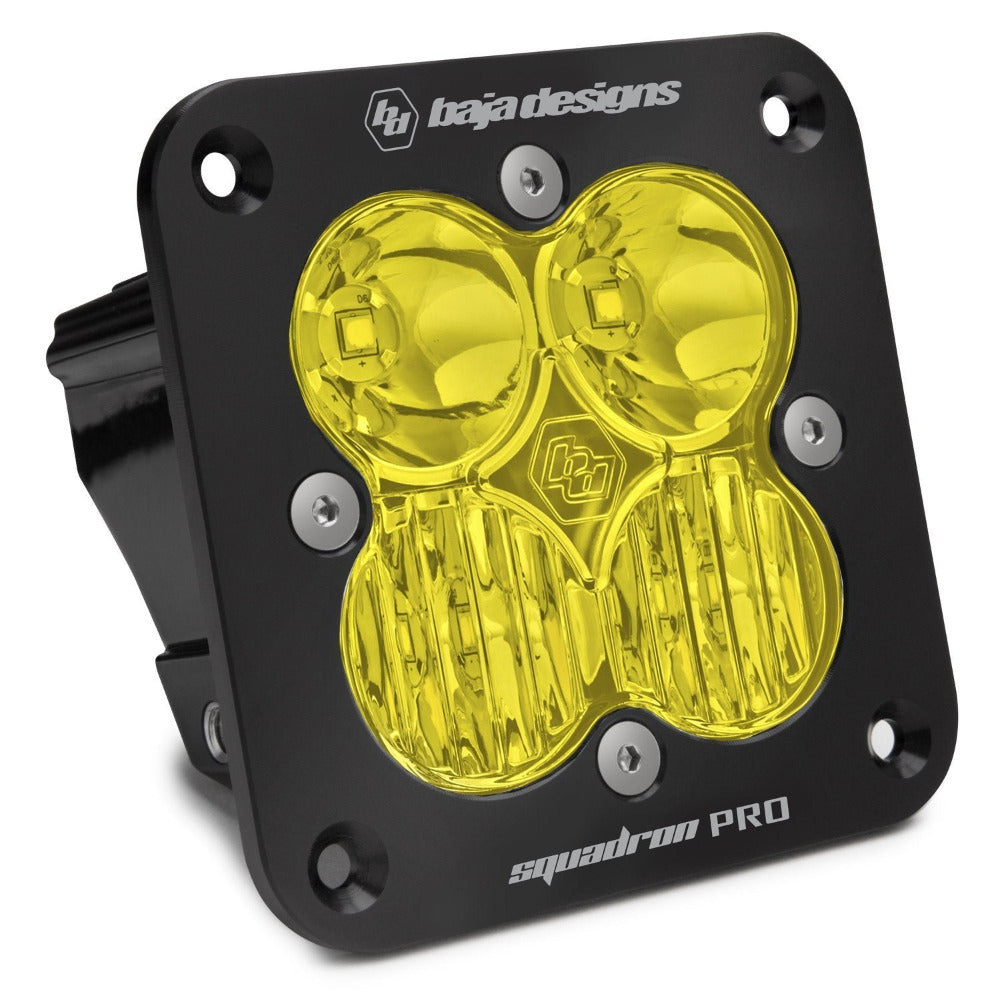

Squadron Pro Series Flush Mount LED Lighting Baja Designs Black Amber Driving/Combo Display

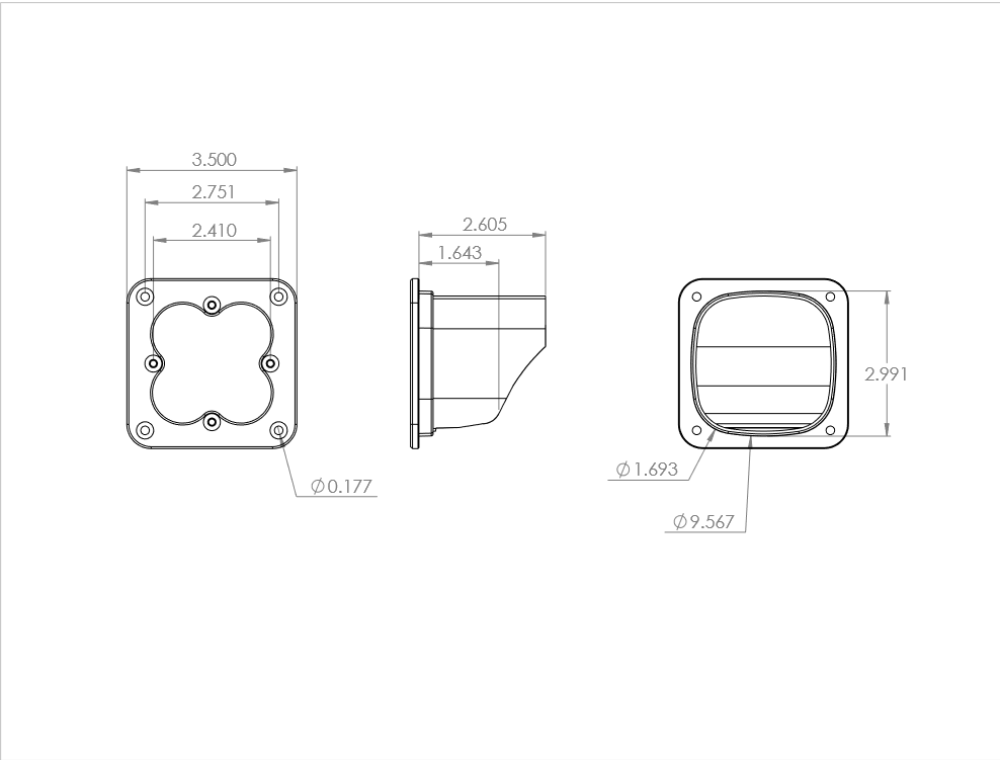

Squadron Pro Series Flush Mount LED Lighting Baja Designs Diagram of Measurements

Baja Designs

Squadron Pro Series LED Light Flush Mount

$236.95
SKU: BAJA-491001
Case Color:

Case Color
Lense Color:

Lense Color
Beam Pattern:

Beam Pattern
Quantity:

Squadron Pro Series LED Light Flush Mount

Black / Clear / Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
POWERFUL IN A COMPACT SIZE:

Baja Design's Squadron® Pro packs 4,900 Lumens at 40 watts that will truly annihilate the night. Don’t let this light fool you, although compact in size this LED auxiliary light will literally blind you with brightness. The Pro comes equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance.

WHAT'S INCLUDED:
  • Squadron® Pro Flush Mount LED Light Amber or Clear Lenses offered
  • Mounting Bracket
SPECS
  • Lumens: 4,900 Utilizing 4 Cree LEDs
  • Wattage/Amps: 40W / 2.90A
  • Dimensions: 3.50" x 2.77" x 3.50"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
  • Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
