Baja Designs

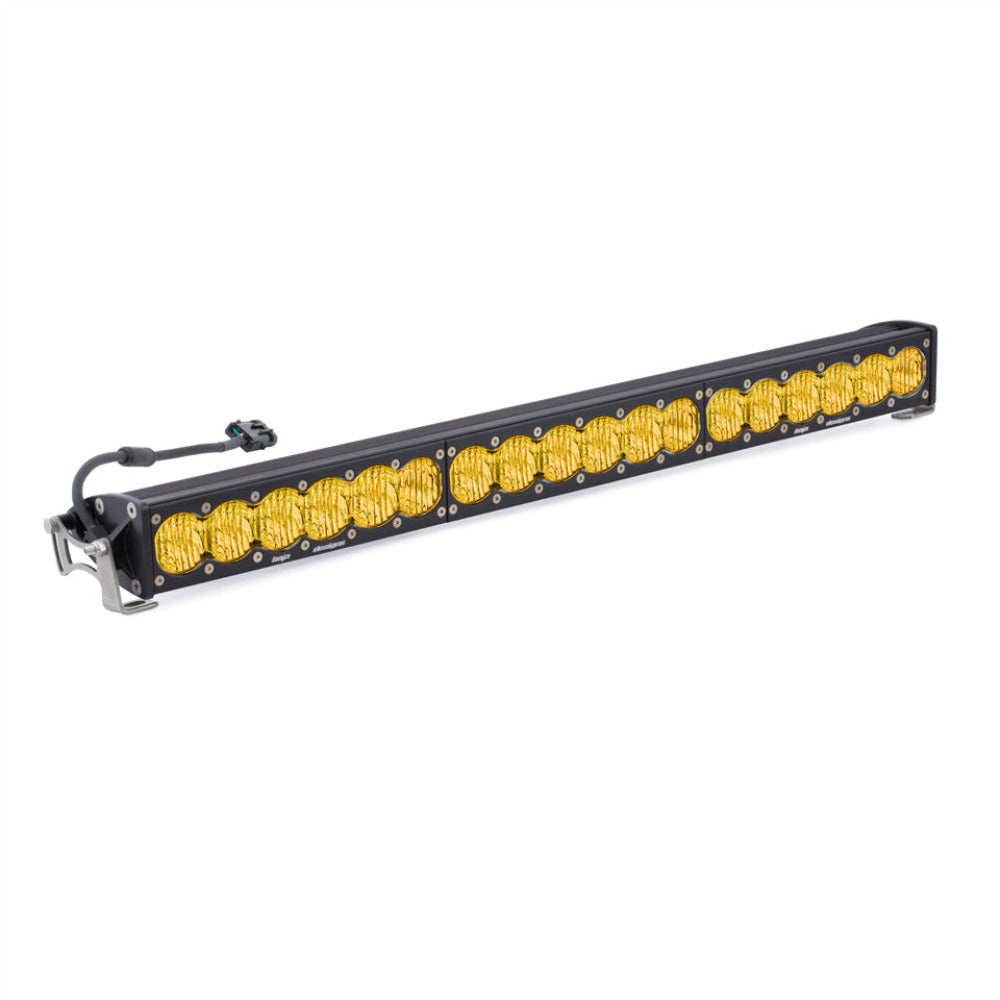

Baja Designs 30" OnX6+ LED Light Bar
Beam Pattern
Baja Designs 30" OnX6+ LED Light Bar
Spot
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
FURTHEST PROJECTING LIGHT ON THE PLANET:
At an impressive 31,910 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.
In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.
WHAT'S INCLUDED:
- OnX6+ 30” LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
BATTERY MANAGEMENT TECHNOLOGY:
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
SPECS:
- Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
- Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A

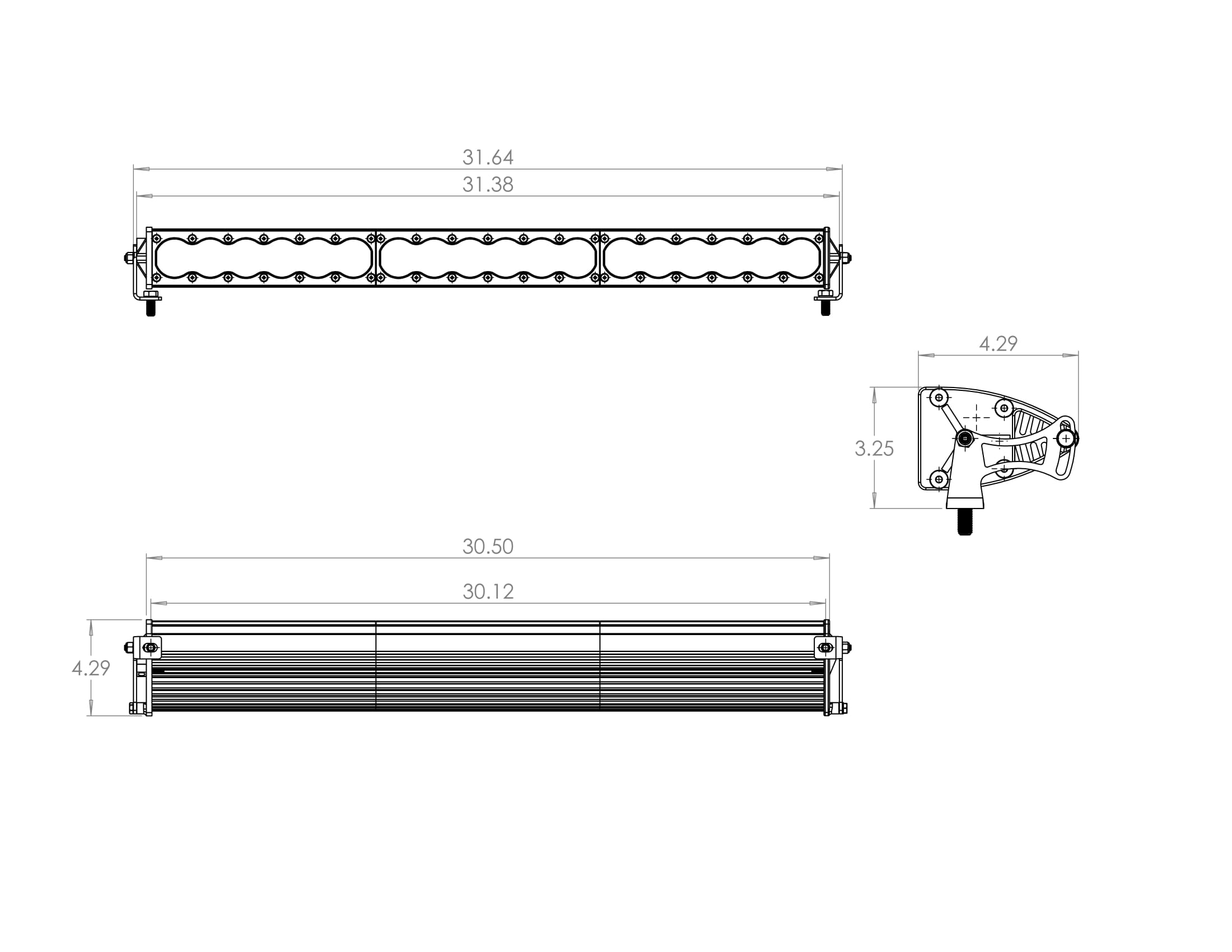

- Dimensions: 30" x 4.29" x 2.69"
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
