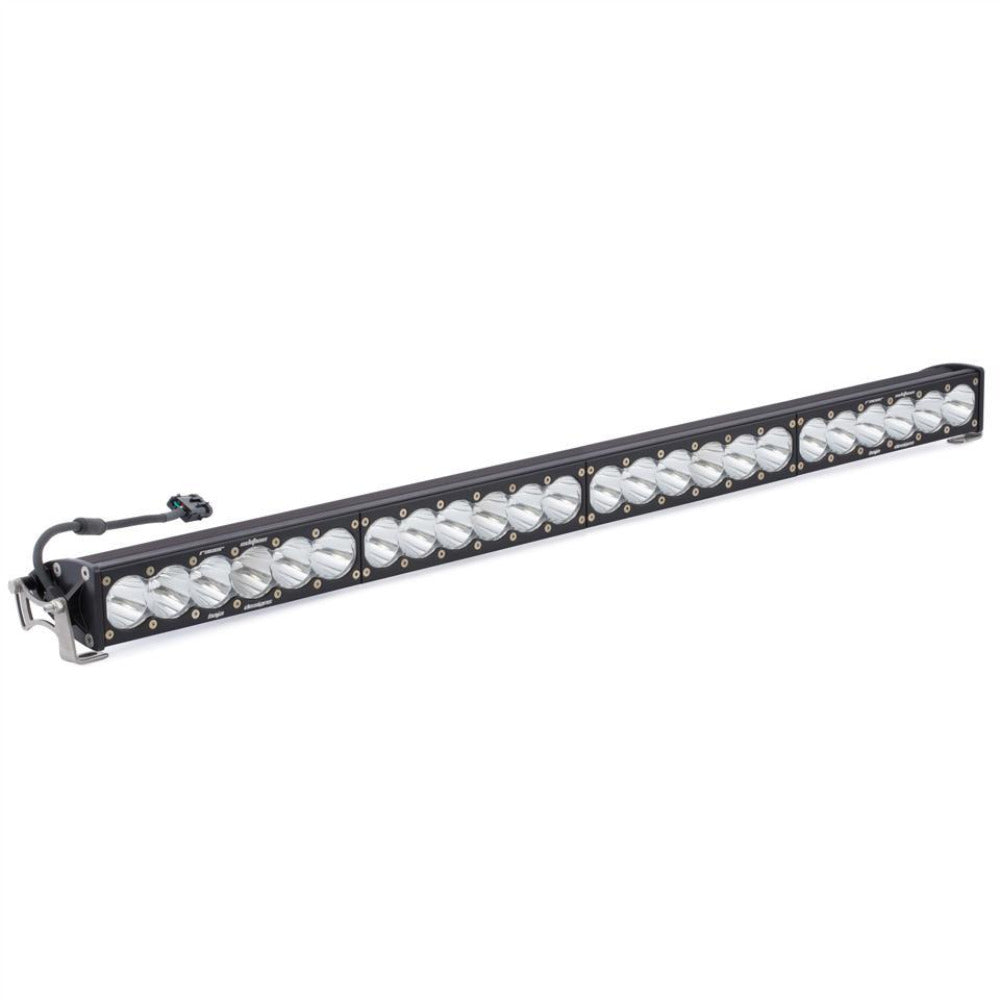

40" OnX6+ LED Light Bar Lighting Baja Designs Spot display

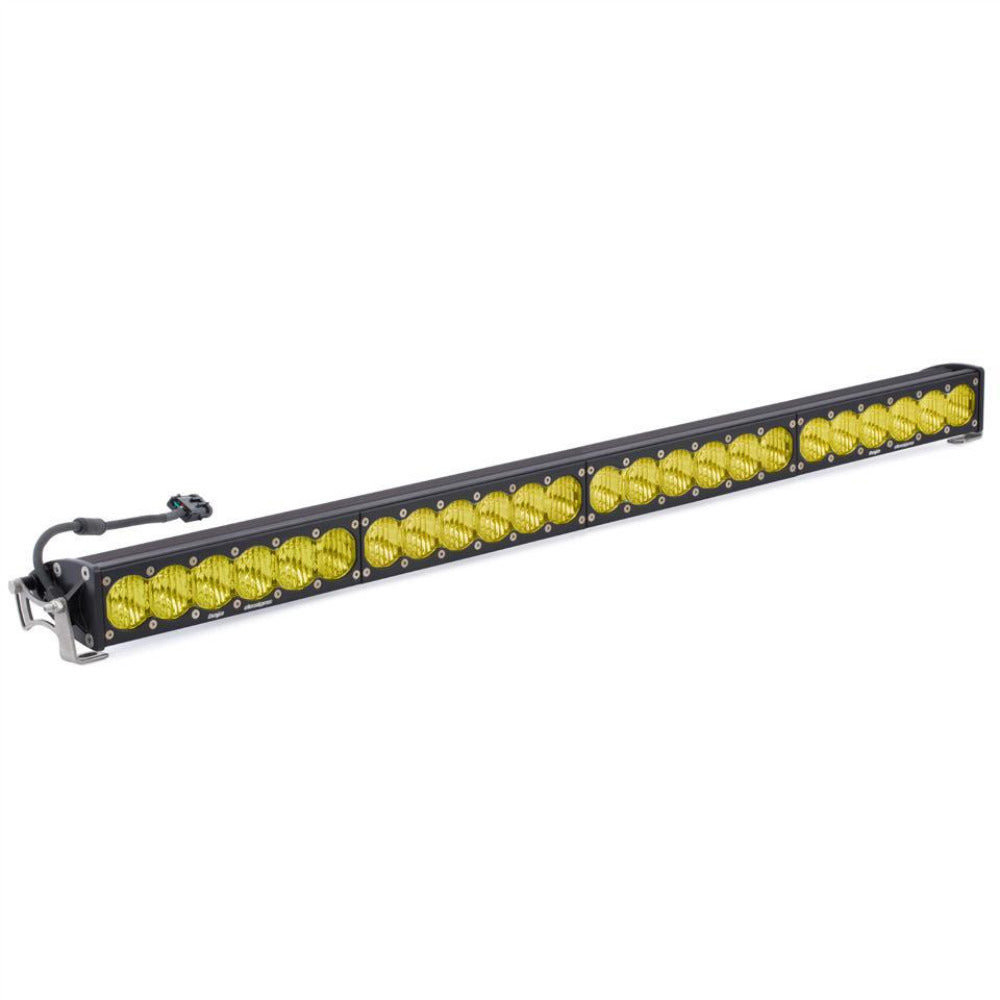

40" OnX6+ LED Light Bar Lighting Baja Designs AMBER Wide Driving display

Baja Designs

Baja Designs - 40" OnX6+ LED Light Bar

$1,441.95
SKU: BAJA-454001
Beam Pattern:

Beam Pattern
Quantity:

Baja Designs - 40" OnX6+ LED Light Bar

Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
FURTHEST PROJECTING LIGHT BAR ON THE PLANET:

Baja Designs' OnX6+ LED light bar integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.

WHAT'S INCLUDED:
  • OnX6+ 40” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle
SPECS:
  • Lumens: (High) 38,900  (Low) 32,440 Utilizing 24 Cree LEDs
  • Wattage/Amps: (High) 346W / 26.8A (Low) 290W / 22.4A
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
BATTERY MANAGEMENT TECHNOLOGY:
  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance
  • Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
TECH NOTES:
  • Please note that this light does NOT include a harness and the applicable harness to this light is 640119
