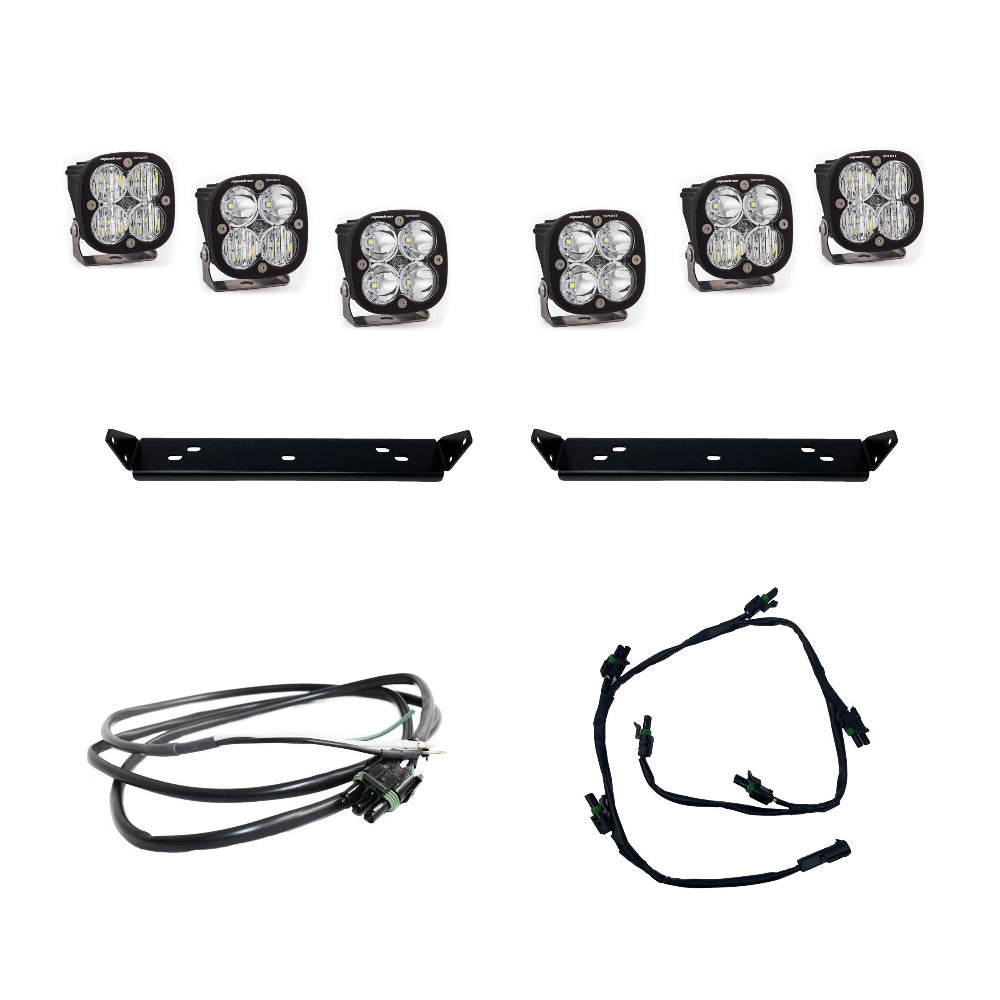

'21-22 Ford Raptor Baja Designs Squadron Series Behind the Grille Kit Display of Included Parts
'21-22 Ford Raptor Baja Designs Squadron Series Behind the Grille Kit Display of Included Parts

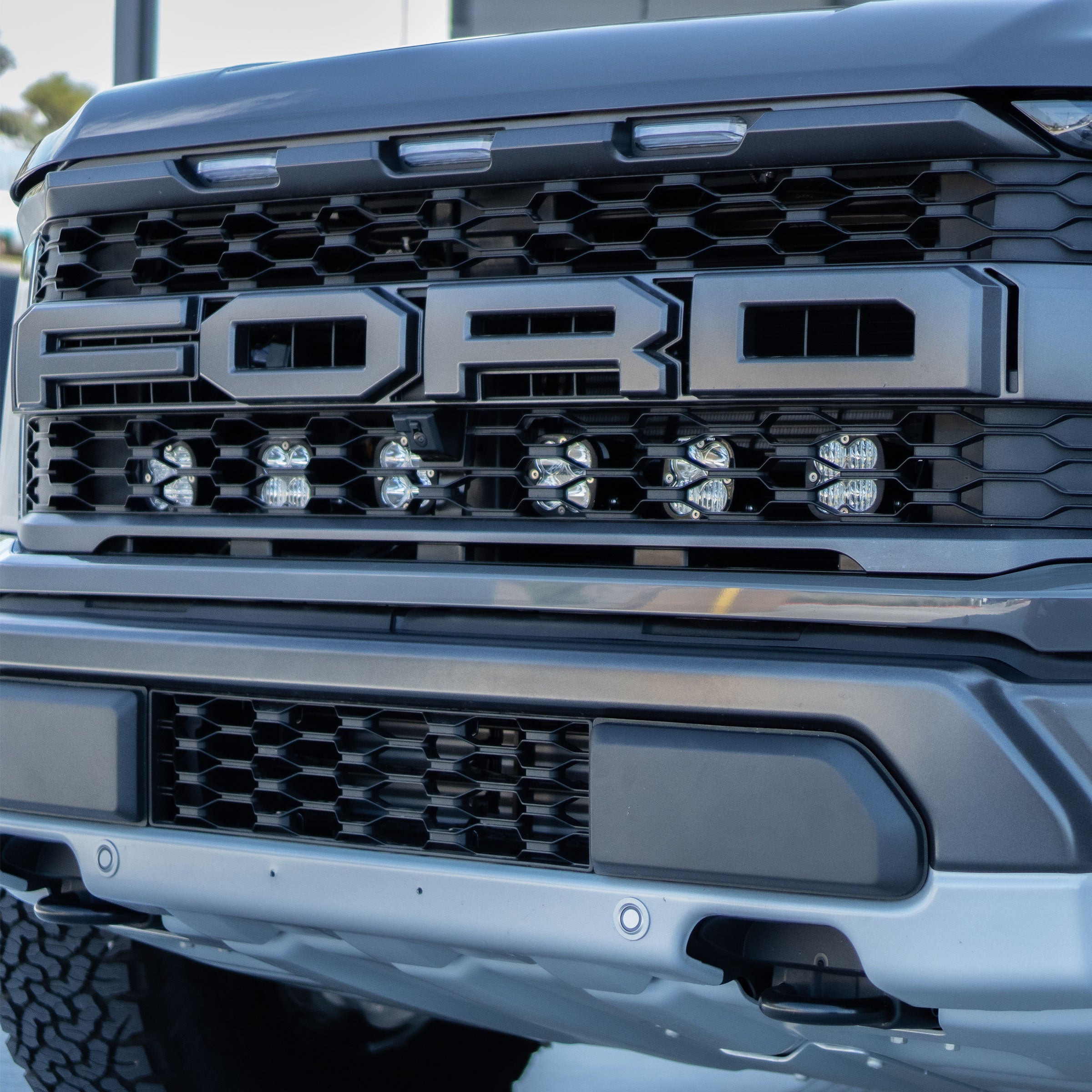

'21-22 Ford Raptor Baja Designs Squadron Series Behind the Grille Kit display on Vehicle

Baja Designs

'21-23 Ford Raptor Baja Designs Squadron Series Behind the Grille Kit

$1,029.95
SKU: BAJA-448061
Squadron Option:

Squadron Option
Quantity:

'21-23 Ford Raptor Baja Designs Squadron Series Behind the Grille Kit

Squadron Sport

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
VISUALLY APPEALING WITH FULL FUNCTIONALITY:

Baja Designs' 2021-2023 Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports or Squadron Pros (see product options), mounting brackets, and hardware. To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

VEHICLE FITMENT:

2021-2022 Ford Raptor

Squadron Pro Specs (Per Light):
  • Lumens: 4,600 Utilizing 2 types of Cree LEDs
  • Wattage/Amps: 40W / 2.90A
  • Dimensions: 3..07" x 2.77" x 3.07"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)
Squadron Sport Specs (Per Light):
  • Lumens: 3,150 Utilizing 4LEDs
  • Wattage/Amps: 26W / 2A
  • Dimensions: 3.07" x 2.77" x 3.07"
  • LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)
WHAT'S INCLUDED:
  • x2 Squadron Sport or Pro in Wide Cornering
  • x2 Squadron Sport or Pro in Driving Combo
  • x2 Squadron Sport or Pro in Spot
  • x1 Upfitter harness
  • x2 Mounting Brackets
  • All necessary hardware
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
