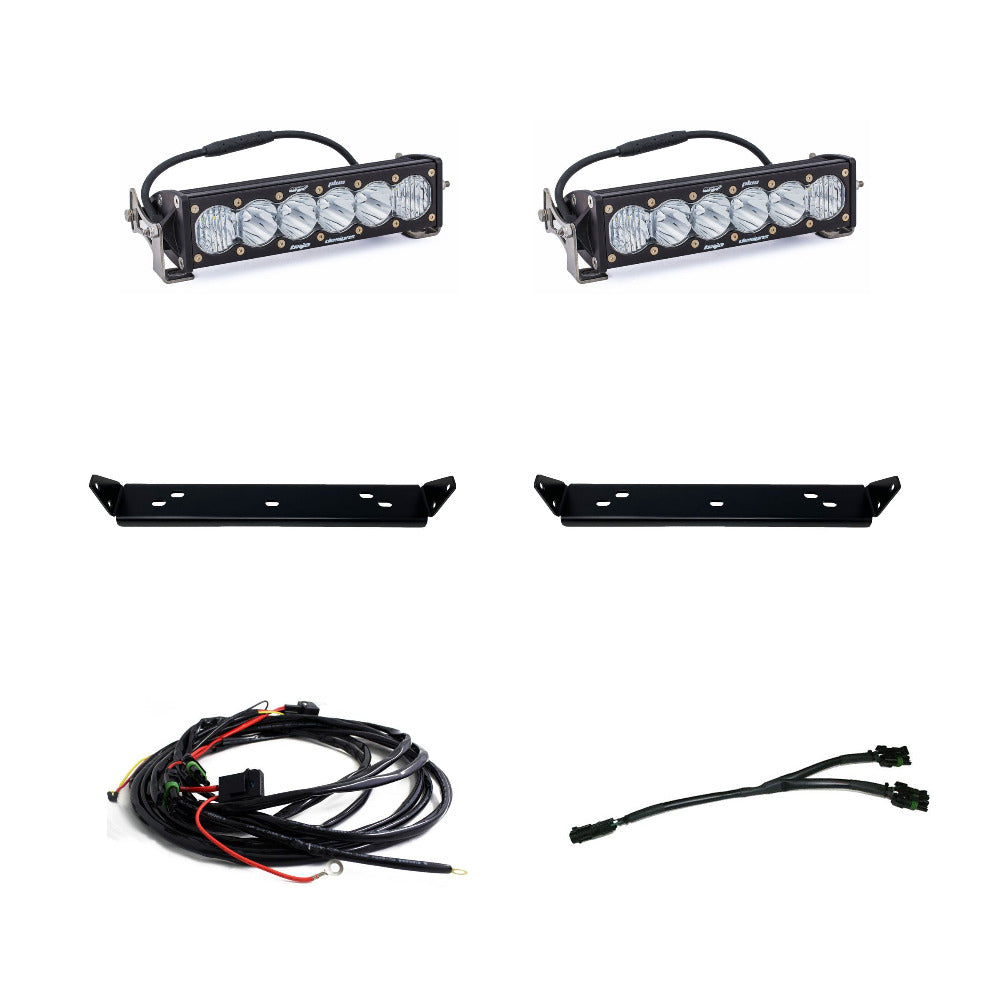

'21-22 Ford Raptor Baja Designs OnX6+ Light Bar Behind the Grille Kit Display of Included Parts

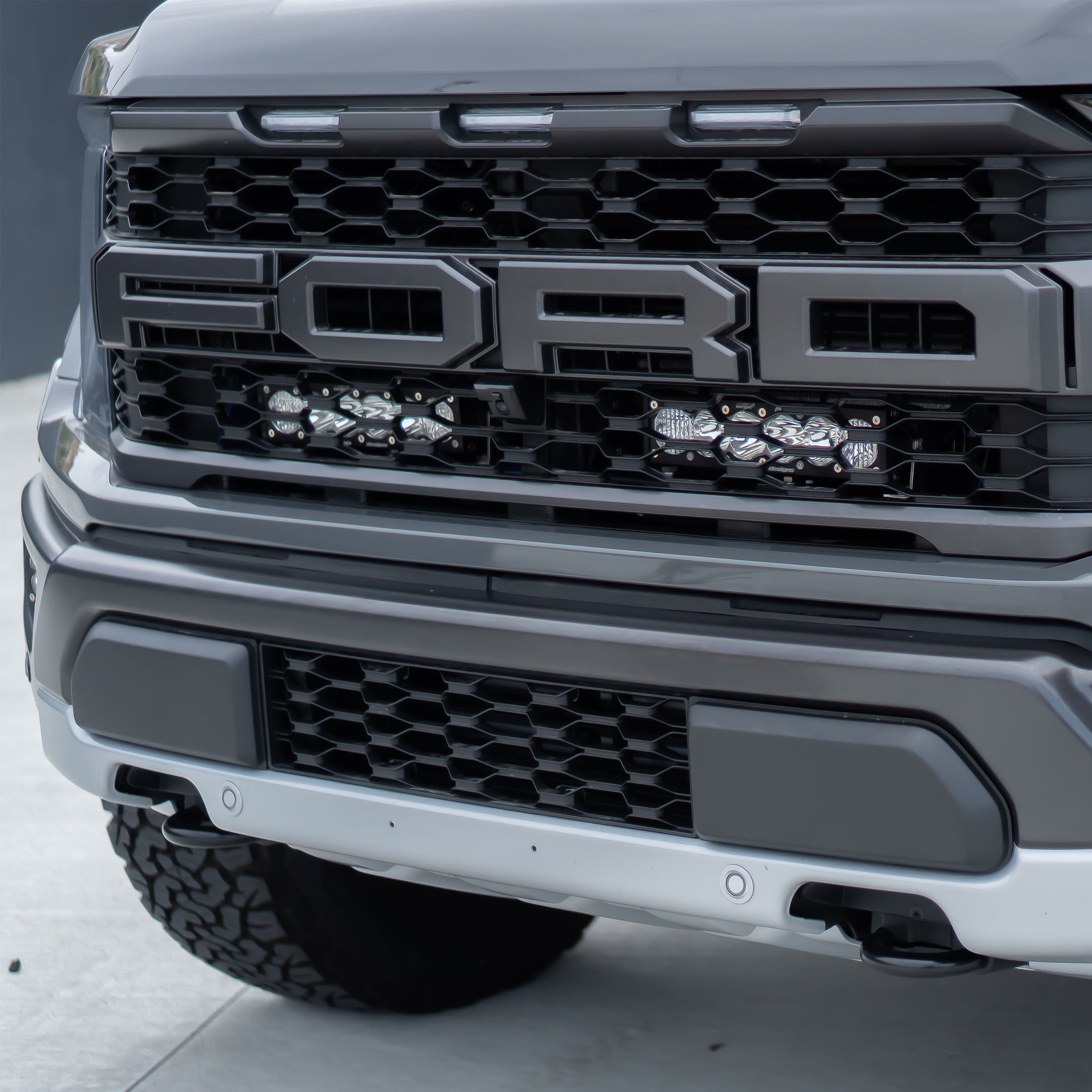

'21-22 Ford Raptor Baja Designs OnX6+ Light Bar Behind the Grille Kit display on Vehicle

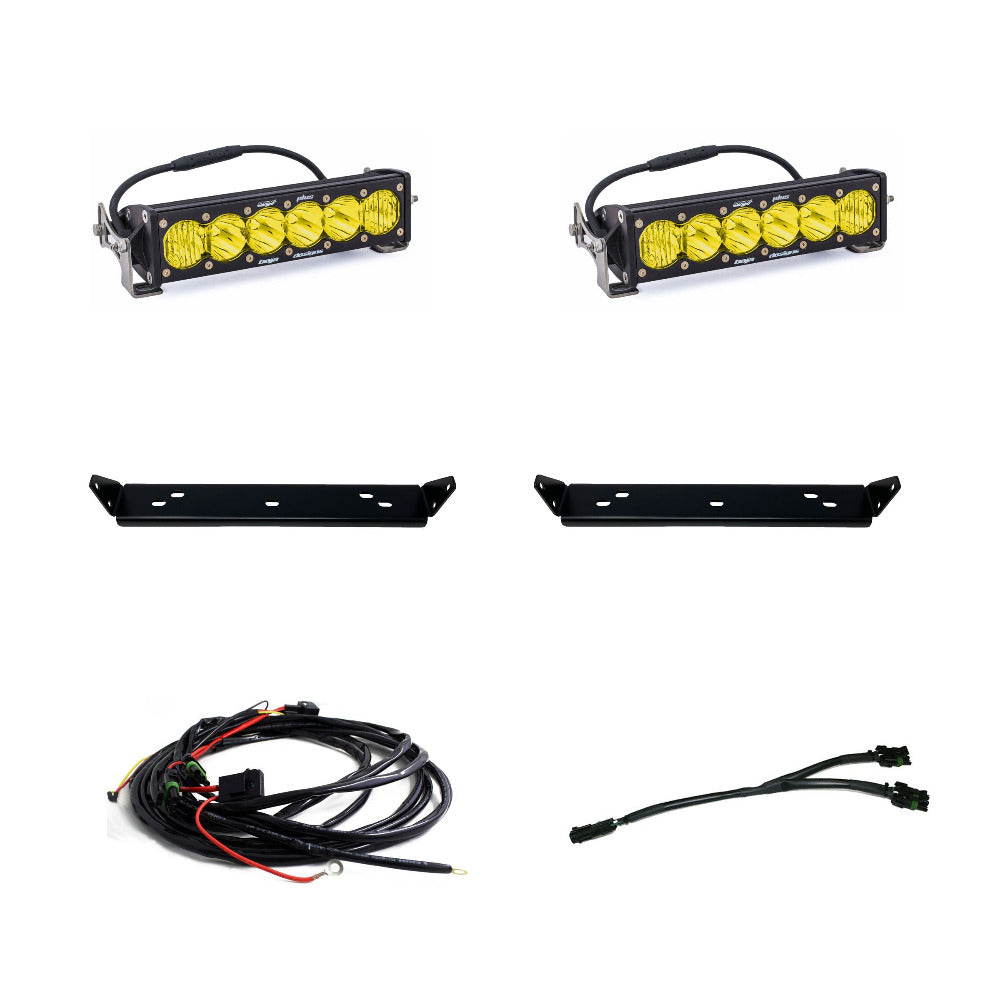

'21-22 Ford Raptor Baja Designs OnX6+ Light Bar Behind the Grille Kit Display of Included Parts

Baja Designs

'21-24 Ford Raptor Baja Designs OnX6+ Light Bar Behind the Grille Kit

$1,194.95
SKU: BAJA-448064
Lens Option:

Lens Option
Quantity:

'21-24 Ford Raptor Baja Designs OnX6+ Light Bar Behind the Grille Kit

Amber Lens

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
BEHIND THE GRILLE KIT:

Baja Designs' 2021-2024 Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers two (Amber or Clear Lens) 10" OnX6+ LED light bars, mounting brackets, and hardware. To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

VEHICLE FITMENT:

2021-2024 Ford Raptor

SPECS:
  • Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
  • Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
  • Dimensions: 10" x 4.29" x 2.69"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
WHAT'S INCLUDED:
  • x2 Amber or clear OnX6+ 10" in Driving Combo (see product options)
  • x1 Wiring Harness
  • x1 Wiring Harness Splitter
  • x2 Mounting Brackets
  • All necessary hardware
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
