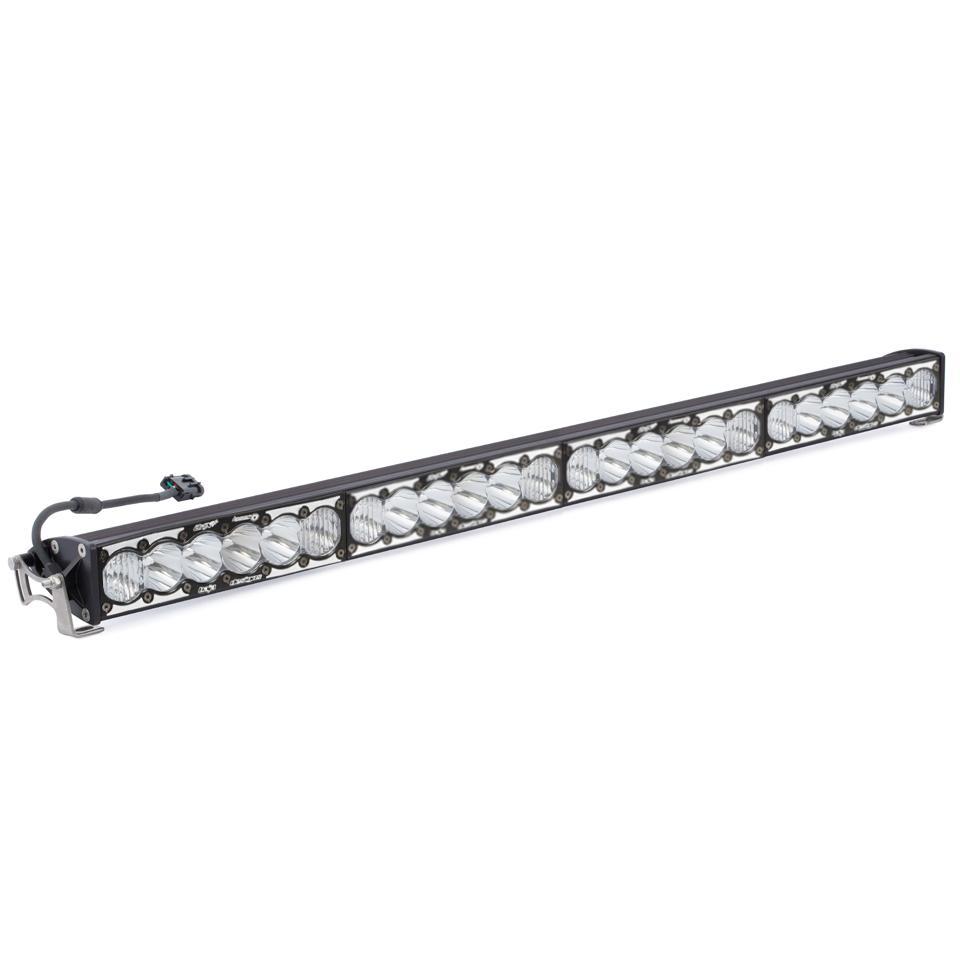

40" OnX6 Hybrid Laser and LED Light Bar
40" OnX6 Hybrid Laser and LED Light Bar
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
The Laser Light is capable of throwing light 60% farther than our current OnX6+ Light Bar. We have created a "Hybrid" light in order to give the user the ultimate lighting package. A 40" OnX6 Hybrid projects 8 laser chips and 12 LED chips through our High Speed Spot optic to deliver a far reaching, yet smooth blend of light – elevating forward projection lighting into the next generation! If you want to stay ahead of the competition with farthest reaching product on the market, look no further.
SPECS:
- Lumens: 31,040 Utilizing 16 LEDs and 8 Laser Chips
- Wattage/Amps: 380w
- Dimensions: 40" x 4.29" x 2.69"
- Weight: 15.05 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
TECH NOTES:
- 40" and 50" Hybrid Laser light bars are extremely high output and as such must be built as dual power cord/ dual control. You will need two harnesses to power a 40" or 50" bar. Please verify that your vehicle has the electrical output to run these products before purchase.
- OnX6 Hybrid bars sized 20" and above only function with one on/off switch- unlike the 10" Hybrid bars that feature separate switches for the LED chips and Laser chips, respectively.
