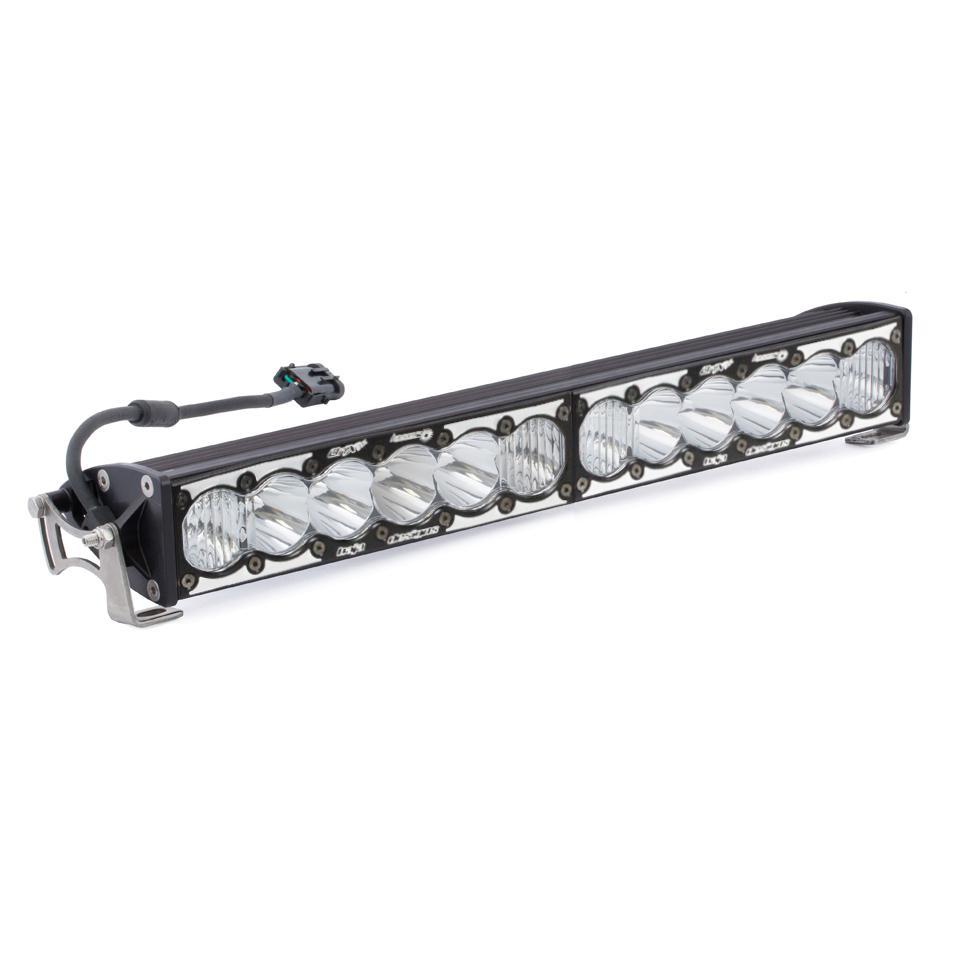

20" OnX6 Hybrid Laser and LED Light Bar
STATE OF CALIFORNIA CONSUMER WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm.
The Laser Light is capable of throwing light 60% farther than our current OnX6+ Light Bar. We have created a "Hybrid" light in order to give the user the ultimate lighting package. A 20" OnX6 Hybrid projects 4 laser chips and 8 LED chips through our High Speed Spot optic to deliver a far reaching, yet smooth blend of light – elevating forward projection lighting into the next generation.
Note: OnX6 Hybrid bars sized 20" and above only function with one on/off switch- unlike the 10" Hybrid bars that feature separate switches for the LED chips and Laser chips, respectively.
SPECS:
- Lumens: 15,520 Utilizing 8 LEDs and 4 Laser Chips
- Wattage/Amps: 190w
- Dimensions: 20" x 4.29" x 2.69"
- Weight: 7.85 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
